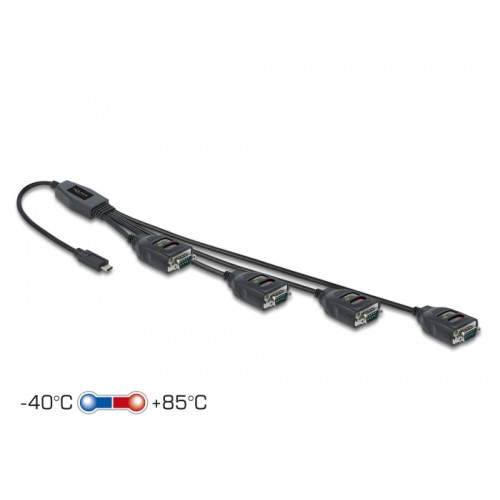

Delock Adapter USB Type-C™ to 4 x Serial RS-232 DB9 with 15 kV ESD protection
90495
Nuovo
Description
This USB Type-C™ to serial adapter by Delock provides four RS-232 DB9 interfaces for printers, measuring instruments, controllers, IoT devices etc. At each of the RS-232 ports three LEDs indicate the transmission and reception status as well as the USB power.
Specification
• Connectors:
1 x USB Type-C™ male
4 x serial RS-232 DB9 male
• Serial connector with nuts
• Chipset: FTDI FT231XS
• Data transfer rate up to 460.8 Kbps
• FIFO: 512 Byte - RX
• FIFO: 512 Byte - TX
• Databits: 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• LED colour: red, orange, green
• ±15 kV ESD protection for all serial signals
• Operating temperature: -40 °C ~ 85 °C
• Cable length without connectors: ca. 63 cm
System requirements
• Linux Kernel 4.9 or above
• Mac OS 10.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Package content
• USB Type-C™ to 4 x serial adapter
• Driver CD
• User manual
This USB Type-C™ to serial adapter by Delock provides four RS-232 DB9 interfaces for printers, measuring instruments, controllers, IoT devices etc. At each of the RS-232 ports three LEDs indicate the transmission and reception status as well as the USB power.
Specification
• Connectors:
1 x USB Type-C™ male
4 x serial RS-232 DB9 male
• Serial connector with nuts
• Chipset: FTDI FT231XS
• Data transfer rate up to 460.8 Kbps
• FIFO: 512 Byte - RX
• FIFO: 512 Byte - TX
• Databits: 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• LED colour: red, orange, green
• ±15 kV ESD protection for all serial signals
• Operating temperature: -40 °C ~ 85 °C
• Cable length without connectors: ca. 63 cm
System requirements
• Linux Kernel 4.9 or above
• Mac OS 10.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Package content
• USB Type-C™ to 4 x serial adapter
• Driver CD
• User manual
