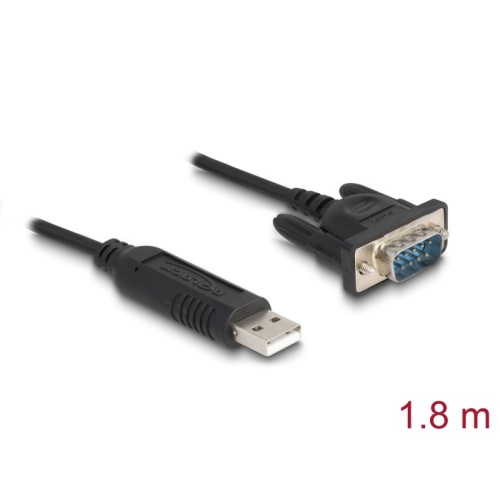

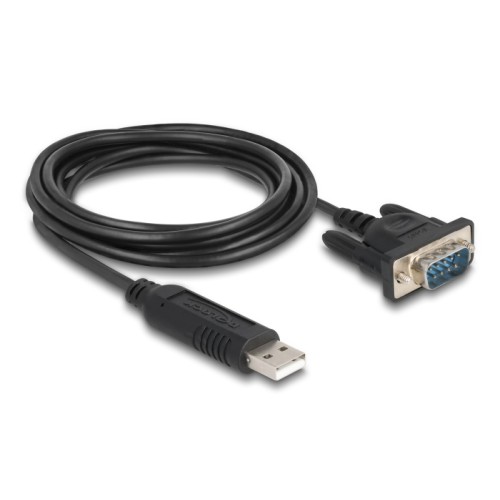

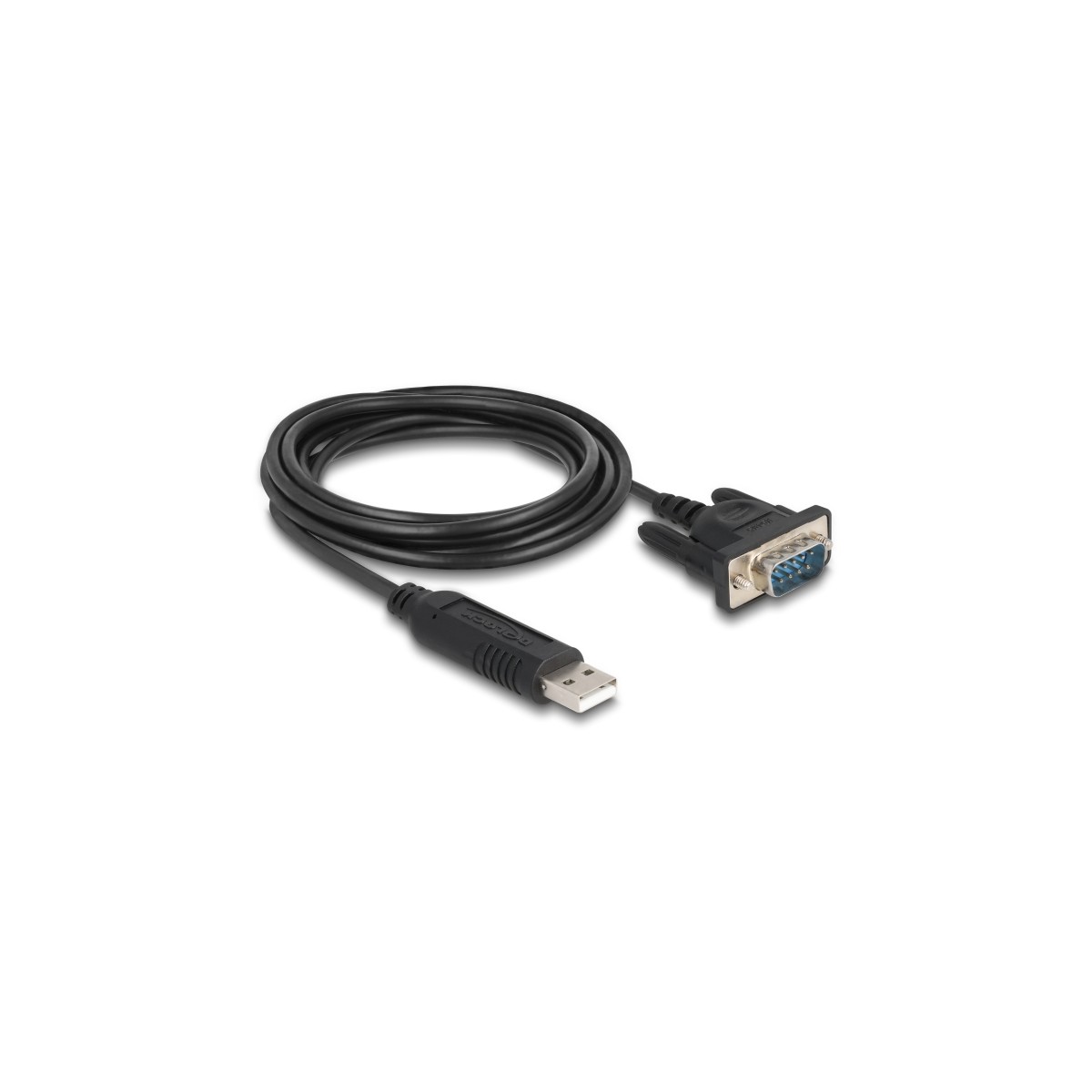

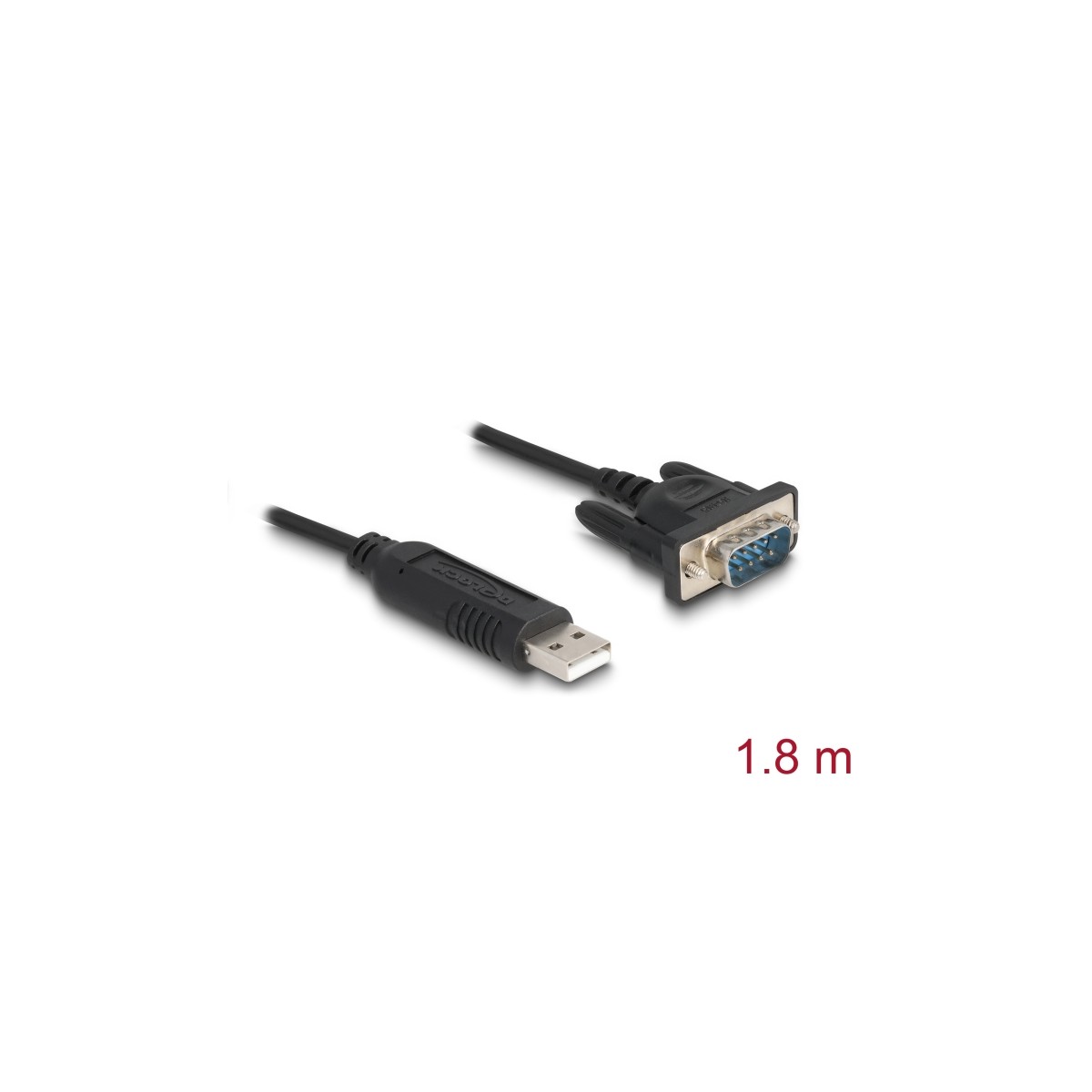

Delock USB 2.0 to serial RS-485 adapter with 15 kV ESD protection and a compact serial connector housing
66283
Nuovo
Description
This USB 2.0 Type-A to serial adapter by Delock provides an RS-485 port for meters, POS systems, printers, modems, IoT devices, etc.
User-friendly RS-485 plug
The RS-485 connector is characterized by its small dimensions (39.0 x 33.0 x 14.7 mm) and provides a pleasant handling at device connections, cable glands, patch panels, etc.
Specification
• Connectors:
1 x USB 2.0 Type-A male >
1 x serial RS-485 DB9 male with screws
• Chipset: FTDI FT232
• Data transfer rate up to 921.6 Kbps

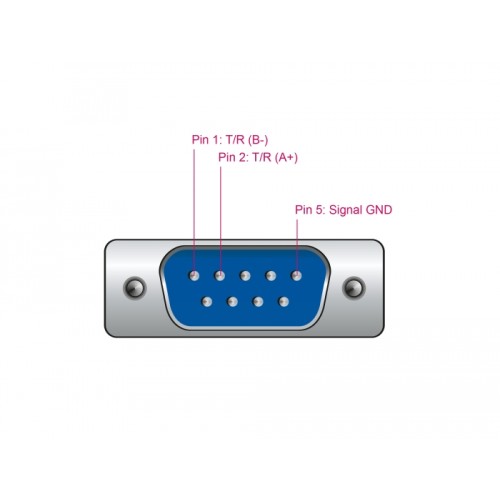

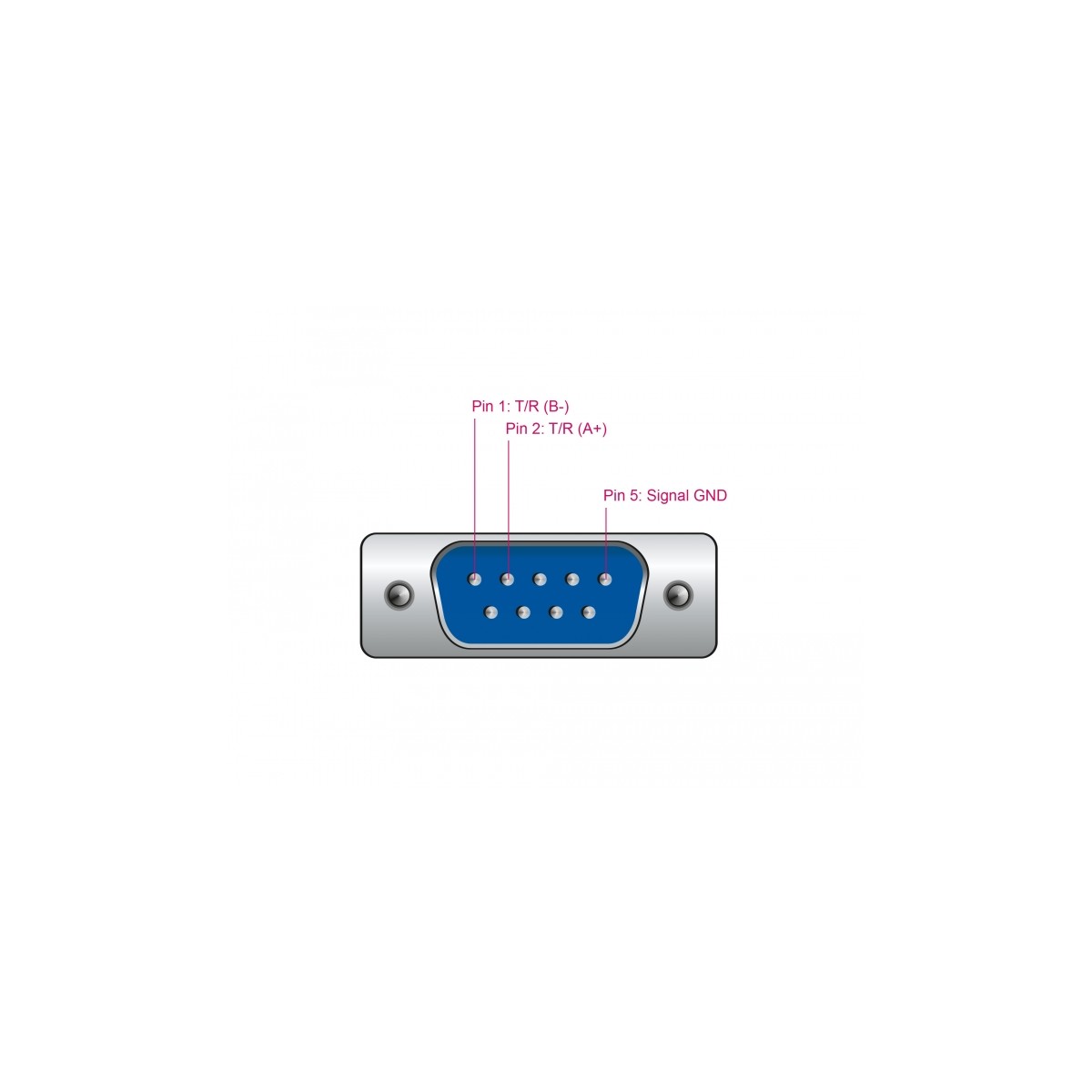

• Signals: T/R (A+), T/R (B-) and GND
• Parity: even, odd, none, mark, space
• Stop bits: 1, 2
• Databits: 7, 8
• FIFO: 128 Byte - RX
• FIFO: 256 Byte - TX
• ESD protection:
±15 KV ESD Human Body Model (HBM)
±15 kV ESD IEC 61000-4-2 air discharge
±8 kV ESD IEC 61000-4-2 contact discharge
• Cable length incl. connectors: ca. 1.8 m
System requirements
• Linux Kernel 2.6 or above
• Mac OS 10.9 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB 2.0 to 1 x serial RS-485 adapter
• Driver CD
• User manual
This USB 2.0 Type-A to serial adapter by Delock provides an RS-485 port for meters, POS systems, printers, modems, IoT devices, etc.
User-friendly RS-485 plug
The RS-485 connector is characterized by its small dimensions (39.0 x 33.0 x 14.7 mm) and provides a pleasant handling at device connections, cable glands, patch panels, etc.
