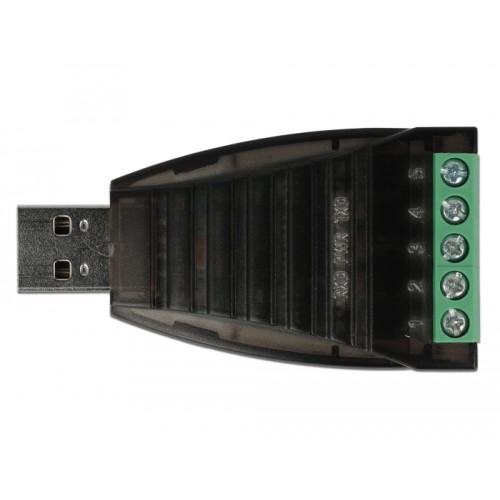

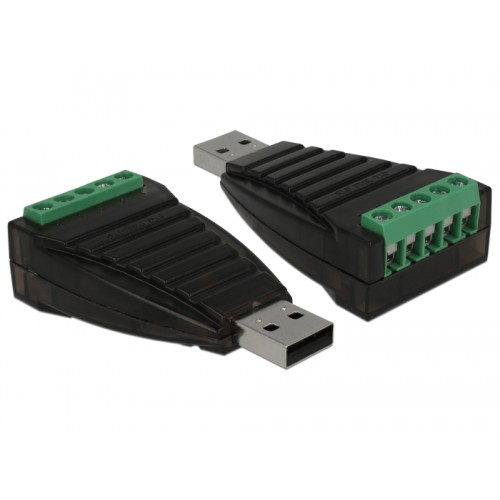

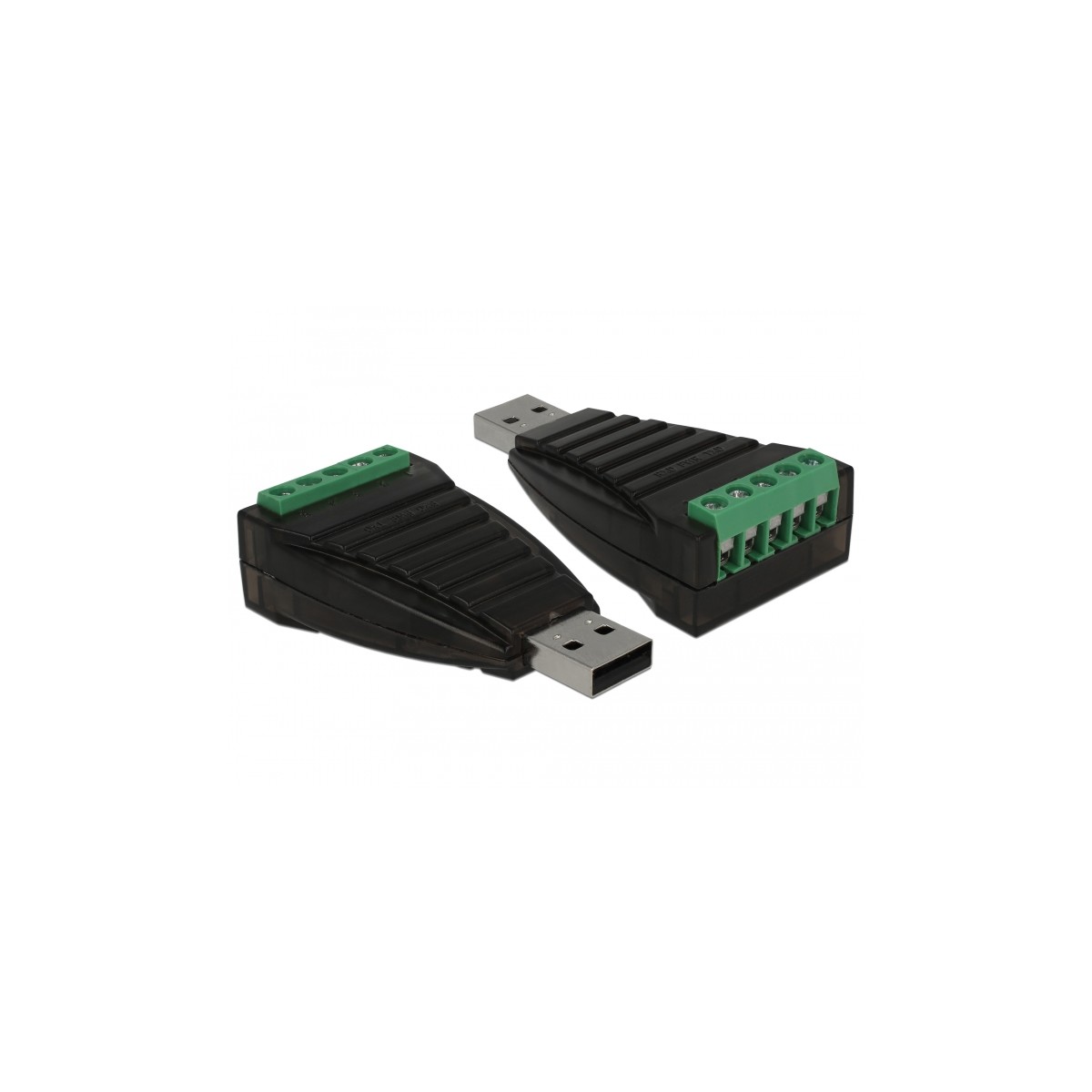

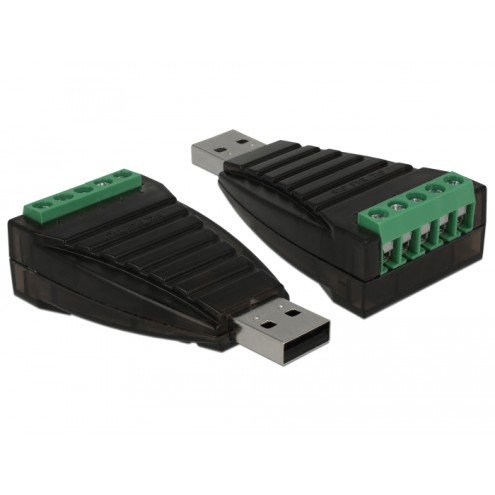

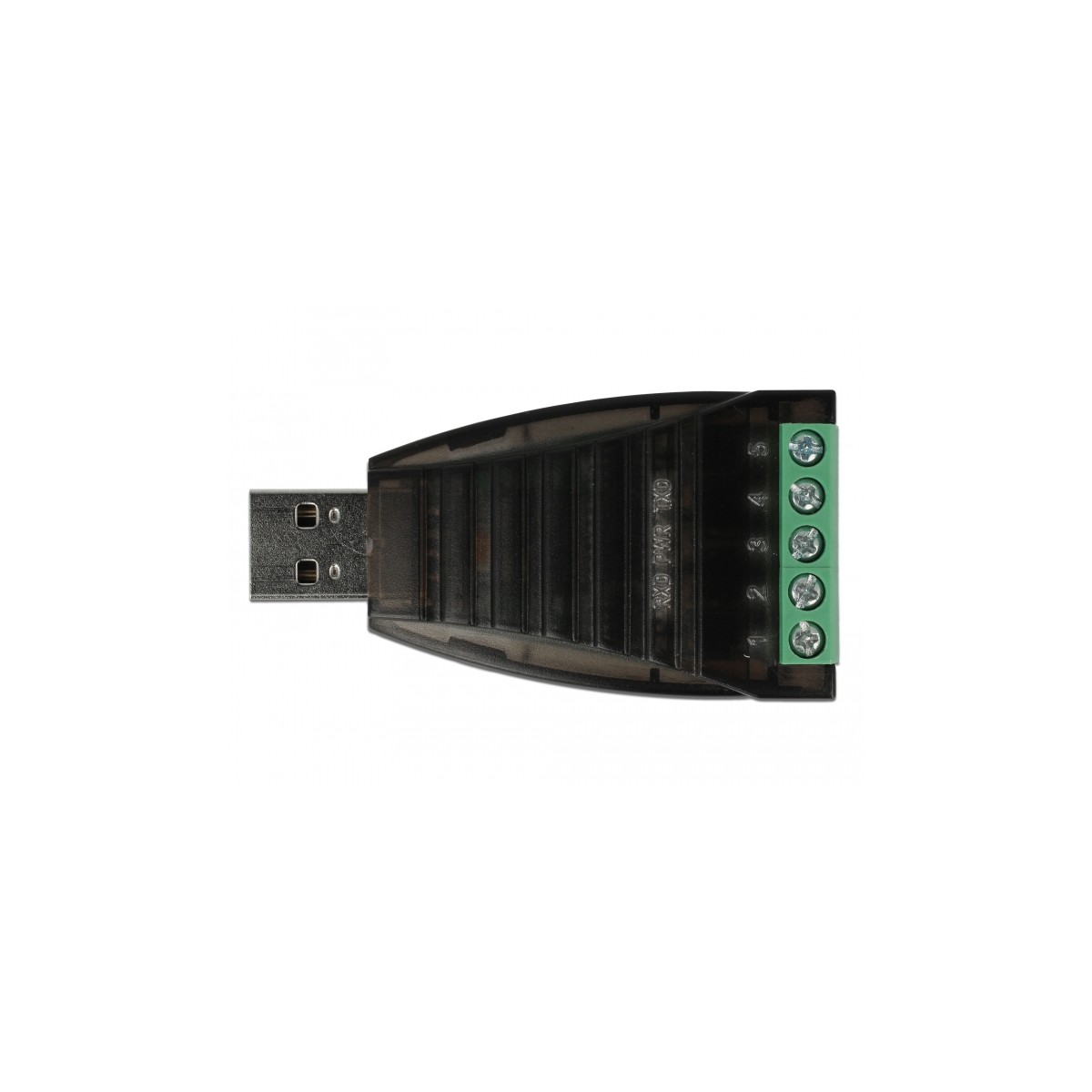

Delock Converter USB Type-A to Serial RS-422/485 terminal block with surge protection 600 W
87738
Nuovo
Description
This USB Type-A to RS-422/485 converter by Delock expands the computer by an industrial interface for machine controls, fieldbus systems, measuring instruments, computers, printers etc.
Protection features
The adapter protects itself and externally connected devices against electrostatic discharges (ESD) and surge voltage.
Extended temperature range
The adapter supports with extended temperature range high reliability even in demanding environments.
Specification
• Connectors:
1 x USB Type-A male

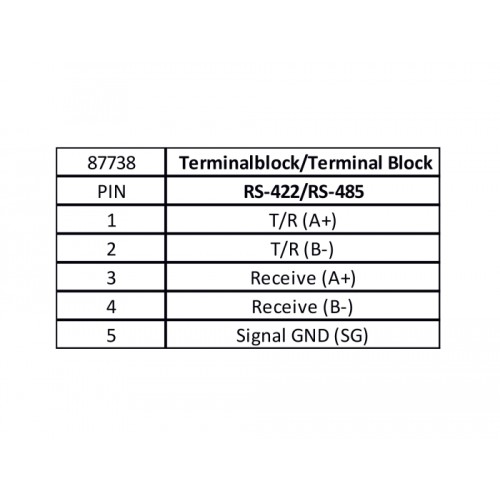

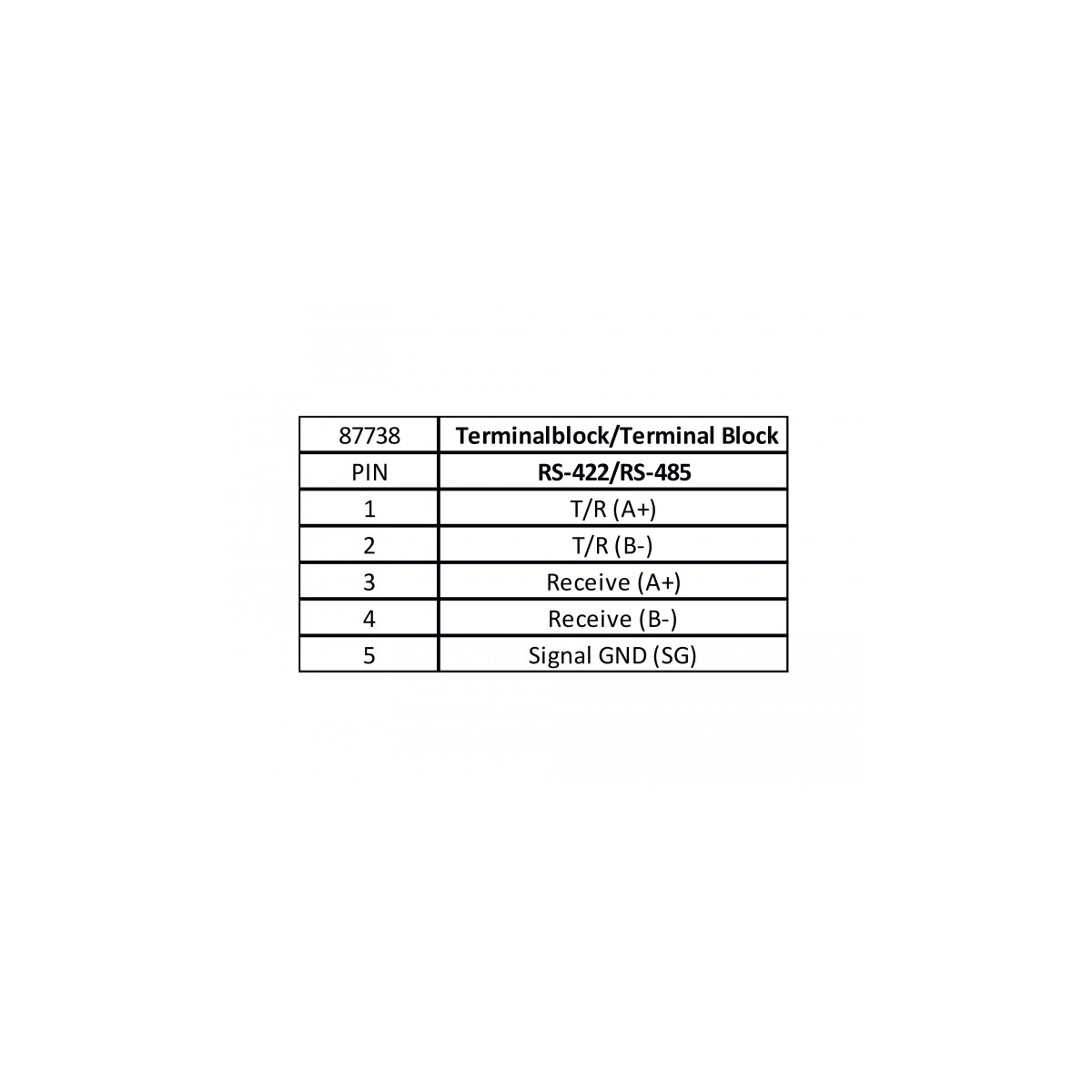

1 x RS-422/485 Terminal Block 5 pin
• Chipset: FTDI FT232R
• Auto data flow control
• Plug & Play
• Data transfer: asynchronous, full duplex, half duplex
• Data transfer rate up to 921.6 Kbps
• Supports Modbus
• ±15 kV ESD protection on all signal pins
• Surge Protection: 600 W peak pulse (TVS)
• 3 x LED indicator for power and activity
• Housing material: plastic
• Colour: black
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 5 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 62 x 33 x 16 mm
System requirements
• Linux Kernel 4.6 or above
• Mac OS 10.14.1 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• Converter USB Type-A to RS-422/485
