Description

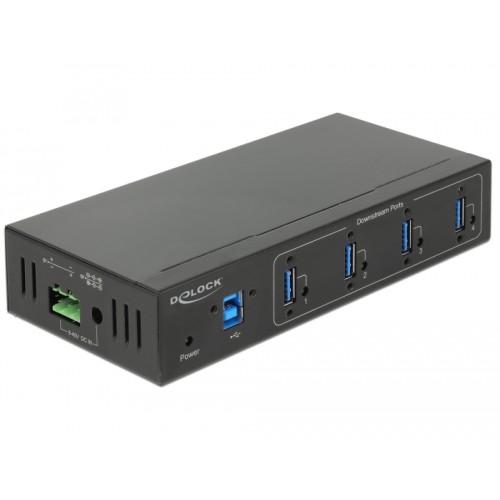

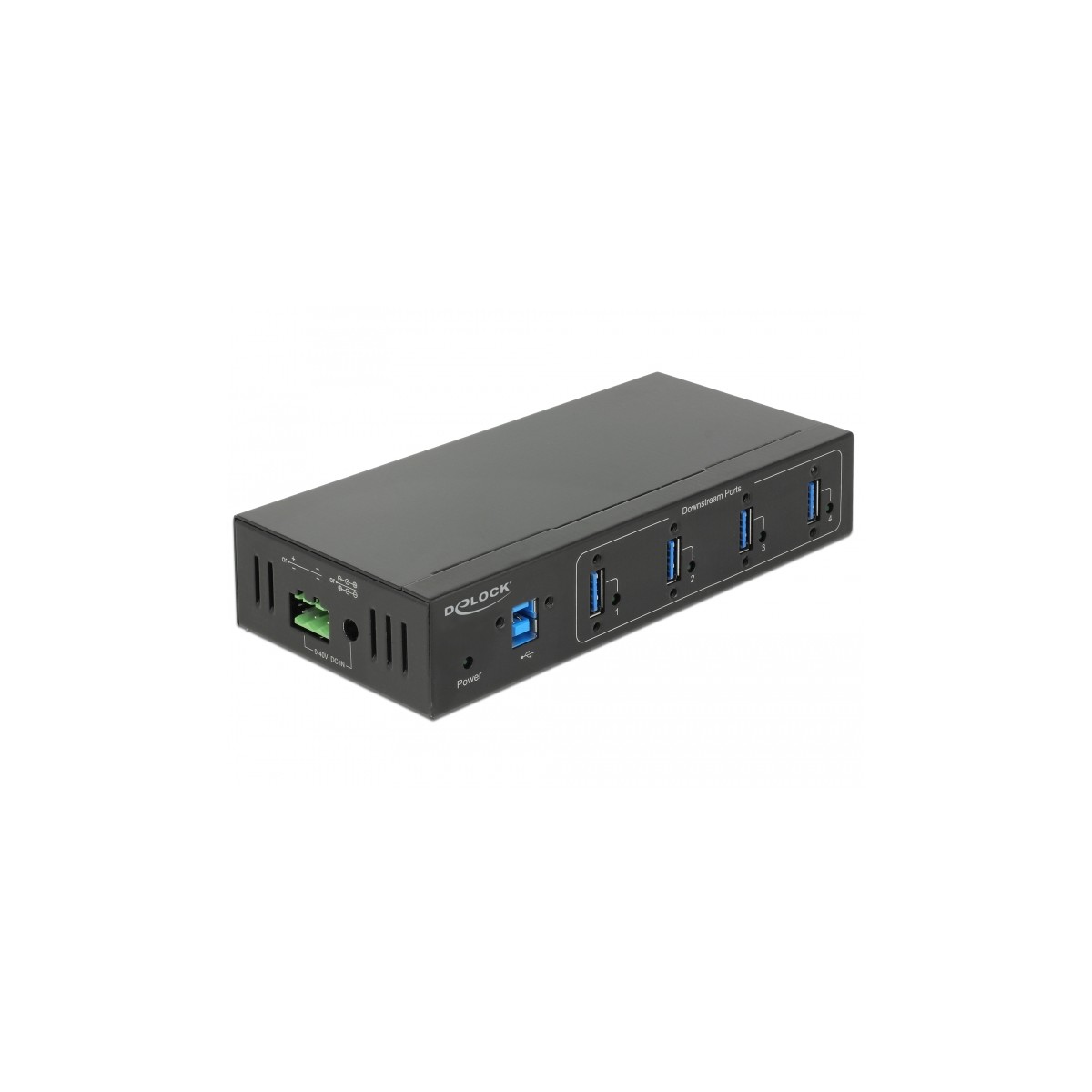

This solid industry capable USB hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by four USB Type-A connectors, which supports the USB Battery Charging specification BC1.2. Thus, connected devices such as smartphones can be charged faster. If necessary, an optional power supply or an optional power cable can be connected to the power socket.
Specification

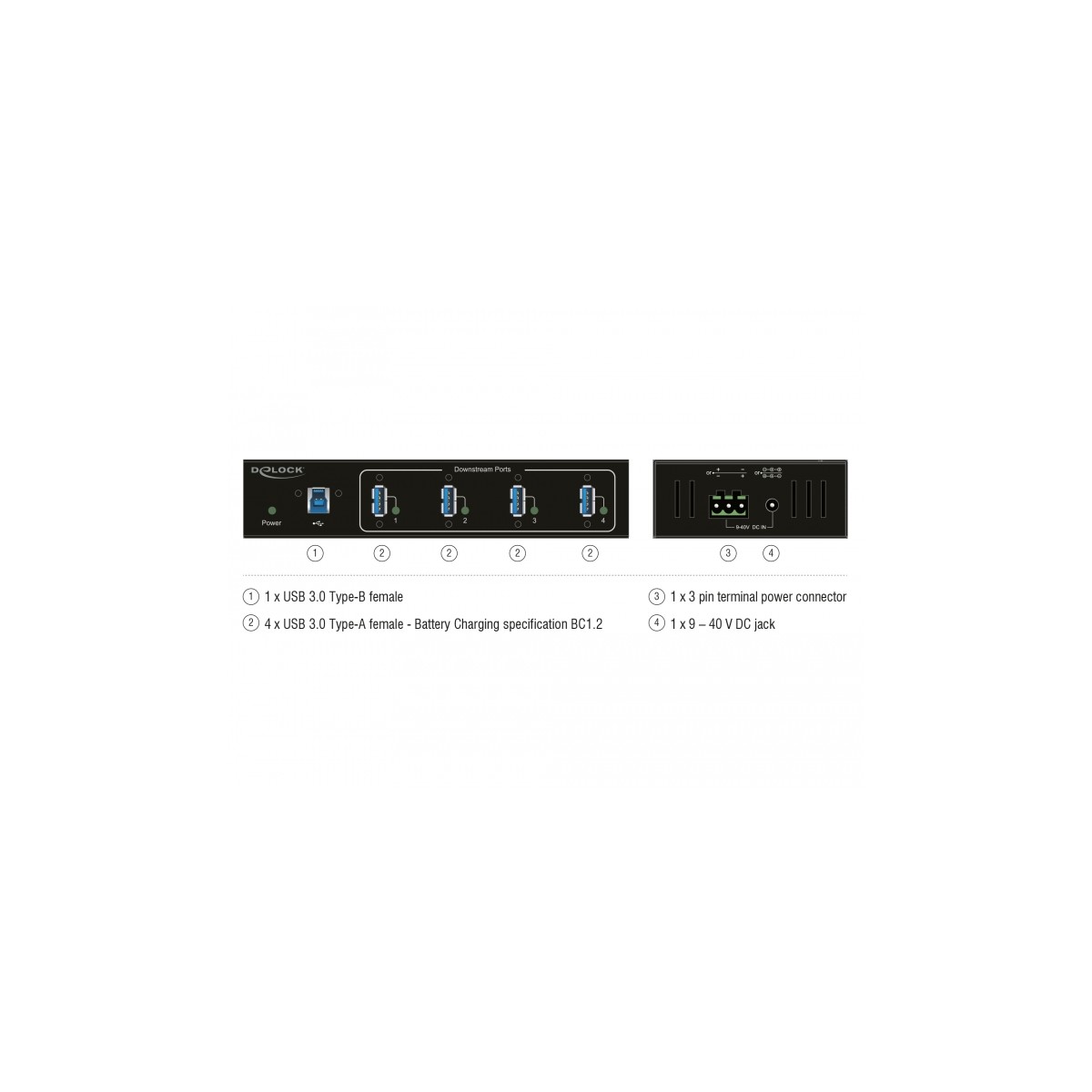

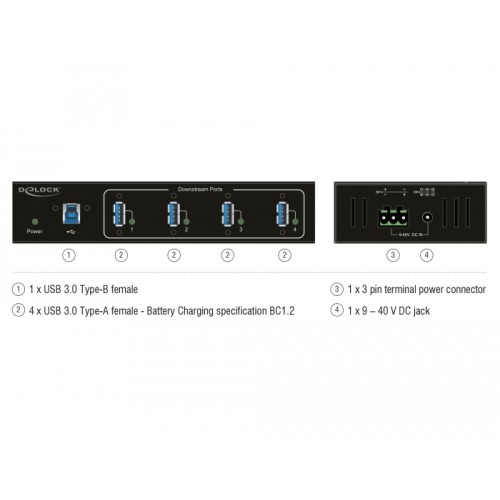

• Connectors:
1 x USB 3.0 Type-B female >
4 x USB 3.0 Type-A female - Battery Charging specification BC1.2
1 x 9 – 40 V DC jack
1 x 3 pin terminal power connector
• Chipset: VIA VL811+
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• 5 x LED indicator
• USB ports with screw holes
• Robust metal housing

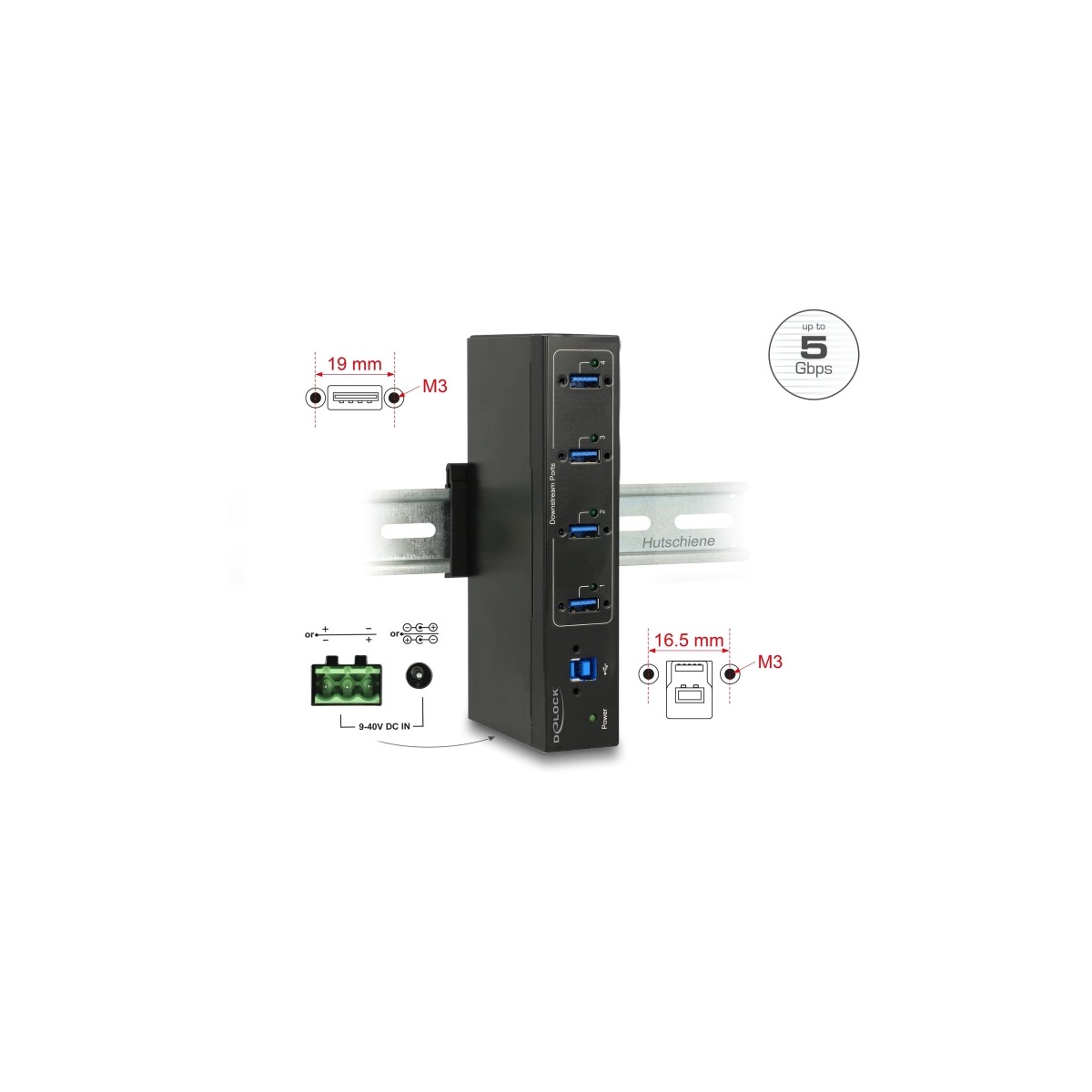

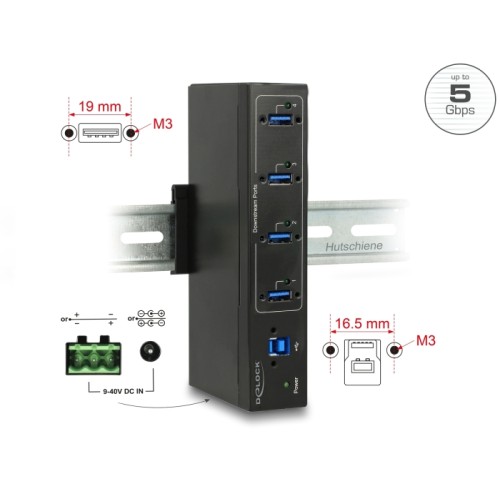

• Pitch of screw hole USB Type-A: ca. 19 mm
• Pitch of screw hole USB Type-B: ca. 16.5 mm
• Thread size: M3

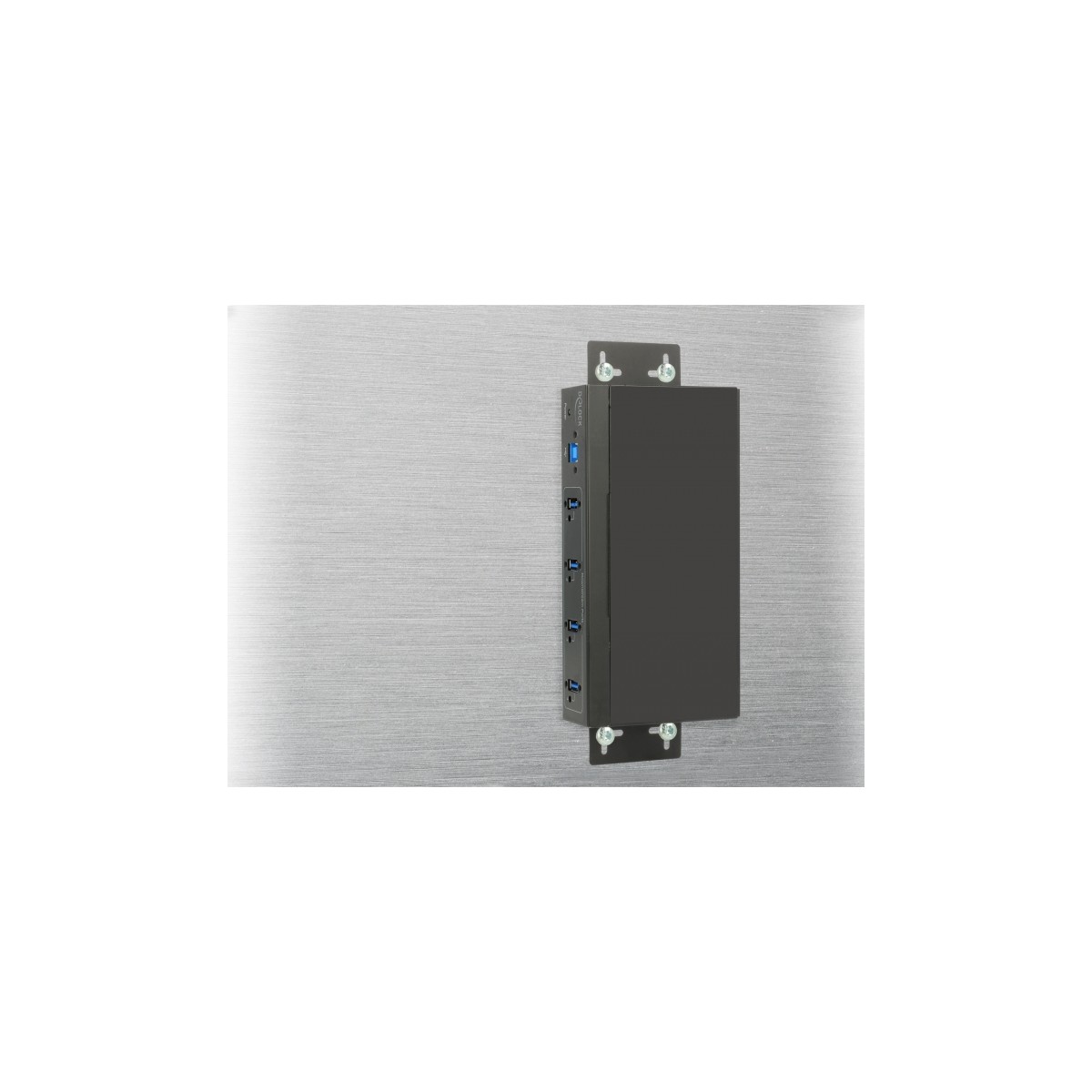

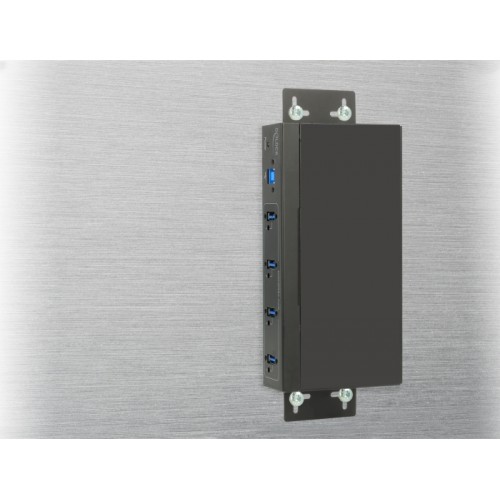

• Removable wall-mount brackets
• Power supply: Bus-powered or Self-powered
• Flexible power supply with 9 V to 40 V
• Automatic detection of the input polarity of the power connectors
• ESD protection up to 15 kV for all ports
• Dimensions (LxWxH): ca. 158 x 80 x 32 mm
• Colour: black
• Plug & Play
Specification of power connector
• 9 - 40 V
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 3.16.x, ex Mac OS 10.9
• PC or laptop with a free USB Type-A port

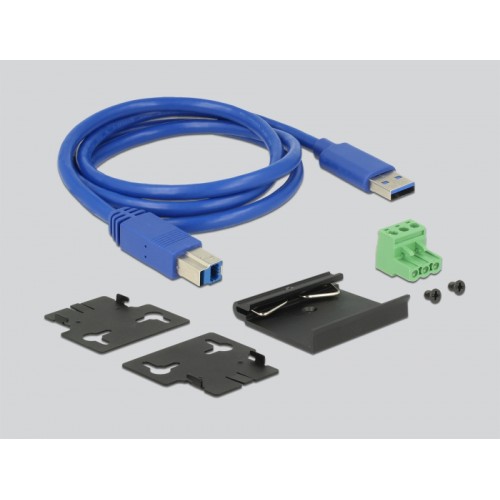

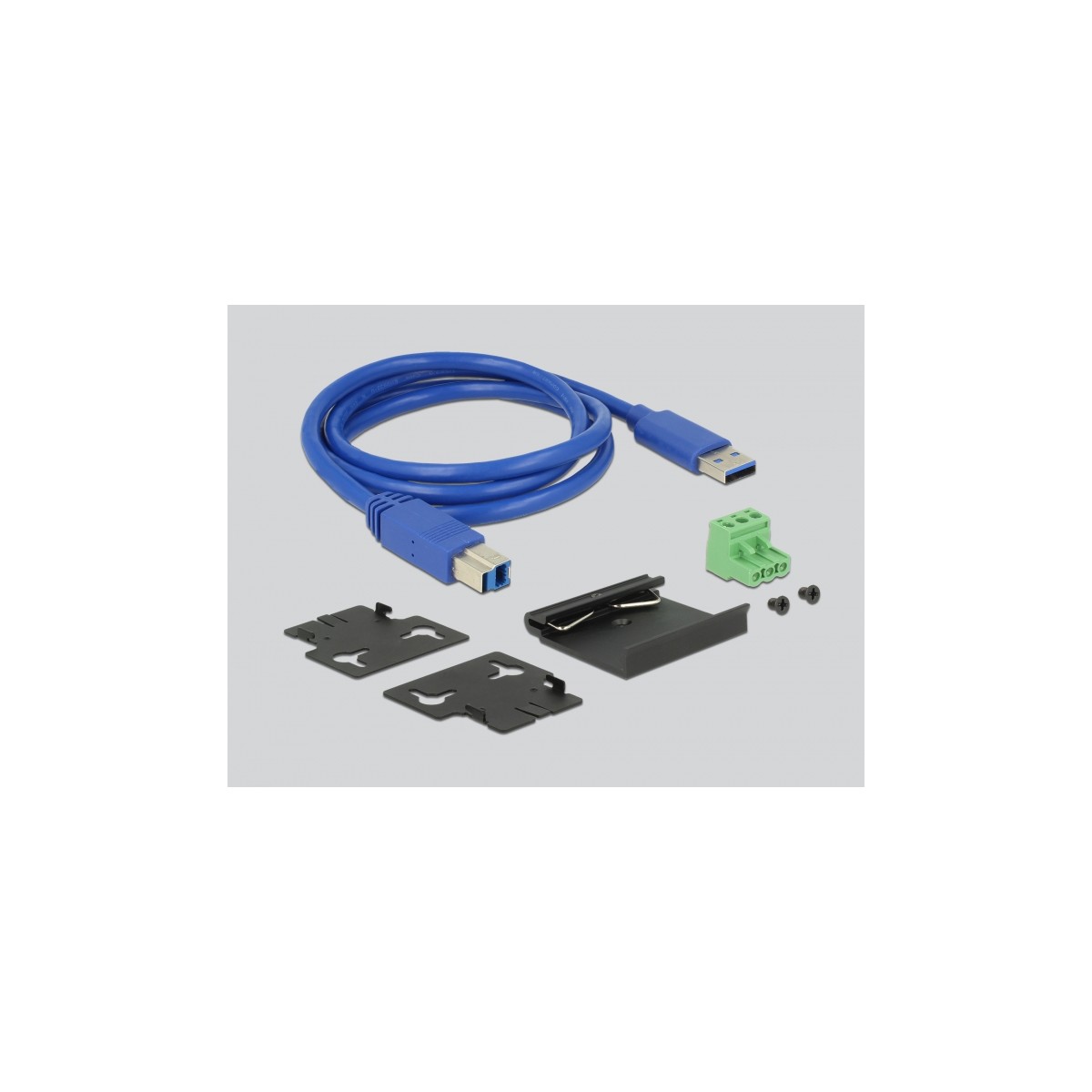

Package content
• Hub USB
• 1 x cable USB A male to USB B male, length ca. 1 m
• 2 x wall mounting brackets
• 1 x DIN rail mounting: 35 mm
• 1 x 3 pin terminal block
• User manual
