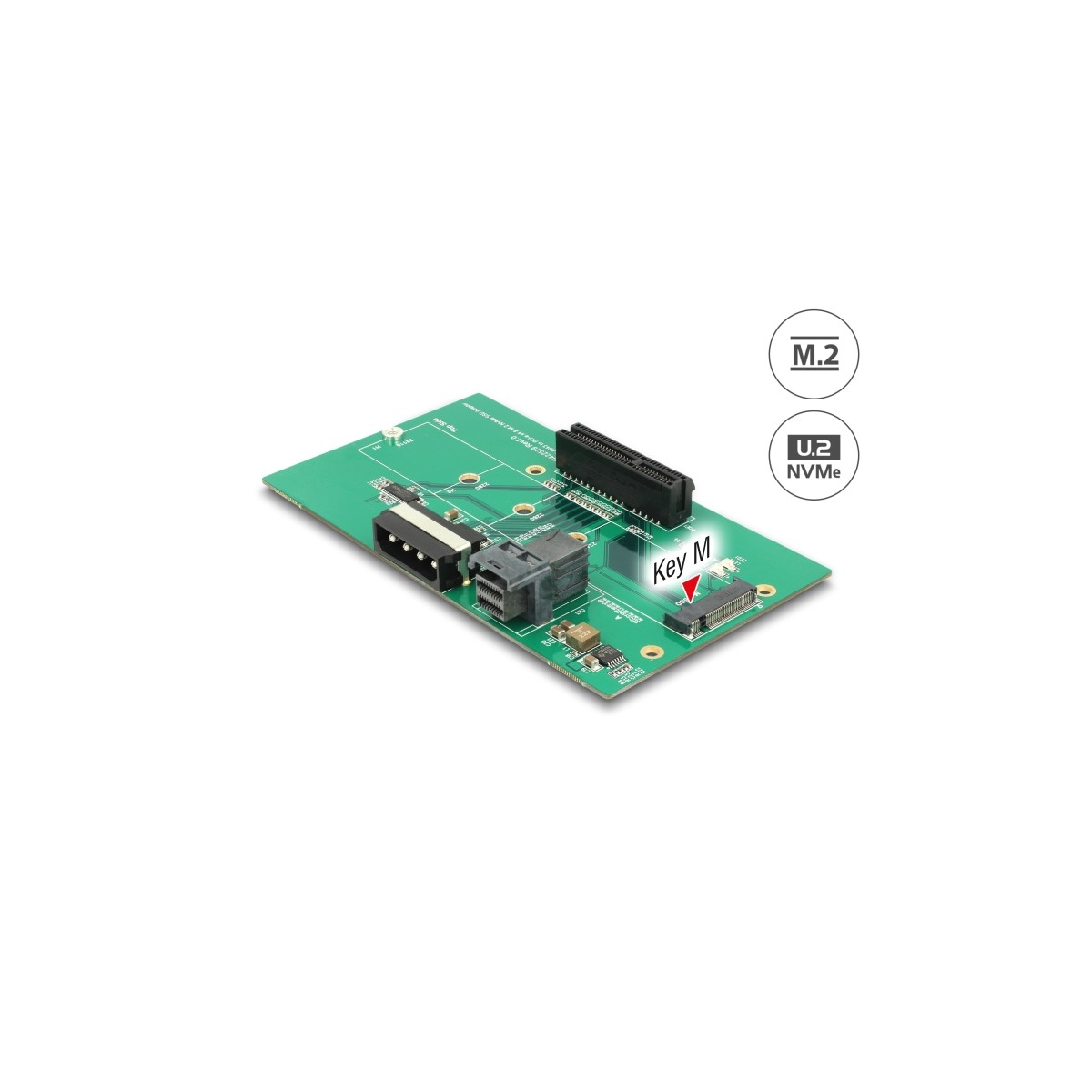

Delock U.2 SFF-8643 Adapter to PCIe x4 or M.2 Key M slot with fixing plate
63952
Nuovo
Description

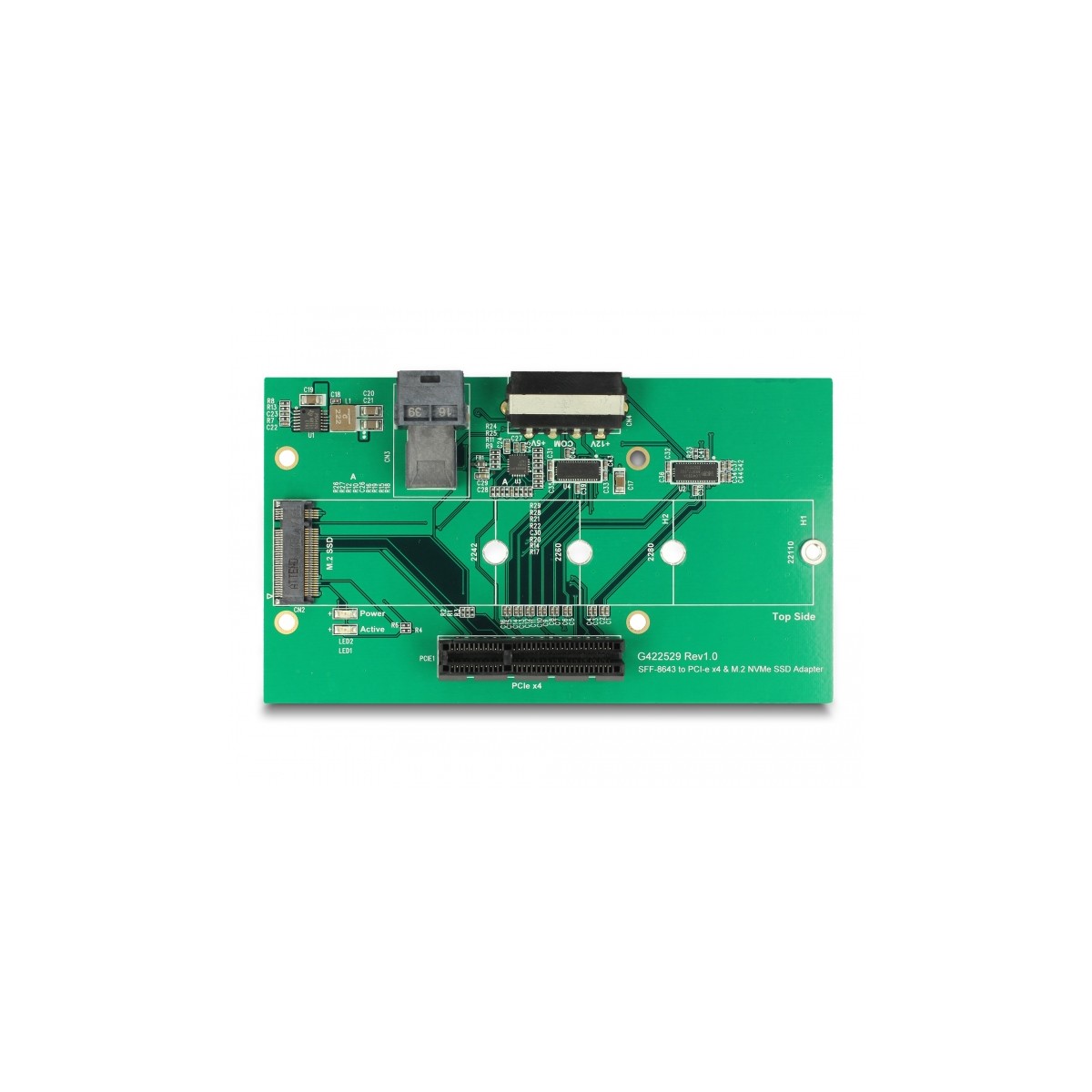

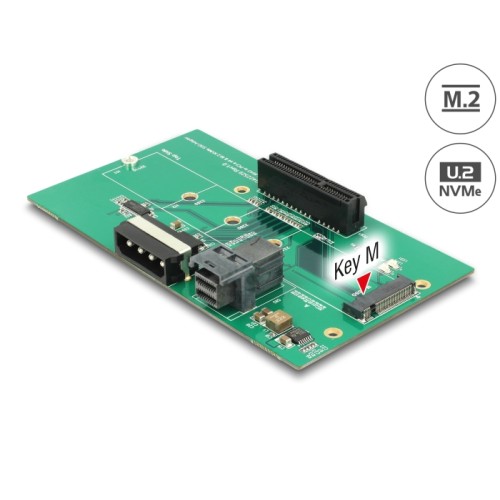

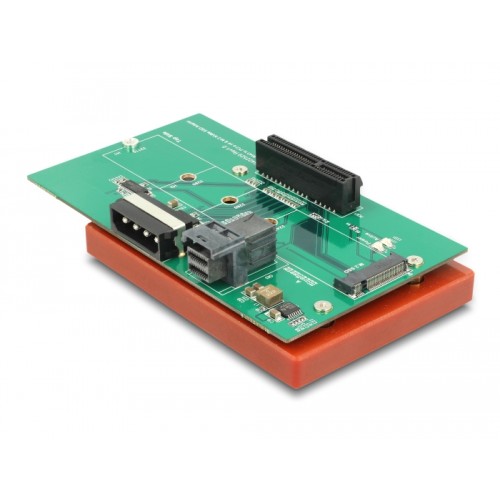

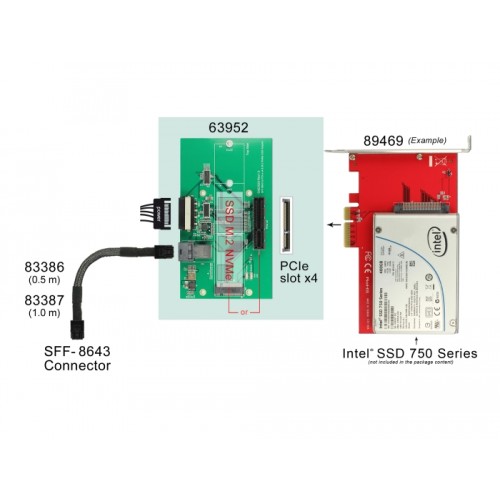

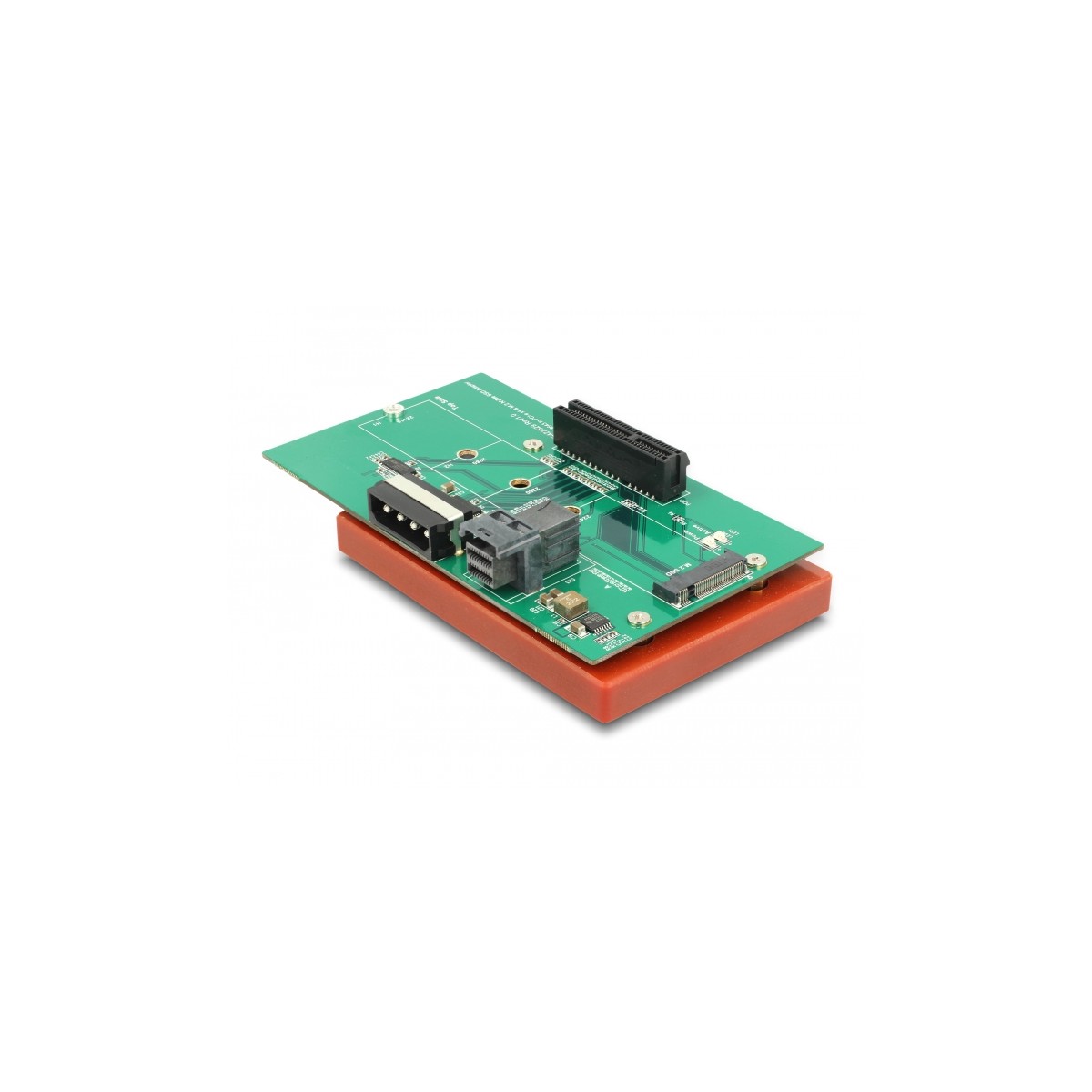

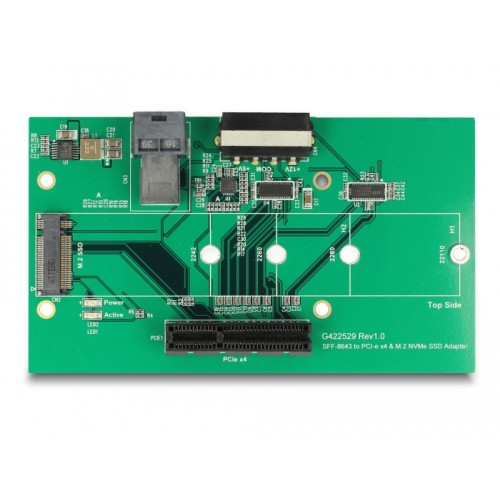

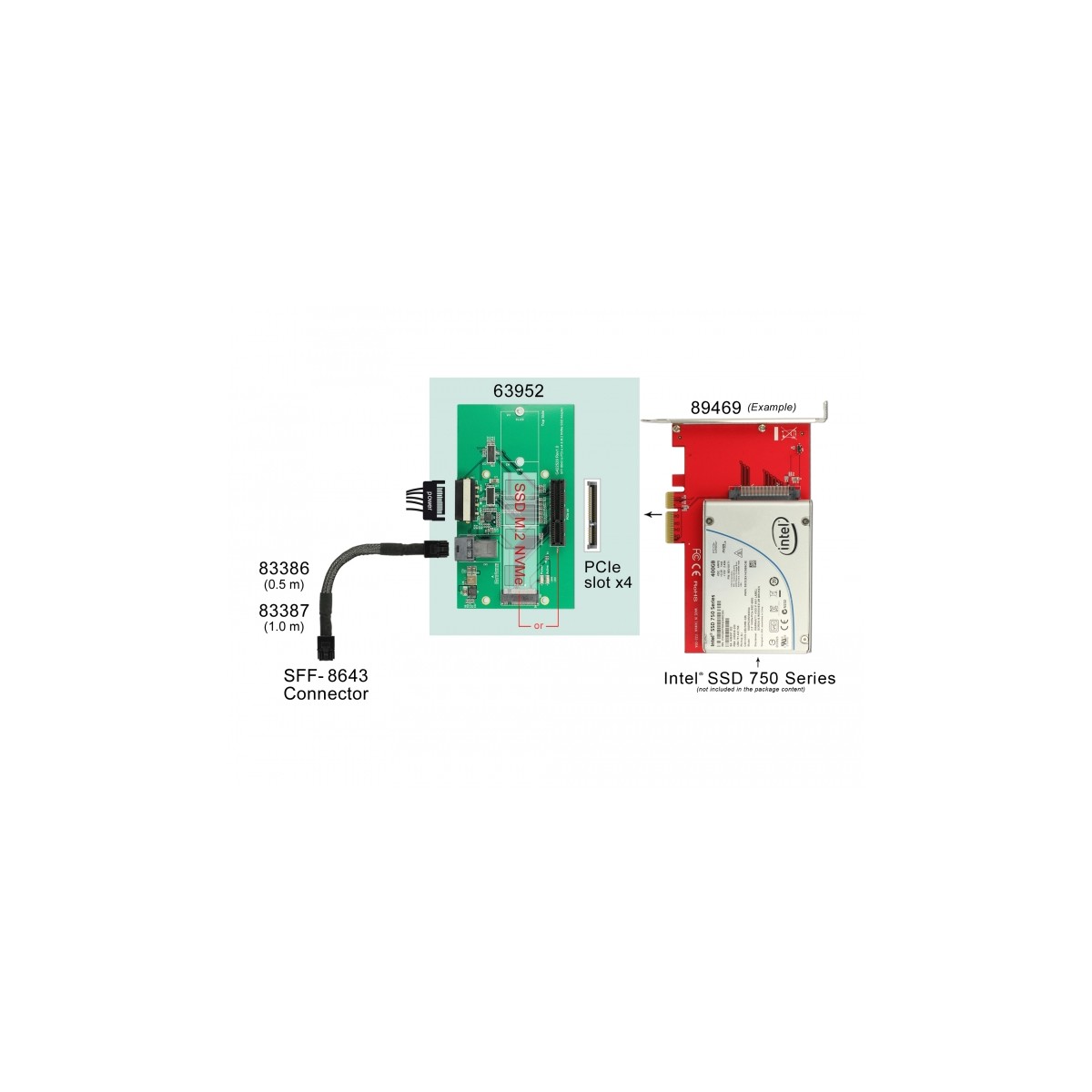

This adapter by Delock can be connected via U.2 interface to the system and provides a PCI Express x4 NVMe or an M.2 key M slot. Suitable cards or M.2 memory can be connected to the slots for the transmission of NVMe signals.
Specification

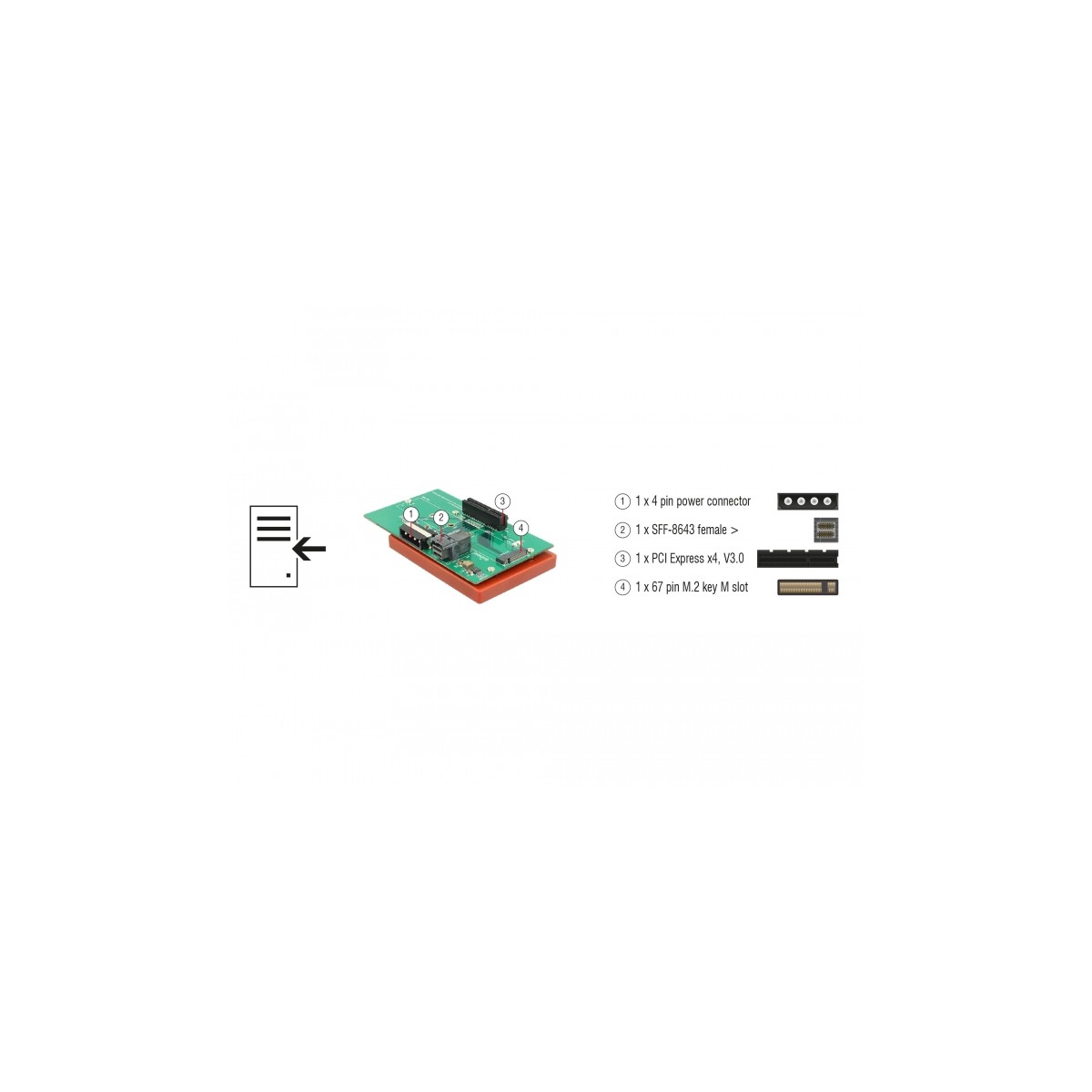

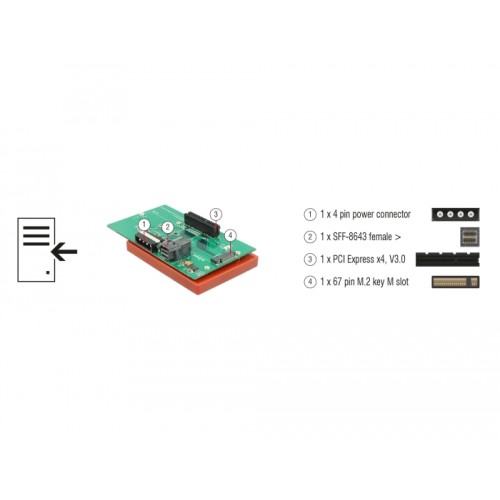

• Connectors:
1 x SFF-8643 female
1 x 4 pin power connector >
1 x PCI Express x4, V3.0
1 x 67 pin M.2 key M slot
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260 and 2242 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• 2 x LED indicator for power and activity
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH):
adapter: ca. 122 x 70 x 18 mm
fixing plate: ca. 95 x 70 x 10 mm
System requirements
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• A free U.2 SFF-8639 interface or
• A free U.2 SFF-8643 interface

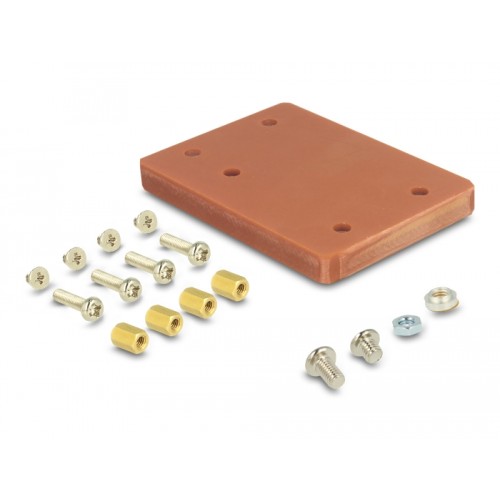

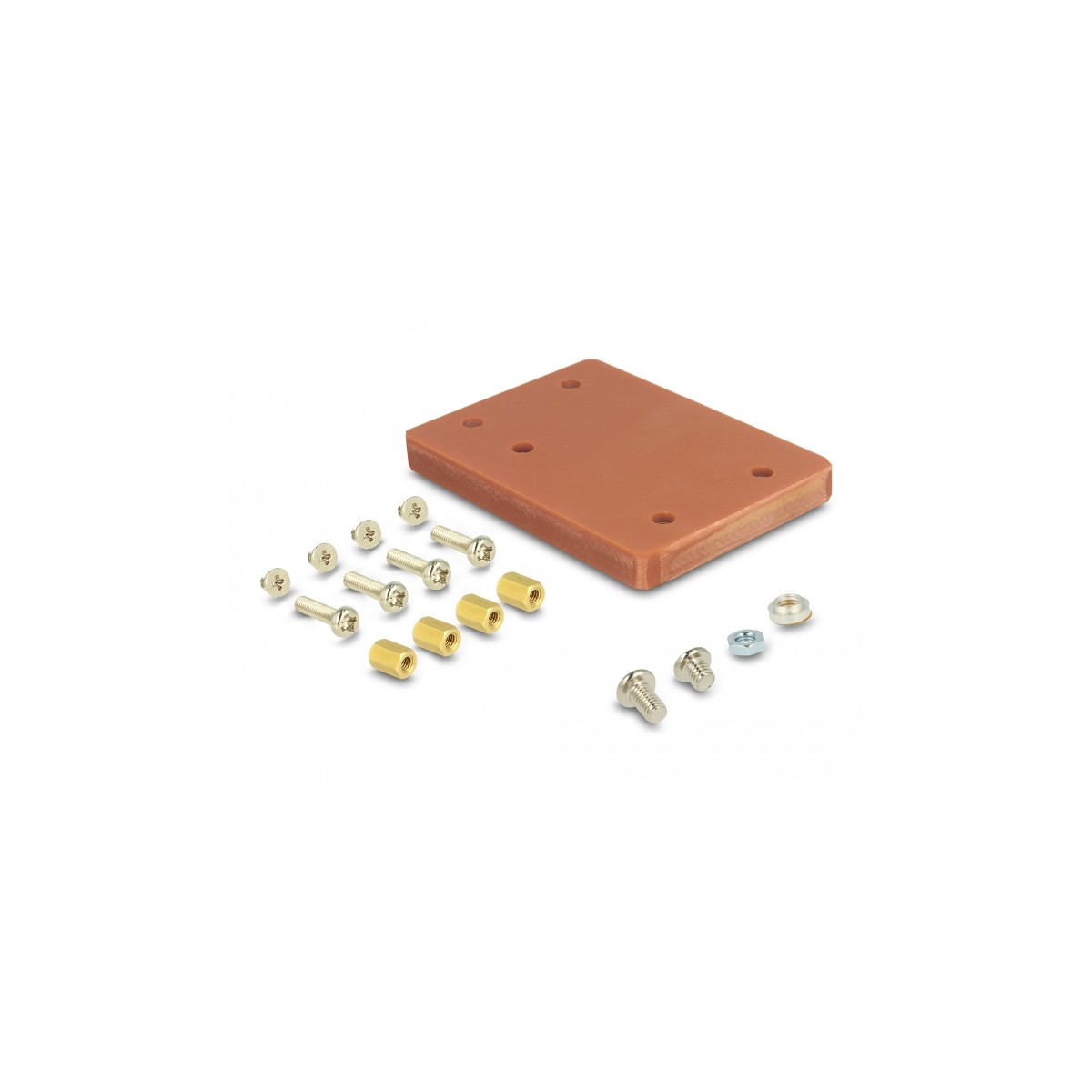

Package content
• Adapter
• Fixing plate
• Screws and spacer
• User manual
This adapter by Delock can be connected via U.2 interface to the system and provides a PCI Express x4 NVMe or an M.2 key M slot. Suitable cards or M.2 memory can be connected to the slots for the transmission of NVMe signals.
Specification
• Connectors:
1 x SFF-8643 female
1 x 4 pin power connector >
1 x PCI Express x4, V3.0
1 x 67 pin M.2 key M slot
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260 and 2242 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• 2 x LED indicator for power and activity
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH):
adapter: ca. 122 x 70 x 18 mm
fixing plate: ca. 95 x 70 x 10 mm
System requirements
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• A free U.2 SFF-8639 interface or
• A free U.2 SFF-8643 interface
Package content
• Adapter
• Fixing plate
• Screws and spacer
• User manual
