Description

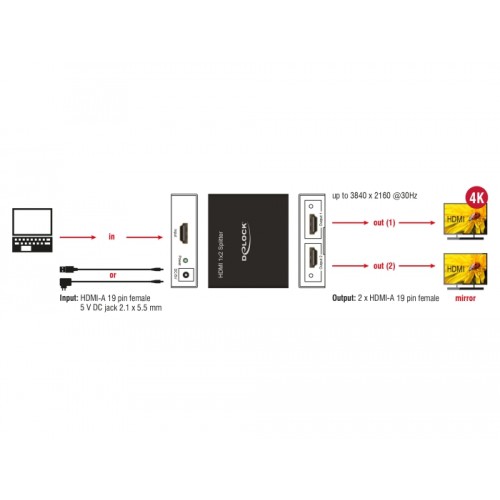

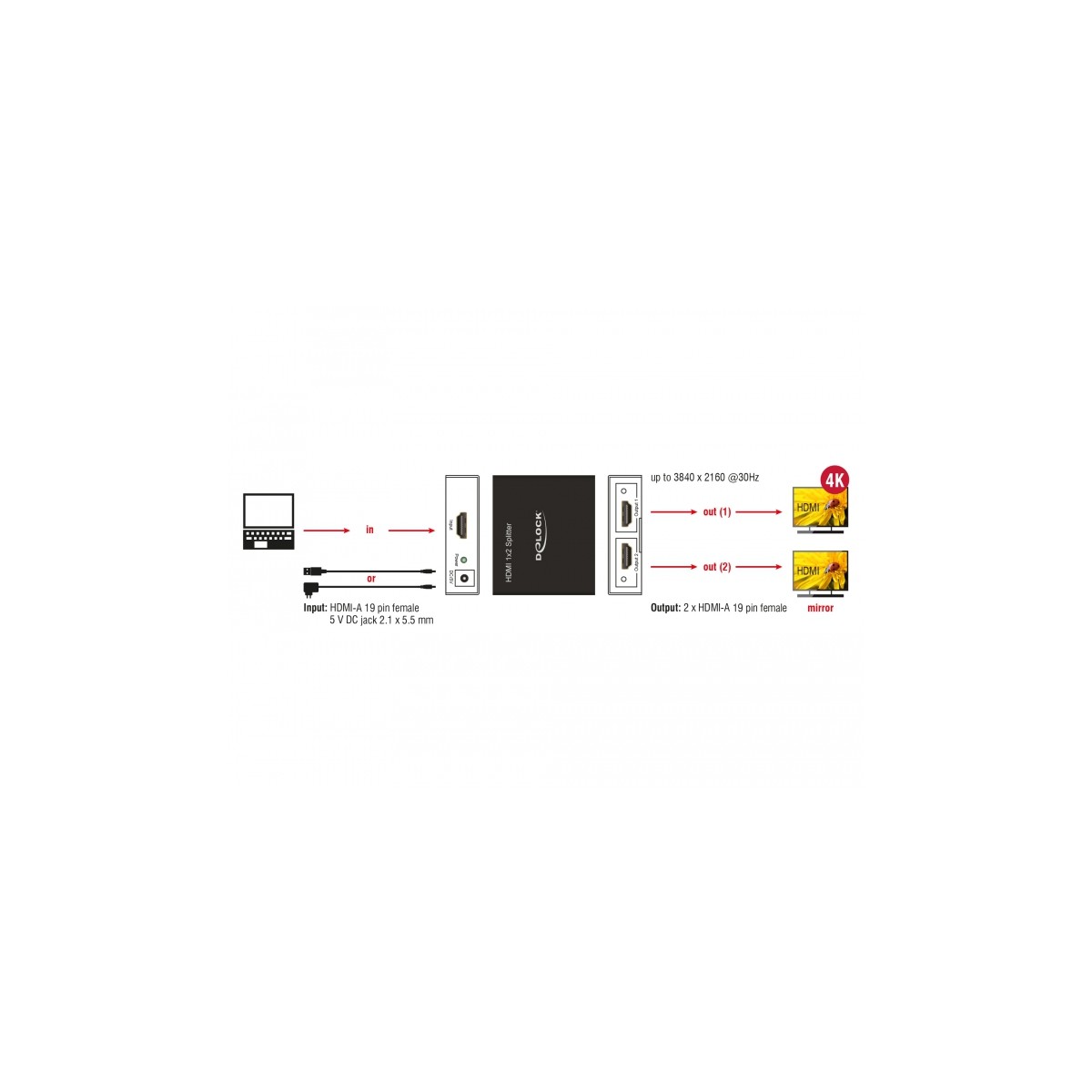

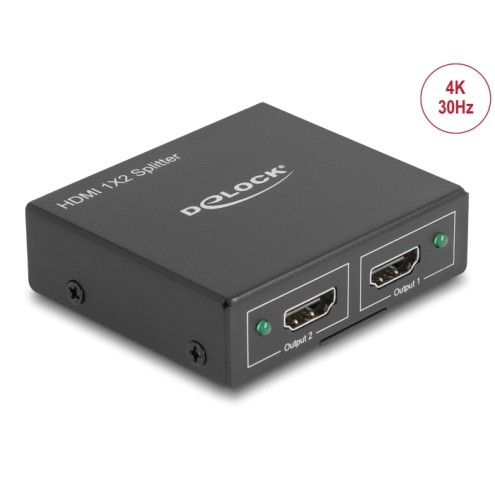

This splitter by Delock receives a HDMI signal from a PC or laptop and splits it to two connected displays. Thereby one HDMI connection can be used to operate two HDMI monitors.
Specification

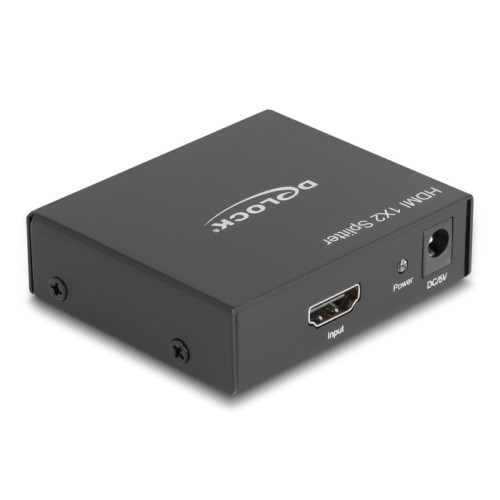

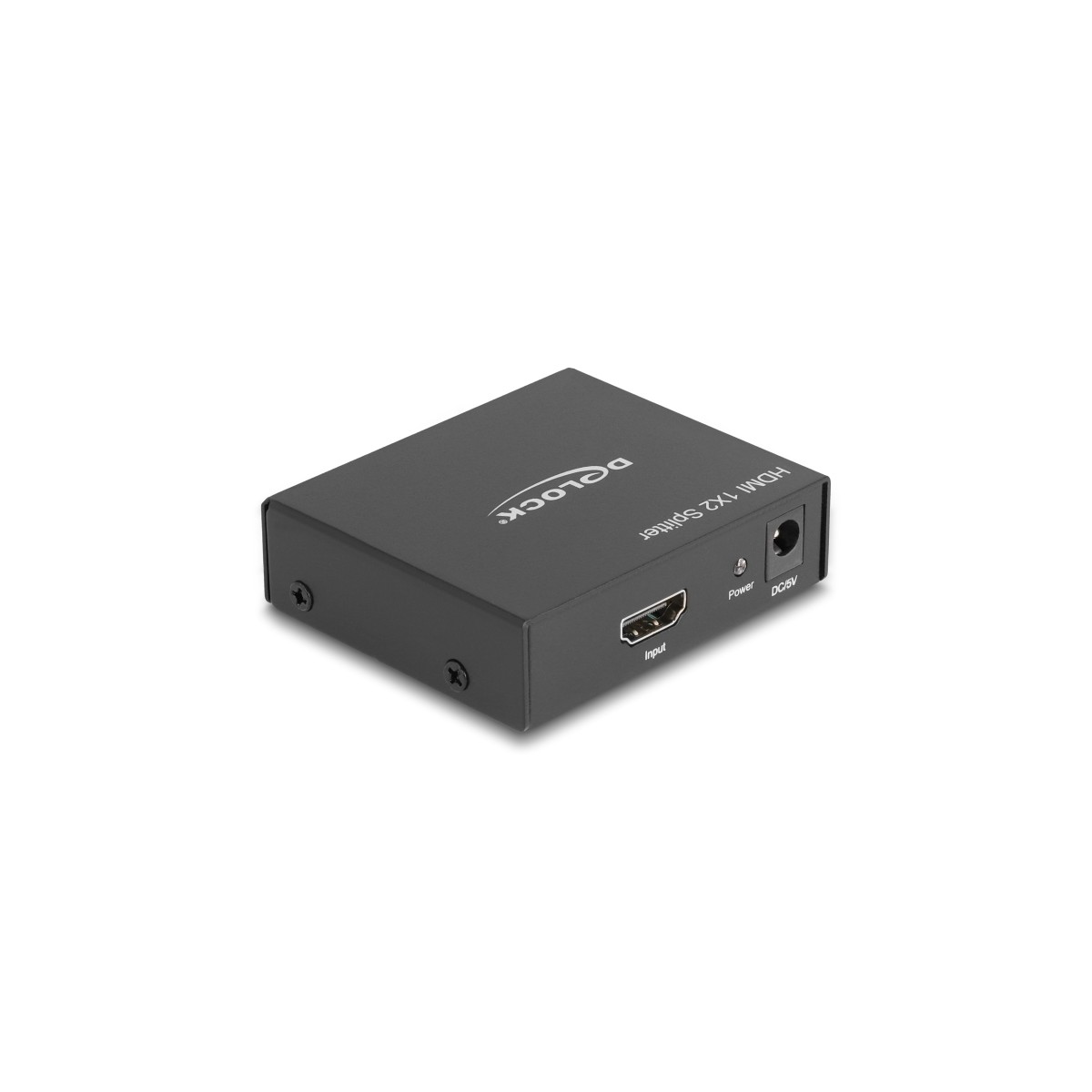

• Connector:
Input:
1 x HDMI-A 19 pin female
1 x 5 V DC jack 2.1 x 5.5 mm

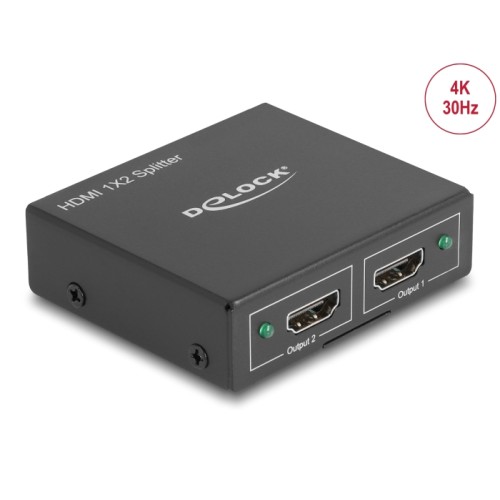

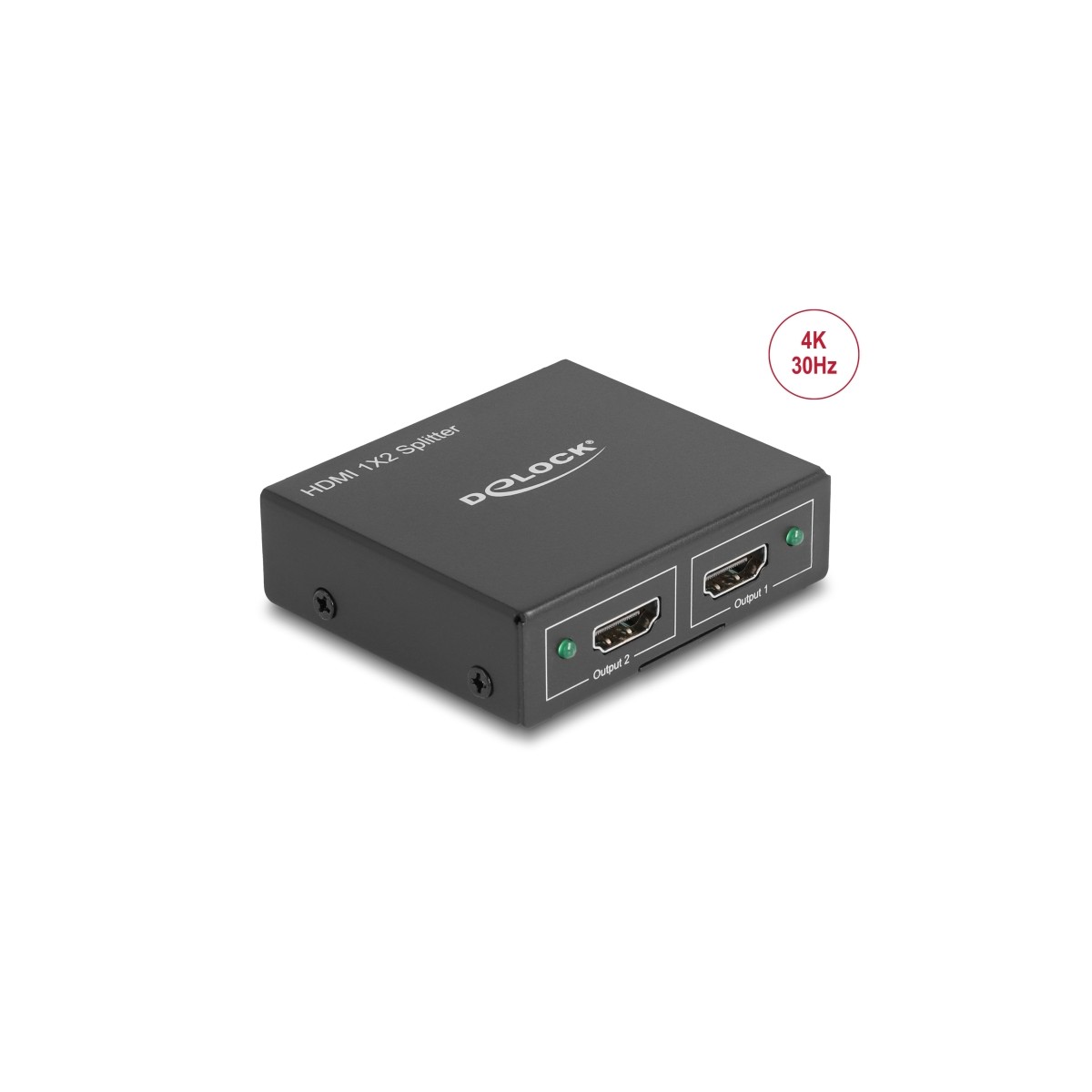

Output:
2 x HDMI-A 19 pin female
• High Speed HDMI specification
• Supports 3D displays
• Supports HDCP 1.3
• LED indicator
• Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected
hardware)
• Video bandwidth up to 340 MHz
• Power consumption: max. 2.0 W
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 63 x 54 x 18 mm

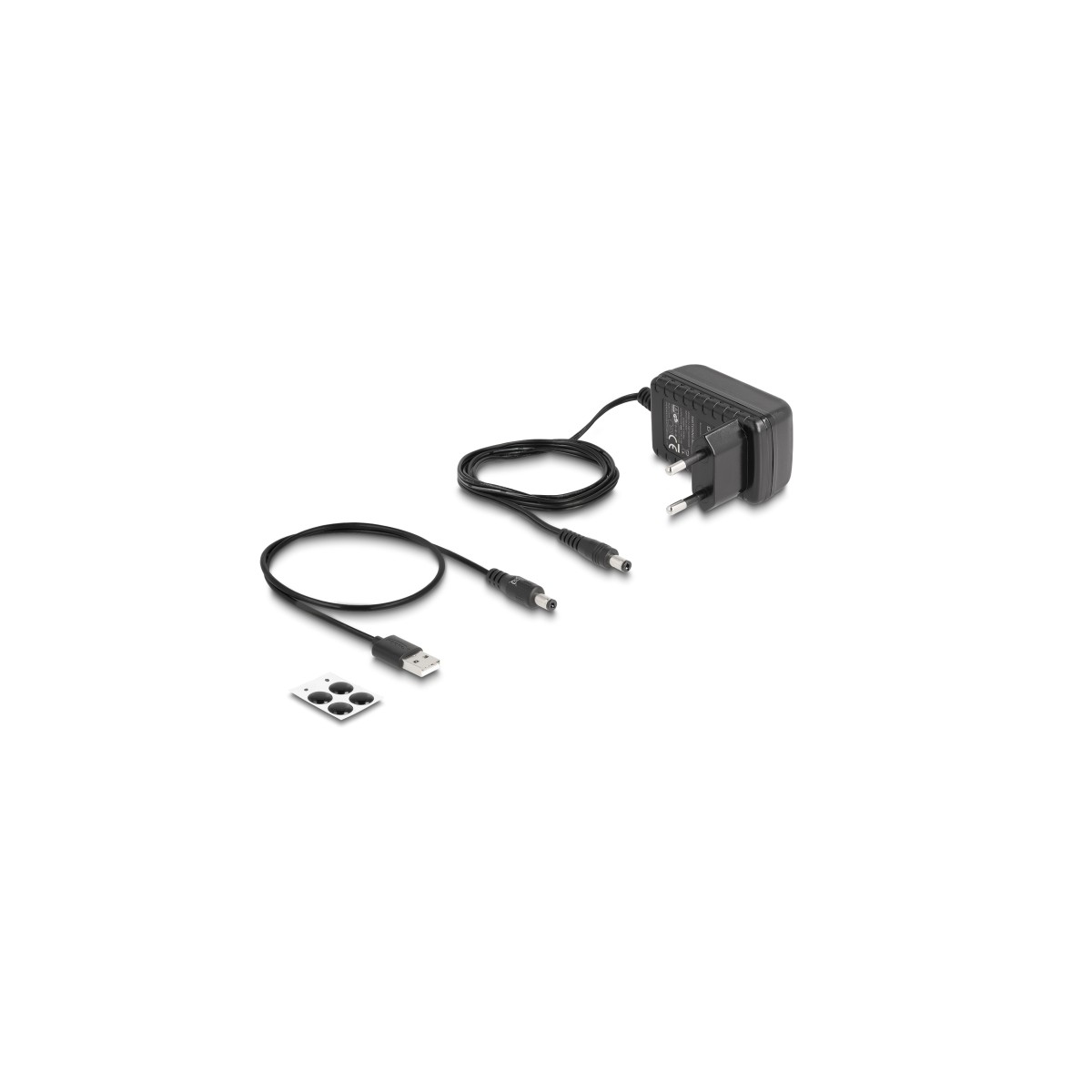

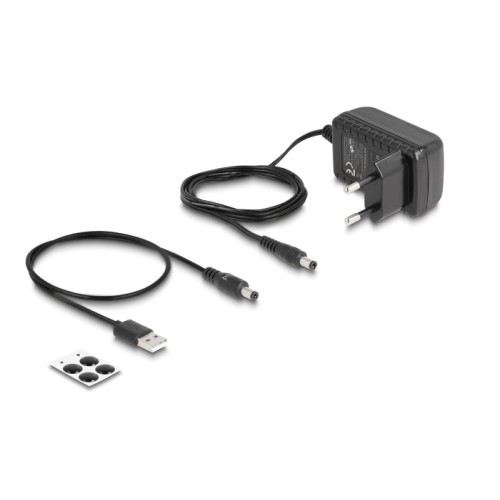

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5.0 V / 1.0 A / 5.0 W
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• A free HDMI female port
• HDMI cable
Package content
• HDMI Splitter
• USB power cable, length: ca. 0.5 m
• External power supply
• User manual
