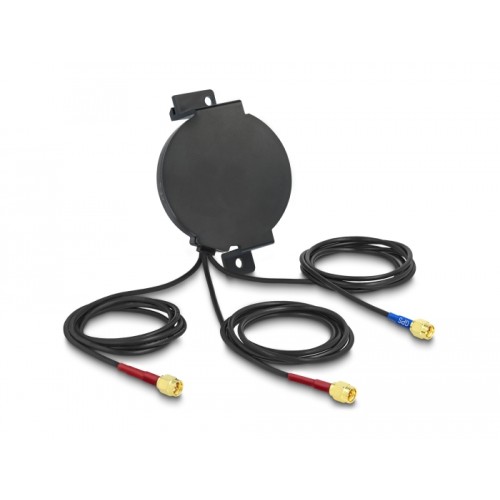

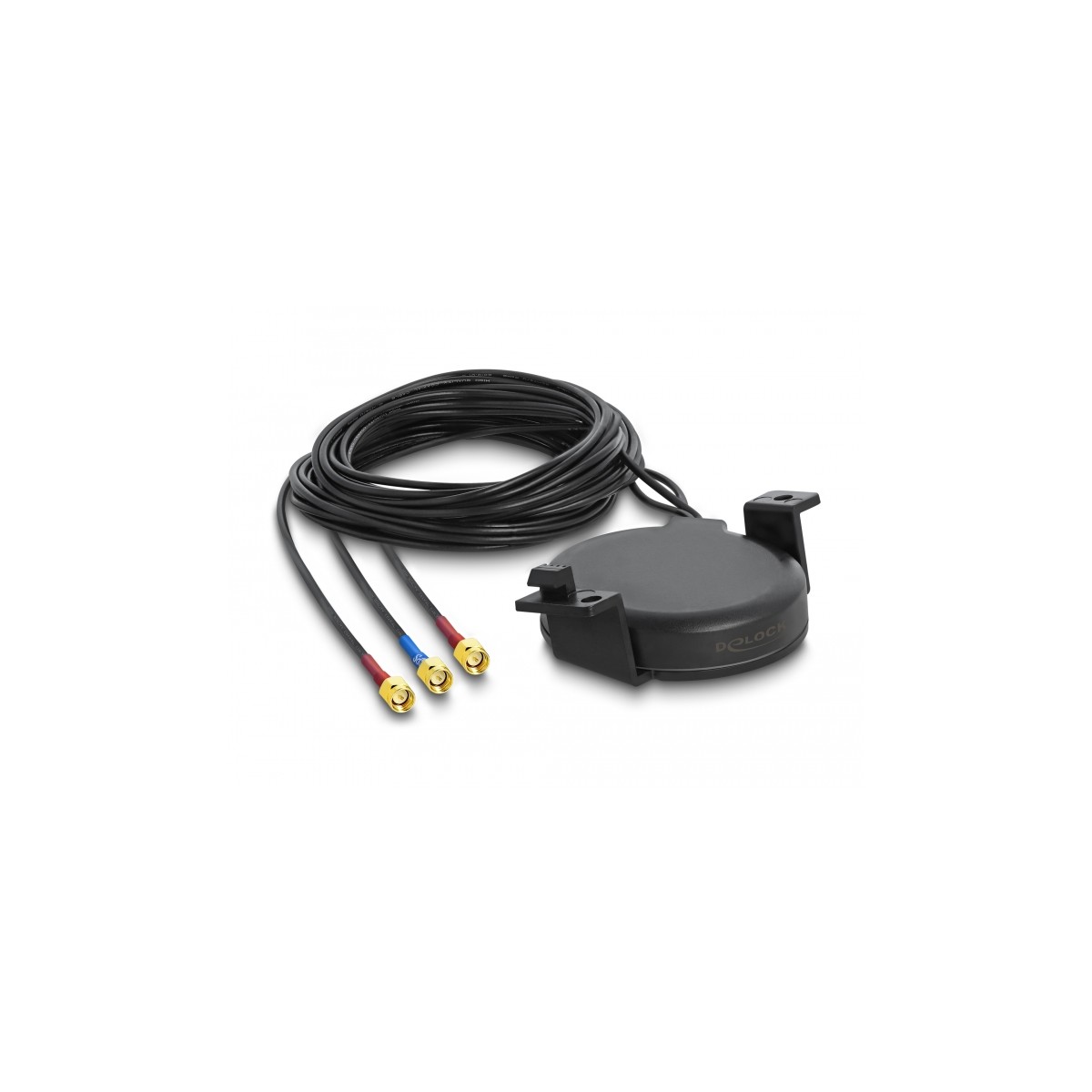

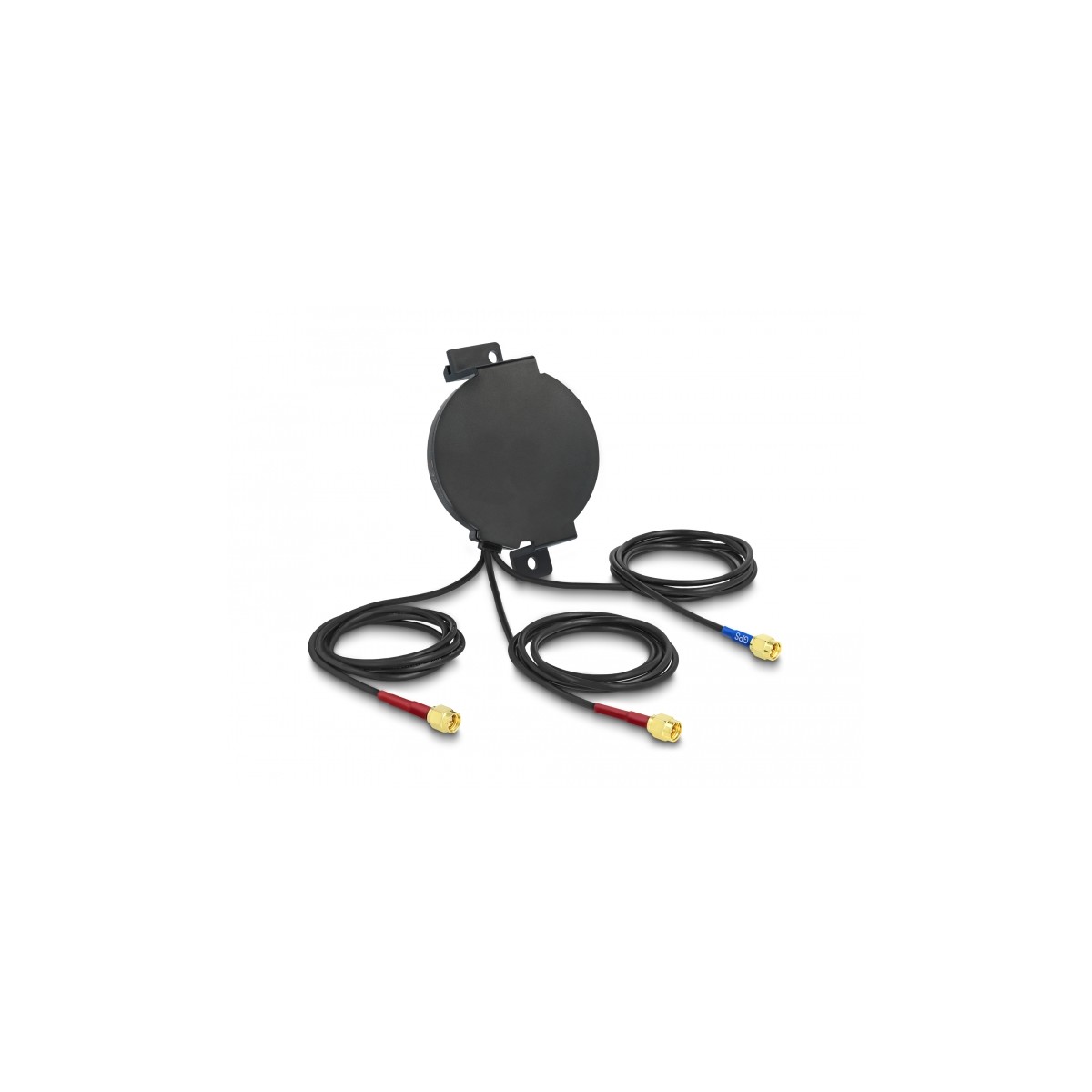

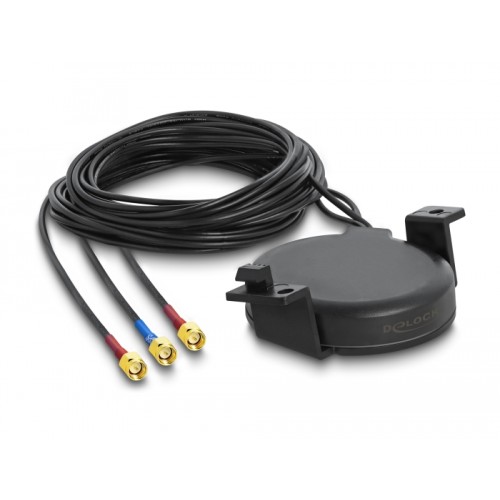

Antenna LTE MIMO GNSS 3x SMA plug RG-174 3 m montaggio con viti da esterno nera

Description

This antenna by Delock allows the usage of different LTE and GNSS bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, GNSS, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz.

Specification

• Connectors: 3 x SMA plug
• 2 x LTE:
  Frequency range: 698 MHz - 960 MHz 1710 MHz - 2690 MHz
  Impedance: 50 Ohm
  VSWR: 3.0
  Antenna gain: 2.0 - 2.5 dBi
  Polarisation: linear
• GNSS:
  Frequency range:
  GALILEO: E1, 1575.4200 MHz
  GPS: L1, 1575.4200 MHz
  Antenna gain: 2 dBi
  VSWR: 1.5
  Impedance: 50 Ohm
  Polarisation: RHCP
• LNA GNSS:
  Frequency range:
  GALILEO: E1, 1575.4200 MHz
  GPS: L1, 1575.4200 MHz
  Antenna gain: 28 dBi
  Operating voltage: 2.2 - 5.0 V
  Current consumption: 5 - 15 mA
  VSWR: 2.0
  Impedance: 50 Ohm
• Mounting type: screw mounting
• Operating temperature: -40 °C ~ 85 °C
• Housing material: ABS
• Protection class: IP67
• Colour: black
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable length incl. connector: ca. 3 m
• Dimensions (Ø x H): ca. 81.3 x 16.3 mm

System requirements

• Device with multiple free SMA ports

Package content

• Antenna

Package

• Box
