Description

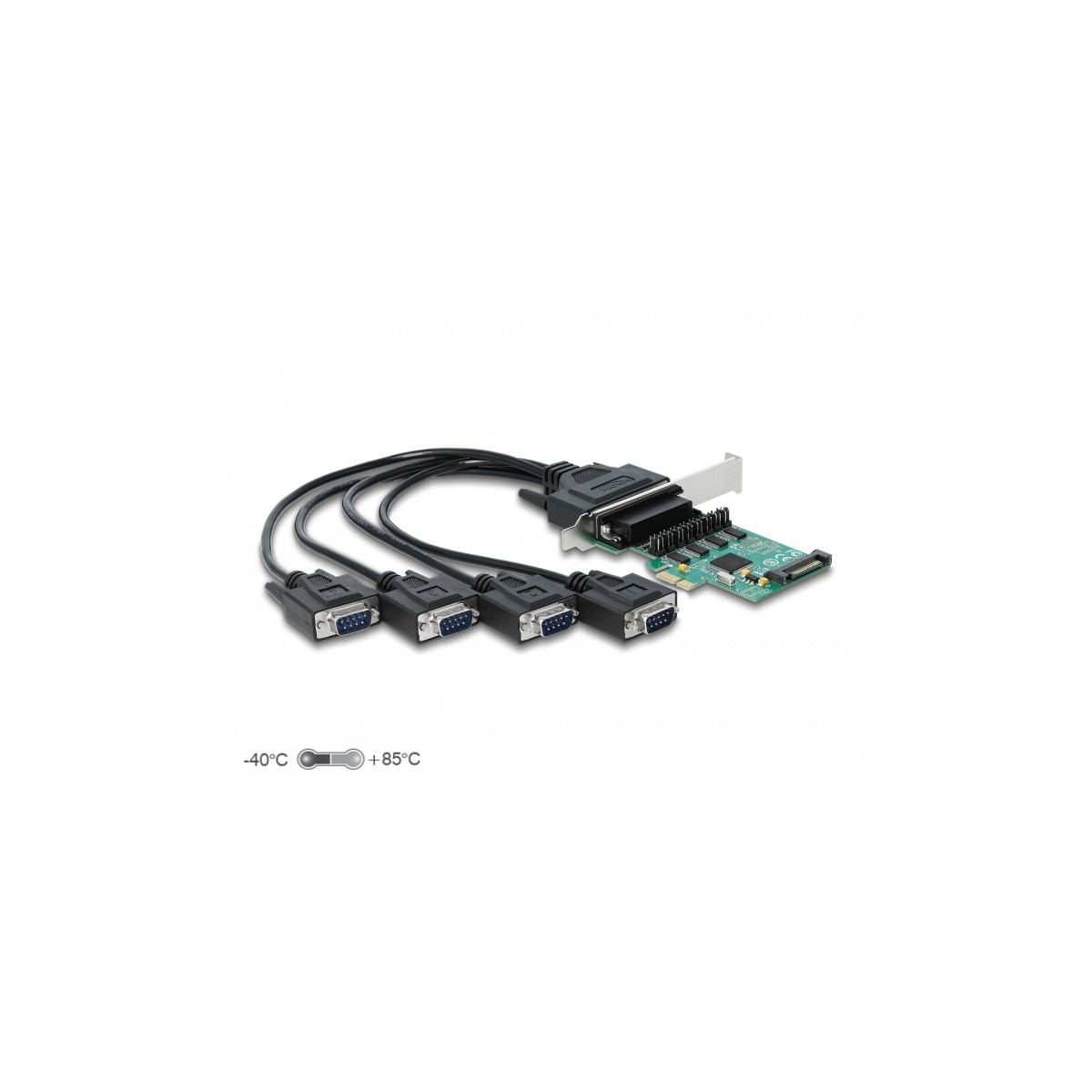

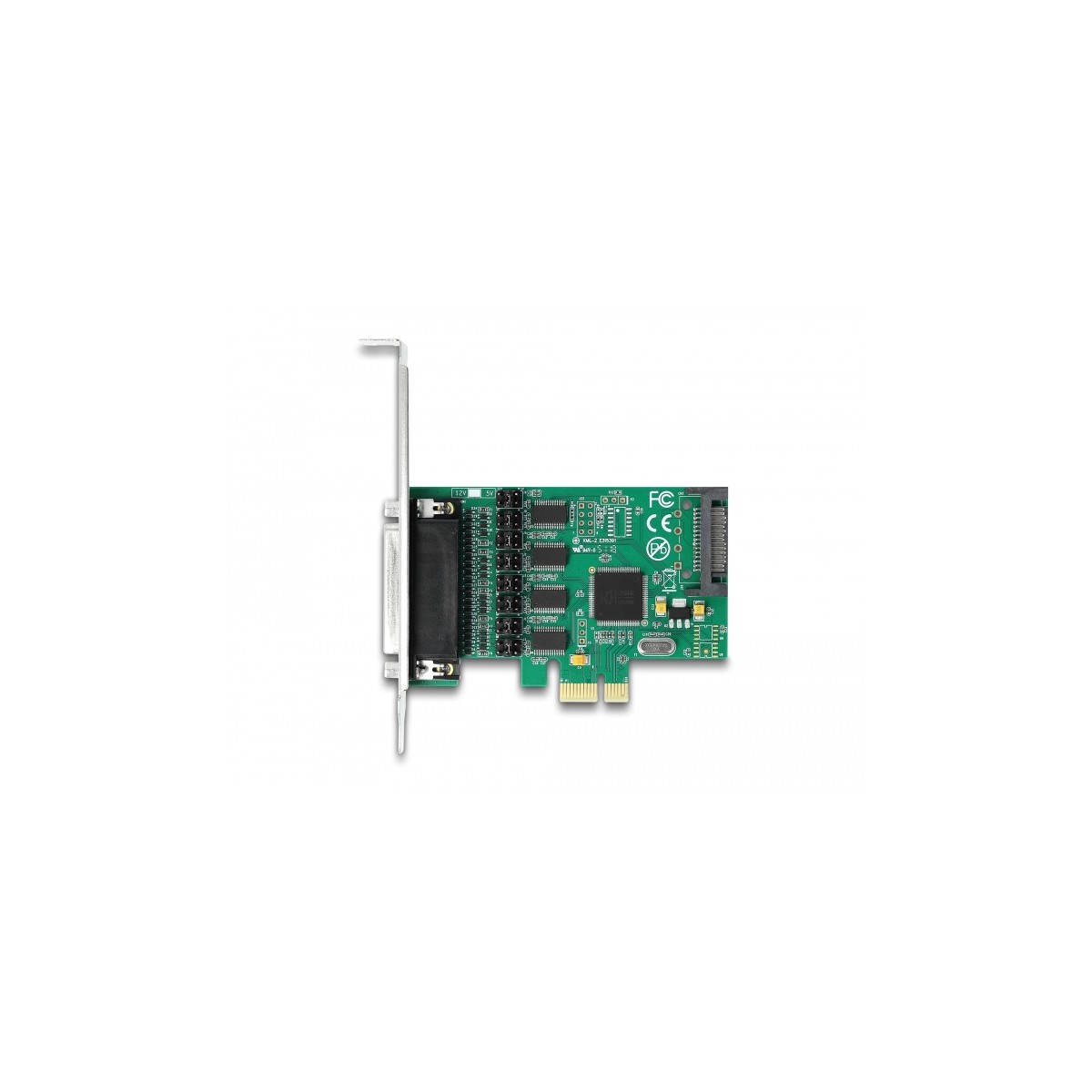

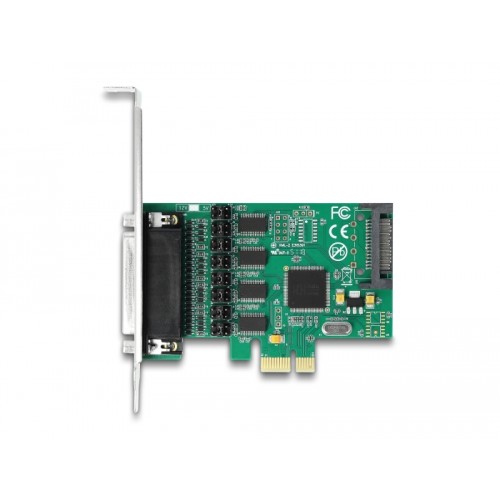

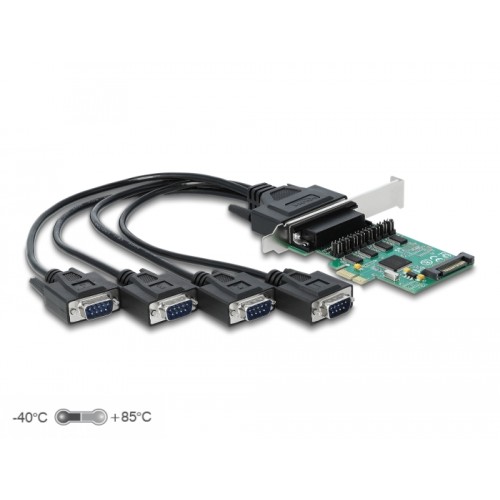

The PCI Express card by Delock expands a PC by four external serial ports. Connected devices can be optionally supplied with a voltage of 5 V or 12 V.

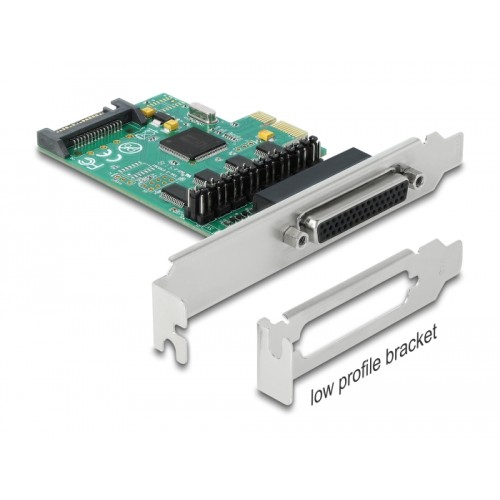

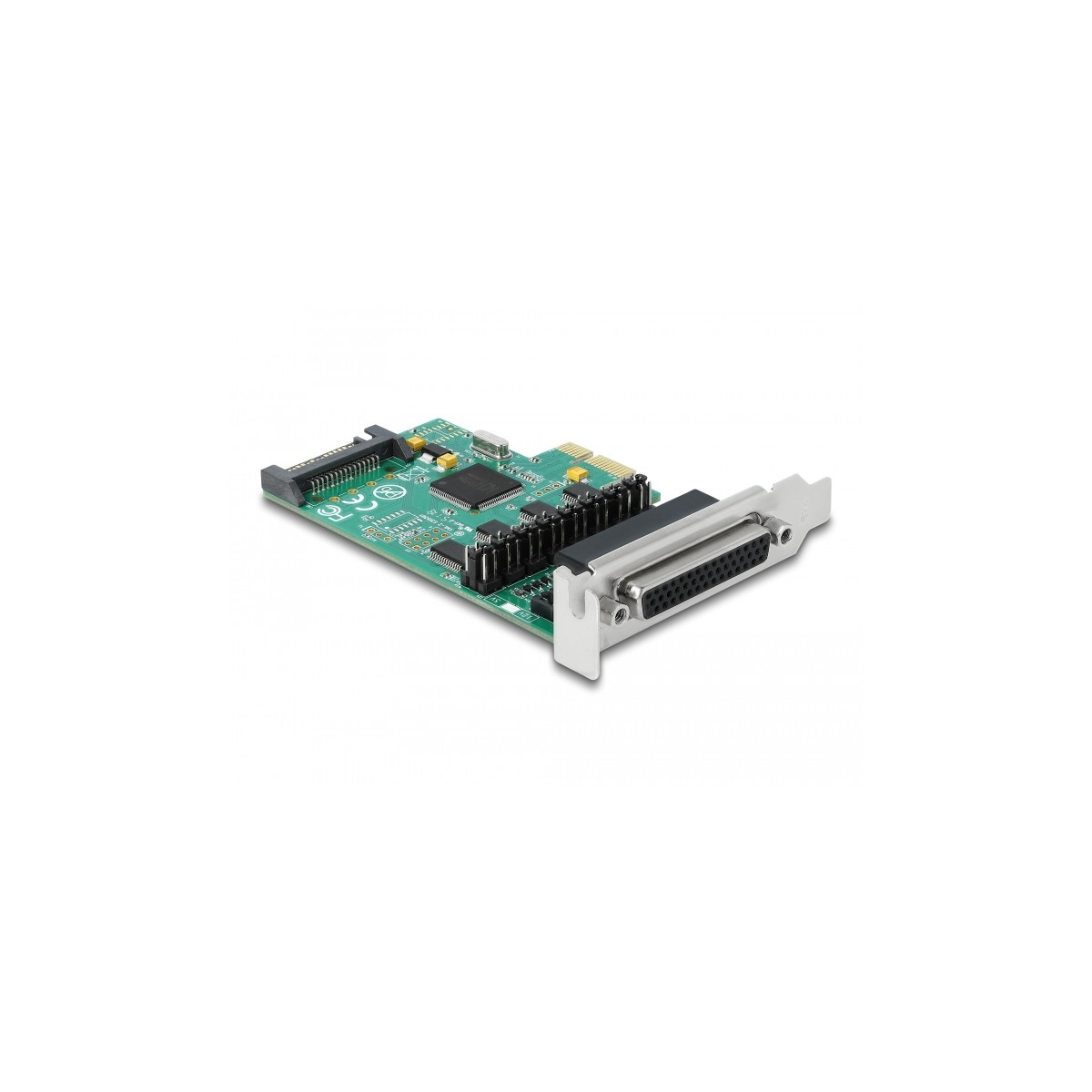

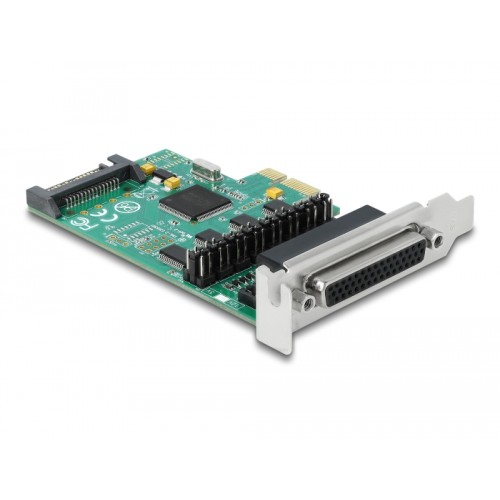

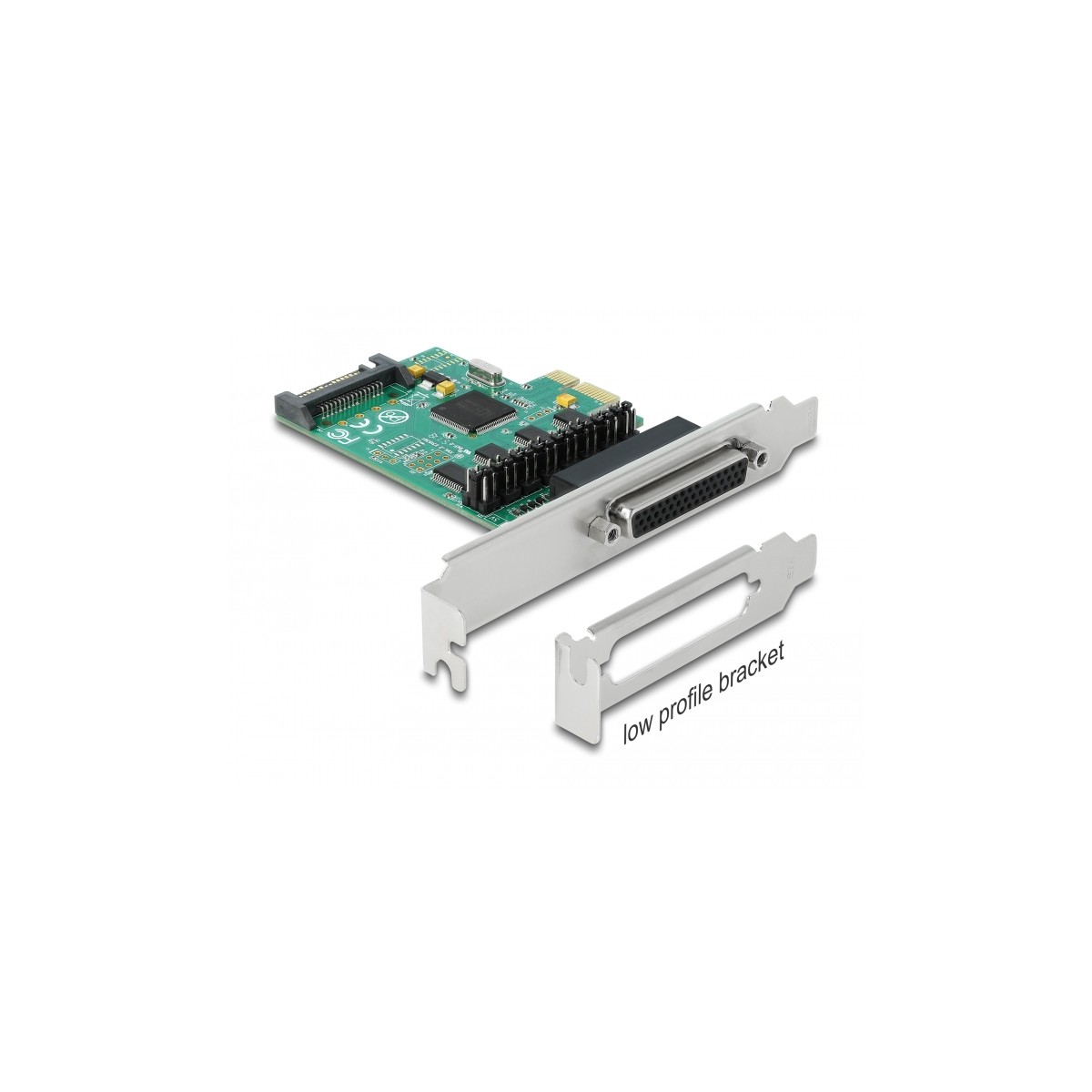

Low Profile Form Factor
By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
Specification
• Connectors:
external:
1 x DB44 female
connecting cable: DB44 male > 4 x serial RS-232 DB9 male
internal:
1 x PCI Express x1, V1.1
1 x SATA 15 pin plug
• Chipset: WCH384L
• Data transfer rate up to 460.8 Kbps
• FIFO: 256 byte
• Databits: 4, 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Compatible with 16C950 UART
• 5 V or 12 V can be set individually for each port through the jumper (pin 1 or 9)
• Electrical power per port: 10 watt (5 V / 2 A)
• Electrical power per port: 24 watt (12 V / 2 A)

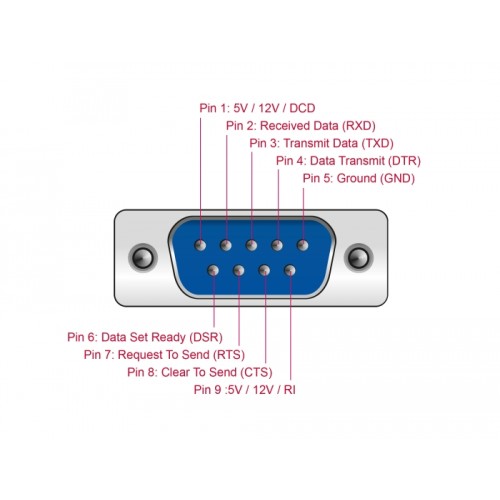

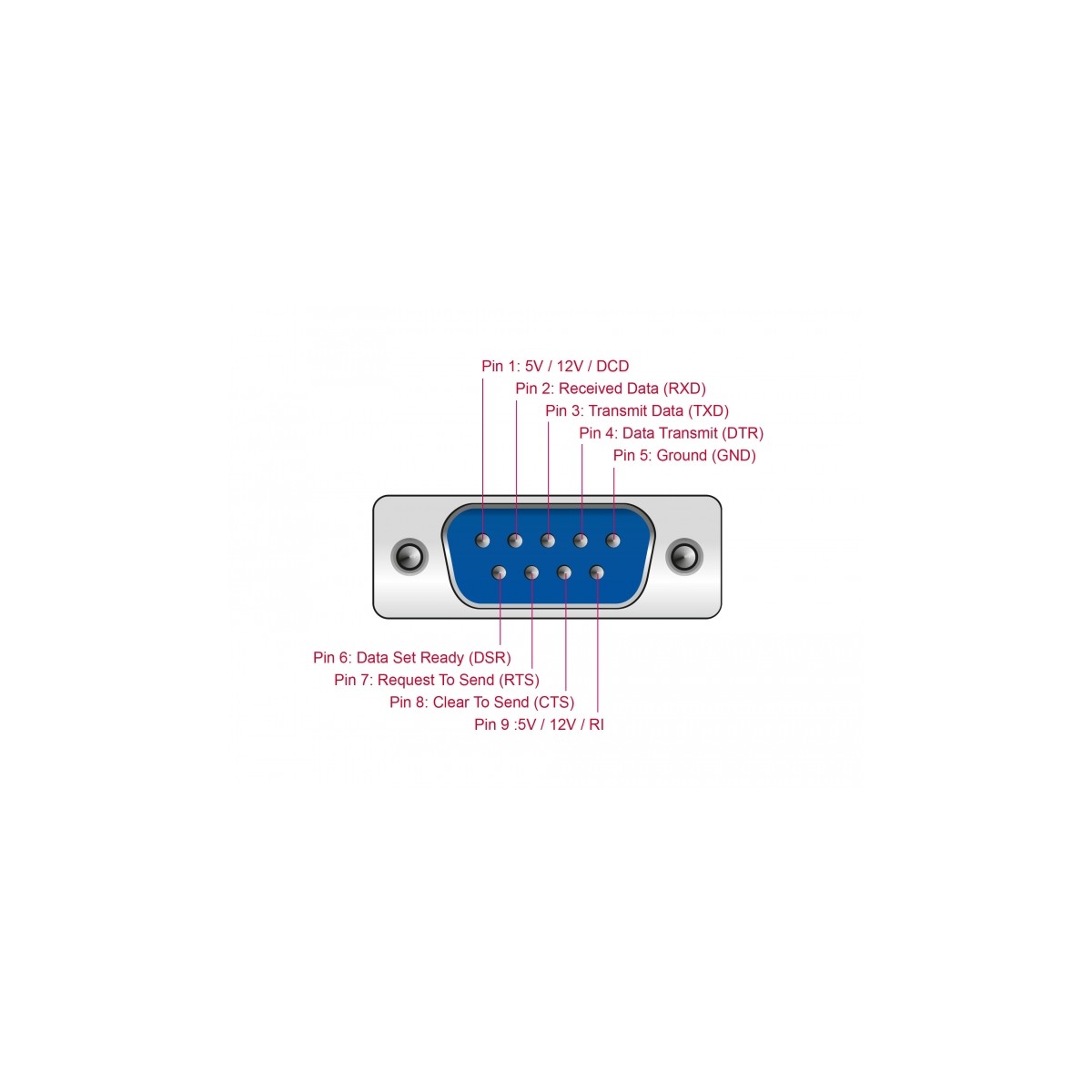

• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Cable length incl. connectors: ca. 35 cm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
• Power supply with a free SATA power connector
Package content
• PCI Express card
• Low profile bracket
• 1 serial connecting cable
• Driver CD
• User manual
