Description

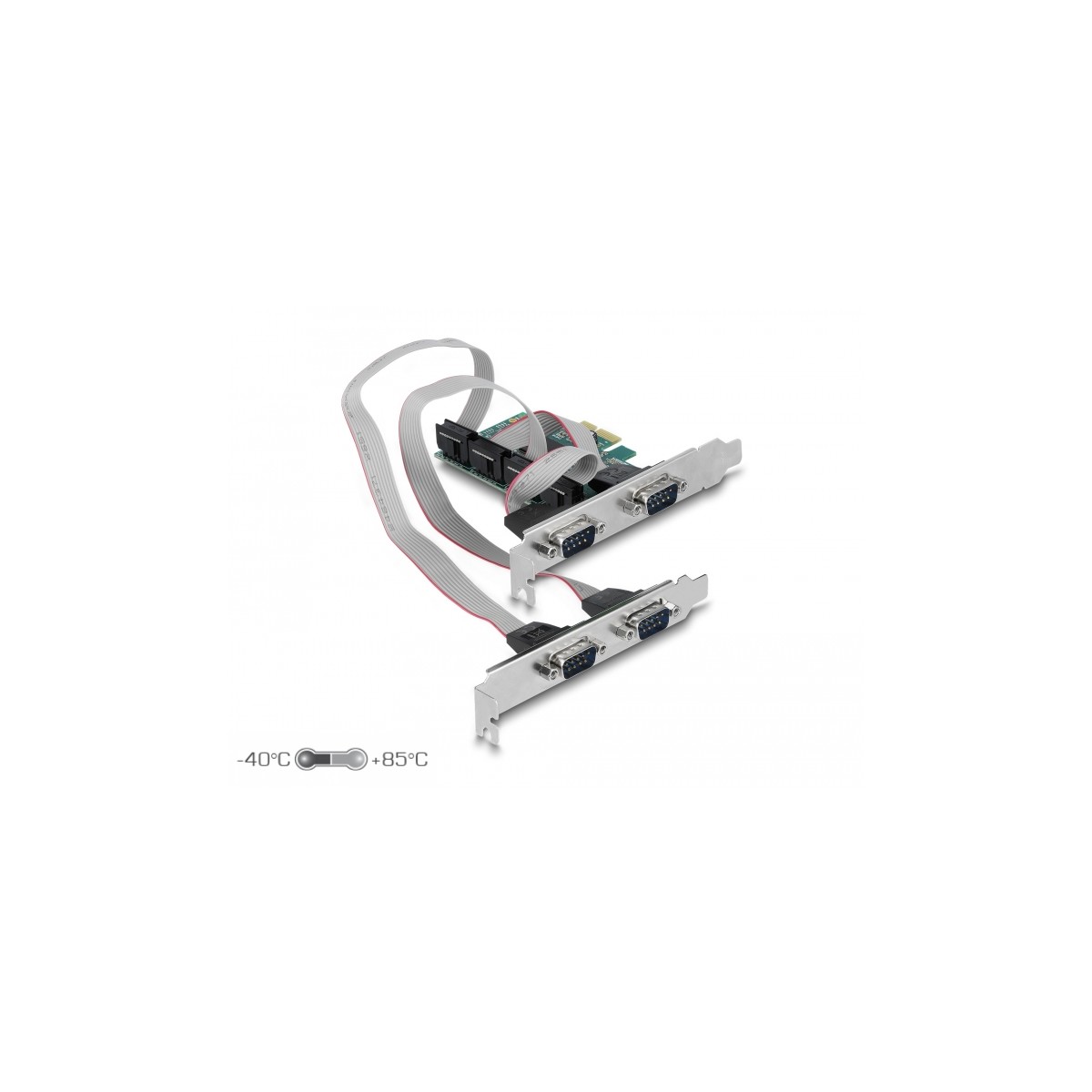

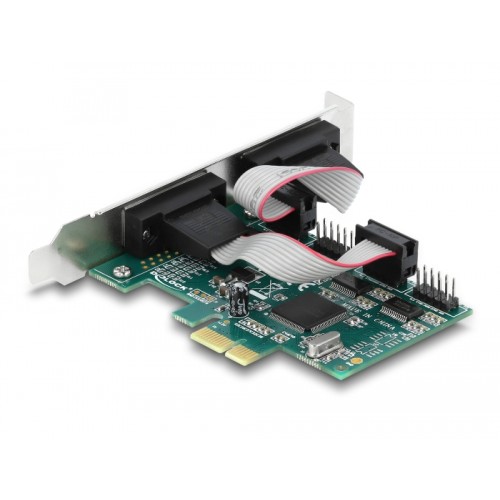

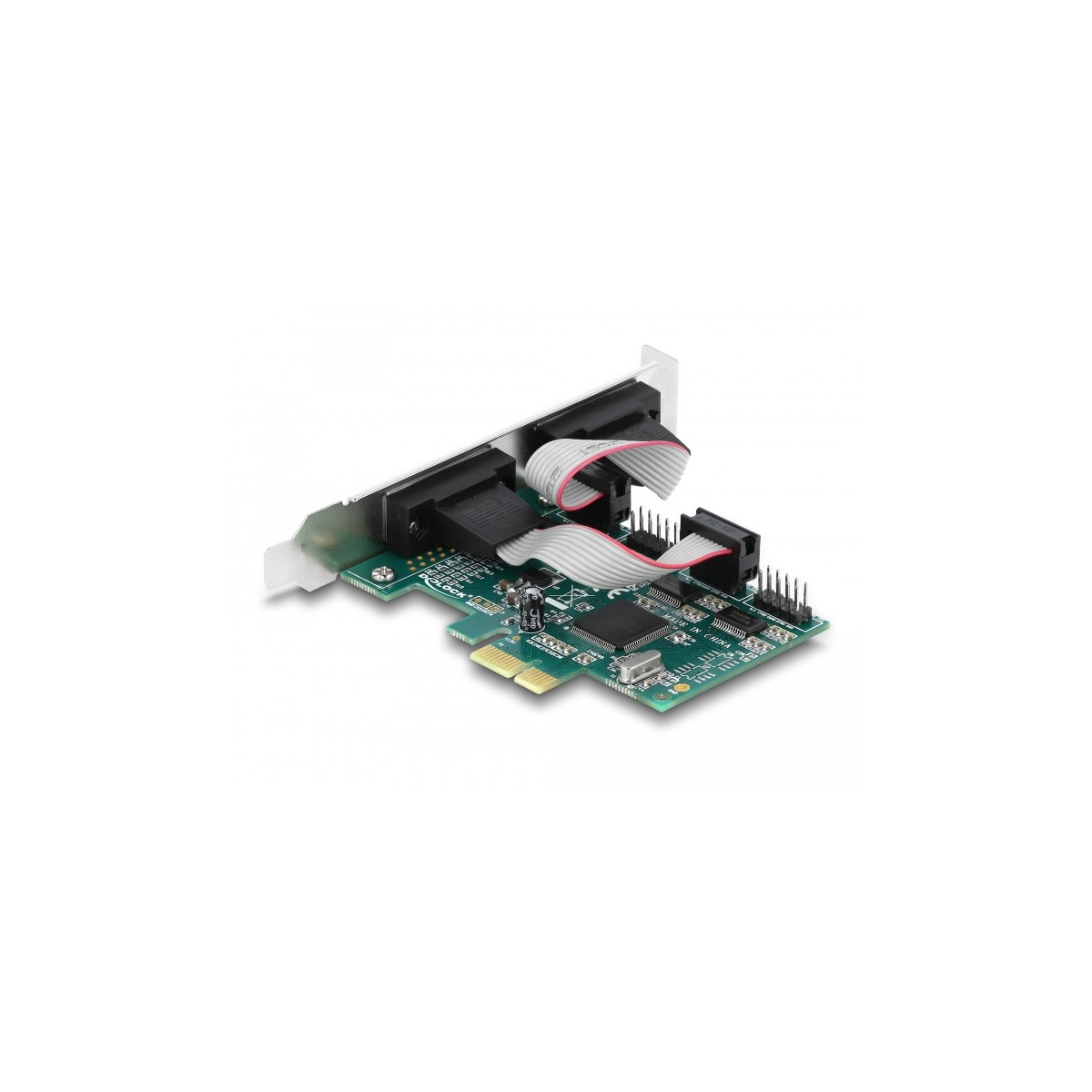

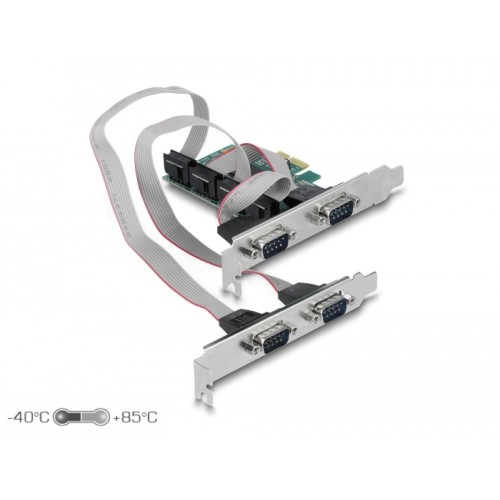

The PCI Express card by Delock expands a PC by four external serial RS-232 ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.
Low Profile Form Factor

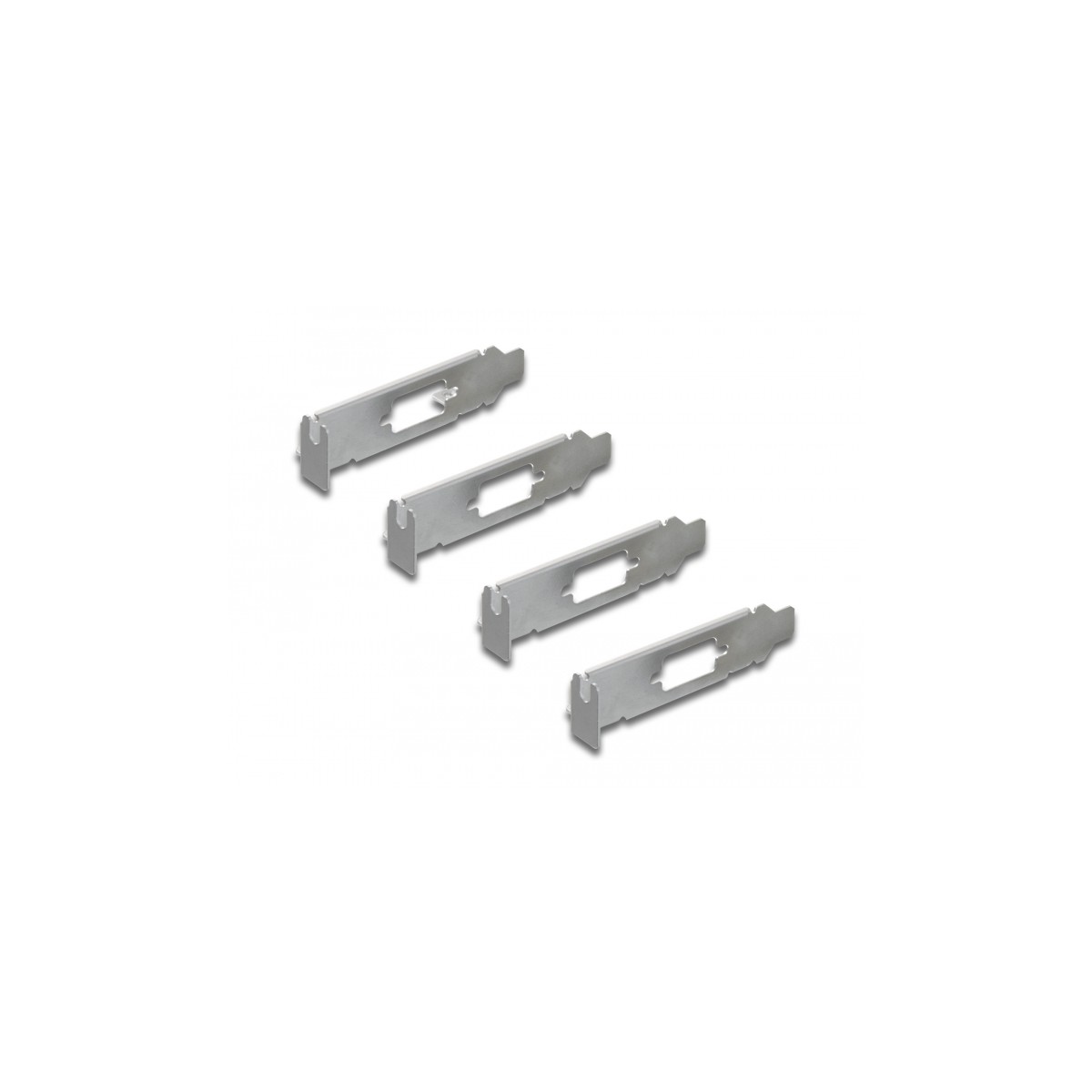

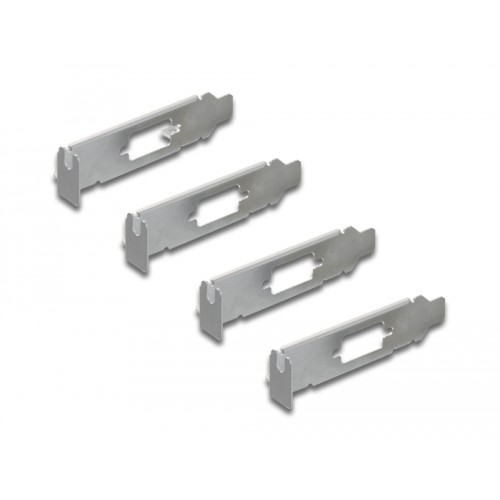

By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
Specification
• Connectors:
external:
2 x serial RS-232 DB9 male
2 x serial RS-232 DB9 male (separate rear bracket)
internal:
1 x PCI Express x1, V1.1
• Chipset: WCH CH384L
• Compatible with UART 16C550, 16C552, 16C554
• Data transfer rate up to 115.2 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 82 x 61 x 16 mm
System requirements
• Linux Kernel 3.18 or above
• Windows Server 2012 R2/Server 2016
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot and one rear slot
Package content
• PCI Express card
• 4 x low profile bracket
• Driver CD
• User manual
The PCI Express card by Delock expands a PC by four external serial RS-232 ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.
Low Profile Form Factor
By using the included low profile brackets, the PCI Express card can be also installed into a Mini-PC.
Specification
• Connectors:
external:
2 x serial RS-232 DB9 male
2 x serial RS-232 DB9 male (separate rear bracket)
internal:
1 x PCI Express x1, V1.1
• Chipset: WCH CH384L
• Compatible with UART 16C550, 16C552, 16C554
• Data transfer rate up to 115.2 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 82 x 61 x 16 mm
System requirements
• Linux Kernel 3.18 or above
• Windows Server 2012 R2/Server 2016
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot and one rear slot
Package content
• PCI Express card
• 4 x low profile bracket
• Driver CD
• User manual
