Description

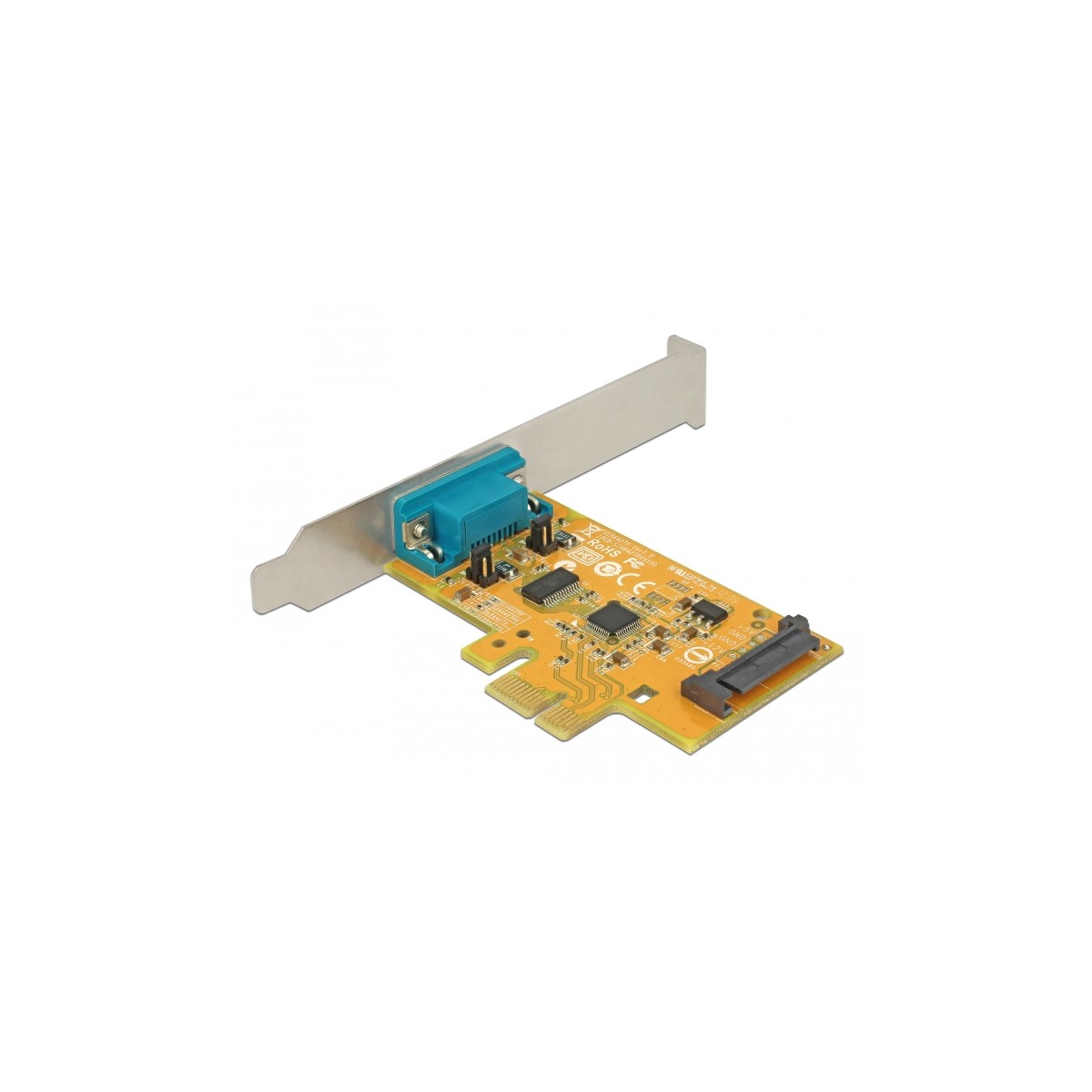

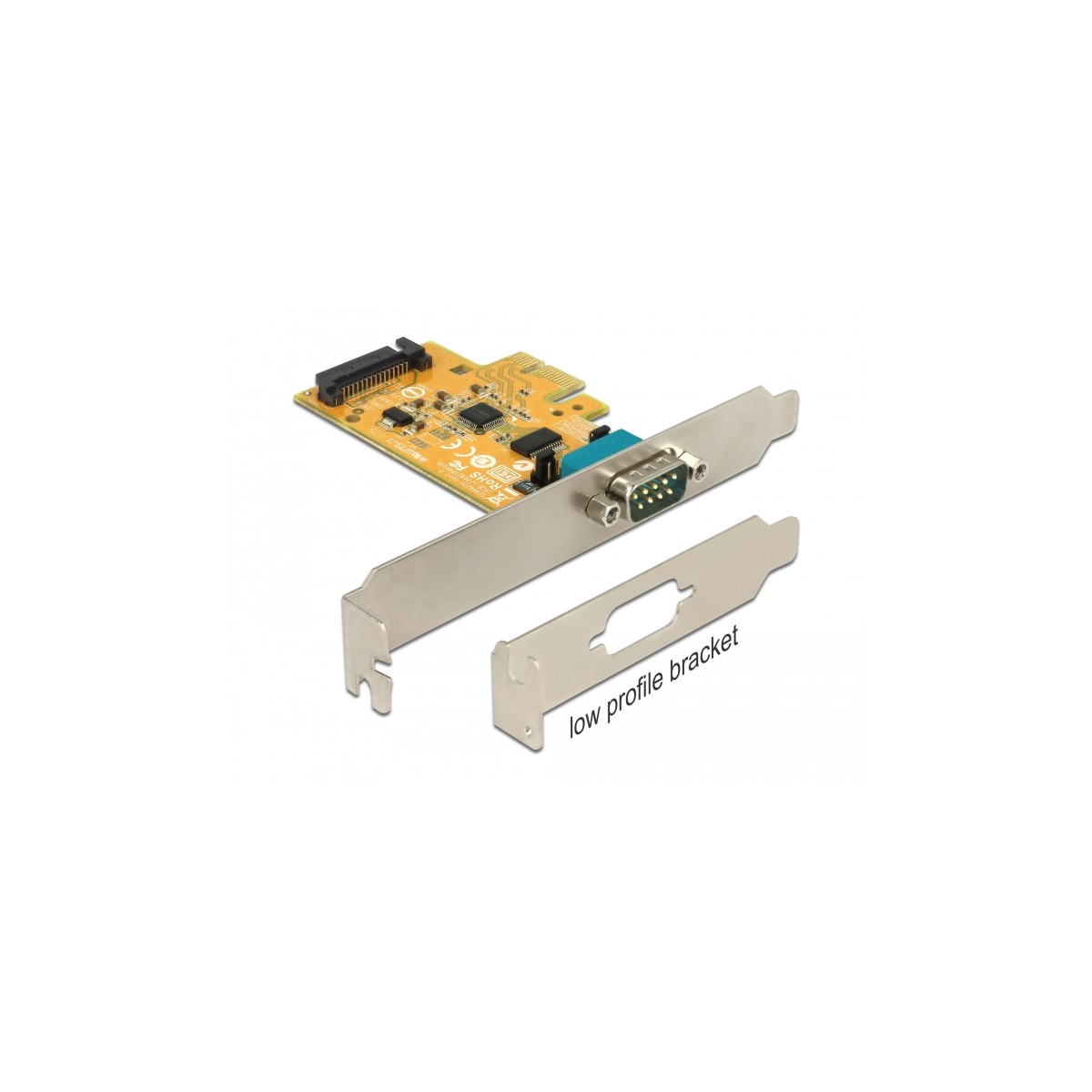

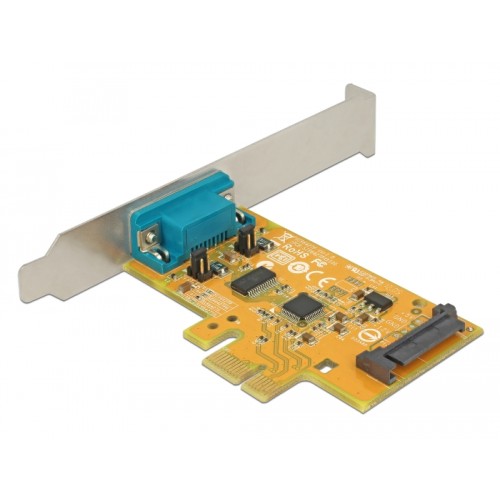

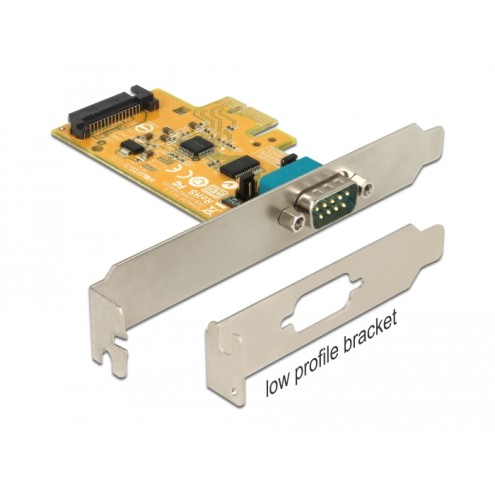

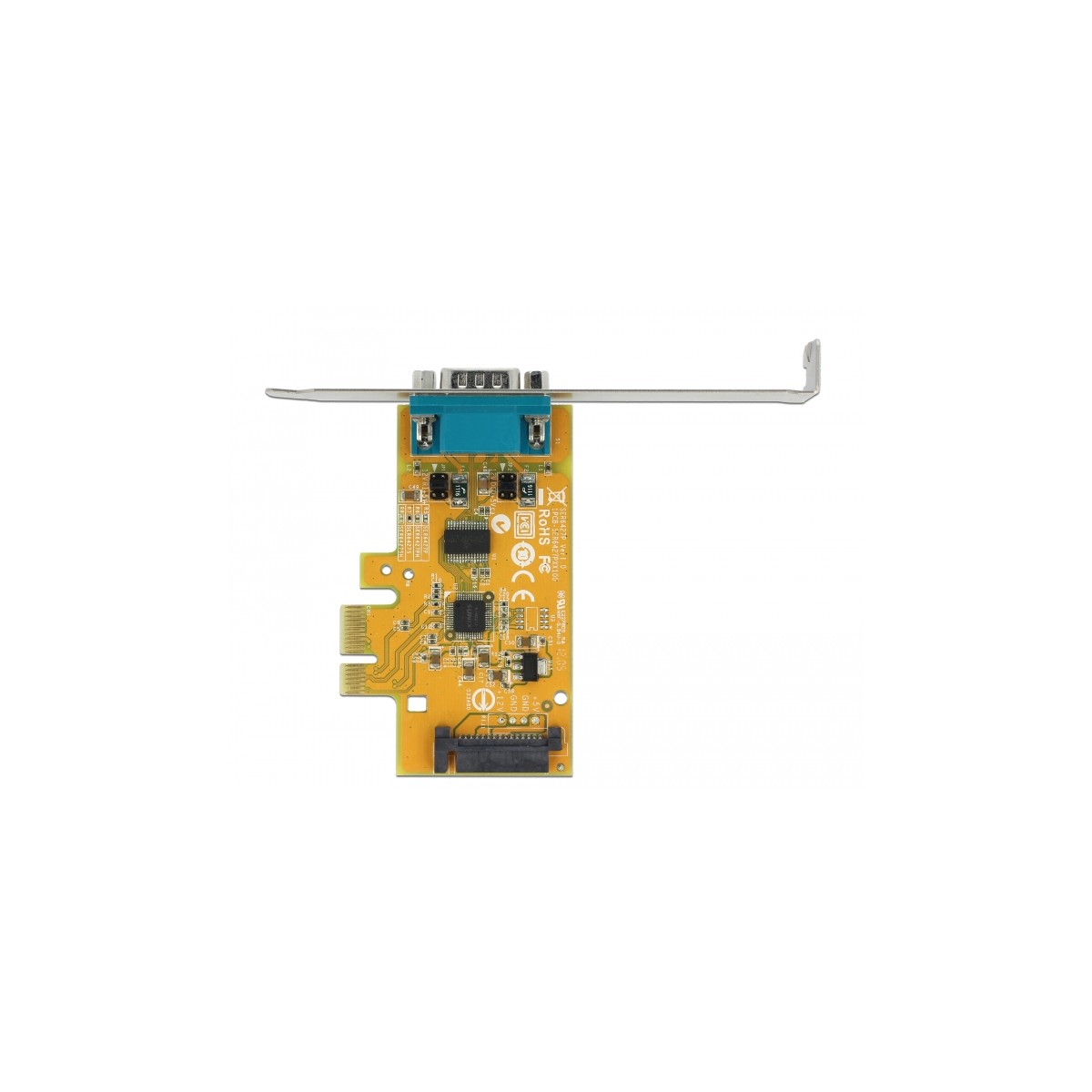

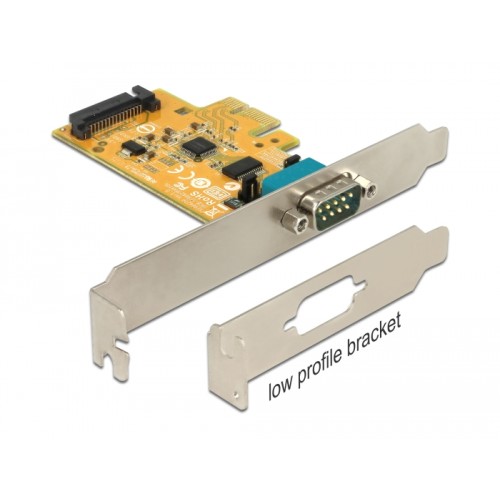

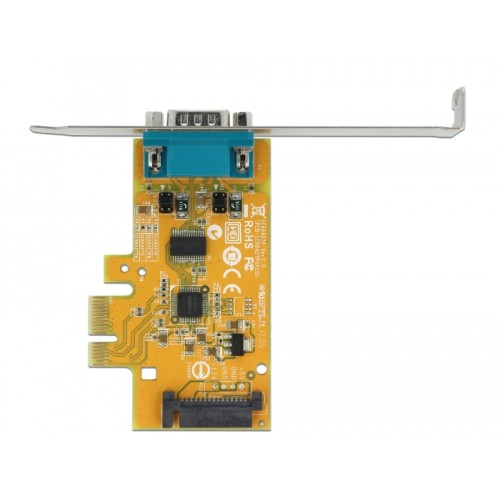

The PCI Express card by Delock expands a PC by one external serial port. Connected devices can be optionally supplied with a voltage of 5 V or 12 V. By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
Special features
This PCIe card is Windows Server 2019 WHQL certified
Specification
• Connectors:
external:
1 x serial RS-232 DB9 male
internal:
1 x PCI Express x1, V2.0
1 x SATA 15 pin plug
• Chipset: SUN2212
• Data transfer rate up to 115.2 Kbps
• FIFO: 128 byte
• Compatible with 16C950 UART
• ±15 kV ESD protection for all serial signals meets IEC1000-4-2 standard

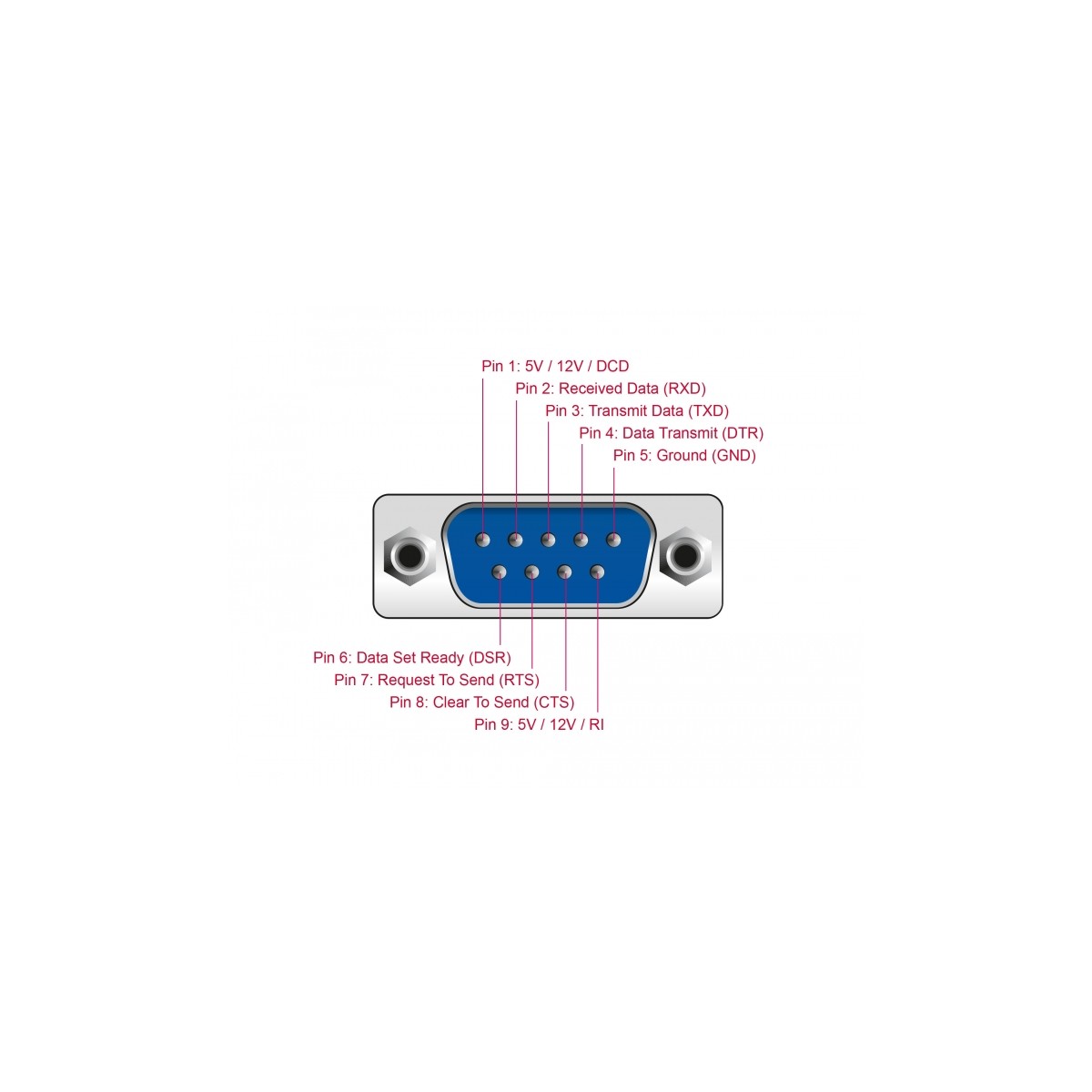

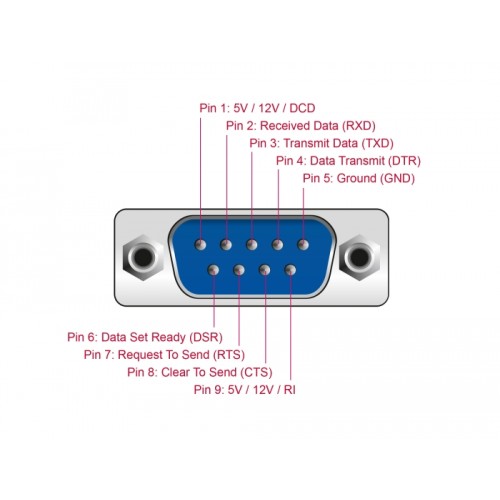

• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• 5 V or 12 V can be set individually through the jumper (pin 1 or 9)
• Electrical power per port: 5.5 watt (5 V / 1.1 A)
• Electrical power per port: 13.2 watt (12 V / 1.1 A)
• Windows WHQL certified
System requirements
• Linux Kernel 2.6.x or above
• Windows 7 / 7-64 / 8.1 / 8.1-64 / 10 / 10-64 / 11
• Windows 10 Enterprise LTSC 2019 / Windows 10 2016 LTSB / Windows 10 S
• Windows Server 2012 / Server 2012R2 / Server 2016 / Server 2019
• PC with one free PCI Express slot
• Power supply with a free SATA power connector
Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
The PCI Express card by Delock expands a PC by one external serial port. Connected devices can be optionally supplied with a voltage of 5 V or 12 V. By using the included low profile bracket, the PCI Express card can be also installed into a Mini-PC.
Special features
This PCIe card is Windows Server 2019 WHQL certified
Specification
• Connectors:
external:
1 x serial RS-232 DB9 male
internal:
1 x PCI Express x1, V2.0
1 x SATA 15 pin plug
• Chipset: SUN2212
• Data transfer rate up to 115.2 Kbps
• FIFO: 128 byte
• Compatible with 16C950 UART
• ±15 kV ESD protection for all serial signals meets IEC1000-4-2 standard
• Signals: DCD/12V/5V, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• 5 V or 12 V can be set individually through the jumper (pin 1 or 9)
• Electrical power per port: 5.5 watt (5 V / 1.1 A)
• Electrical power per port: 13.2 watt (12 V / 1.1 A)
• Windows WHQL certified
System requirements
• Linux Kernel 2.6.x or above
• Windows 7 / 7-64 / 8.1 / 8.1-64 / 10 / 10-64 / 11
• Windows 10 Enterprise LTSC 2019 / Windows 10 2016 LTSB / Windows 10 S
• Windows Server 2012 / Server 2012R2 / Server 2016 / Server 2019
• PC with one free PCI Express slot
• Power supply with a free SATA power connector
Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
