Description

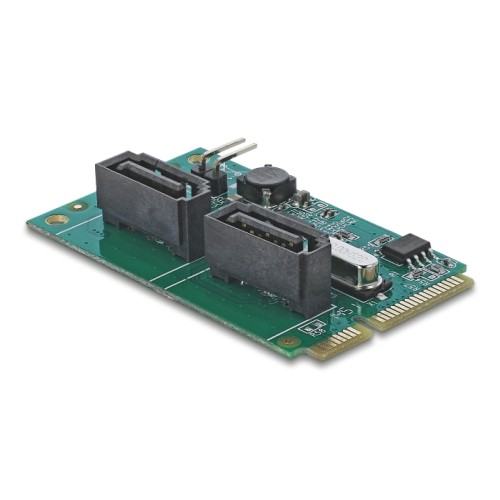

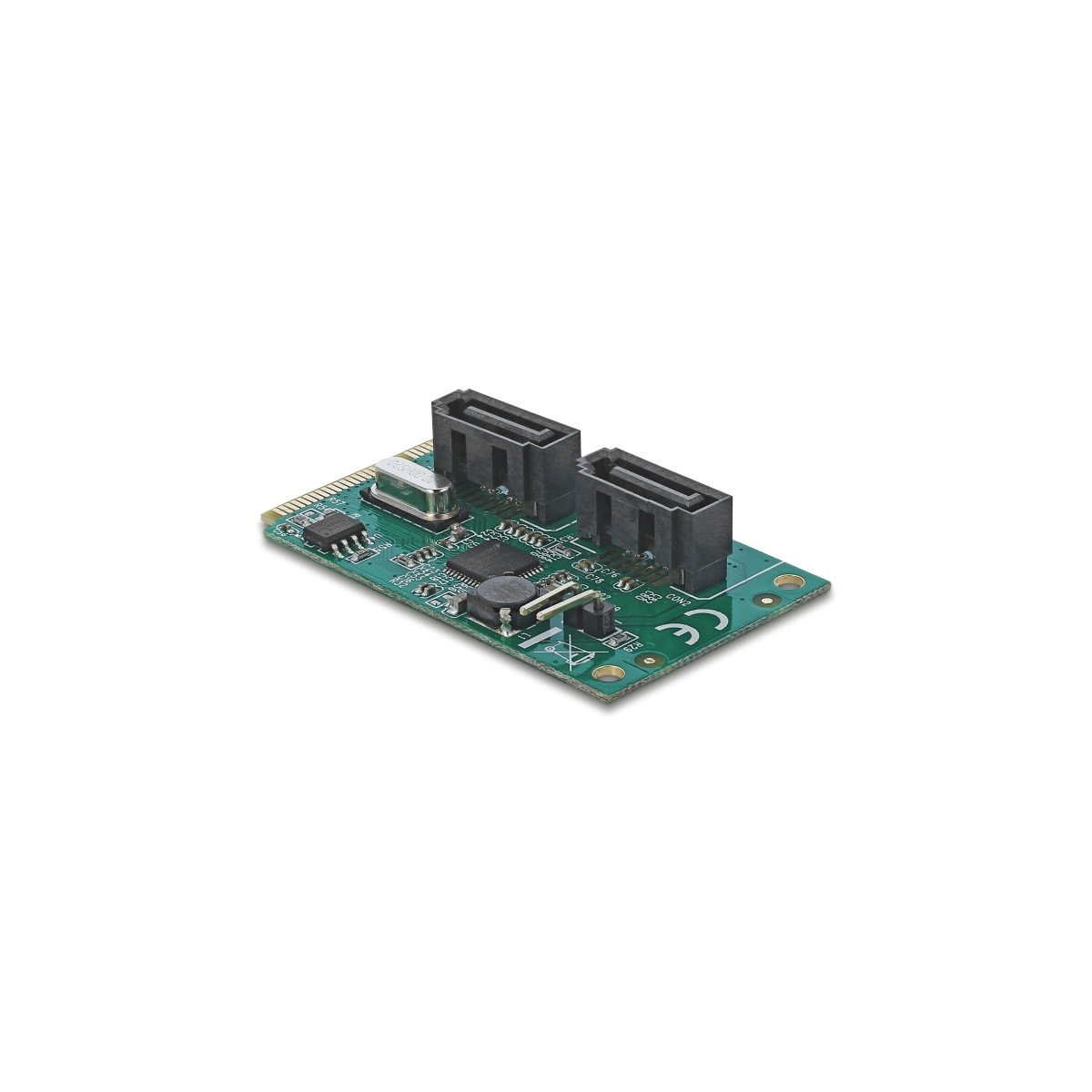

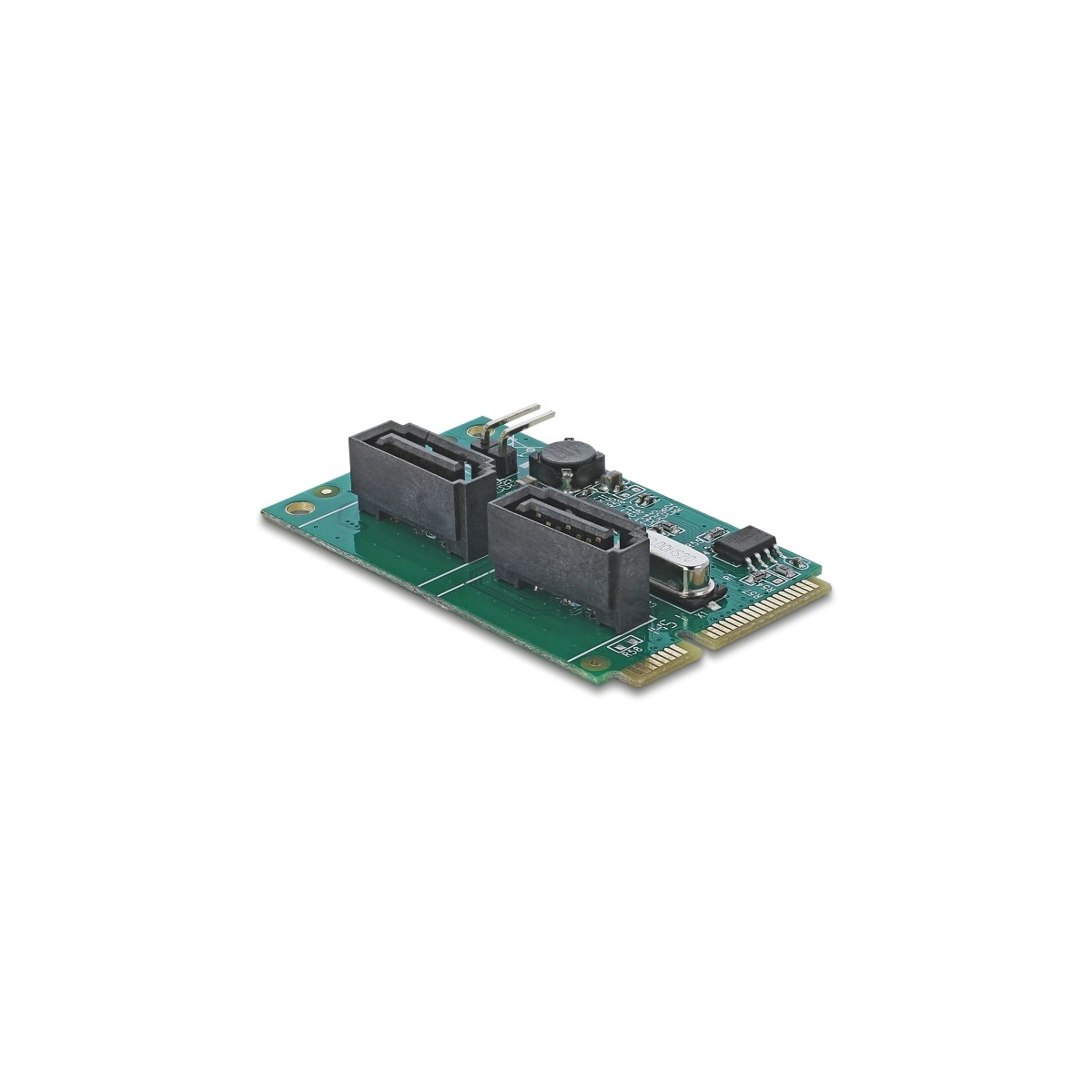

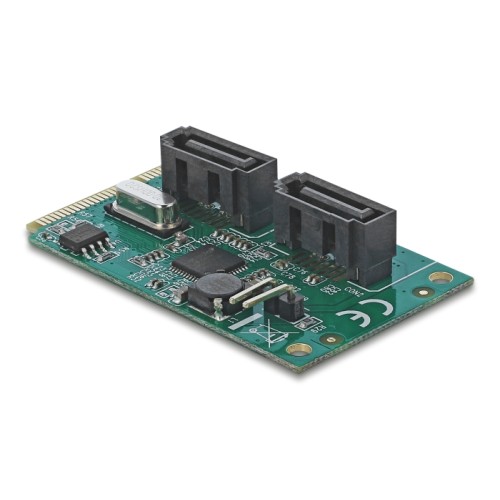

This converter by Delock expands the system by two SATA ports. When using more than one SATA port, there is the possibility to use different RAID modes.
Please Note
This product provides a chipset-based RAID function. Management and setting of the RAID mode is not possible via the operating system or BIOS. Different diagnostic software is not compatible with this solution.
Specification

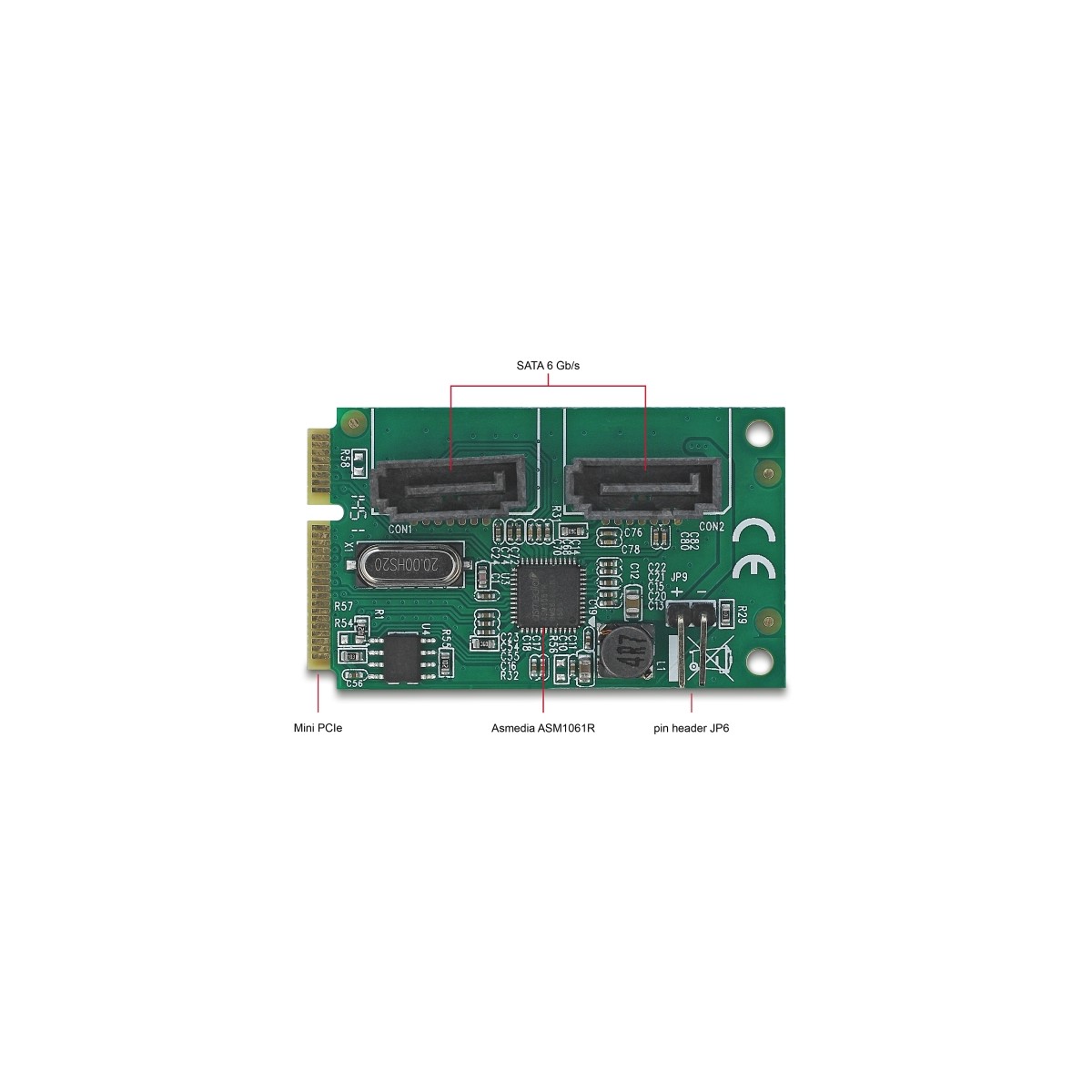

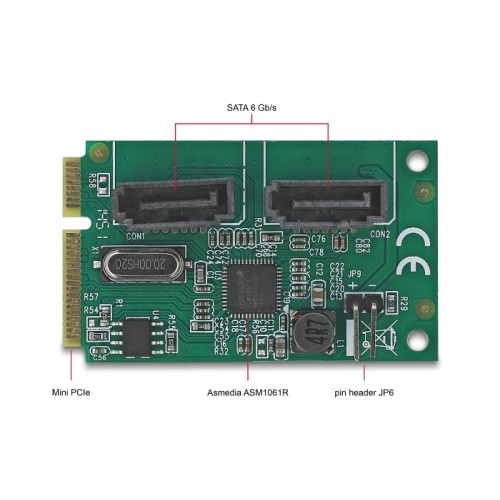

• Connectors:
1 x Mini PCIe male
2 x SATA 6 Gb/s 7 pin plug
1 x 2 pin pin header for LED
• Chipset: Asmedia ASM1061R
• Interface: PCI Express revision 2.0
• Data transfer rate:
SATA up to 6 Gb/s
PCI Express up to 5 Gb/s
• Supports RAID 0, 1, SPAN
• Supports hard drive with Native Command Queue (NCQ) feature
• Supports SATA Port Multiplier
• Supports S.M.A.R.T.
• Supports TRIM
System requirements
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
Package content
• Mini PCIe module
• Driver CD
• User manual
This converter by Delock expands the system by two SATA ports. When using more than one SATA port, there is the possibility to use different RAID modes.
Please Note
This product provides a chipset-based RAID function. Management and setting of the RAID mode is not possible via the operating system or BIOS. Different diagnostic software is not compatible with this solution.
Specification
• Connectors:
1 x Mini PCIe male
2 x SATA 6 Gb/s 7 pin plug
1 x 2 pin pin header for LED
• Chipset: Asmedia ASM1061R
• Interface: PCI Express revision 2.0
• Data transfer rate:
SATA up to 6 Gb/s
PCI Express up to 5 Gb/s
• Supports RAID 0, 1, SPAN
• Supports hard drive with Native Command Queue (NCQ) feature
• Supports SATA Port Multiplier
• Supports S.M.A.R.T.
• Supports TRIM
System requirements
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface
Package content
• Mini PCIe module
• Driver CD
• User manual
