Description

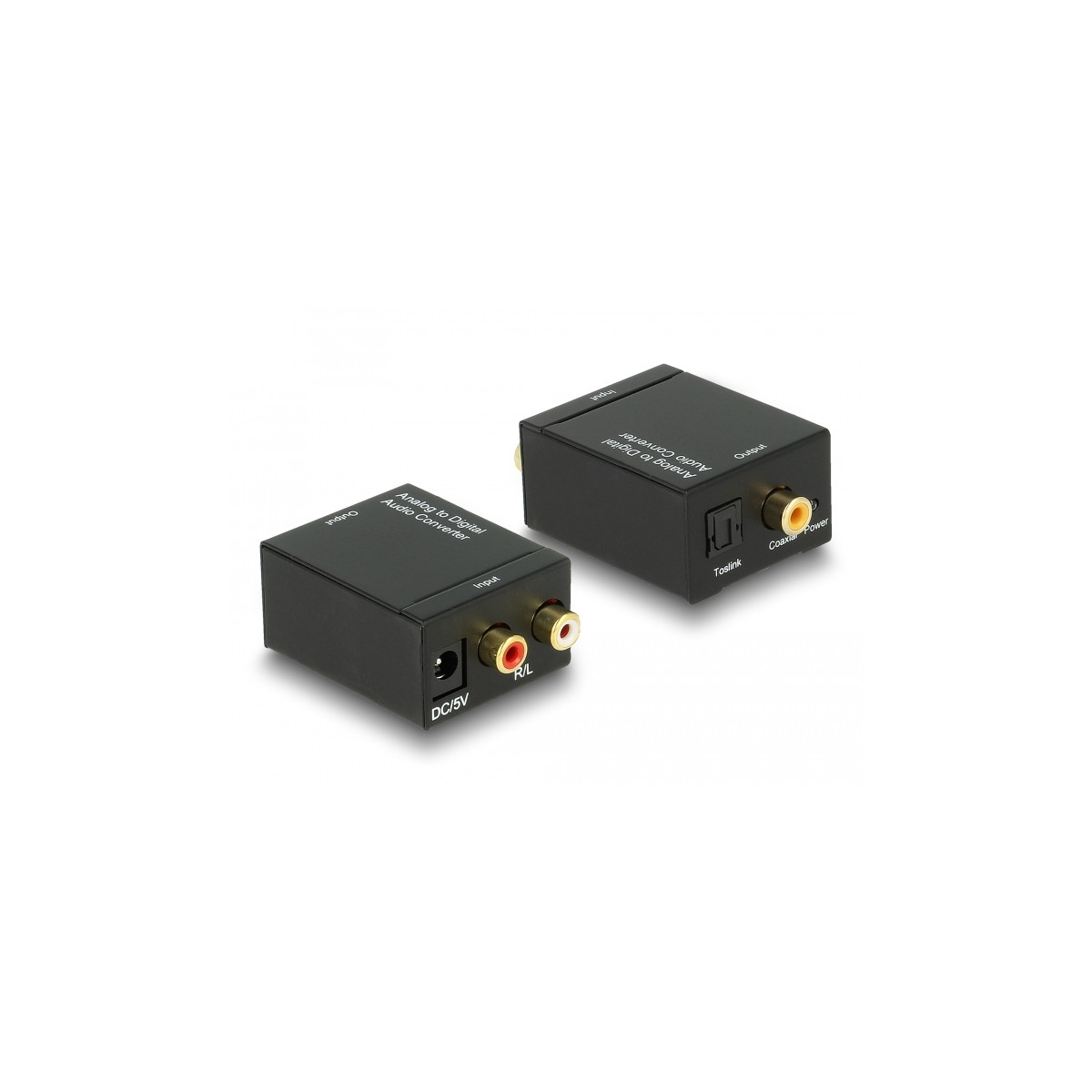

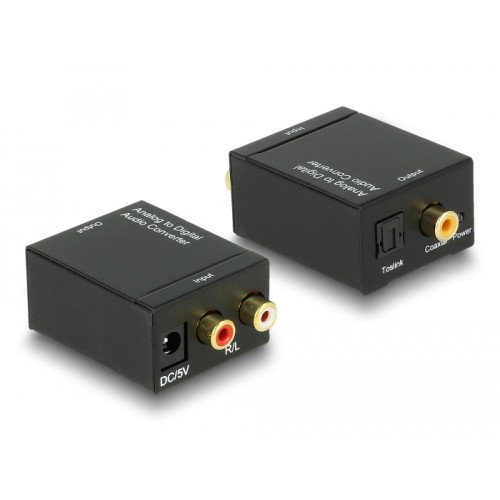

The audio converter by Delock converts an analogue stereo signal into a digital signal. Two cinch cables can be connected to the device to input the analog source signal, e. g. from an MP3 player. At the output, the signal can be transmitted either via optical TOSLINK connection or via S/PDIF coaxial connection.
07/2018 New power supply
Specification
• Connectors:
Input:
2 x RCA female
1 x DC jack
Output:
1 x TOSLINK female S/PDIF
1 x Coaxial female S/PDIF
• Sample rate: 16 Bit / 48 kHz
• Robust metal housing
• Dimensions (LxWxH): ca. 63 x 41 x 21 mm

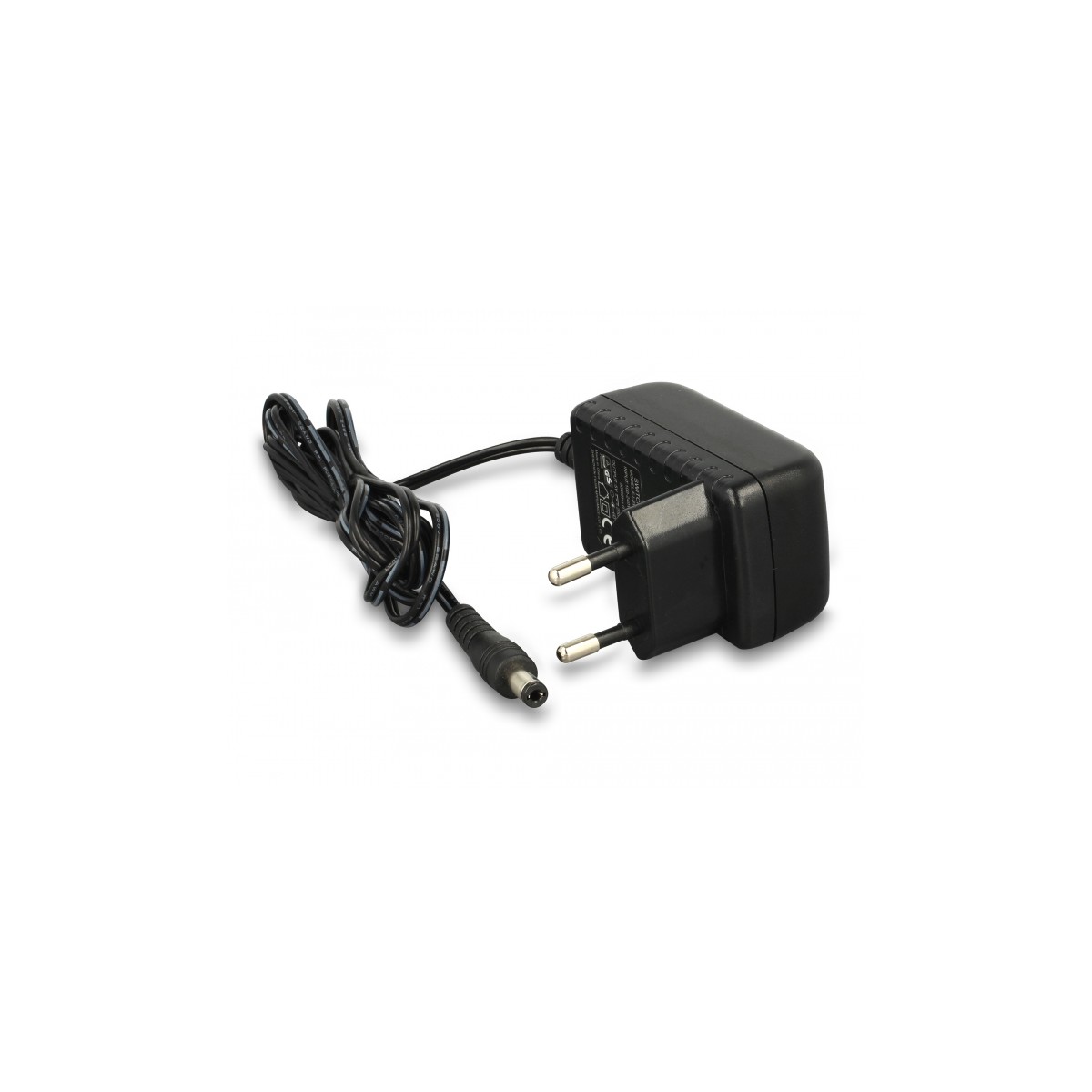

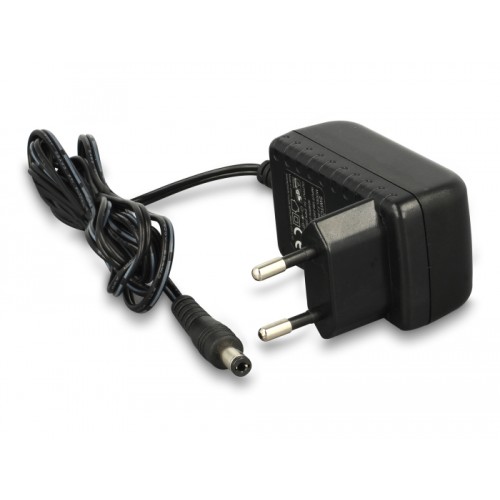

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A

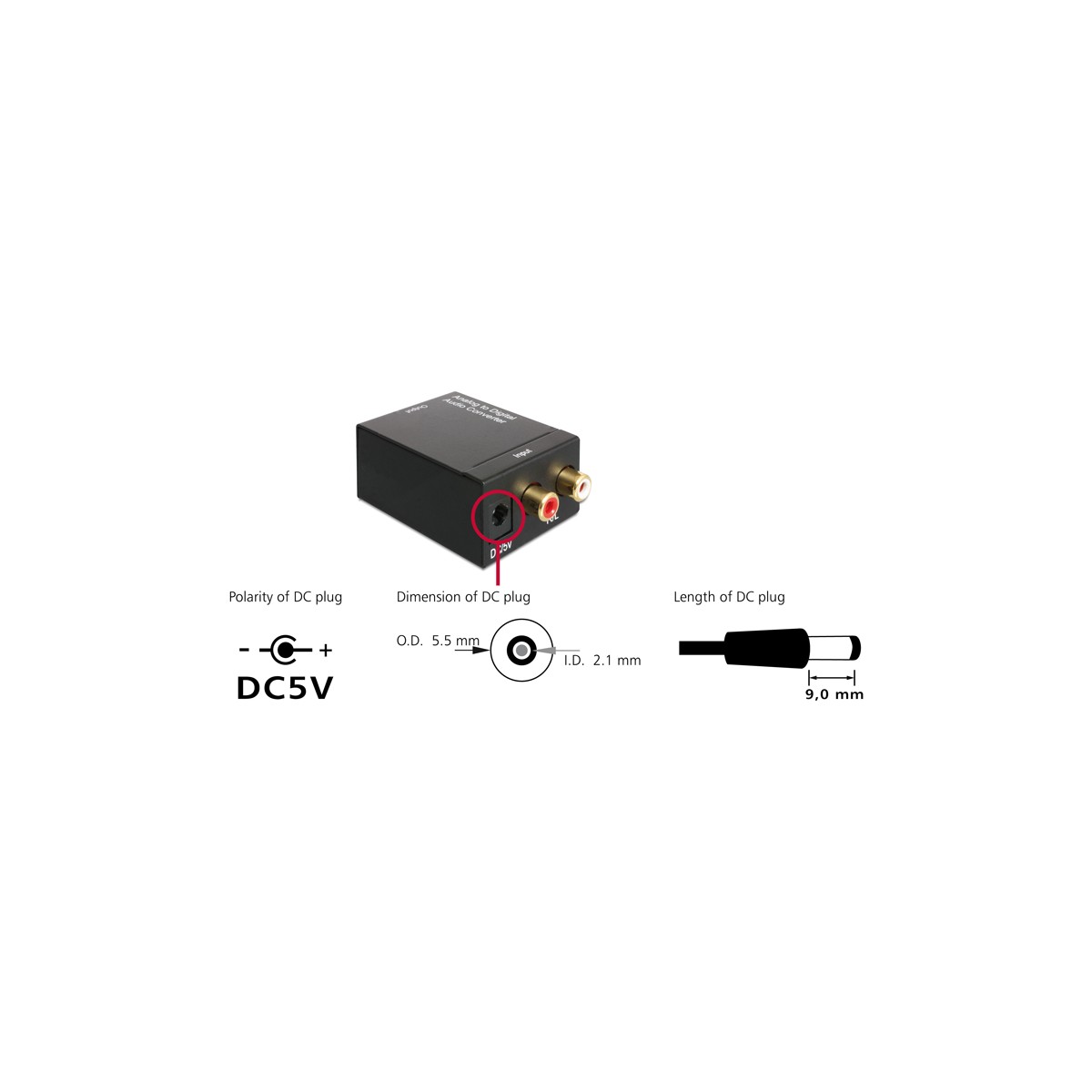

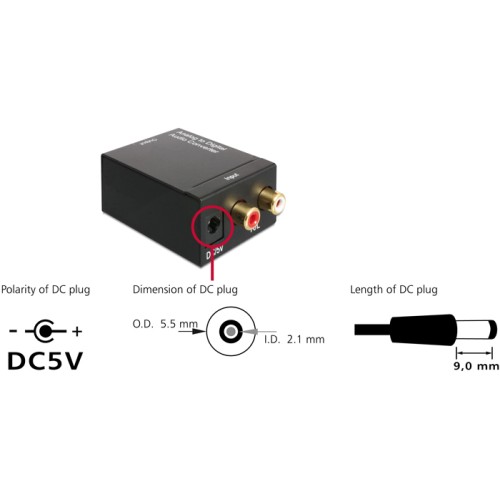

• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• Analogue audio signal
• Connection cable
Package content
• Converter analogue > digital
• Power supply
• User manual
The audio converter by Delock converts an analogue stereo signal into a digital signal. Two cinch cables can be connected to the device to input the analog source signal, e. g. from an MP3 player. At the output, the signal can be transmitted either via optical TOSLINK connection or via S/PDIF coaxial connection.
07/2018 New power supply
Specification
• Connectors:
Input:
2 x RCA female
1 x DC jack
Output:
1 x TOSLINK female S/PDIF
1 x Coaxial female S/PDIF
• Sample rate: 16 Bit / 48 kHz
• Robust metal housing
• Dimensions (LxWxH): ca. 63 x 41 x 21 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• Analogue audio signal
• Connection cable
Package content
• Converter analogue > digital
• Power supply
• User manual
