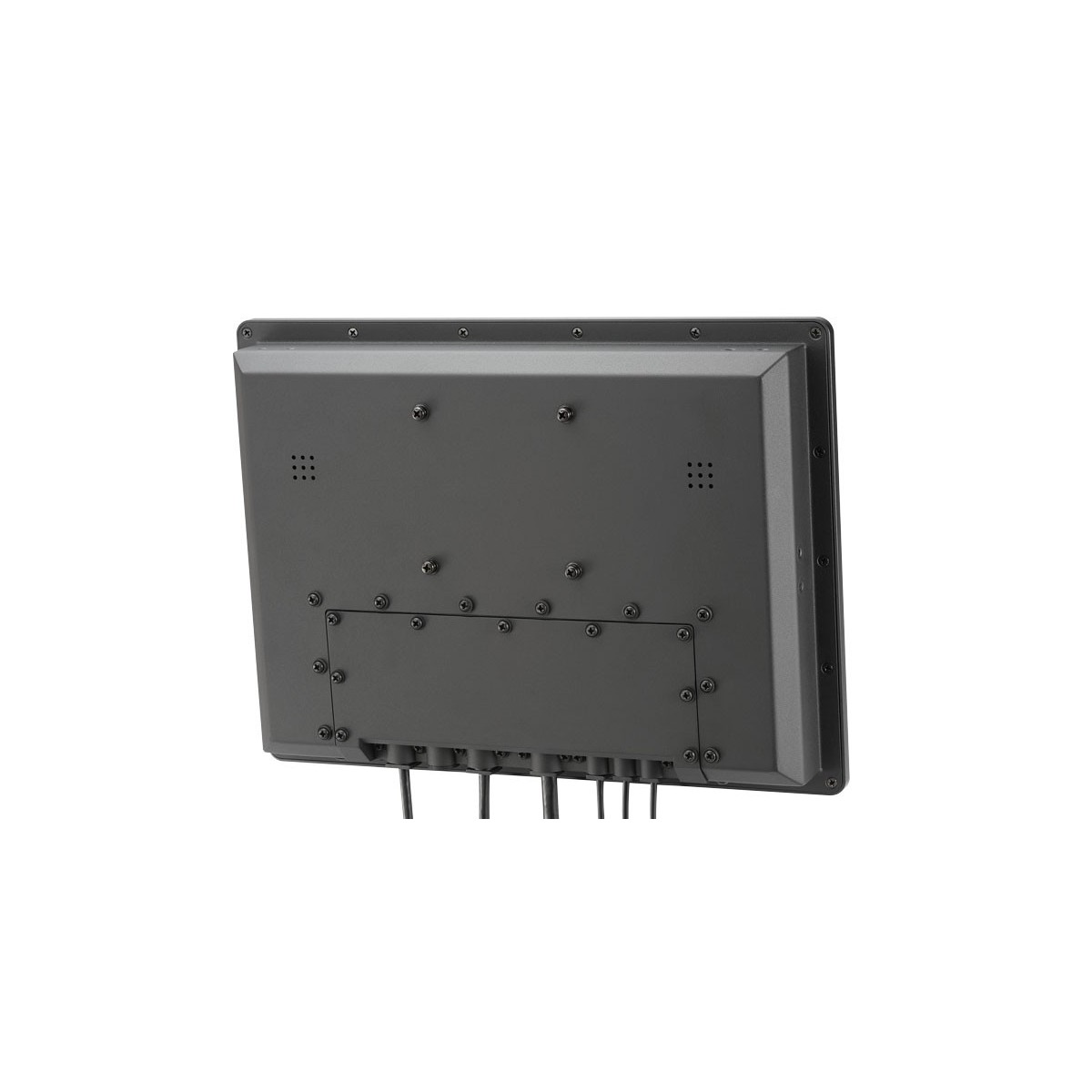

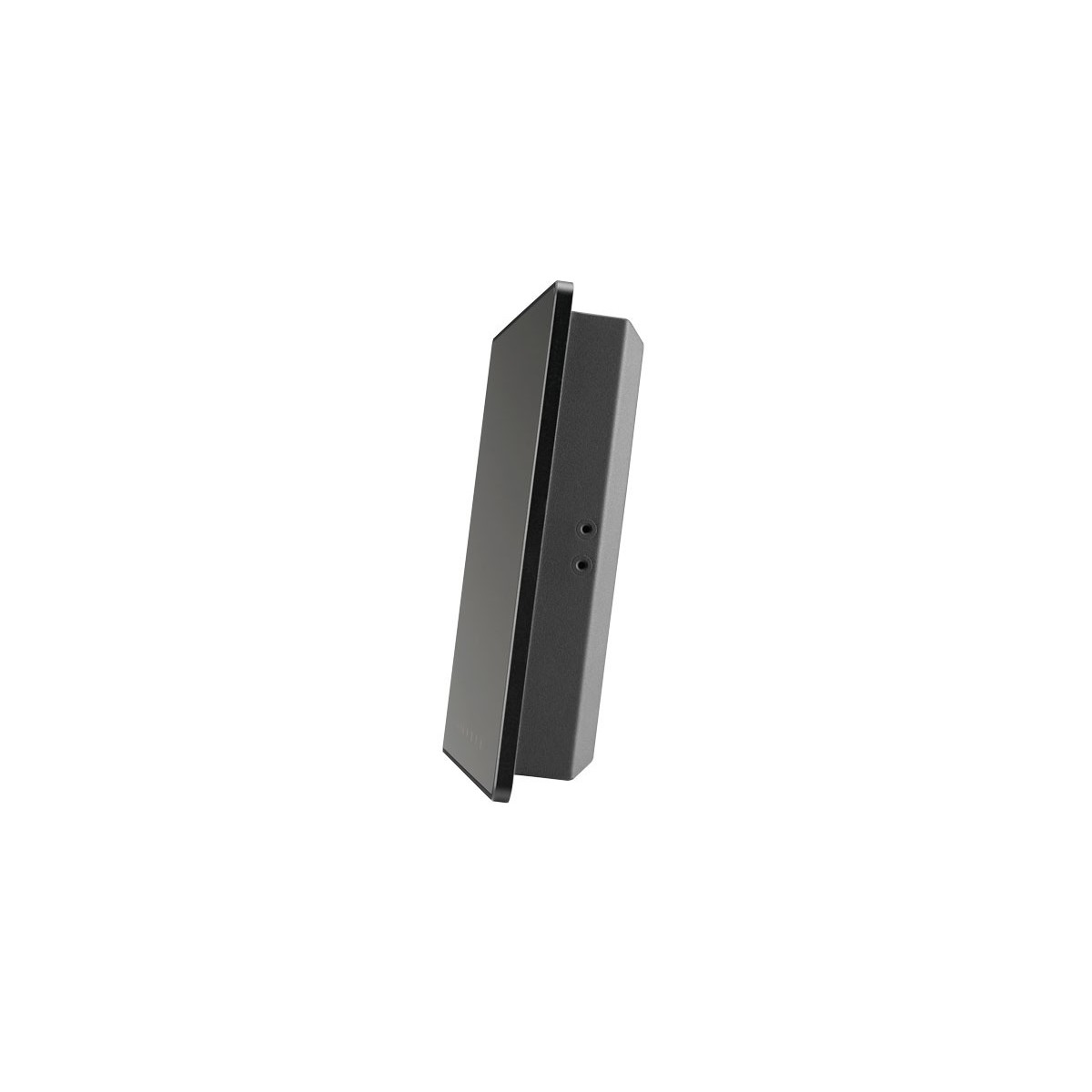

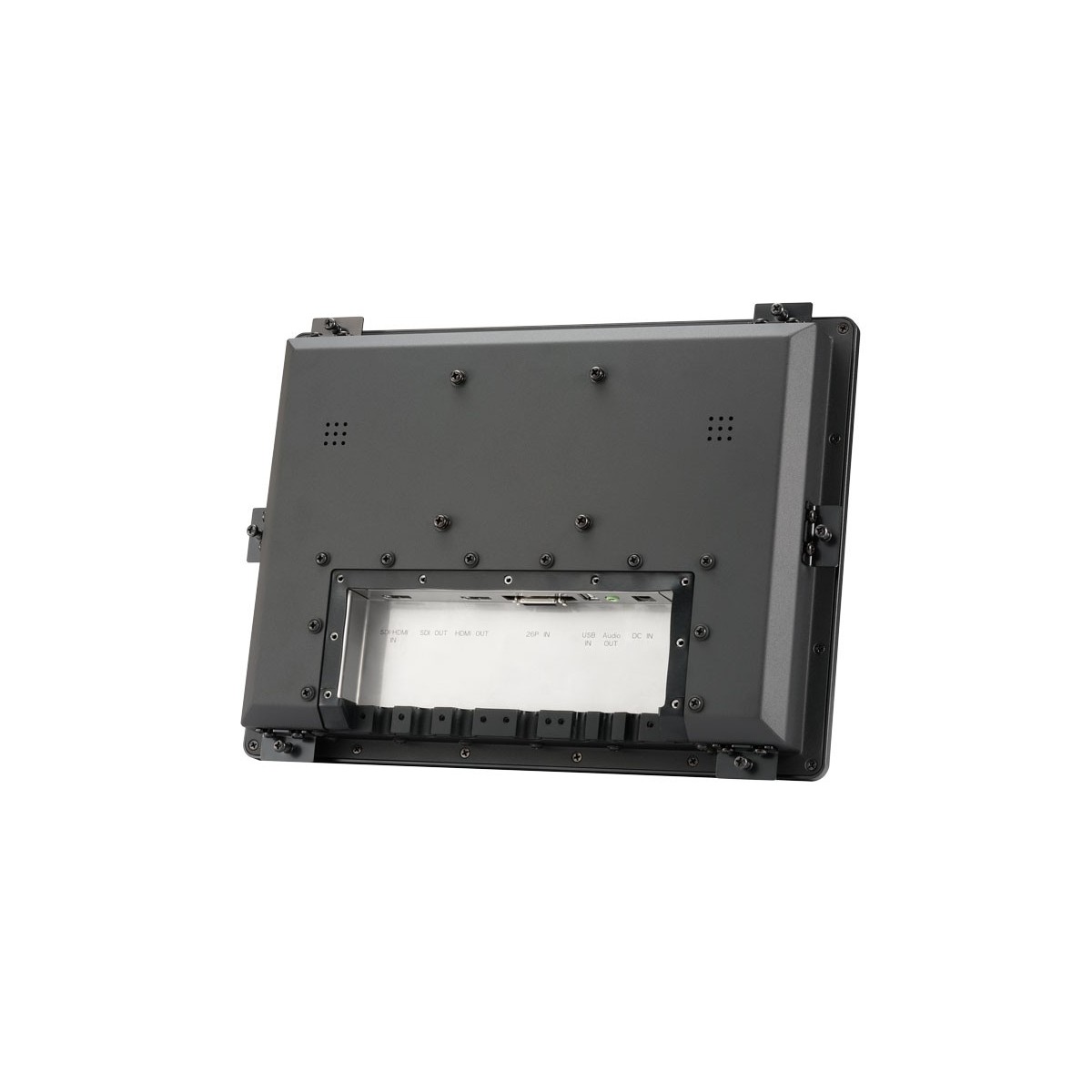

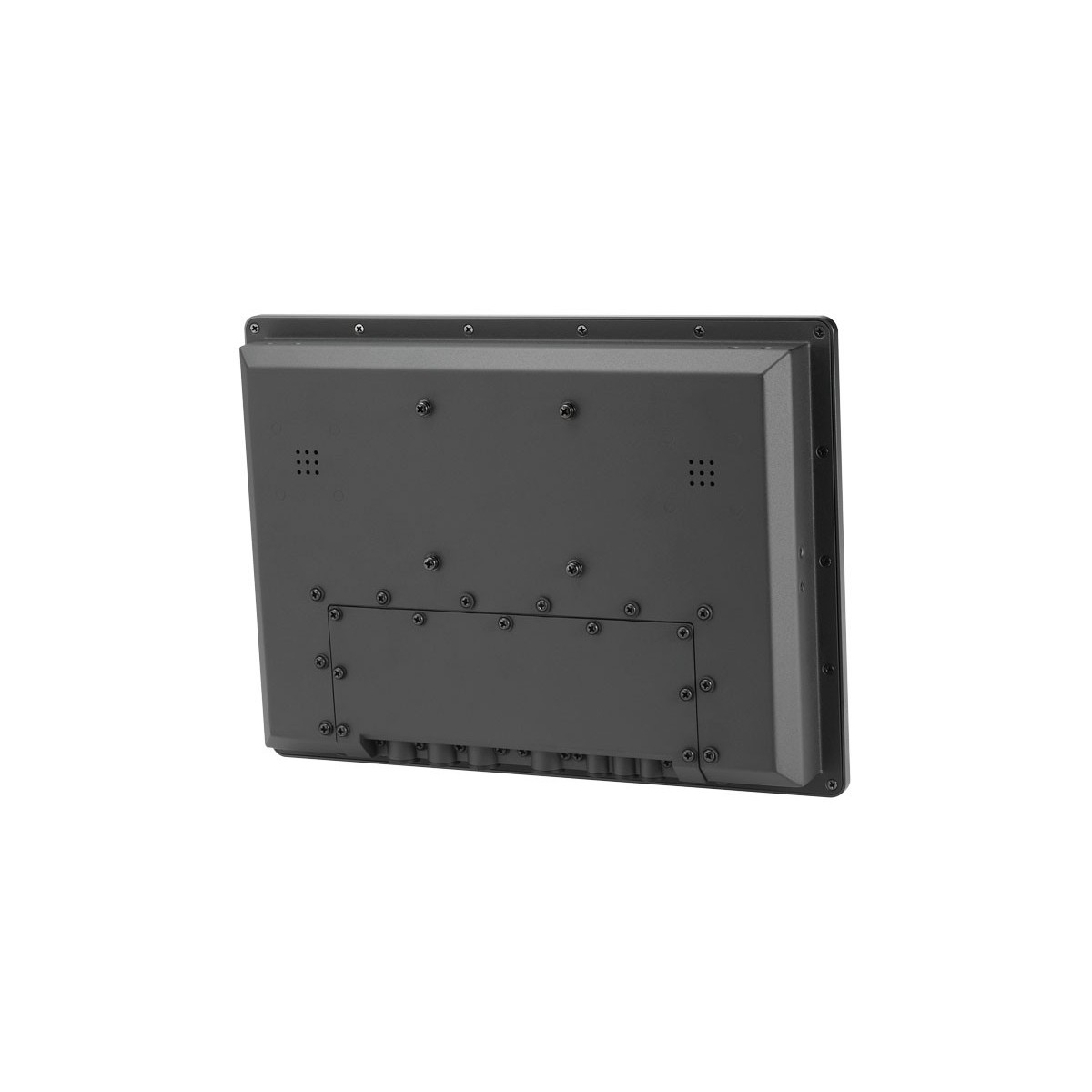

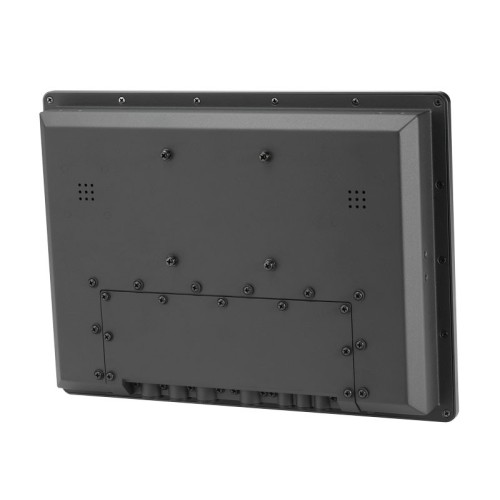

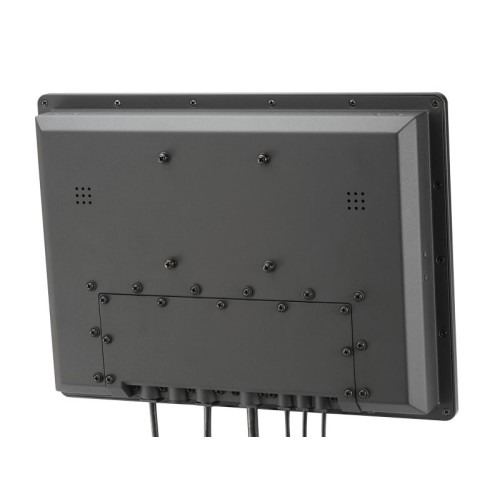

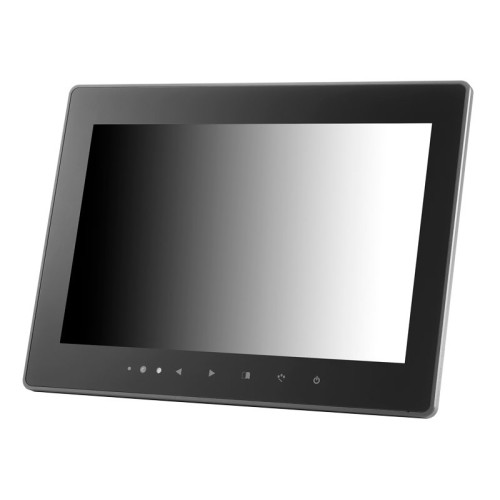

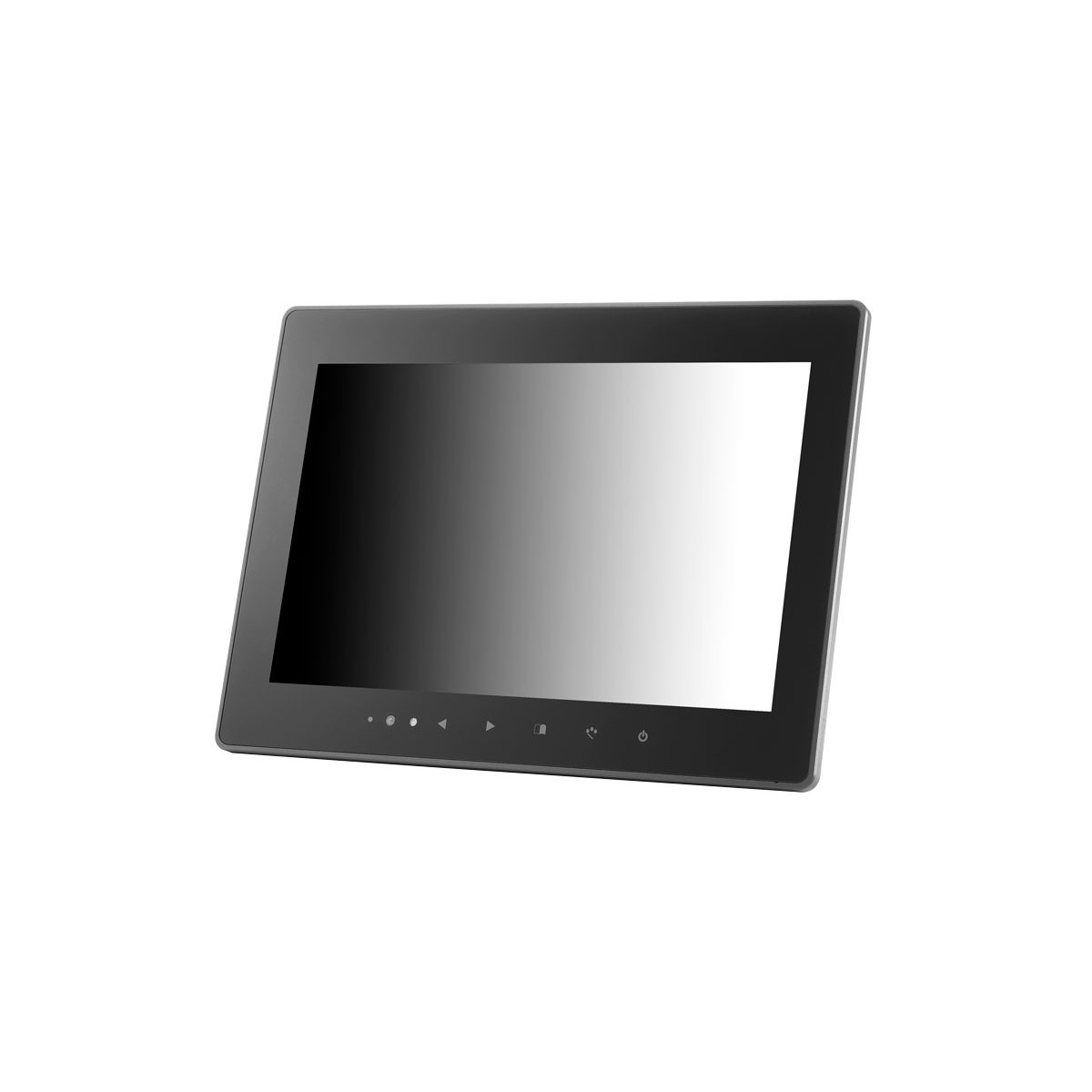

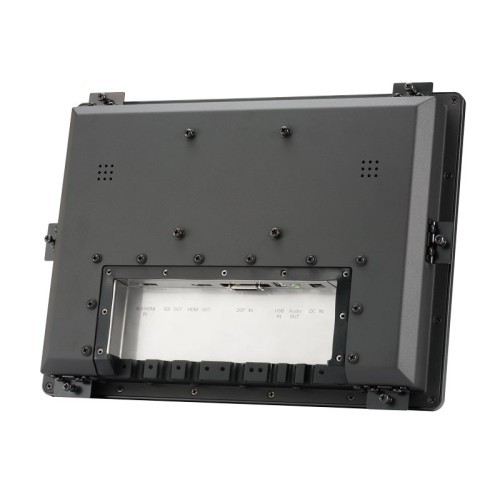

12.1" IP67 Touchscreen capacitivo con Optical Bounding LCD Monitor con HDMI, DVI, VGA & AV Inputs

Applicazioni di utilizzo:

• Trasporti: Navale, Avionico, Veicoli Pesanti, Computer di Bordo, Trasporto Pubblico
• Integrazione: Controllo Macchina, Automazione Industriale, Monitoraggio Ambientale, Automazione Domestica, Domotica
• Punti Vendita: Receptions, Digital Signage, Postazioni Self-Service, Totem Esterni

• Sunlight Readable – Ready for all environments
• Waterproof/Dustproof– Built to Stringent IP67 Standards
• Bonded Glass – Optically Enhanced for clarity and viewability
• Multiple Inputs – HDMI, SDI, DVI, VGA, and AV Inputs
• Automatic Dimming – Built in Ambient Light Sensor
• Superior Image – Scalable resolution up to 1080P
• Extended Temperature Range

Specifiche:

• Screen Size: Diagonal 12.1" (16:9)
• Physical Resolution: 1280 (H) x 800 (V) HD
• Supported Resolution: 640 x 480 ~ 1920 x 1080
• Dot Resolution: 3840 x 800 = 3,072,000 (dots)
• Brightness: 1000 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 178° Horizontal, 178° Vertical
• Response Time (Tr+Tf): 25ms (Typ.)
• Touch Screen Interface: USB port
• Operating Voltage Range: DC 9V ~ 36V
• Power Supply: DC 12V
• Power Consumption: ≤ 20W
• Operating Temperature: -22°F ~ 185°F (-30°C ~ 85°C)
• Storage Temperature: -22°F ~ 185°F (-30°C ~ 85°C)
• Vibration: Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard
• Shock: Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard
• MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
• Dimension (mm): 312W x 230H x 44.2D
• Weight (kg): 2,8
• IP67 / NEMA6P Rated Water and Dust Resistance
• 1,000NIT Sunlight Readable with Long Life LED Backlight
• Wide Viewing Angle IPS (In-Plane Switching) LCD Panel
• Automatic Backlight Adjustment through Built-in Ambient Light Sensor
• Projected Capacitive Multi-Touch Touchscreen (USB)
• Optical Bonding, Anti-Reflective and Anti-Fingerprint Coating
• Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
• Multi-Monitor Touchscreen Support
• HDMI Input x 2 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• HDMI Output x 1, Analog Audio Output x 1
• Audio Input x 4 / Built-In Waterproof Speaker
• 1280x800 Native Resolution, 16x9 Aspect Ratio
• Chip Monolithic Ceramic Capacitors for Improved Durability
• High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Last Input and Power Setting Memory
• IR Remote Control
• Auto Power-On upon signal detection
• Vertical Image Flip
• Function to Disable Front Button(s) and On Screen Text
• AV2 Auto Switching for Backup Camera
• VESA 75mm Mounting Holes
• 26-Pin Heavy-Duty Connector with Connector Locking
• Ruggedized Aluminum Casing
• Supports 9V DC ~ 36V DC
• "E" Mark Certified for Automotive use
• FCC, CE, E13 Certification
• IK08 Impact Resistant
• ROHS Compliant

• 5M Waterpoof Power Lead with Optional AC Adaptor or Cigarette Lighter Car Adaptor
• 1.8M Waterproof 26PIN Multi-Input Video Cable
• 5M Waterpoof HDMI Cable
• 5M Waterproof USB Cable
• 1.8M Waterpoof Audio Cable
