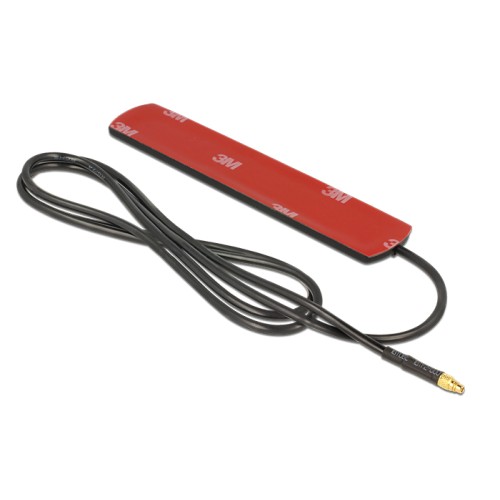

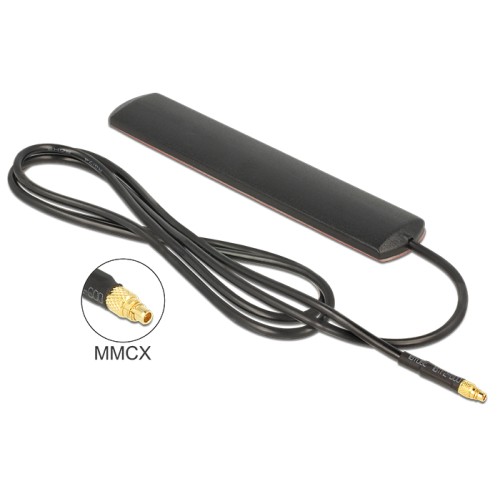

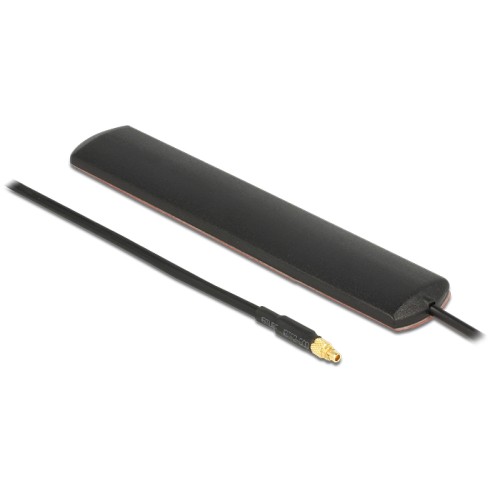

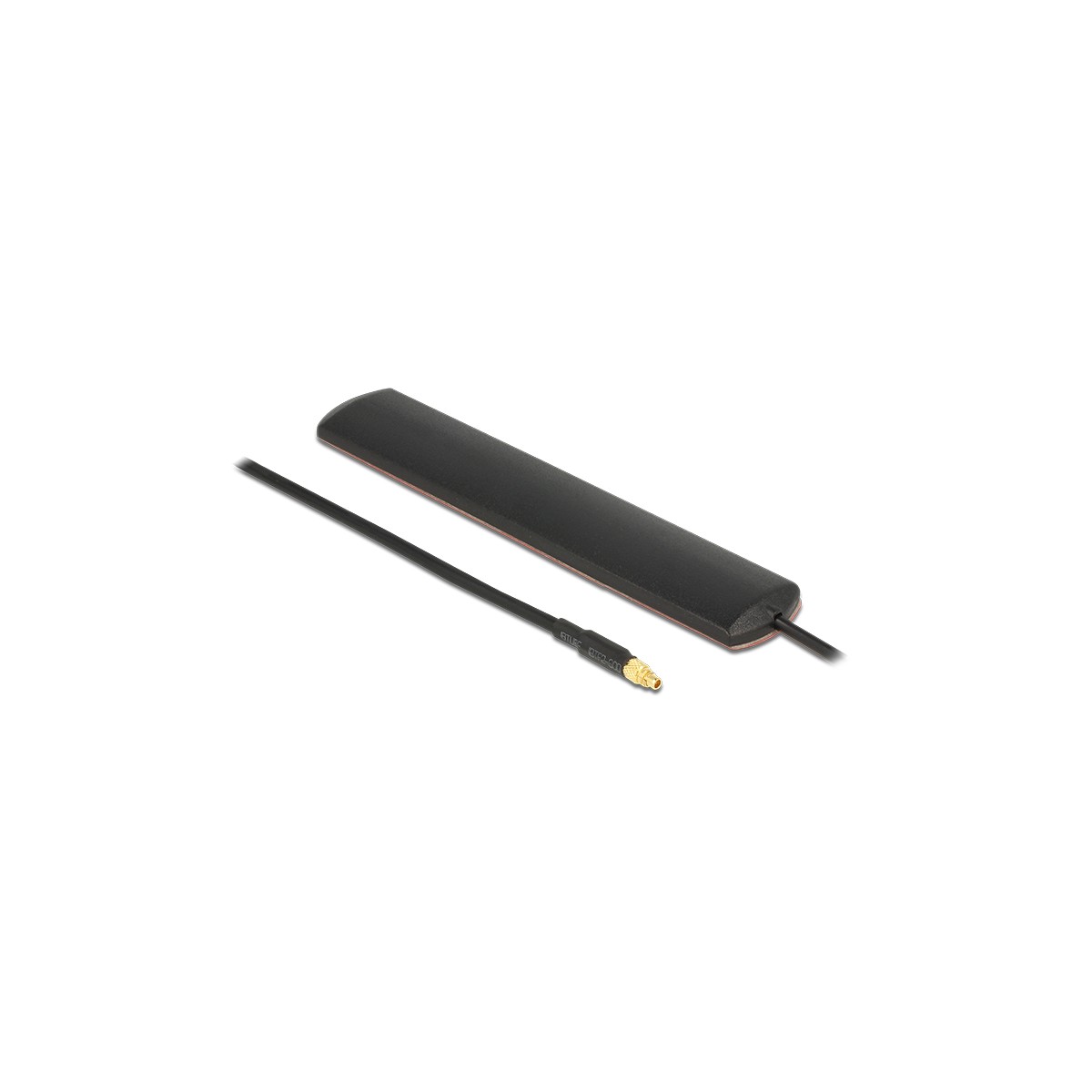

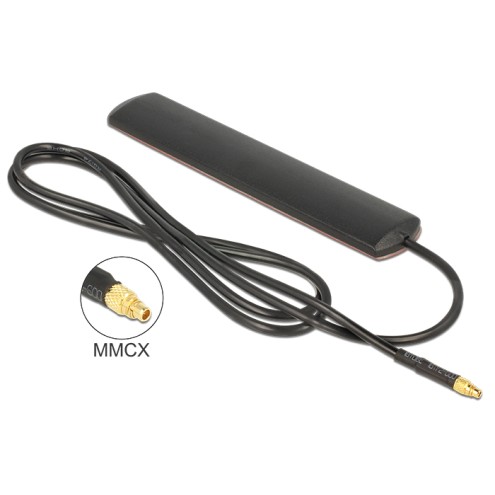

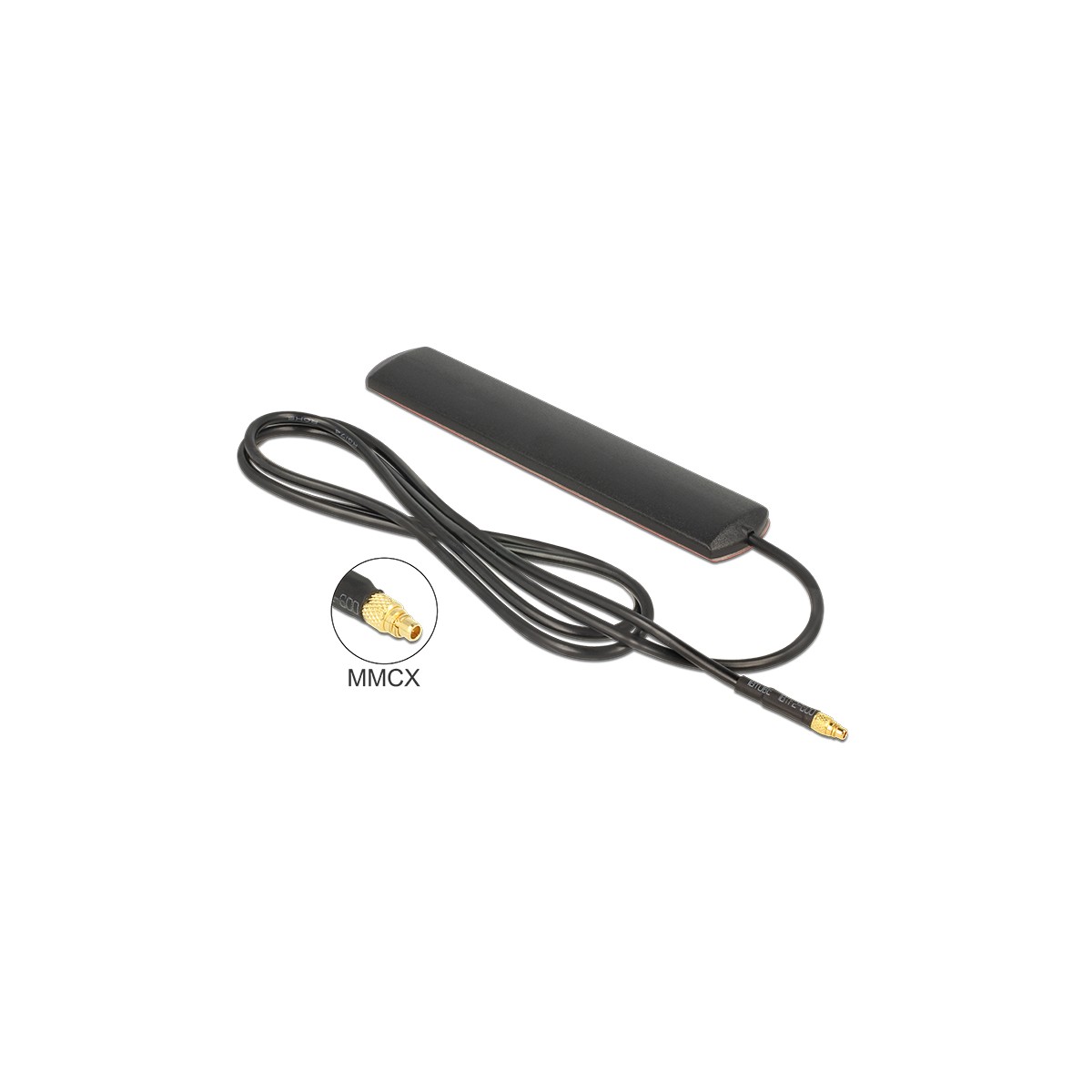

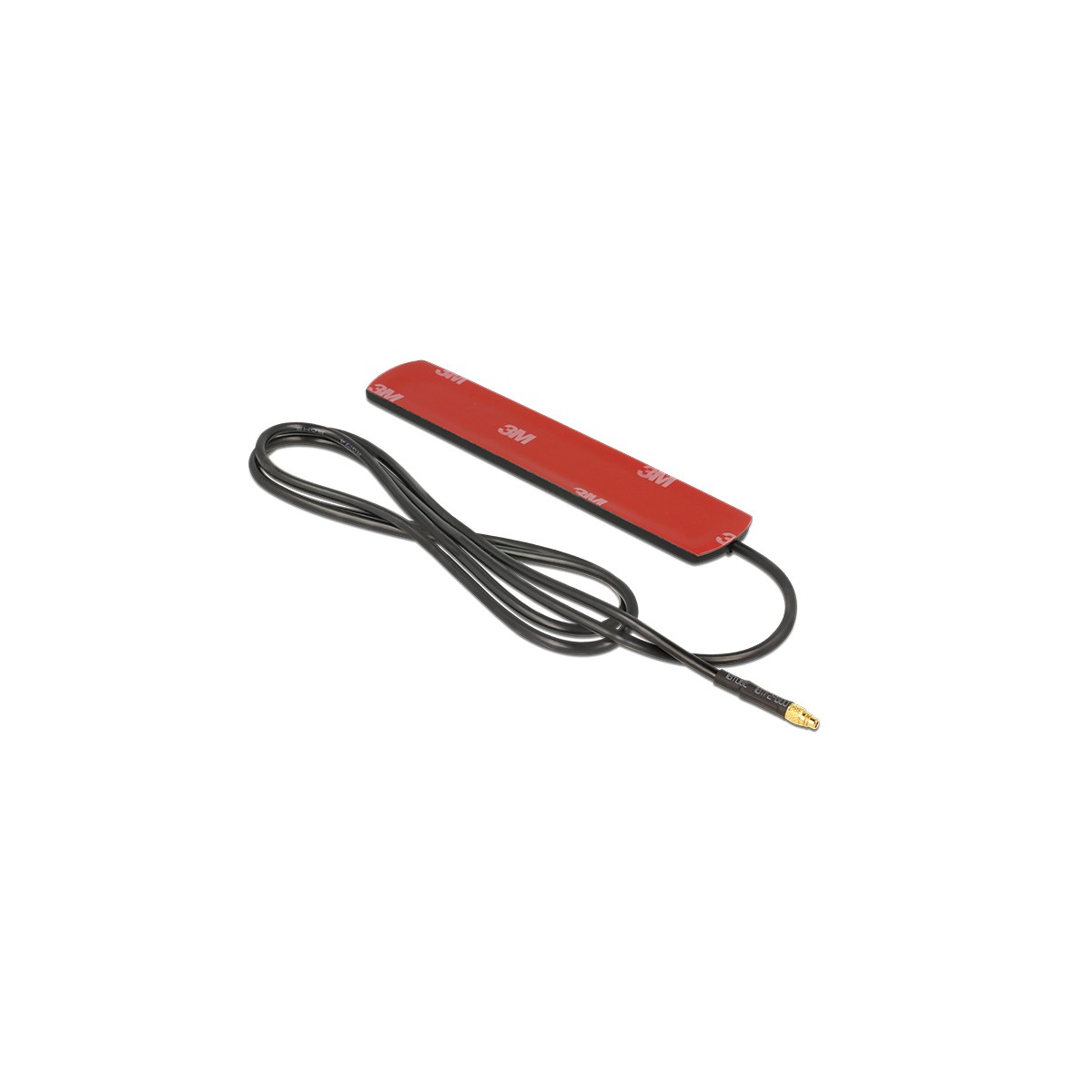

Delock LTE Antenna MMCX Plug 3 dBi omnidirectional fixed black adhesive mounting
89525
Nuovo
Description
This Delock LTE antenna allows the use of different LTE bands indoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatible.
Specification
• Connector: MMCX plug
• LTE Band 1 - 10, 12 - 20, 23, 25 - 30, 33 - 41, 43, 44
• Frequency range: 690 - 960, 1710 - 2700 Mhz
• GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0.
• Operating temperature: -10 °C ~ 55 °C
• Housing: ABS UV resistant
• Colour: black
• Dimensions (LxWxH): ca. 115 x 22 x 5 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1,5 dB @ 1,5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 0,9 m
System requirements
• Device with free MMCX connector
Package content
• LTE antenna
This Delock LTE antenna allows the use of different LTE bands indoors. It is completely GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave compatible.
Specification
• Connector: MMCX plug
• LTE Band 1 - 10, 12 - 20, 23, 25 - 30, 33 - 41, 43, 44
• Frequency range: 690 - 960, 1710 - 2700 Mhz
• GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0.
• Operating temperature: -10 °C ~ 55 °C
• Housing: ABS UV resistant
• Colour: black
• Dimensions (LxWxH): ca. 115 x 22 x 5 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1,5 dB @ 1,5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 0,9 m
System requirements
• Device with free MMCX connector
Package content
• LTE antenna
