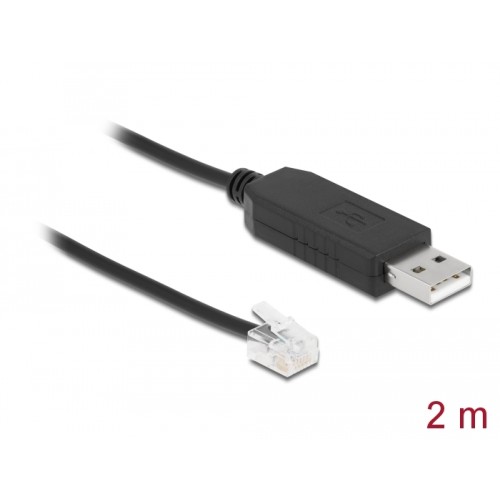

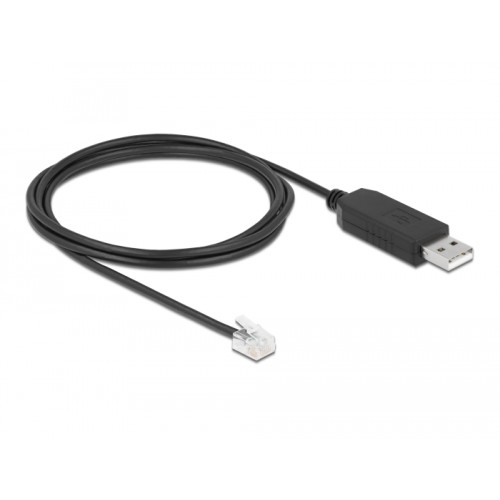

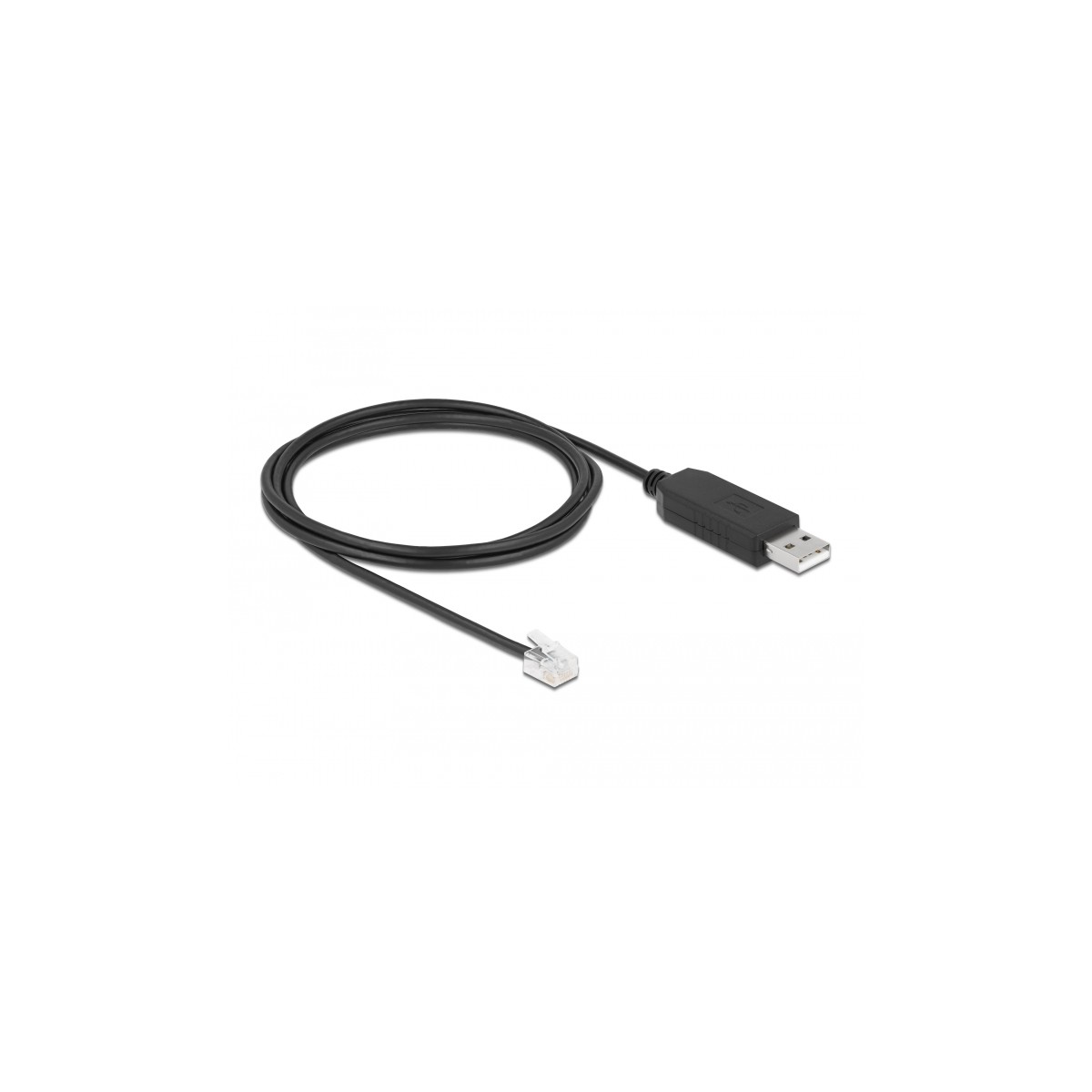

Delock Adapter cable USB Type-A to Serial RS-232 RJ12 with ESD protection APC 2 m
66736
Nuovo
Description
This USB to serial RS-232 RJ12 adapter cable by Delock is suitable for controlling and monitoring the rack power distribution units and rack transfer switches from APC.
Compatible Devices:
Rack Power Distribution Units:
AP78xx, AP79xx, AP86xx, AP88xx, AP89xx
Rack Automatic Transfer Switches:
AP7752, AP7752, AP7730, AP7732, AP7721, AP7723
Specification
• Connectors:
1 x USB 2.0 Type-A male
1 x Serial RS-232 RJ12 plug
• Chipset: FTDI FT231X
• Plug & Play
• FIFO: 512 Byte - TX
• FIFO: 512 Byte - RX
• Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 230.4 Kb/s

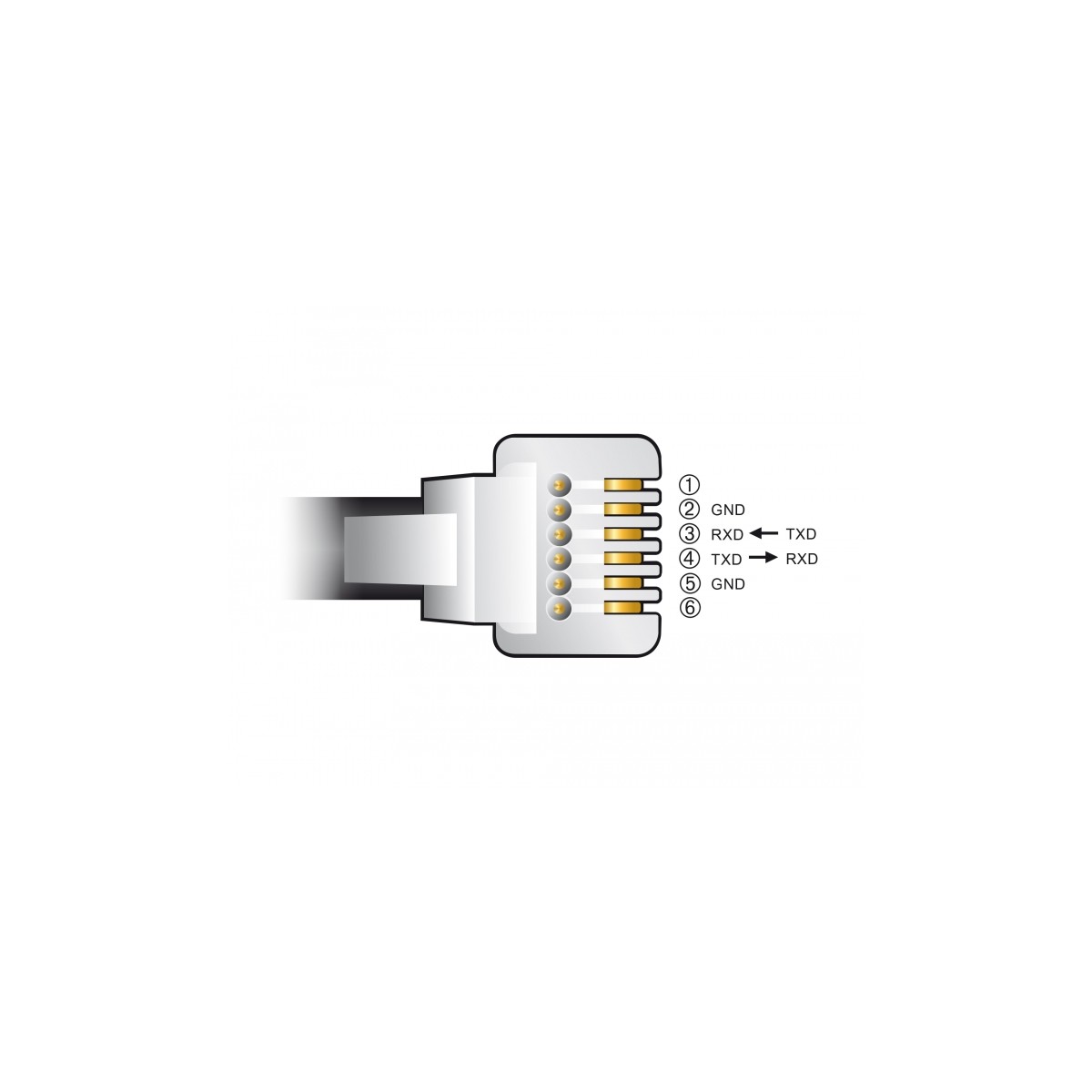

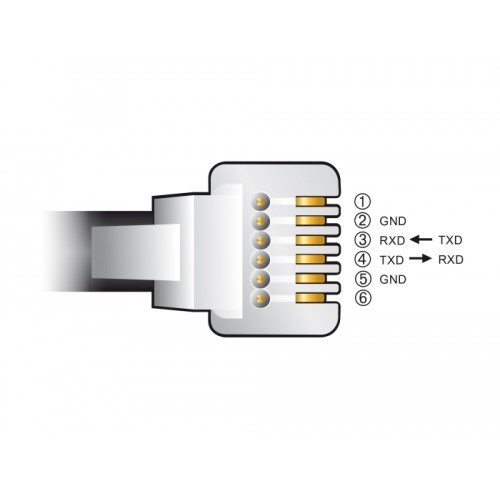

• Signals: GND(2), RXD(3), TXD(4), GND(5)
• ESD protection IEC 61000-4-2
HCP & VCP: ±4 kV
Air Discharge: ±8 kV
Contact Discharge: ±4 kV
• Colour: black
• Cable length incl. connectors: ca. 2.0 m
• Suitable for various devices from APC
System requirements
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• Adapter cable USB 2.0 Type-A to RS-232 RJ12
This USB to serial RS-232 RJ12 adapter cable by Delock is suitable for controlling and monitoring the rack power distribution units and rack transfer switches from APC.
Compatible Devices:
Rack Power Distribution Units:
AP78xx, AP79xx, AP86xx, AP88xx, AP89xx
Rack Automatic Transfer Switches:
AP7752, AP7752, AP7730, AP7732, AP7721, AP7723
Specification
• Connectors:
1 x USB 2.0 Type-A male
1 x Serial RS-232 RJ12 plug
• Chipset: FTDI FT231X
• Plug & Play
• FIFO: 512 Byte - TX
• FIFO: 512 Byte - RX
• Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
• Data transfer rate up to 230.4 Kb/s
• Signals: GND(2), RXD(3), TXD(4), GND(5)
• ESD protection IEC 61000-4-2
HCP & VCP: ±4 kV
Air Discharge: ±8 kV
Contact Discharge: ±4 kV
• Colour: black
• Cable length incl. connectors: ca. 2.0 m
• Suitable for various devices from APC
System requirements
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• Adapter cable USB 2.0 Type-A to RS-232 RJ12
