Description

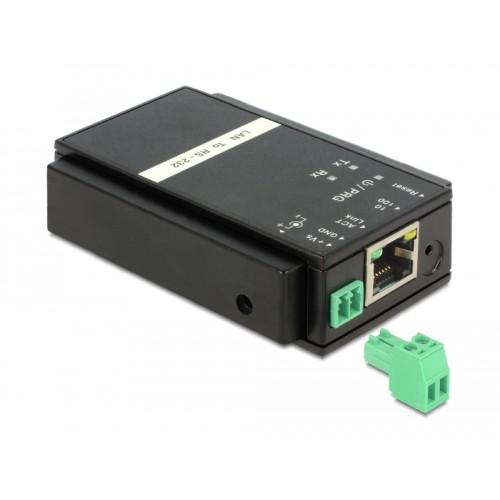

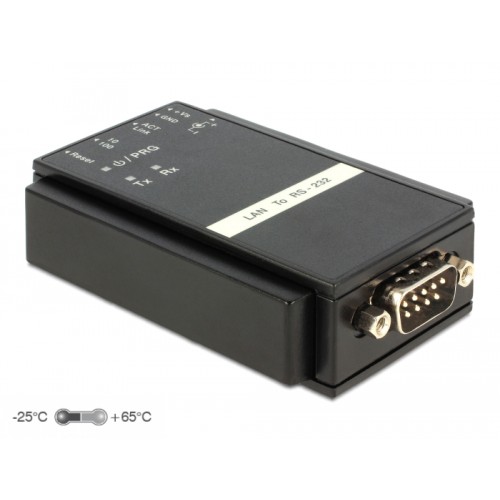

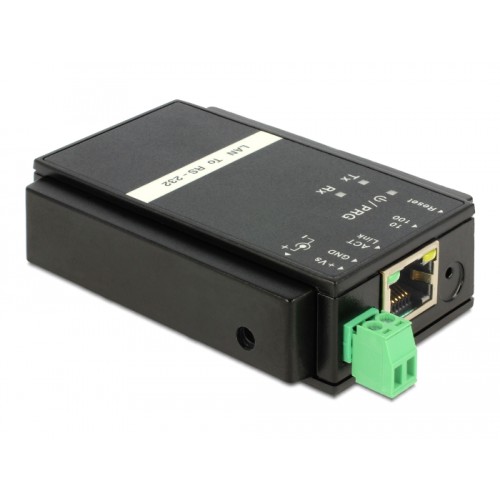

The Delock TCP/IP Ethernet to RS-232 converter by Delock enables you to integrate and control serial devices based on RS-232 via your network. The converter is suitable for DIN rail mounting.
Specification
• Connector:
Host: 1 x RJ45 female

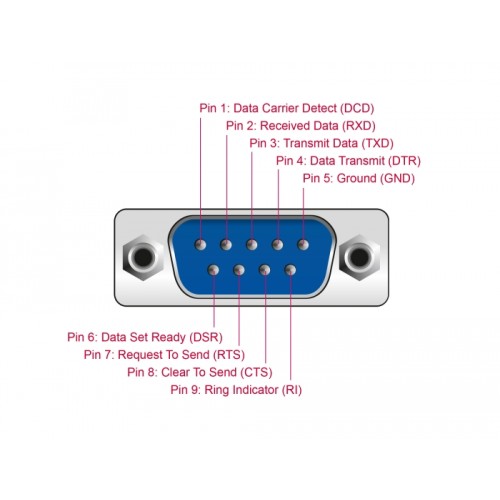

Device: 1 x D-Sub 9 pin Serial RS-232 male
1 x DC 1.3 x 3.5 mm for power supply
1 x 2 pin terminal block for power supply
• Data transfer rate:
Fast Ethernet up to 100 Mb/s
RS-232 up to 460 Kb/s
• LED indicators for status TX / RX
• Reset bottom
• ± 15 kV ESD protection for all signal pins
• Power consumption: 97 mA / 2328 mW
• Power supply with 10 ~ 30 V via terminal block or DC port
• Dimension DC port: 1,35 x 3,5 mm (ground outside, plus inside)
• Operating temperature: - 25° ~ 65° C
• Storage temperature: - 40° ~ 85° C
• Relative humidity: 5 ~ 95 % (not condensing)
• Housing: plastic
• Dimension (LxWxH): ca. 94 x 54 x 22 mm
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11/Server 2012
• One free Ethernet port
Package content
• Converter

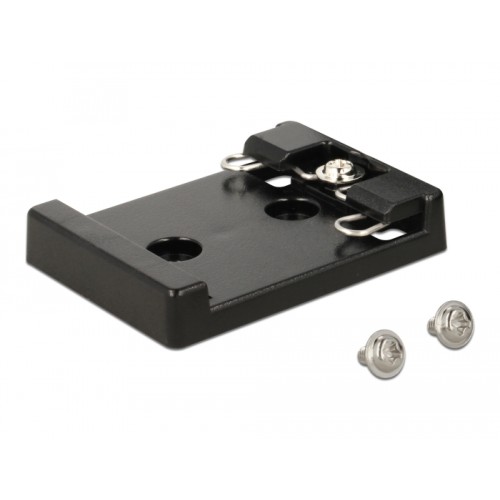

• Mounting set for DIN rail
• Driver CD
• User manual
