Description

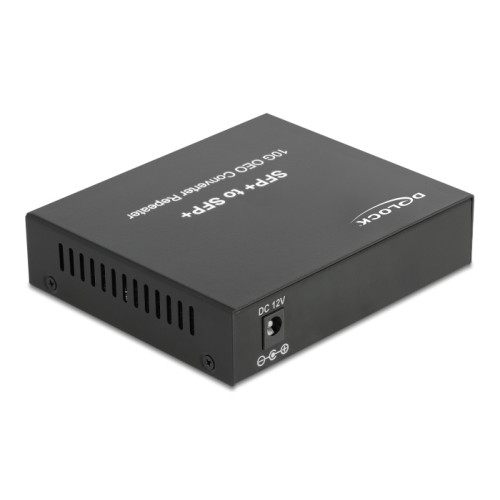

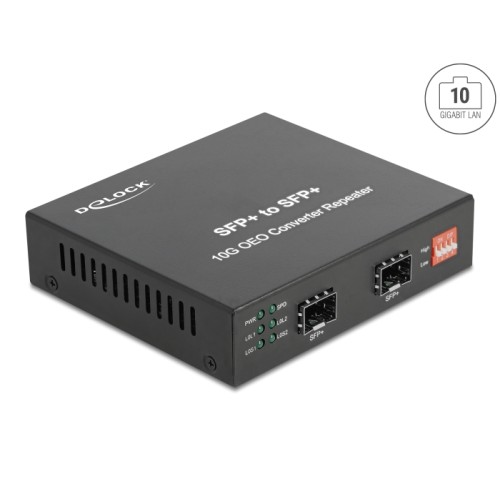

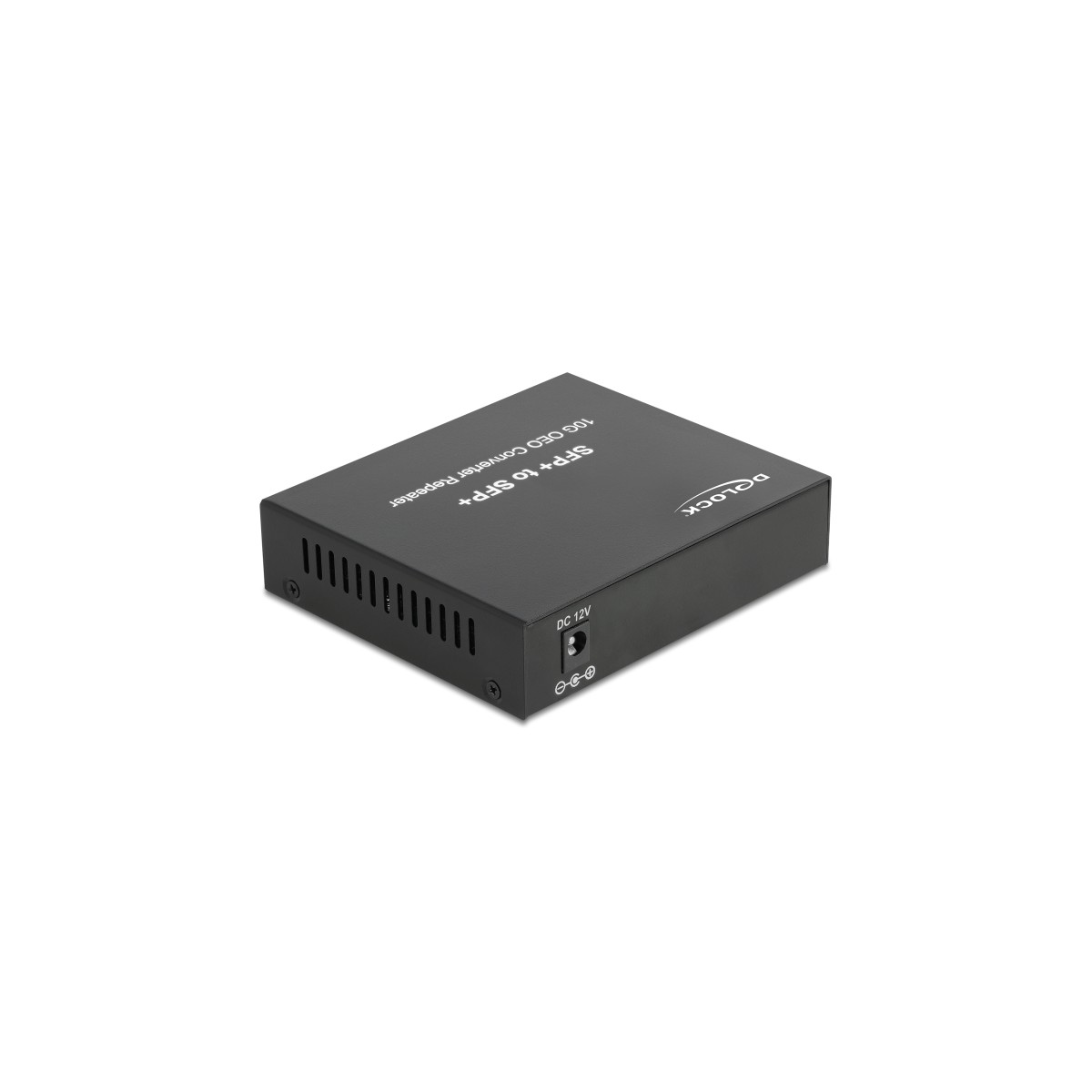

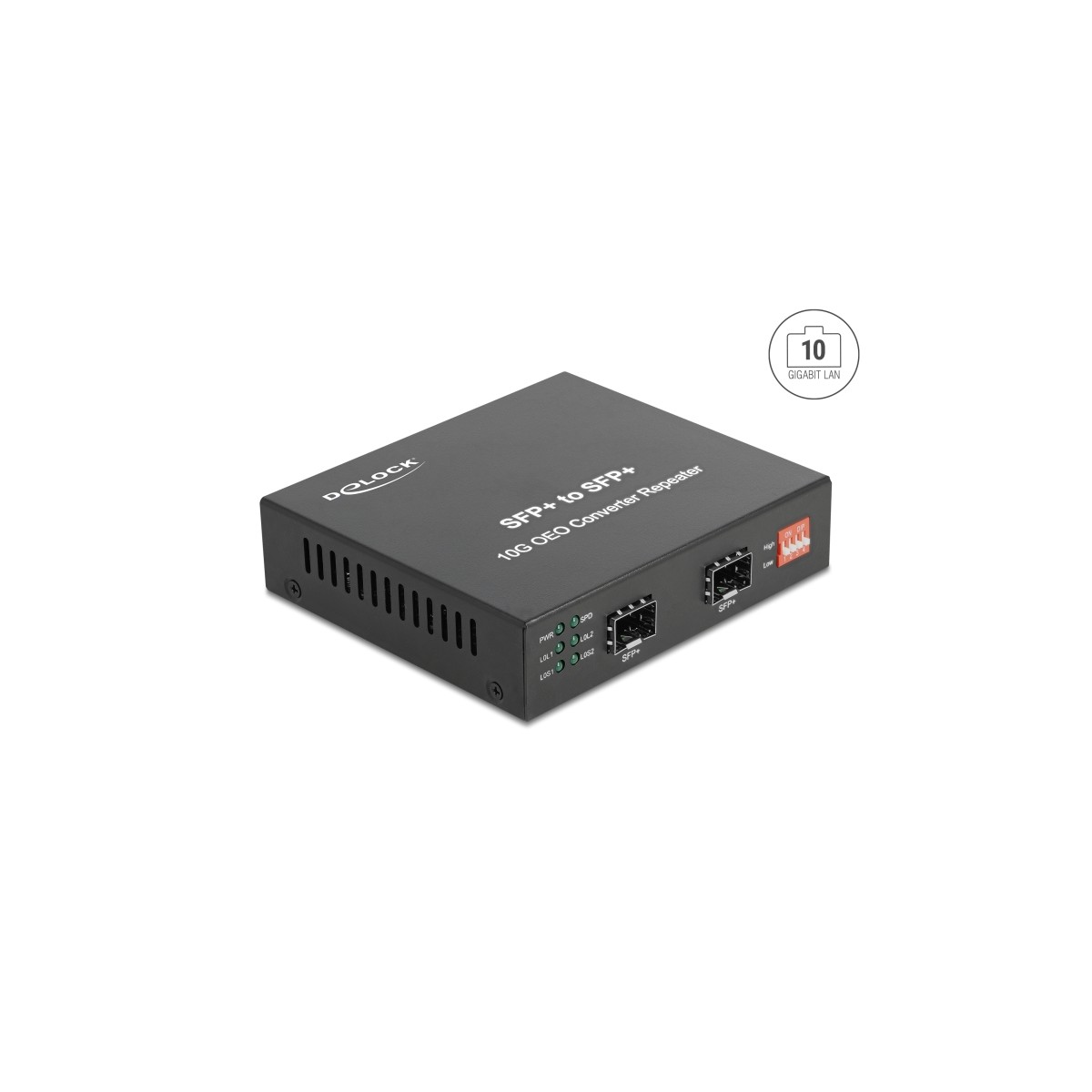

This 10 Gigabit Ethernet Media converter by Delock can be used to connect different optical media. For example, Multi-mode fiber can be converted to Single-mode fiber. In the SFP slots, various optional 10 Gbps SFP+ modules by Delock can be used.
Specification
• Connectors:
2 x SFP slot for 10GBase-R SFP+ module
(SFP module not included)
• Data transfer rate up to 10 Gbps
• IEEE 802.3ae compliant
• 6 LEDs for status monitoring
• Power consumption: max. 4 W
• Operating temperature: -20 °C ~ 60 °C
• Metal housing
• Fanless
• Dimensions (LxWxH): ca. 110 x 95 x 26 mm

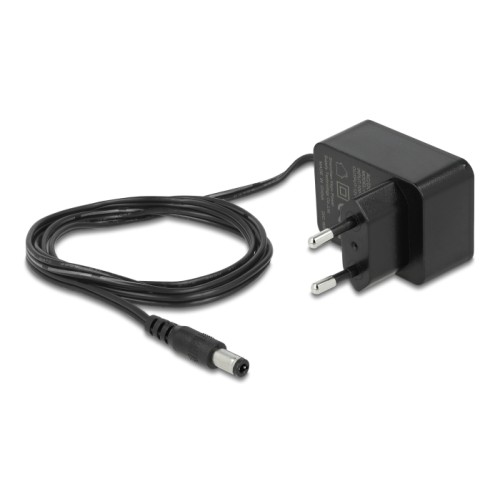

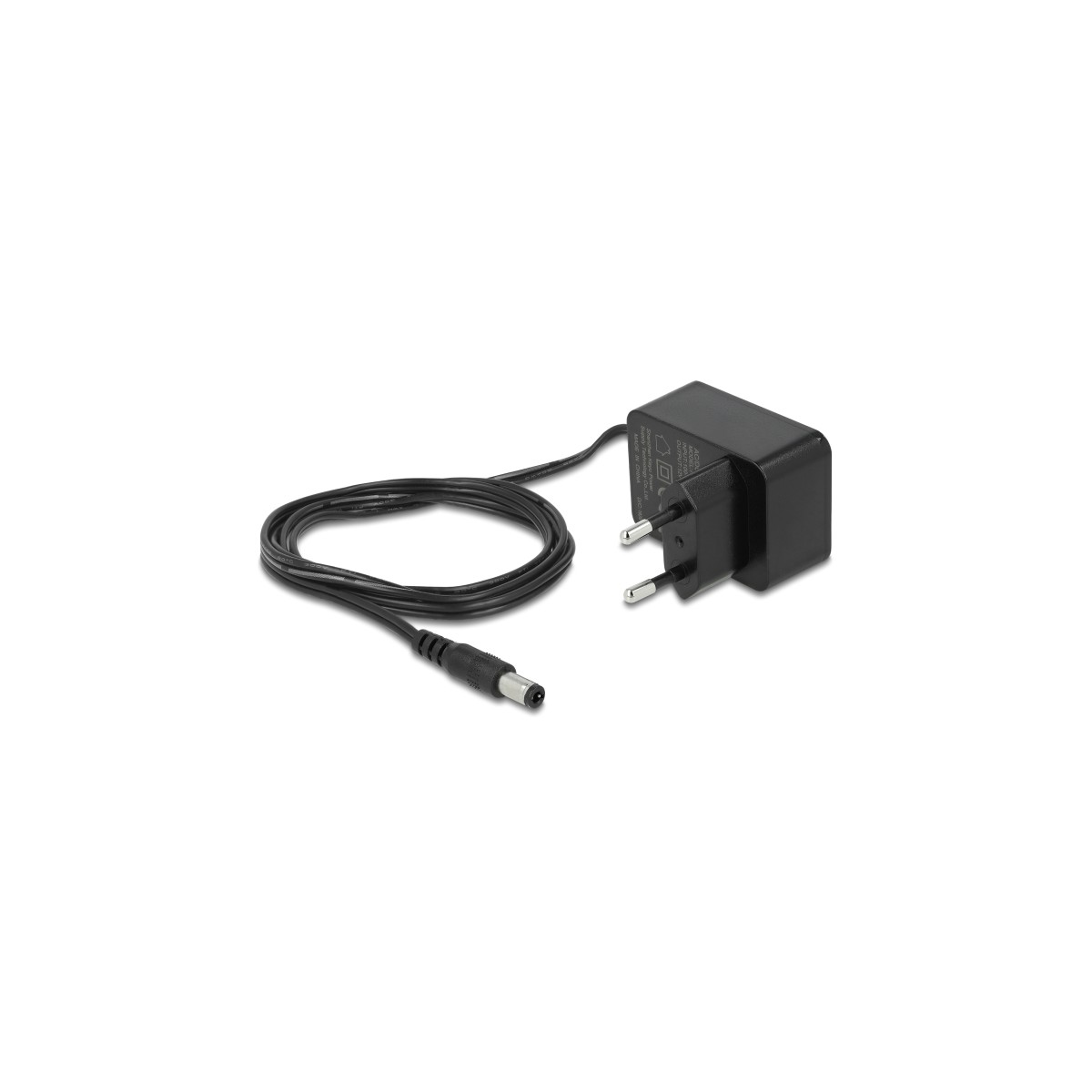

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.4 A
• Output: 12 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
System requirements
• 10GBase-R SFP+ module
Package content
• Media converter
• Power supply
• User manual
This 10 Gigabit Ethernet Media converter by Delock can be used to connect different optical media. For example, Multi-mode fiber can be converted to Single-mode fiber. In the SFP slots, various optional 10 Gbps SFP+ modules by Delock can be used.
Specification
• Connectors:
2 x SFP slot for 10GBase-R SFP+ module
(SFP module not included)
• Data transfer rate up to 10 Gbps
• IEEE 802.3ae compliant
• 6 LEDs for status monitoring
• Power consumption: max. 4 W
• Operating temperature: -20 °C ~ 60 °C
• Metal housing
• Fanless
• Dimensions (LxWxH): ca. 110 x 95 x 26 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.4 A
• Output: 12 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
System requirements
• 10GBase-R SFP+ module
Package content
• Media converter
• Power supply
• User manual
