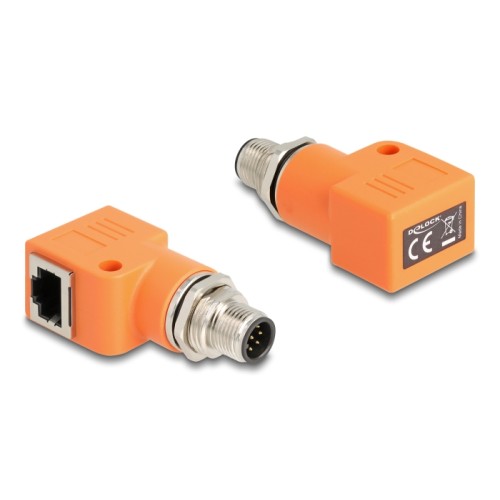

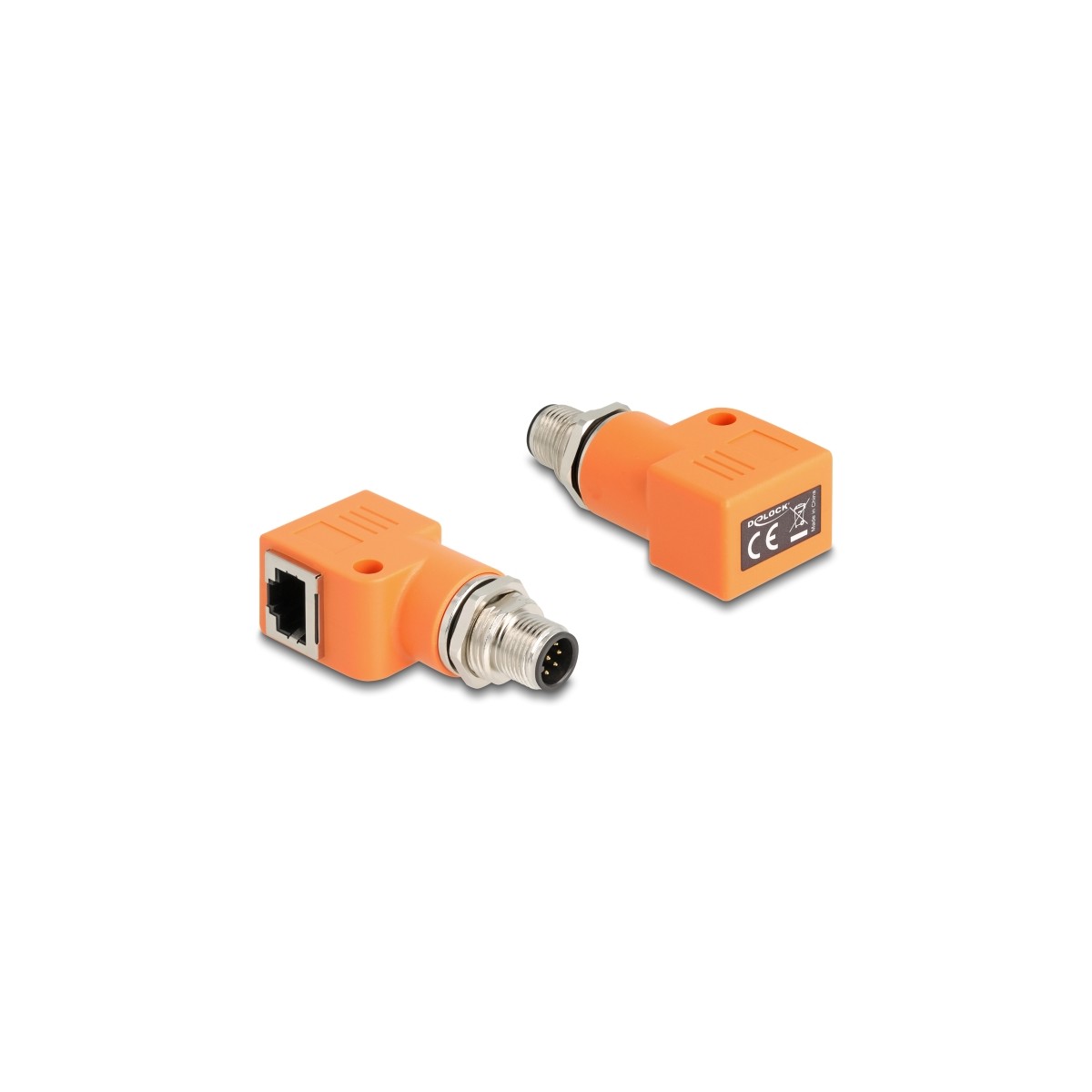

Delock M12 Adapter A-coded 8 pin male to RJ45 jack Cat.5e with mounting hole 90° angled orange
60627
Nuovo
Description
This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
With mounting hole
The adapter can be attached to a plate with a corresponding cut-out.
Specification
• Connectors:

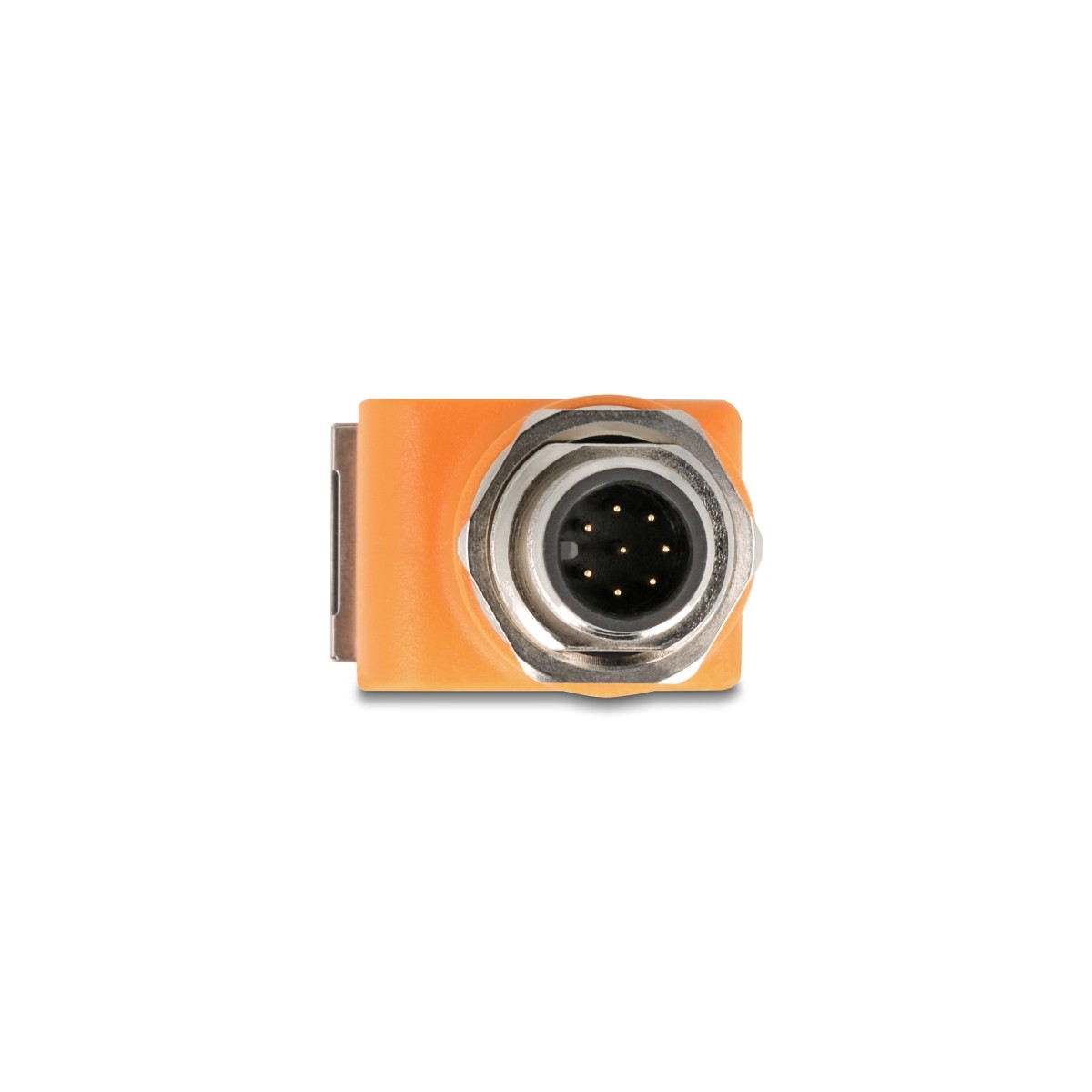

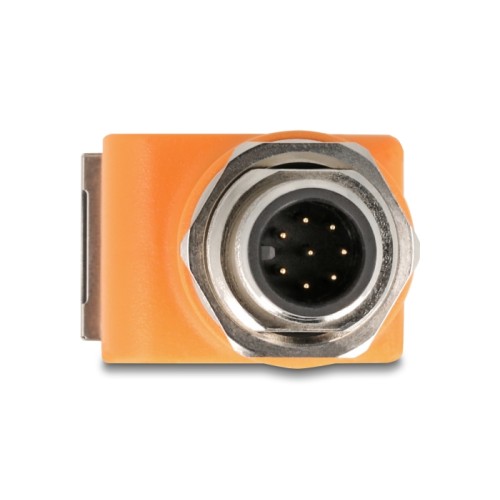

1 x M12 male 8 pin A-coded
1 x RJ45 jack 90° angled
• Cat.5e specification
• Installation dimensions: 16.1 x 13.6 mm
• With mounting hole
• Mounting hole diameter: ca. 2.7 mm
• Housing material: PVC / metal
• Shielded (STP)
• M16 external thread
• Contacts gold-plated
• Operating voltage: max. 30 V
• Current:
M12: max. 2 A
RJ45: max. 1.5 A
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67 (M12), IP20 (RJ45)
• Colour: orange
• Dimensions (LxWxH): ca. 55.9 x 20.0 x 19.0 mm
System requirements
Package content
• M12 adapter
This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
With mounting hole
The adapter can be attached to a plate with a corresponding cut-out.
Specification
• Connectors:
1 x M12 male 8 pin A-coded
1 x RJ45 jack 90° angled
• Cat.5e specification
• Installation dimensions: 16.1 x 13.6 mm
• With mounting hole
• Mounting hole diameter: ca. 2.7 mm
• Housing material: PVC / metal
• Shielded (STP)
• M16 external thread
• Contacts gold-plated
• Operating voltage: max. 30 V
• Current:
M12: max. 2 A
RJ45: max. 1.5 A
• Operating temperature: -40 °C ~ 85 °C
• Protection class: IP67 (M12), IP20 (RJ45)
• Colour: orange
• Dimensions (LxWxH): ca. 55.9 x 20.0 x 19.0 mm
System requirements
Package content
• M12 adapter
