Description

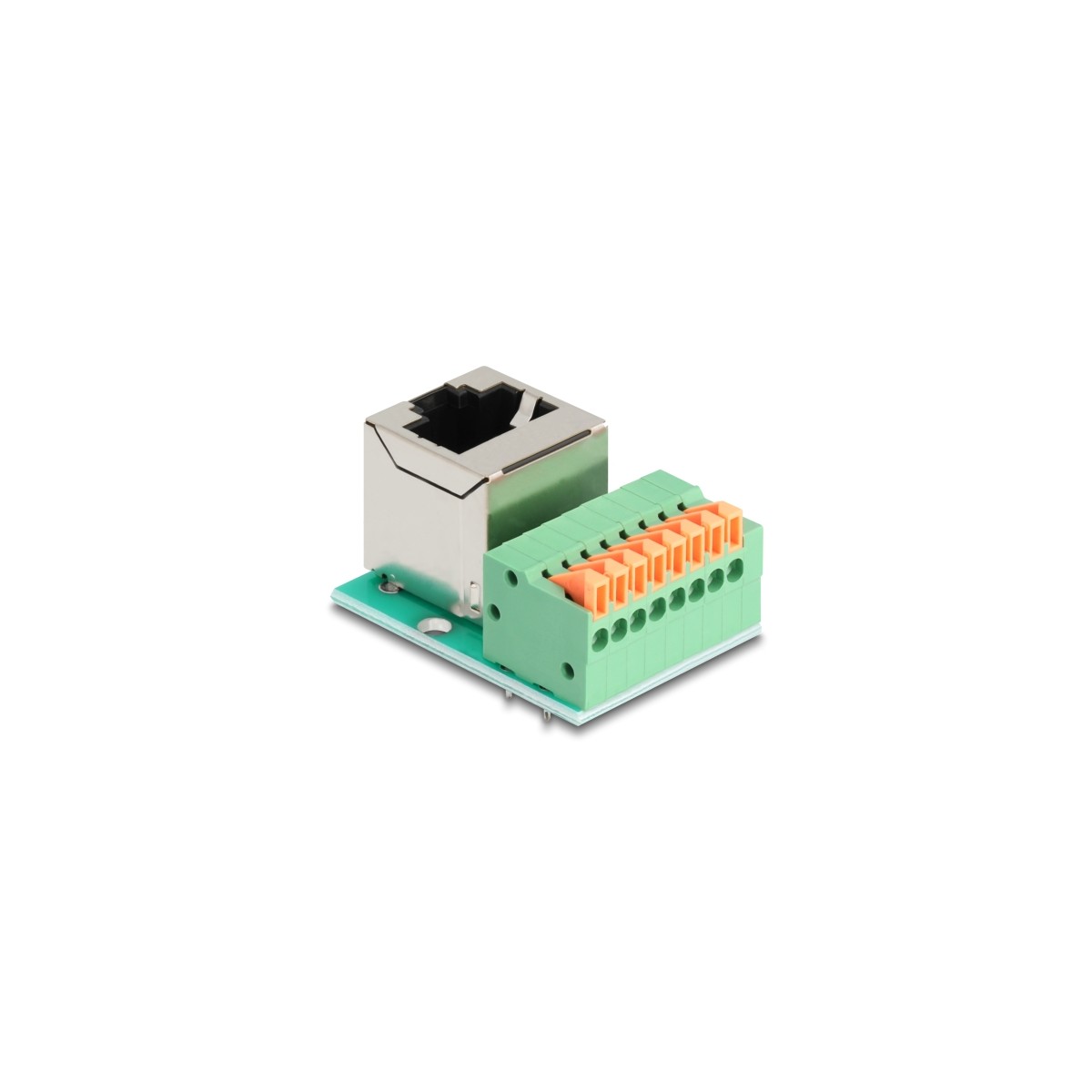

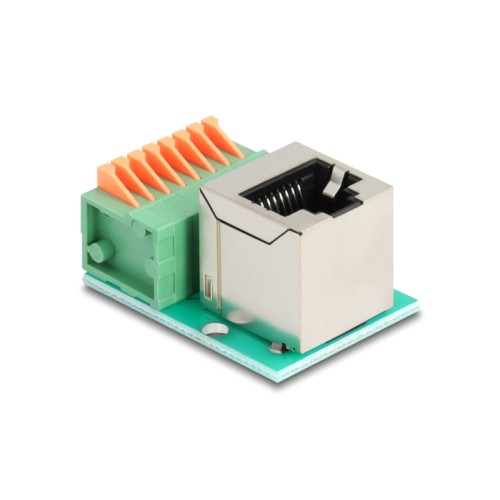

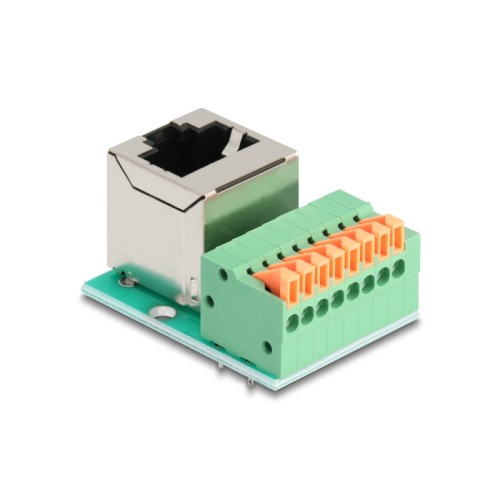

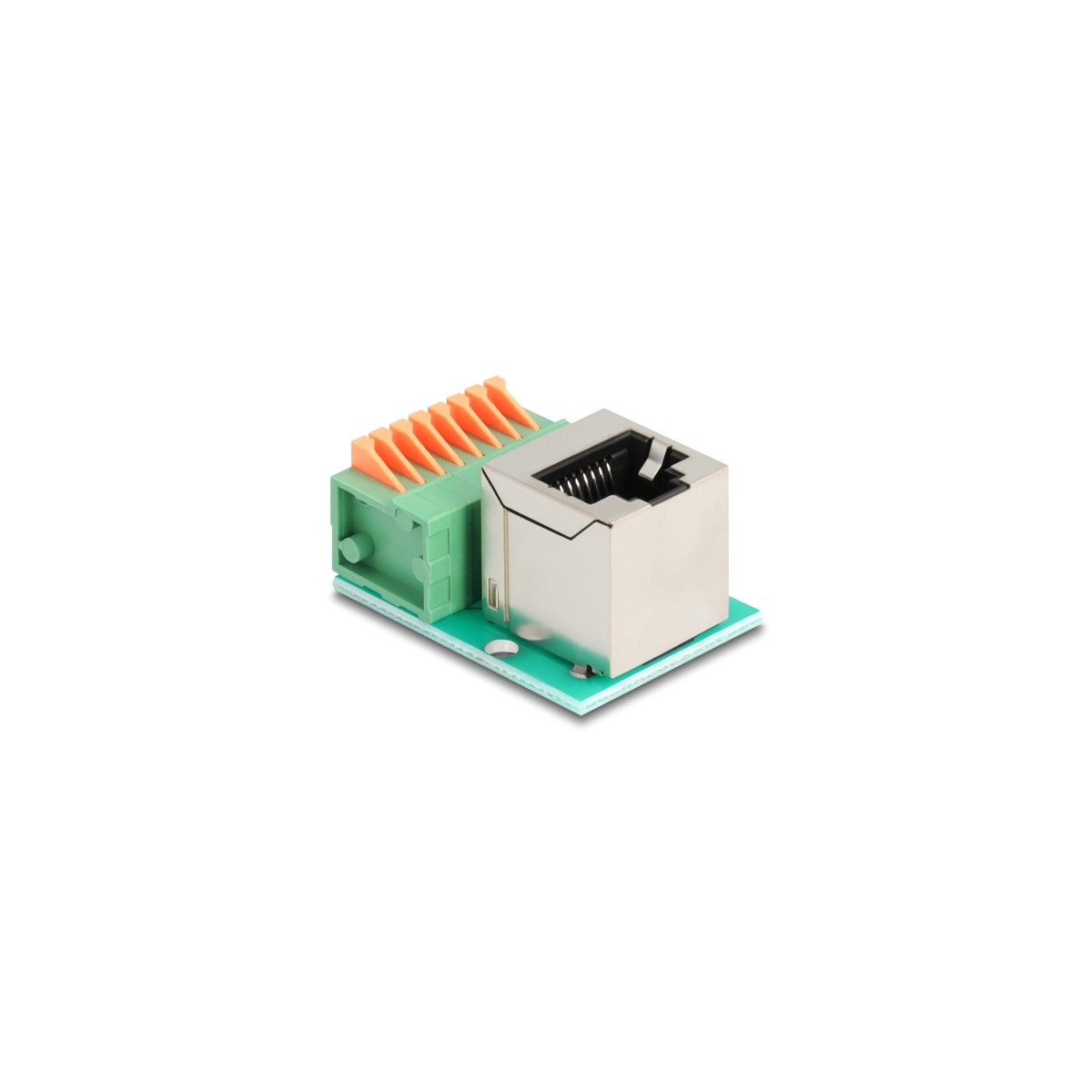

This adapter by Delock can be used to connect various network devices. Strands with stripped ends can be connected via the terminal block toolfree.
Angled connection
The 90° angled connection enables flexible wiring in confined spaces.
Specification
• Connectors:
1 x RJ45 jack 90° angled
1 x 8 pin terminal block
• Cat.5e specification
• Pin assignment: 1:1
• Pitch: 2.54 mm
• Useable for a cable gauge from 28 to 16 AWG
• Current: max. 2 A
• Operating temperature: -40 °C ~ 70 °C
• Dimensions (LxWxH): ca. 34 x 23 x 16 mm
System requirements
Package content
• Adapter
This adapter by Delock can be used to connect various network devices. Strands with stripped ends can be connected via the terminal block toolfree.
Angled connection
The 90° angled connection enables flexible wiring in confined spaces.
Specification
• Connectors:
1 x RJ45 jack 90° angled
1 x 8 pin terminal block
• Cat.5e specification
• Pin assignment: 1:1
• Pitch: 2.54 mm
• Useable for a cable gauge from 28 to 16 AWG
• Current: max. 2 A
• Operating temperature: -40 °C ~ 70 °C
• Dimensions (LxWxH): ca. 34 x 23 x 16 mm
System requirements
Package content
• Adapter
