Description

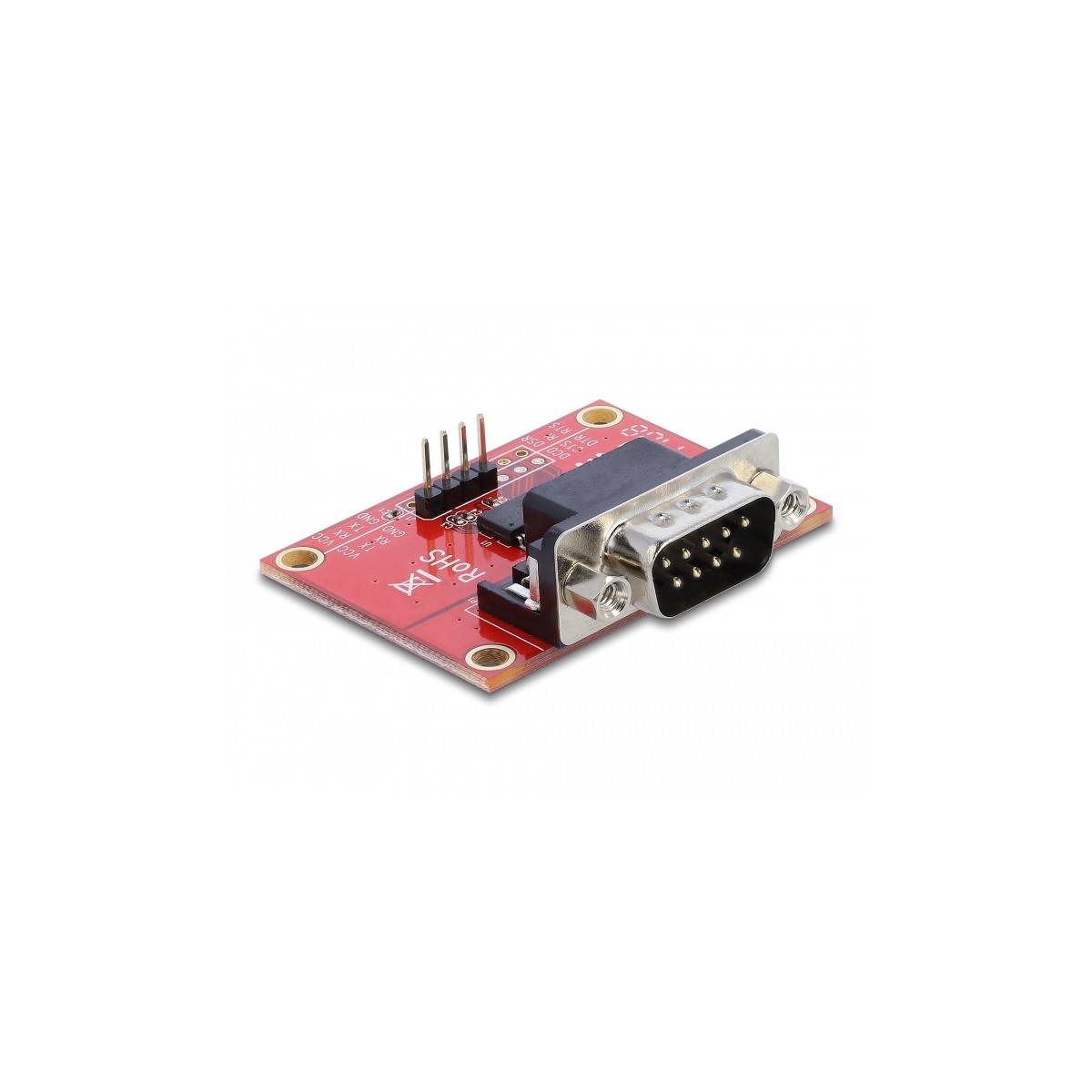

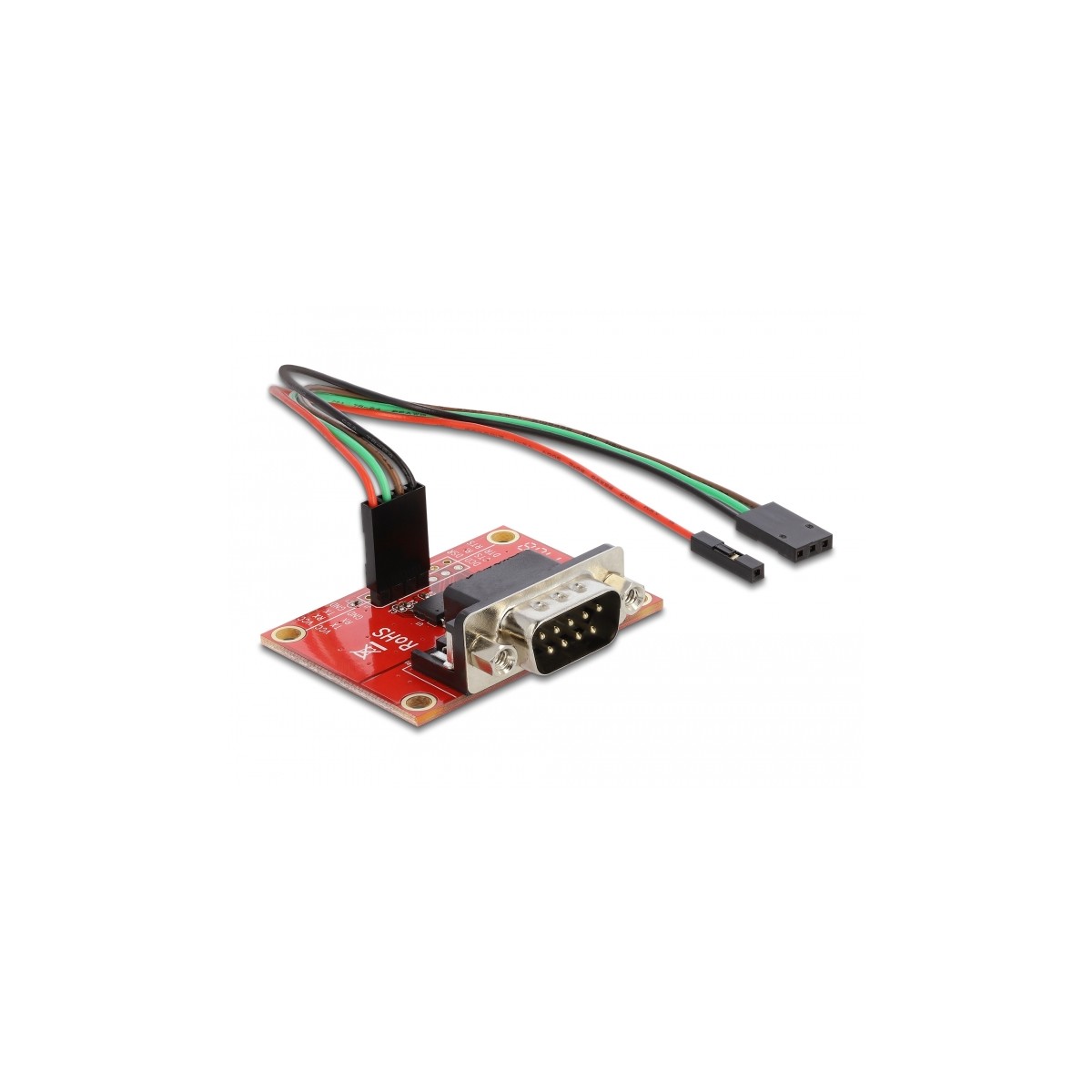

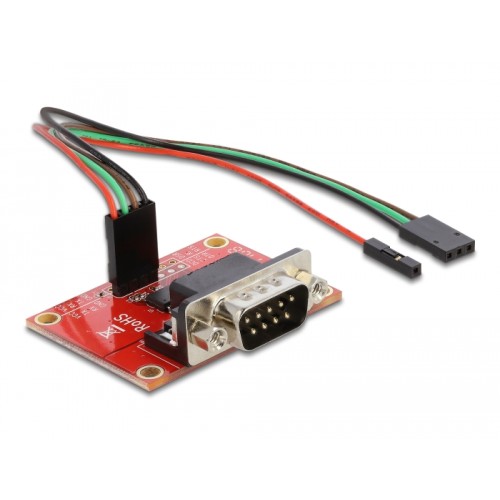

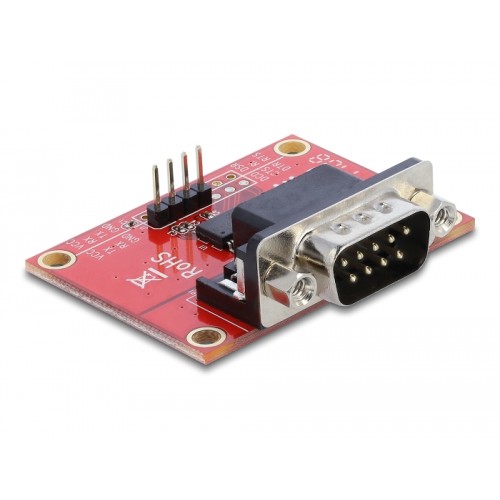

This adapter by Delock enables the connection of a serial device to the GPIO interface of the Raspberry PI via a 4 pin pin header (RX and TX), by using the included cable. The system can be configured according to the requirement.
Specification

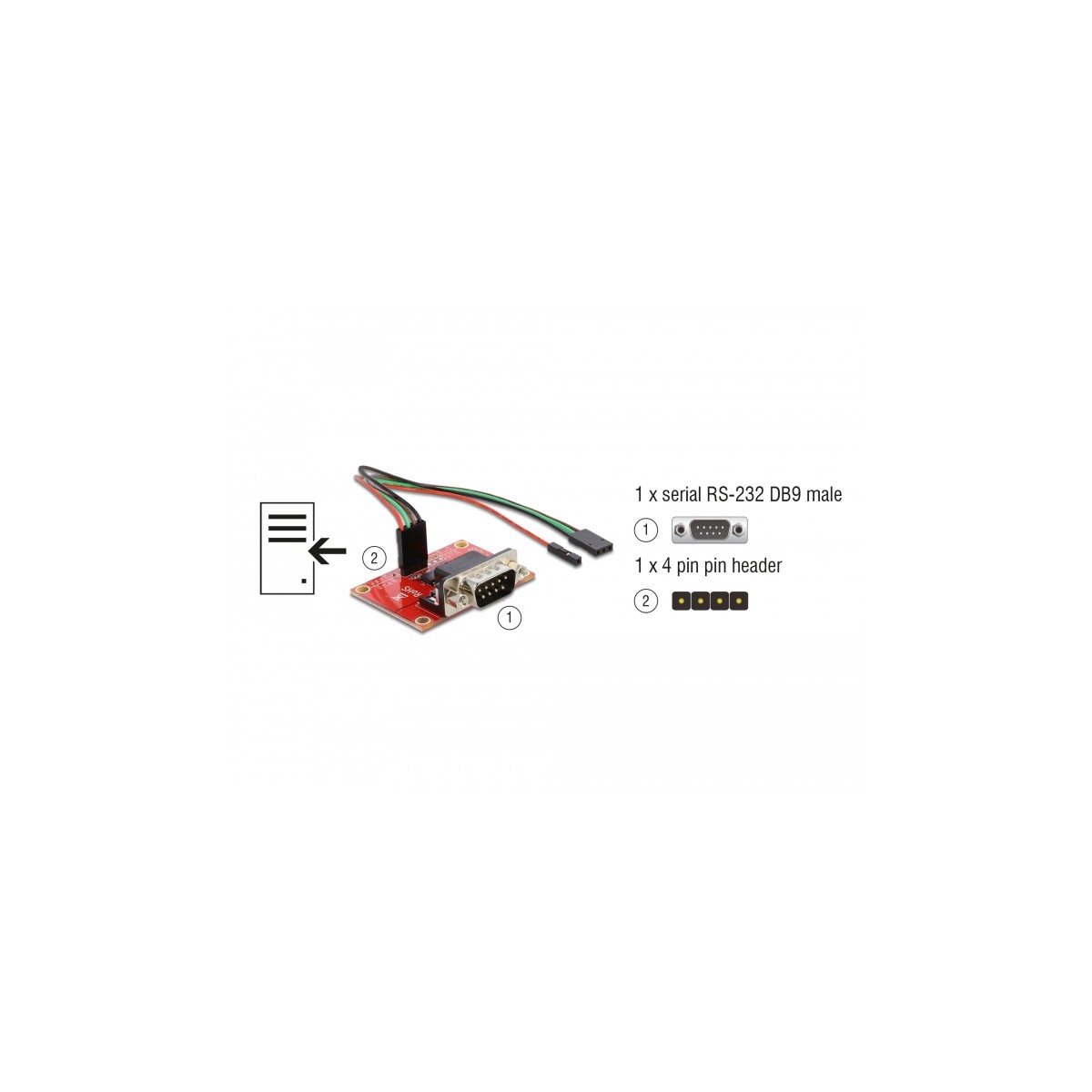

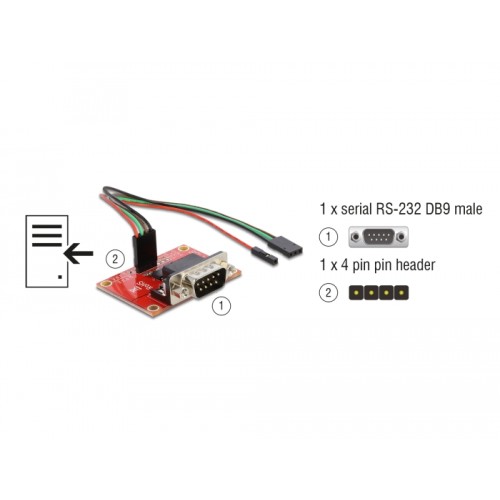

• Connectors:
1 x serial RS-232 DB9 male
1 x 4 pin pin header
• Data transfer rate up to 230.4 Kb/s
• Level shifter from RS-232 3.3 V to 5 V on Raspberry Pi
• Supported input voltage: 2.7 V ~ 5.25 V
• Dimensions (LxWxH): ca. 48 x 43 x 16 mm
• OS independent, no driver installation necessary
System requirements
• A free pin header connector
Package content
• Adapter
• Cable pin header
This adapter by Delock enables the connection of a serial device to the GPIO interface of the Raspberry PI via a 4 pin pin header (RX and TX), by using the included cable. The system can be configured according to the requirement.
Specification
• Connectors:
1 x serial RS-232 DB9 male
1 x 4 pin pin header
• Data transfer rate up to 230.4 Kb/s
• Level shifter from RS-232 3.3 V to 5 V on Raspberry Pi
• Supported input voltage: 2.7 V ~ 5.25 V
• Dimensions (LxWxH): ca. 48 x 43 x 16 mm
• OS independent, no driver installation necessary
System requirements
• A free pin header connector
Package content
• Adapter
• Cable pin header
