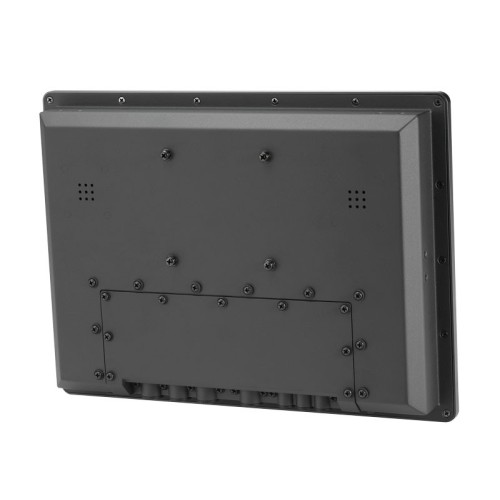

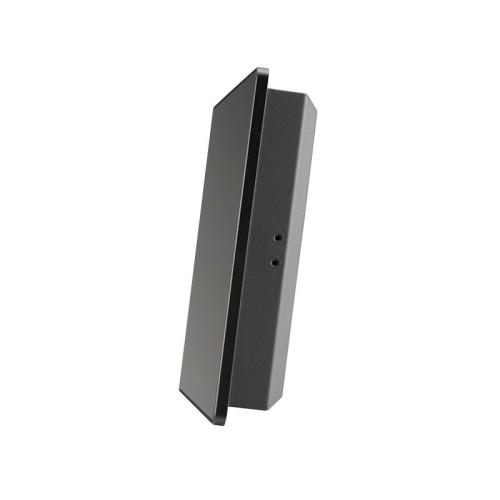

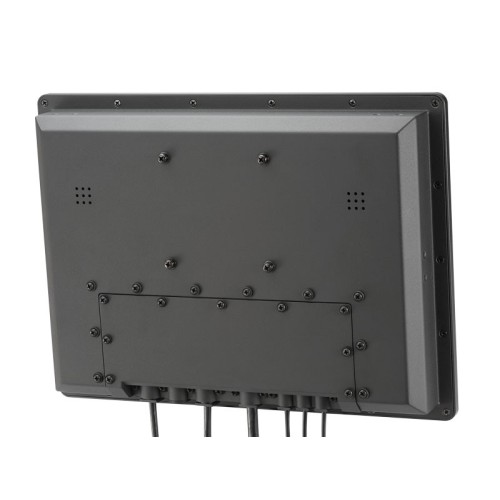

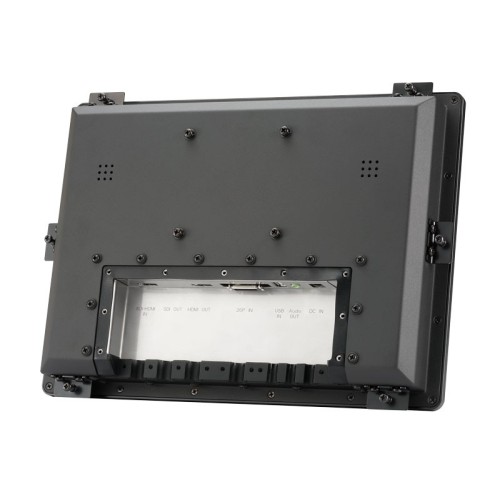

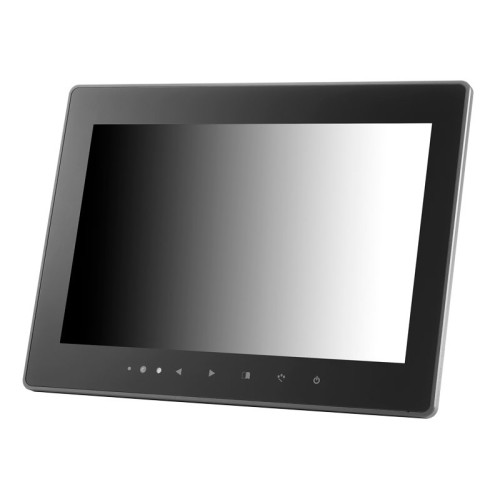

12.1" IP67 Capacitive Touchscreen with Optical Bounding LCD Monitor with HDMI, DVI, VGA & AV Inputs

This 16:9 1000 NIT High Bright Touchscreen is IP67 and IK08 rated and includes an optically bonded capacitive touchscreen, making it ideal for any harsh industrial environment.  The 12.1 inch touch panel is optically bonded to the LCD panel, eliminating the air gap between the two, increasing clarity, contrast, and durability.

Applications:

• Transportation: Naval, Avionics, Heavy Vehicles, Onboard Computer, Public Transportation
• Integration: Machine Control, Industrial Automation, Environmental Monitoring, Home Automation, Home Automation
• Selling Points: Receptions, Digital Signage, Self-Service Stations, Outdoor Totems

• Sunlight Readable – Ready for all environments
• Waterproof/Dustproof– Built to Stringent IP67 Standards
• Bonded Glass – Optically Enhanced for clarity and viewability
• Multiple Inputs – HDMI, SDI, DVI, VGA, and AV Inputs
• Automatic Dimming – Built in Ambient Light Sensor
• Superior Image – Scalable resolution up to 1080P
• Extended Temperature Range

Specification:

• Screen Size: Diagonal 12.1" (16:9)
• Physical Resolution: 1280 (H) x 800 (V) HD
• Supported Resolution: 640 x 480 ~ 1920 x 1080
• Dot Resolution: 3840 x 800 = 3,072,000 (dots)
• Brightness: 1000 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 178° Horizontal, 178° Vertical
• Response Time (Tr+Tf): 25ms (Typ.)
• Touch Screen Interface: USB port
• Operating Voltage Range: DC 9V ~ 36V
• Power Supply: DC 12V
• Power Consumption: ≤ 20W
• Operating Temperature: -22°F ~ 185°F (-30°C ~ 85°C)
• Storage Temperature: -22°F ~ 185°F (-30°C ~ 85°C)
• Vibration: Operating Random Vibration Test (5-500Hz, 1.0Grms), IEC 60068-2-64 standard
• Shock: Operating Shock Test, 10G peak acceleration (11ms duration), IEC 60068-2-27 standard
• MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
• Dimension (mm): 312W x 230H x 44.2D
• Weight (kg): 2,8
• IP67 / NEMA6P Rated Water and Dust Resistance
• 1,000NIT Sunlight Readable with Long Life LED Backlight
• Wide Viewing Angle IPS (In-Plane Switching) LCD Panel
• Automatic Backlight Adjustment through Built-in Ambient Light Sensor
• Projected Capacitive Multi-Touch Touchscreen (USB)
• Optical Bonding, Anti-Reflective and Anti-Fingerprint Coating
• Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
• Multi-Monitor Touchscreen Support
• HDMI Input x 2 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
• HDMI Output x 1, Analog Audio Output x 1
• Audio Input x 4 / Built-In Waterproof Speaker
• 1280x800 Native Resolution, 16x9 Aspect Ratio
• Chip Monolithic Ceramic Capacitors for Improved Durability
• High Performance Image and Video Signal Processor
• AISS - Advanced Image-Scaling and Shaping
• Last Input and Power Setting Memory
• IR Remote Control
• Auto Power-On upon signal detection
• Vertical Image Flip
• Function to Disable Front Button(s) and On Screen Text
• AV2 Auto Switching for Backup Camera
• VESA 75mm Mounting Holes
• 26-Pin Heavy-Duty Connector with Connector Locking
• Ruggedized Aluminum Casing
• Supports 9V DC ~ 36V DC
• "E" Mark Certified for Automotive use
• FCC, CE, E13 Certification
• IK08 Impact Resistant
• ROHS Compliant

• 5M Waterpoof Power Lead with Optional AC Adaptor or Cigarette Lighter Car Adaptor
• 1.8M Waterproof 26PIN Multi-Input Video Cable
• 5M Waterpoof HDMI Cable
• 5M Waterproof USB Cable
• 1.8M Waterpoof Audio Cable
