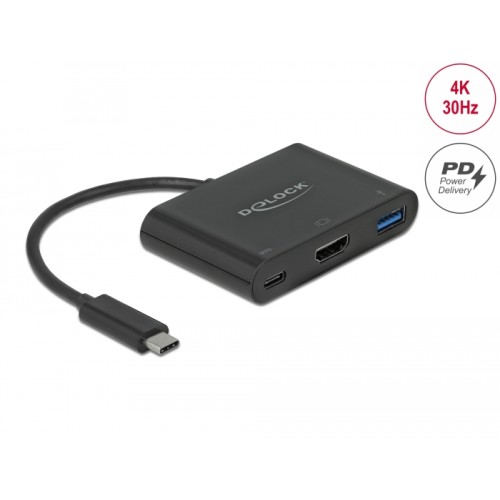

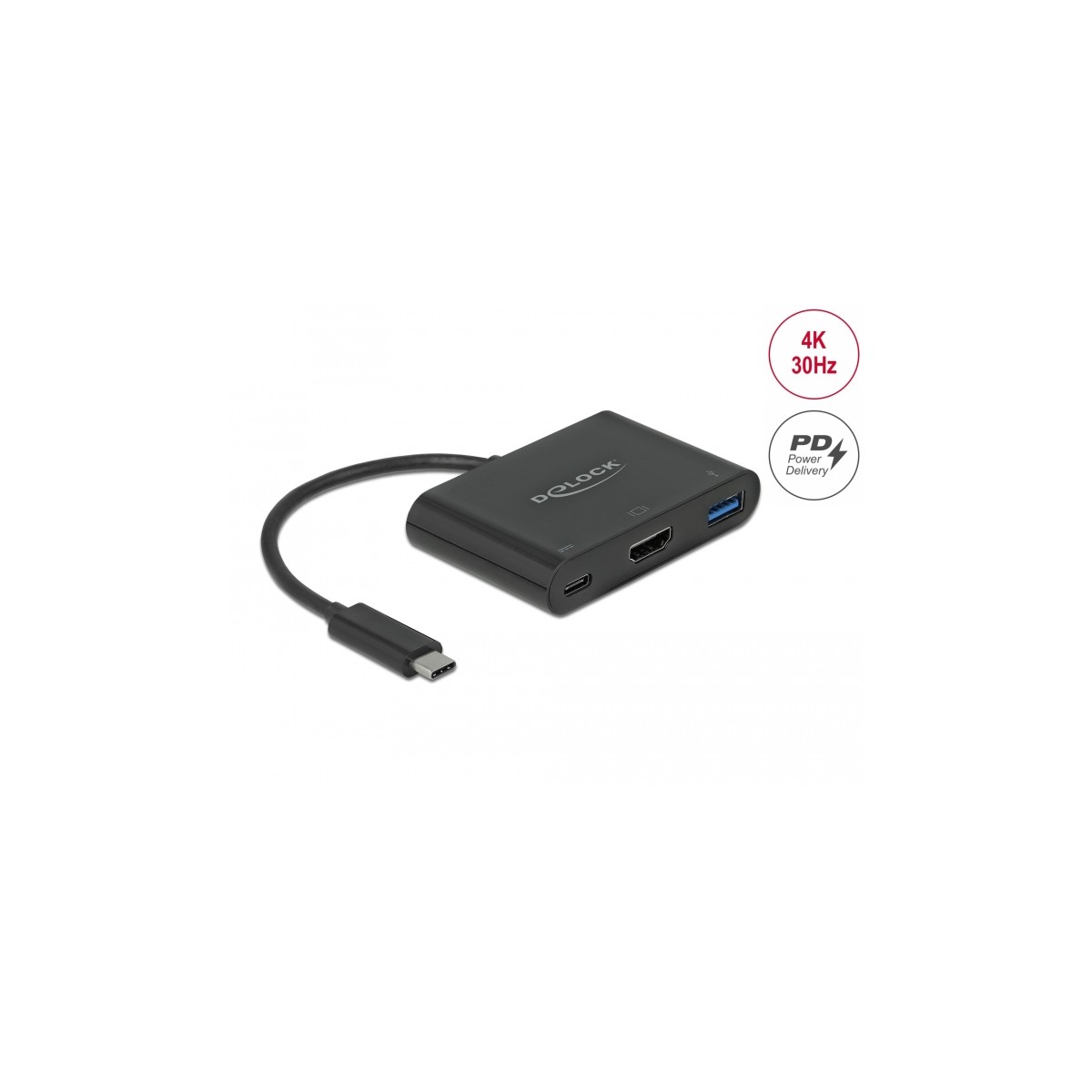

Delock USB Type-C™ Adapter to HDMI 4K 30 Hz with USB Type-A and USB Type-C™ PD

Description

This adapter by Delock is suitable for the connection of a HDMI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. Thus, the adapter can be connected to different laptops like MacBook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.

USB Power Delivery (USB PD 2.0) support up to 60 watt
The adapter has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.

Note

When used on a smartphone, an additional power supply may be required if the monitor output and a USB memory device are connected at the same time.

Specification

• Connectors:
  1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male >
  1 x HDMI-A 19 pin female
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female - Battery Charging specification
  BC1.2
  1 x USB Type-C™ Power Delivery female (optional for power supply)
• Chipset: Algoltek AG6310
• DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
• Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected
  hardware)
• Transmission of audio and video signals
• Input power: 1 x USB Type-C™ female max. 60 W
• Supports 3D displays
• Supports HDCP 1.4
• USB bus powered
• Plug & Play
• Cable length without connectors: ca. 15 cm
• Colour: black

System requirements

• Android 8.0 or above
• Chrome OS 75.0 or above
• Mac OS 10.14.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port

Package content

• USB-C™ to HDMI Adapter + USB Type-A

Package

• Retail Box
