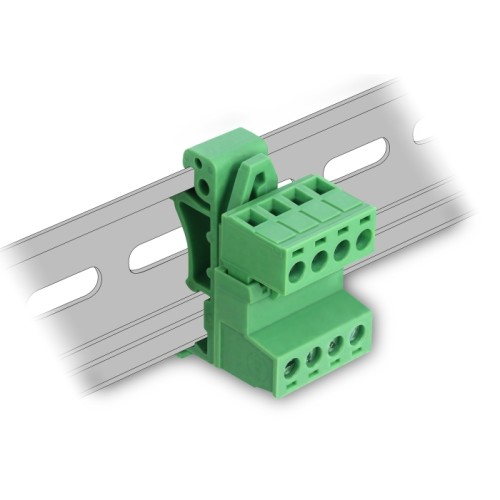

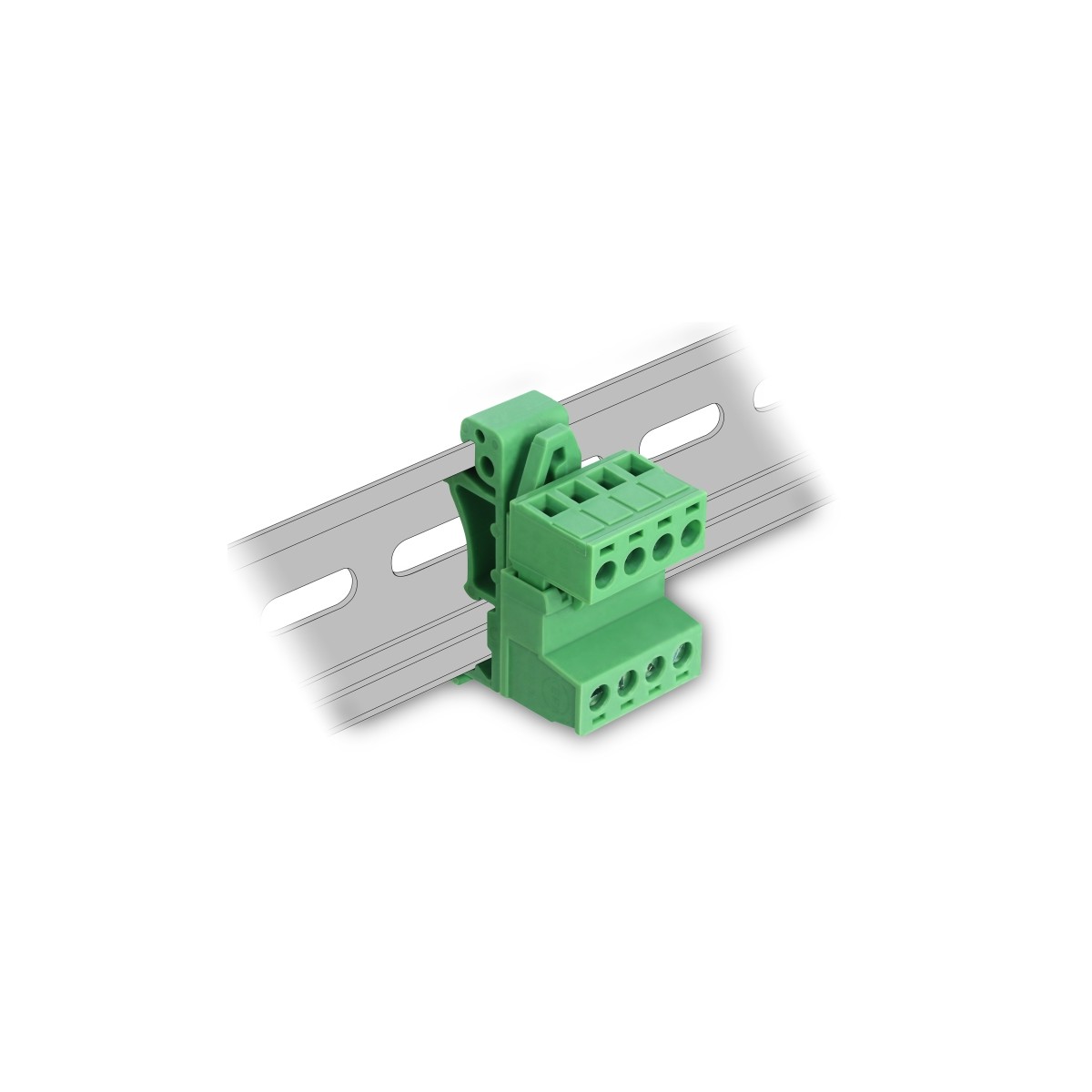

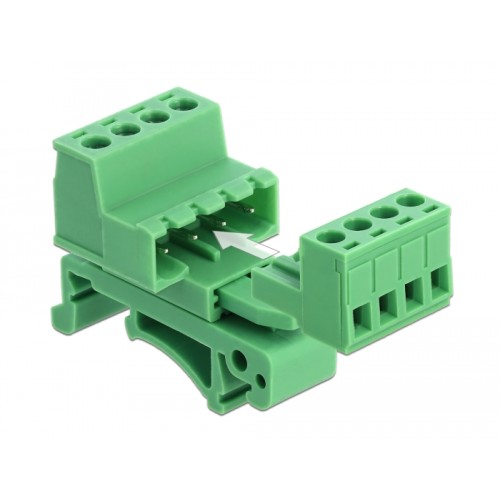

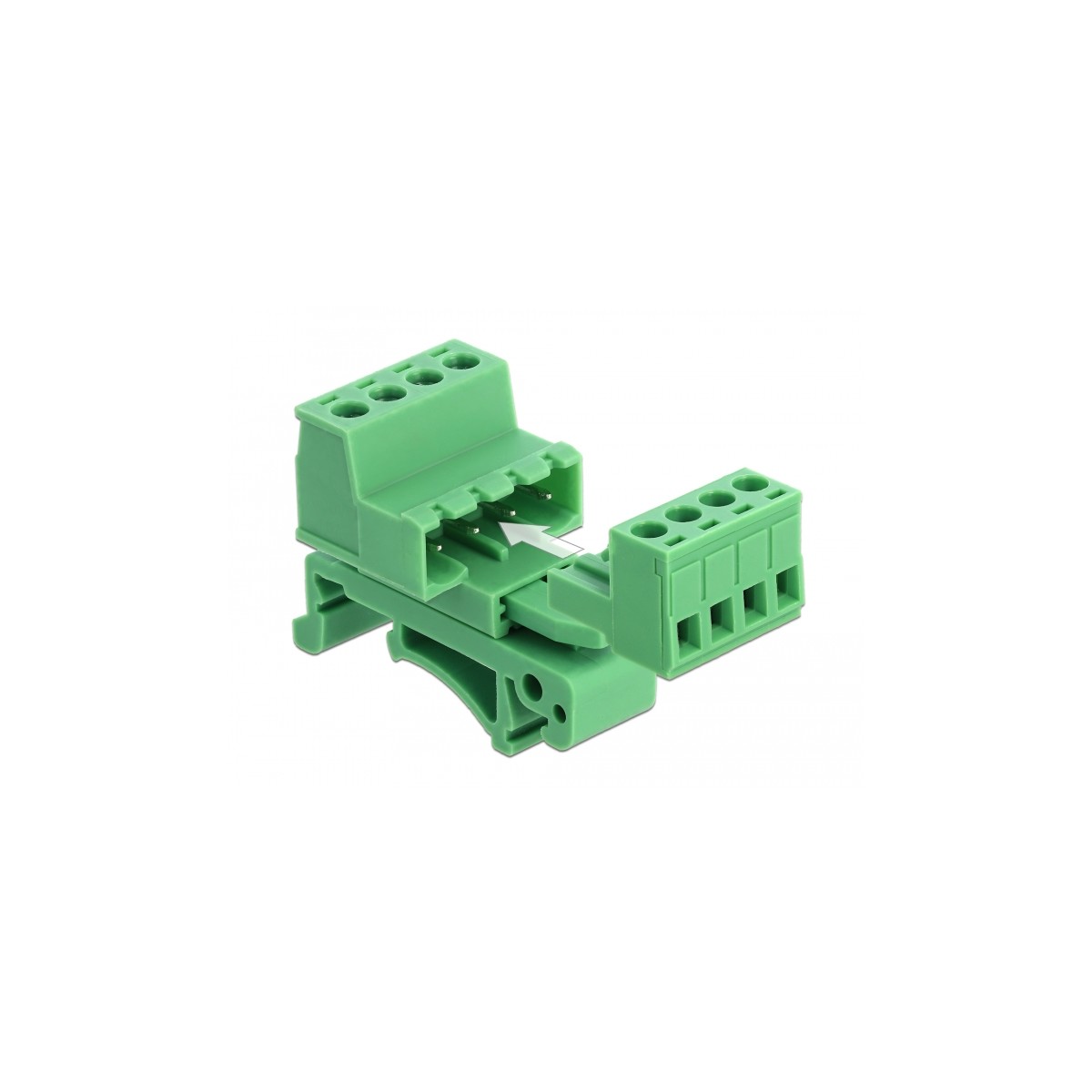

Delock Terminal Block Set for DIN Rail 4 pin with pitch 5.08 mm angled

Delock Terminal Block Set for DIN Rail 4 pin with pitch 5.08 mm angled

Name: Delock Terminal Block Set for DIN Rail 4 pin with pitch 5.08 mm angled
Brand: Delock
SKU: 66079
Price: 5.65 EUR
Availability: InStock

Reference 66079

Condition New

€5.65

tax excl.

Do you need information or want to request a customized quote?
Click here

Fast ShippingFast and secure shipping worldwide

Custom Industrial HardwareWe manufacture specific custom-made computers in our laboratory.

Secure PaymentsSimple, easy, and secure payment methods.

Certified StoreStore with ISO 9001 & 14001, IQNET, ESG A+ certification.

Description
Product Details

Description
This terminal block set by Delock is suitable for the mounting on a DIN rail. Thus data or power cables can be connected via the terminal block.
DIN Rail Mounting
This terminal block set can be fixed on a DIN rail with a width of 35 mm.

Specification
• Connectors:
Terminal block:
1 x 4 pin male
1 x 4 pin screw terminal
Connection terminal:
1 x 4 pin female
1 x 4 pin screw terminal
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• Withstanding voltage: AC 2500 V / 1 min
• Rated voltage according to: UL: 300 V, IEC: 320 V
• Rated current according to: UL: 10 A, IEC: 15 A
• DIN rail mounting: 35 mm
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 42.50 x 32.45 x 22.25 mm

Package content
• Terminal block
• Connection terminal
• DIN rail clip

Package
• Poly bag

Condition New

EAN13 4043619660797
