Description

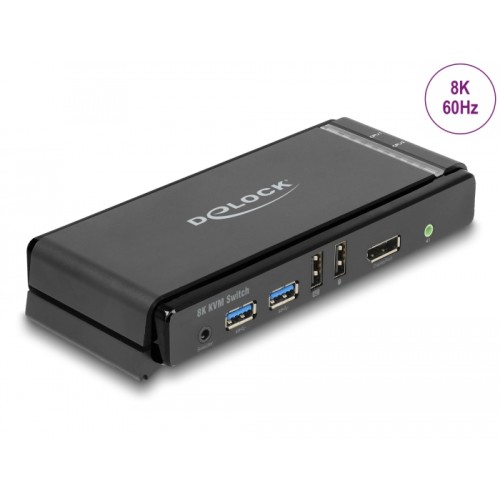

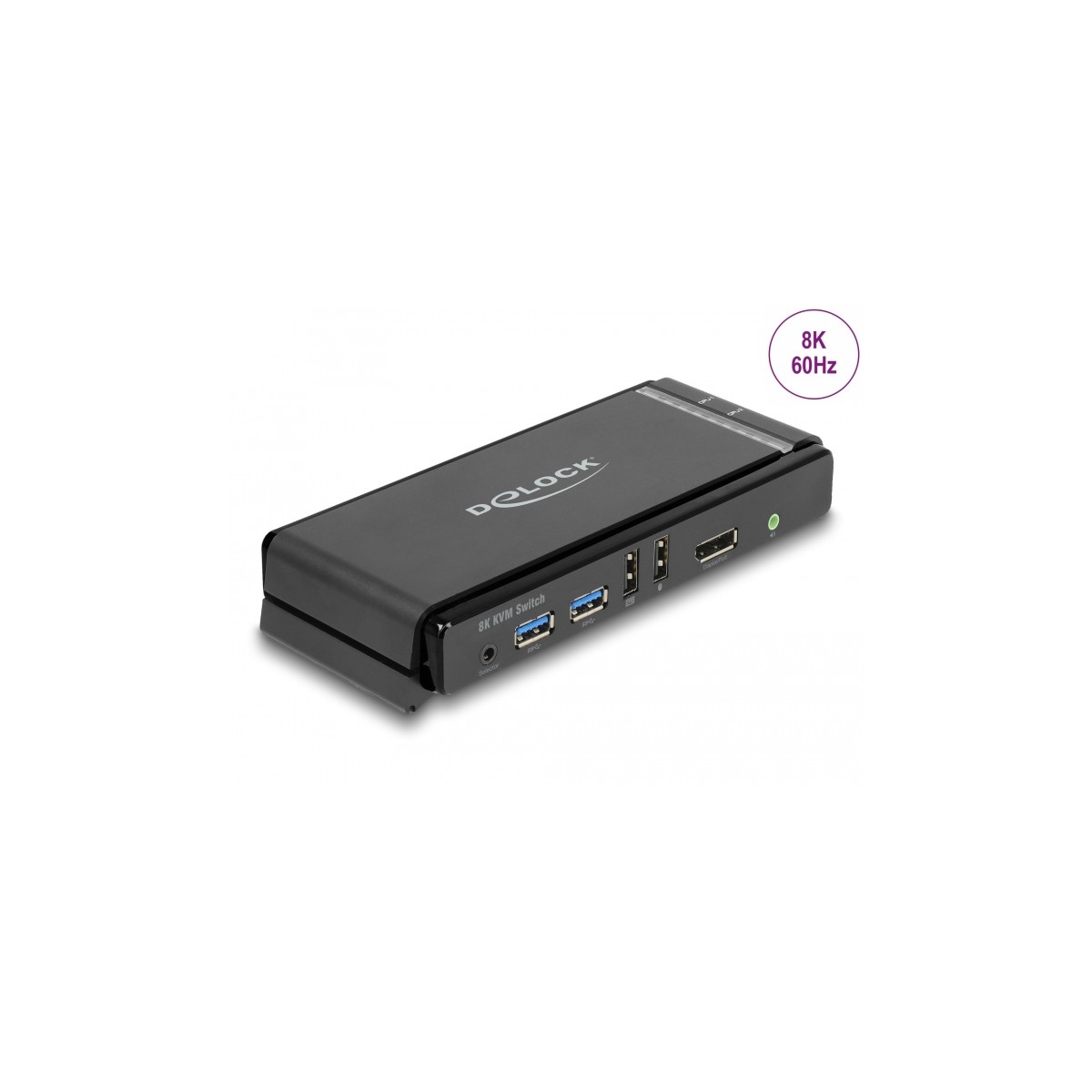

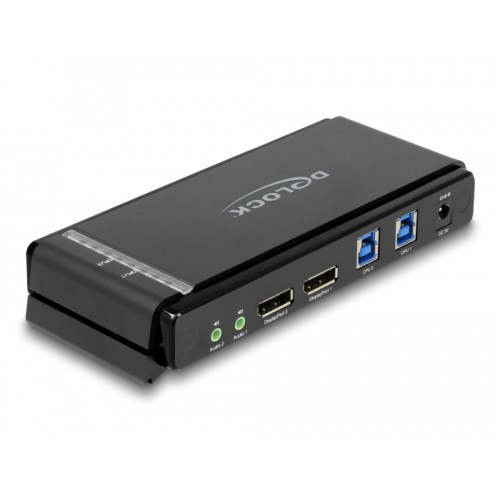

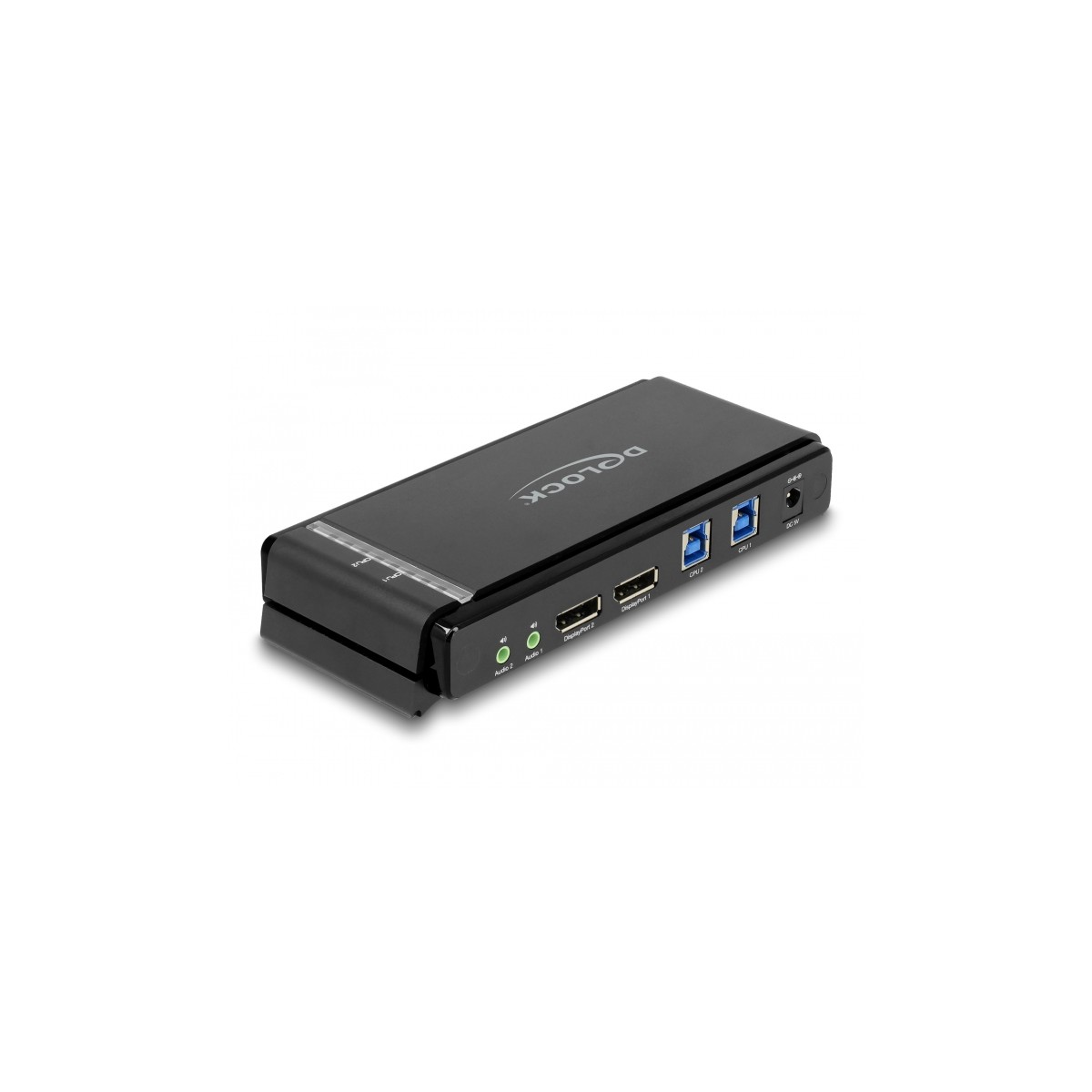

This KVM switch by Delock is a convenient solution for connecting two computers with DisplayPort output to one DisplayPort monitor.
Peripheral devices
Furthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 5 Gbps ports for a hard drive or USB memory can be connected.
Multi-Stream Transport (MST)
With the support of MST (Multi-Stream Transport), multiple monitors can be used at the DisplayPort output with an optional MST hub.
Note
MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort daisy-chaining, or use of a powered DisplayPort MST Hub. The PC source must be DisplayPort MST compliant.

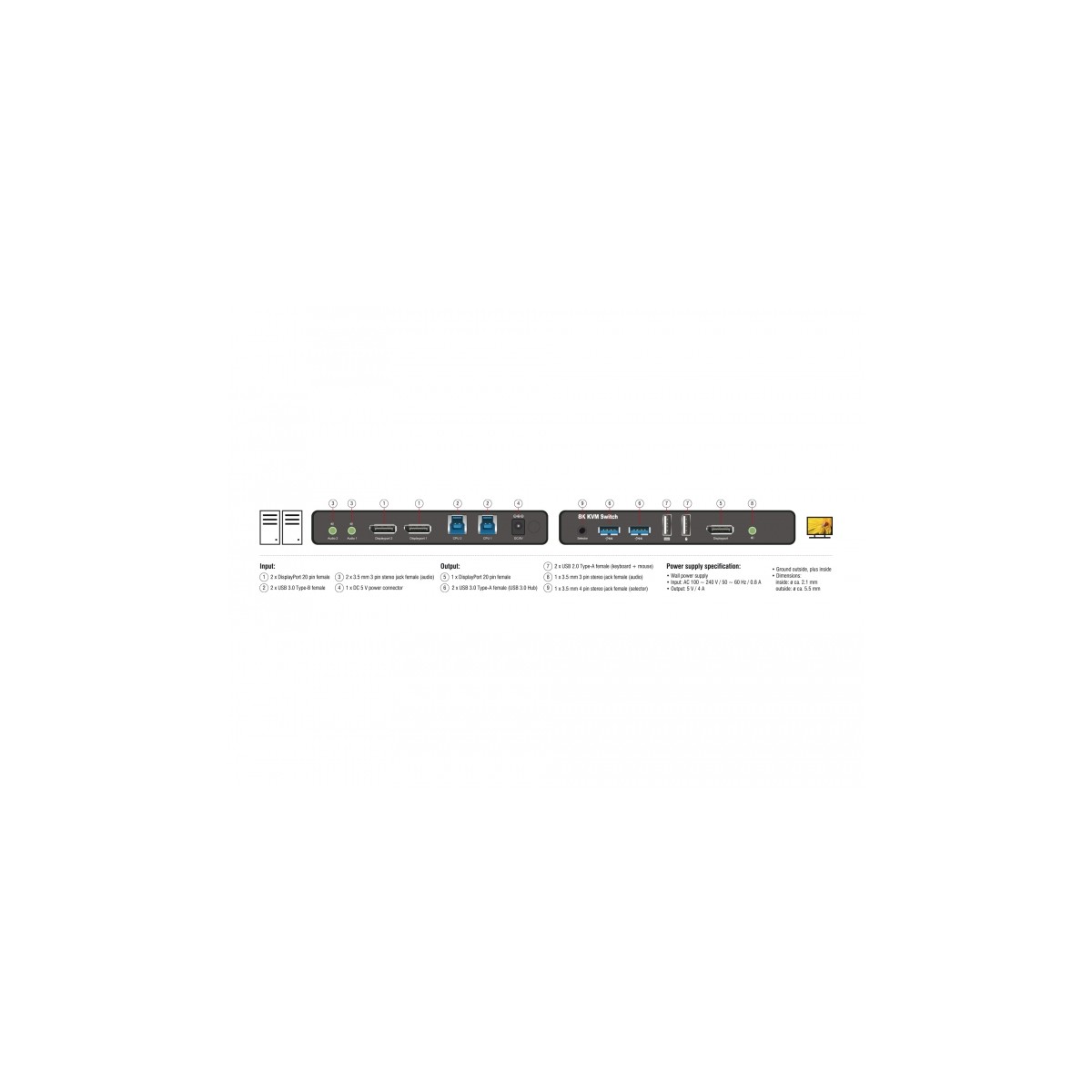

Specification
• Connectors:
Input:
2 x DisplayPort female
2 x USB 5 Gbps Type-B female
2 x 3.5 mm 3 pin stereo jack female (audio)
1 x DC 5 V power connector
Output:
1 x DisplayPort female
2 x USB 5 Gbps Type-A female (USB Hub)
2 x USB 2.0 Type-A female (keyboard + mouse)
1 x 3.5 mm 3 pin stereo jack female (audio)
1 x 3.5 mm 4 pin stereo jack female (selector)
• Switch button with 2-colour LED indicator for source
• Switching via button or hotkey
• Automatic switching when turning a PC on or off
• Independent switching of source, audio and USB hub
• 2 x USB 5 Gbps Type-A female - Battery Charging specification BC1.2
• Data transfer rate up to 5 Gbps
• DisplayPort 1.4 specification
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Resolution up to:
Display with DSC support:
7680 x 4320 @ 60 Hz
3840 x 2160 @ 144 Hz
Display without DSC support:
7680 x 4320 @ 30 Hz
3840 x 2160 @ 120 Hz
(depending on the system and the connected hardware)
• DisplayPort output supports Dual Mode DP++
• Supports MST (Multi-Stream Transport)
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 170 x 74 x 30 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 5.0 V / 4.0 A / 20.0 W
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
System requirements
• PC with DisplayPort female + USB Type-A female
• Monitor or TV with DisplayPort connector

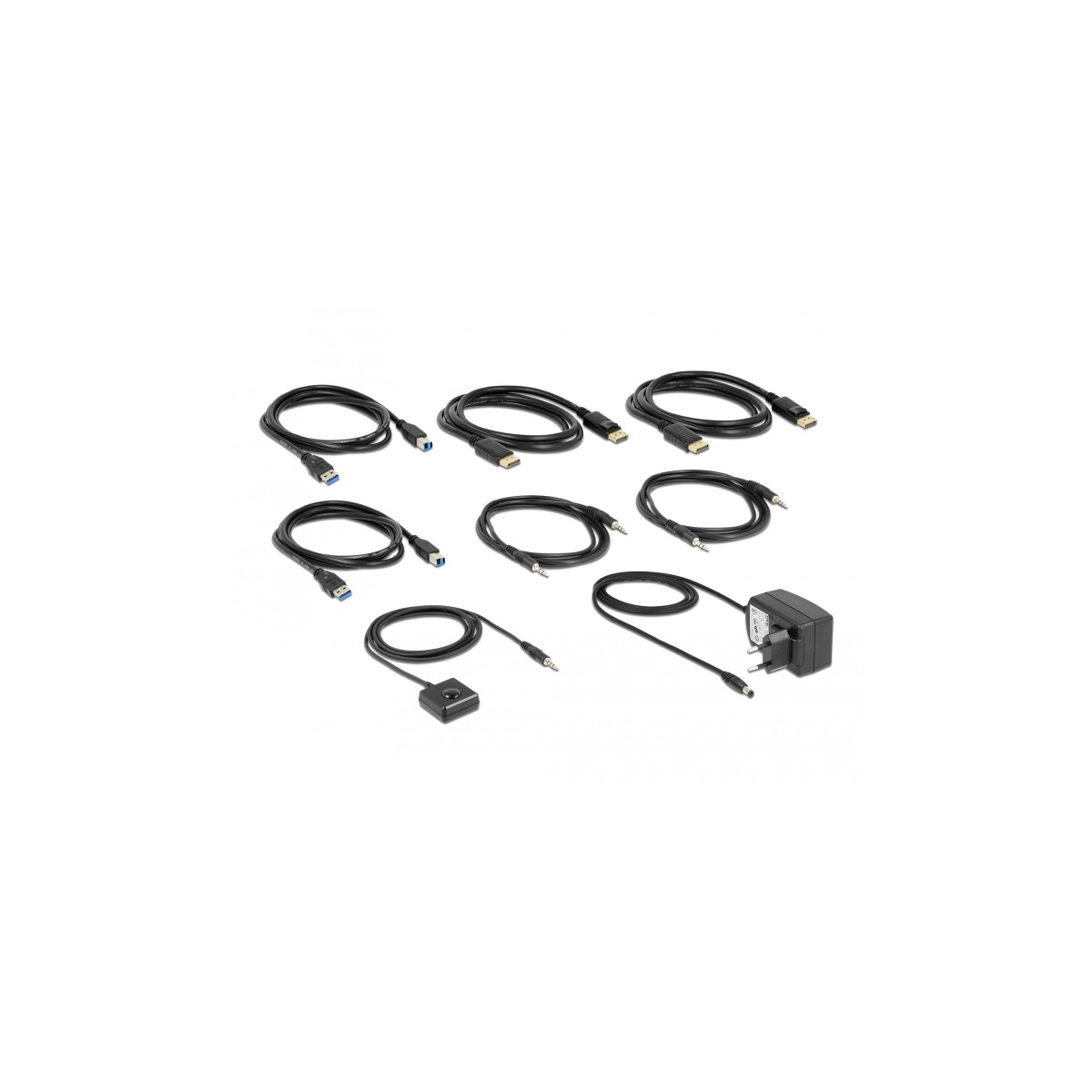

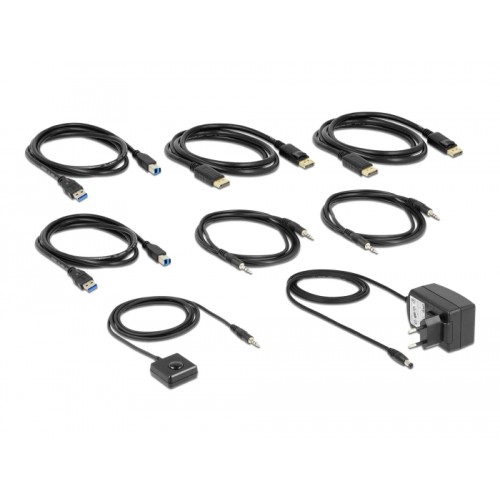

Package content
• KVM switch with USB and audio
• 2 x cable USB 5 Gbps A male to USB 5 Gbps B male, length ca. 1.5 m
• 2 x cable DisplayPort male to DisplayPort male, length ca. 1.5 m
• 2 x cable 3.5 mm stereo jack male to 3.5 mm stereo jack male, length ca. 1.5 m
• 1 x selector with cable, length ca. 1.8 m
• External power supply
• User manual
New
4043619114764
