Description

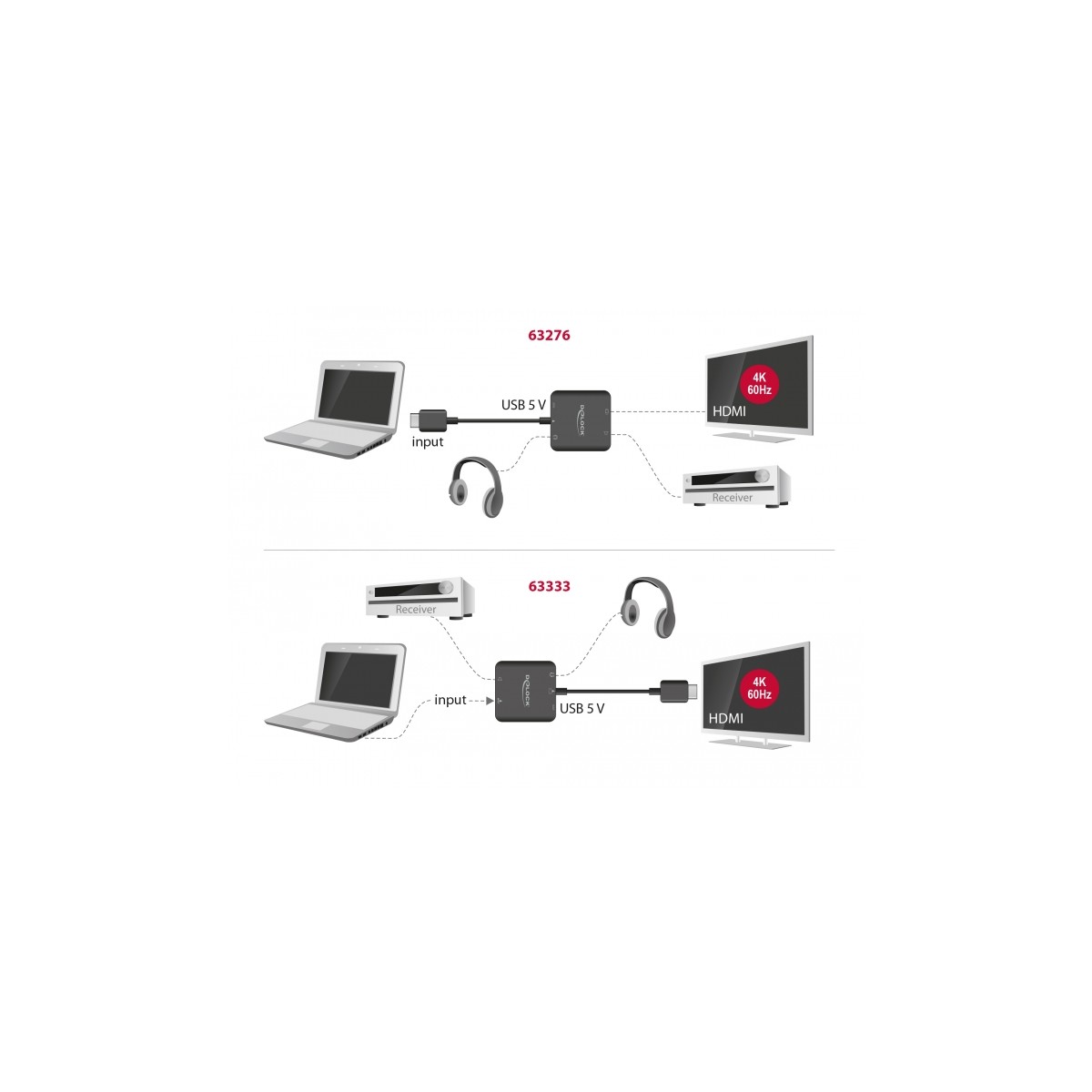

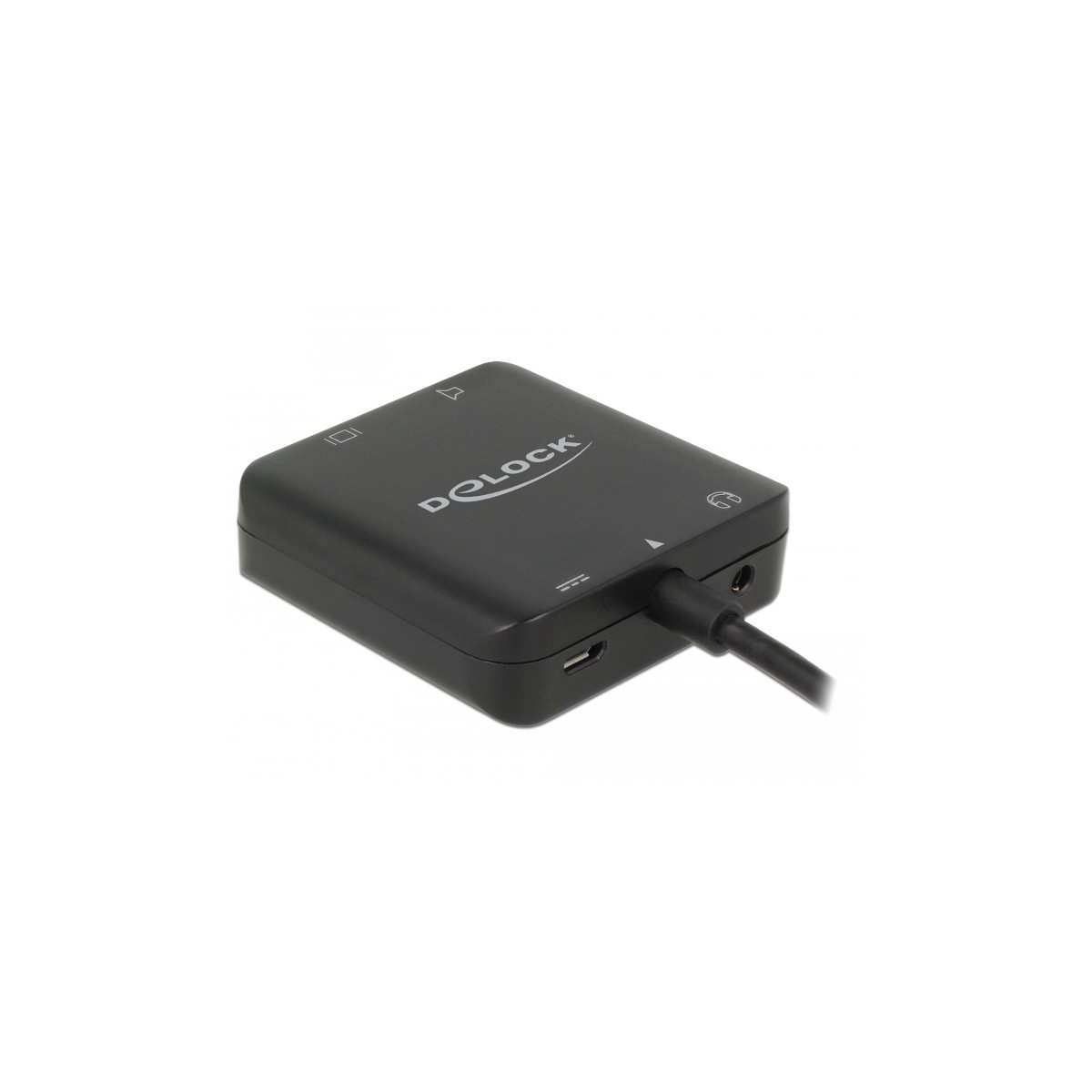

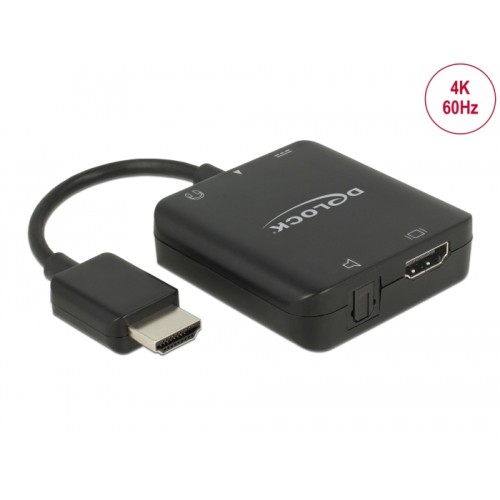

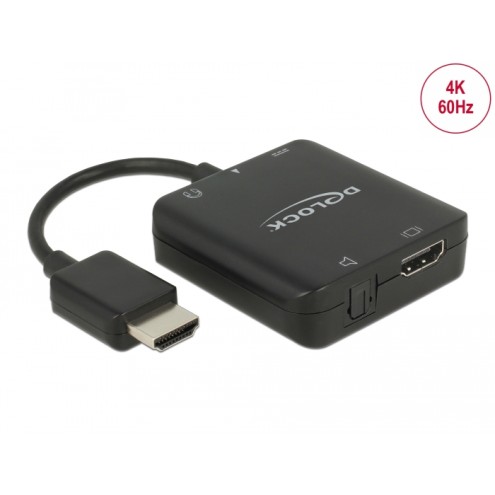

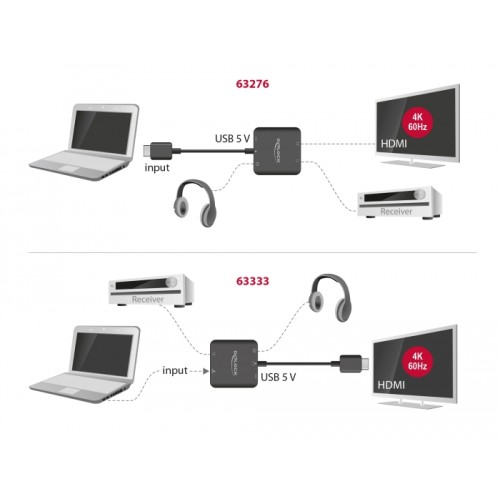

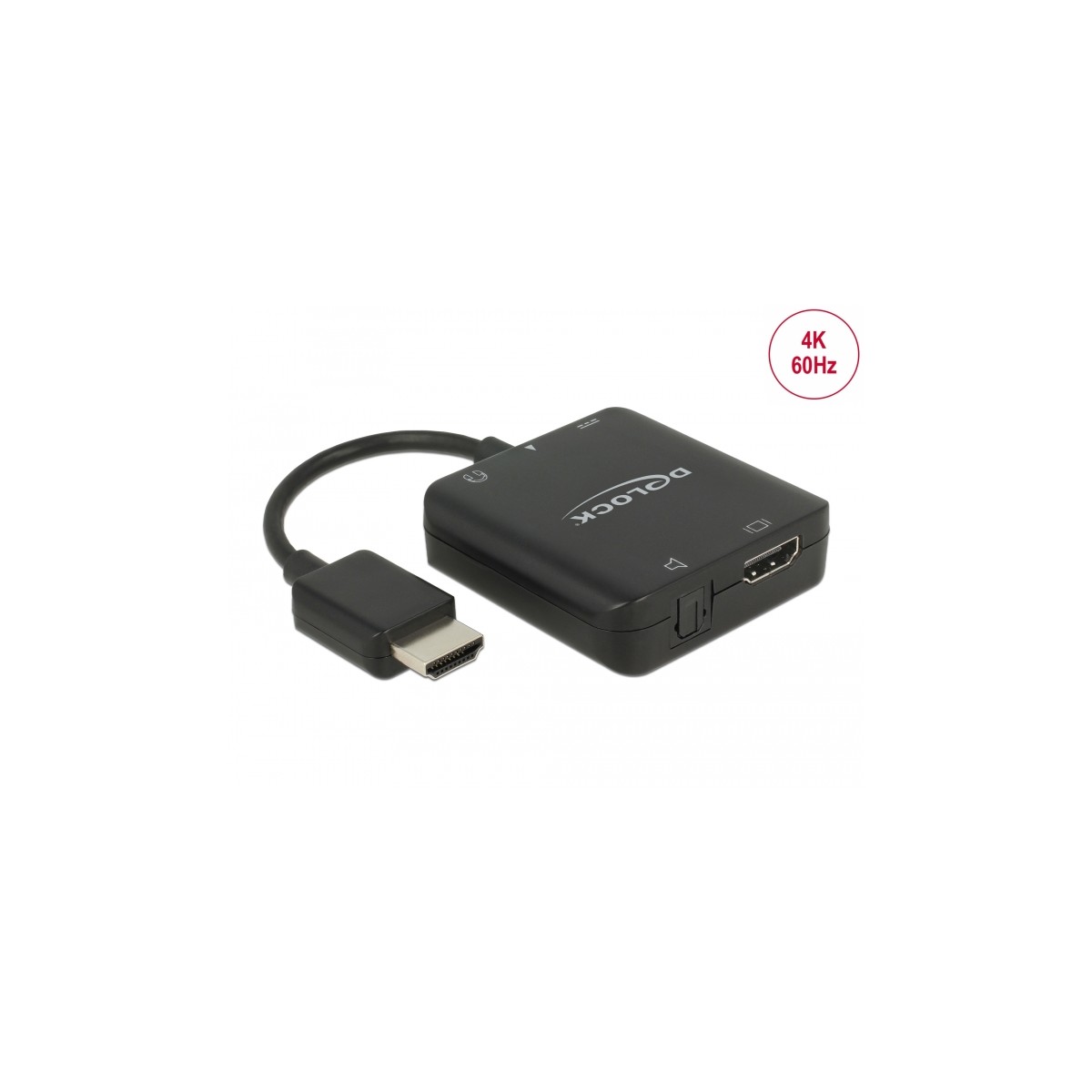

This adapter by Delock can be used to extract the audio signal from an HDMI transmission. While the video signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) or analogue (stereo) to other devices, such as headphones or a surround receiver.
Specification

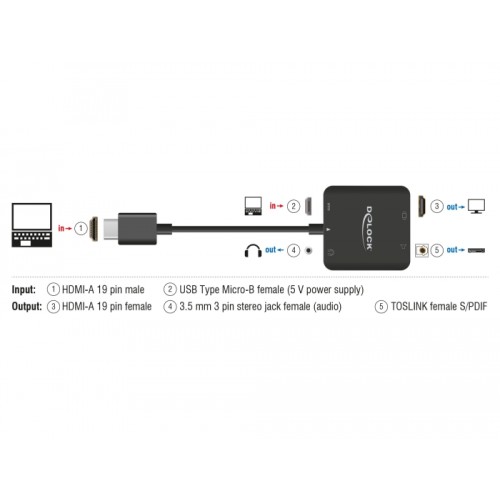

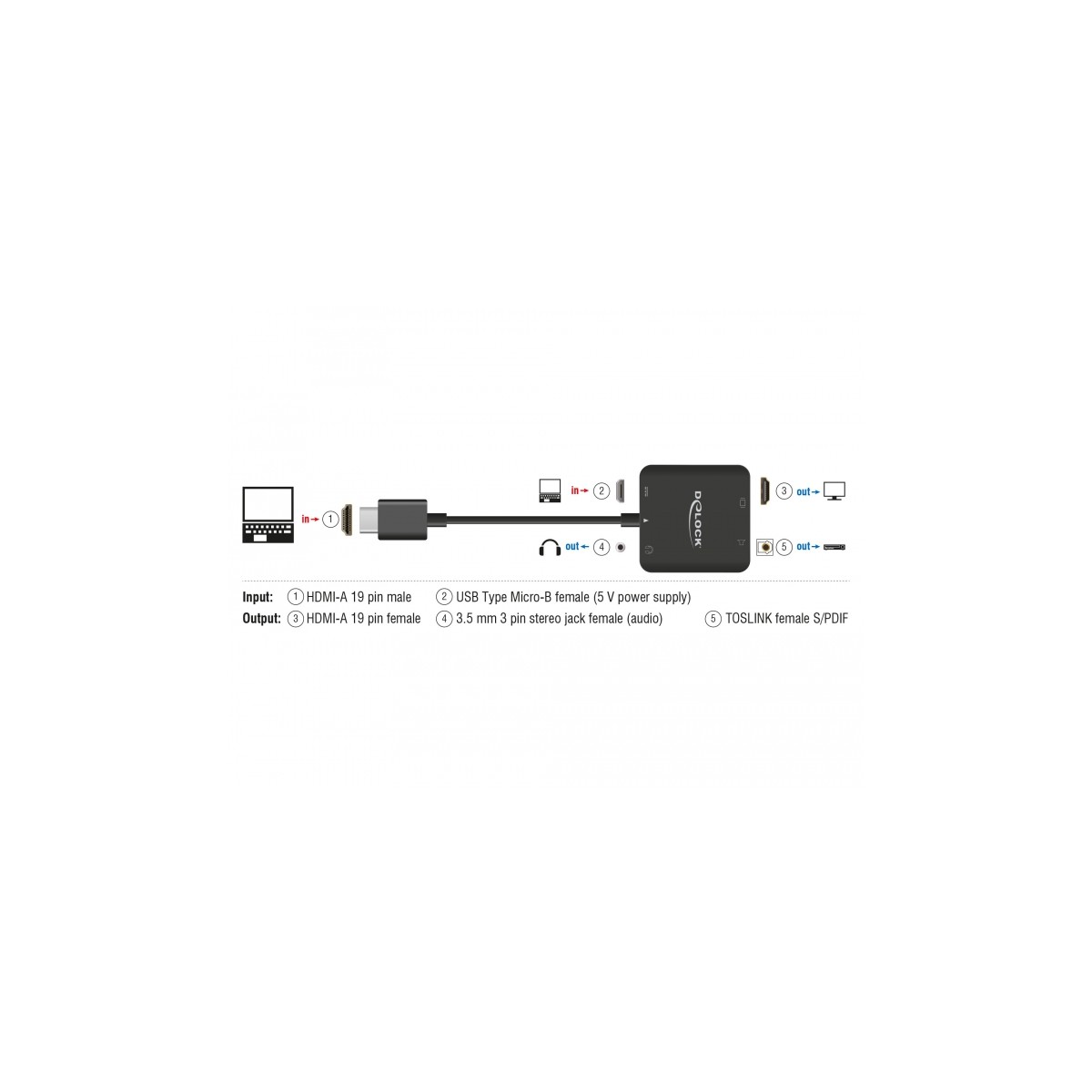

• Connectors:
Input:
1 x HDMI-A 19 pin male
1 x USB Type Micro-B female (5 V power supply)
Output:
1 x HDMI-A 19 pin female
1 x 3.5 mm 3 pin stereo jack female (audio)
1 x TOSLINK female S/PDIF
• High Speed HDMI, 3D and HDCP 1.4 / HDCP 2.2
• Automatic switching to stereo (2.0) when using the stereo jack and
automatic muting of the digital output
• Resolution up to 3840 x 2160 @ 60 Hz
• Video bandwidth up to 600 MHz / 6 Gbps, max. 18 Gb/s
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital,
DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 kHz
(depending on the system and the connected devices)
• HDMI audio routed to the output (pass-through)
• Power consumption: max. 2 W
System requirements
• A free HDMI-A female
• A free USB Type-A female port
Package content
• HDMI Audio Extractor

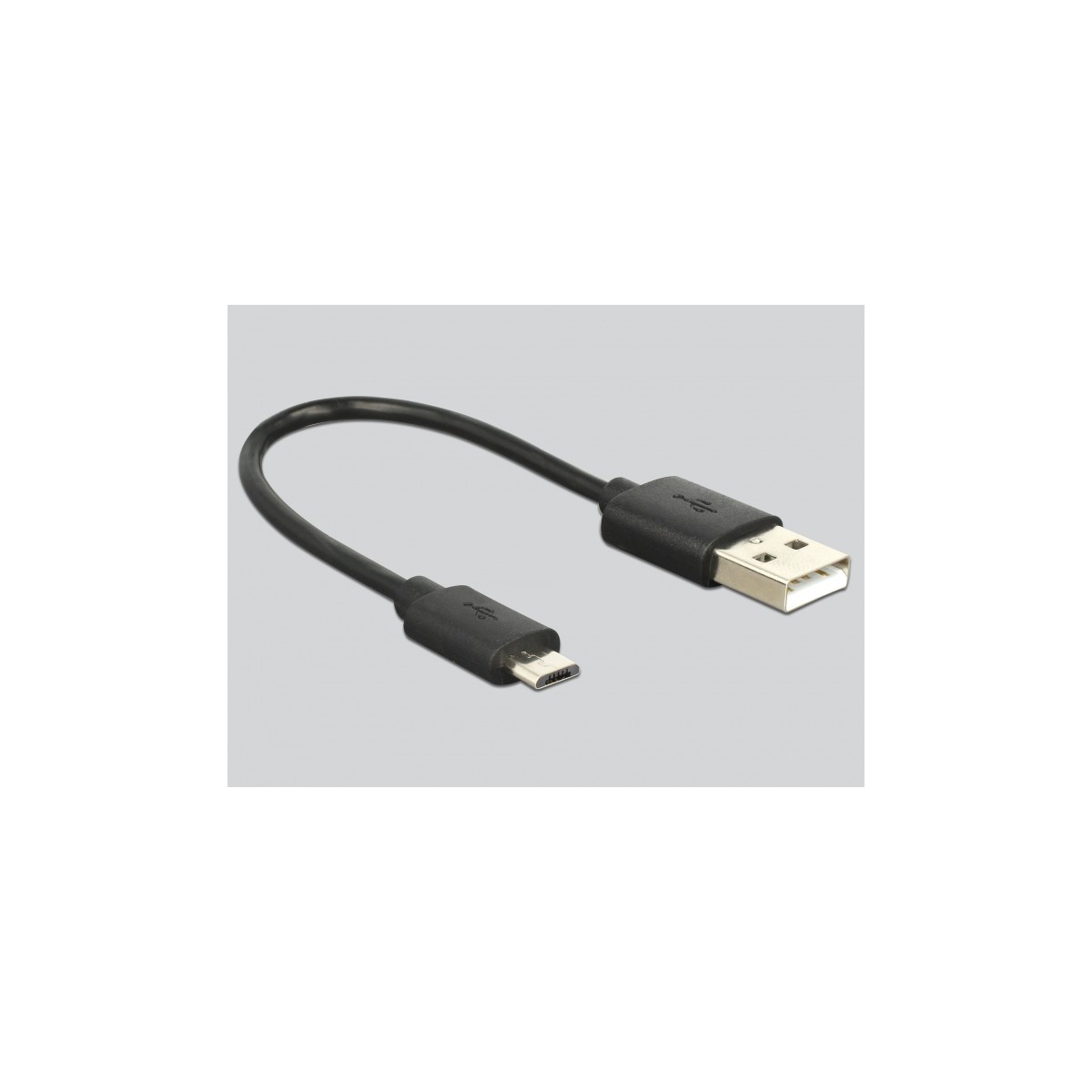

• USB Type-A to Type Micro-B cable, length ca. 30 cm
• User manual
Package
• Retail Box
New
4043619632763
