Description

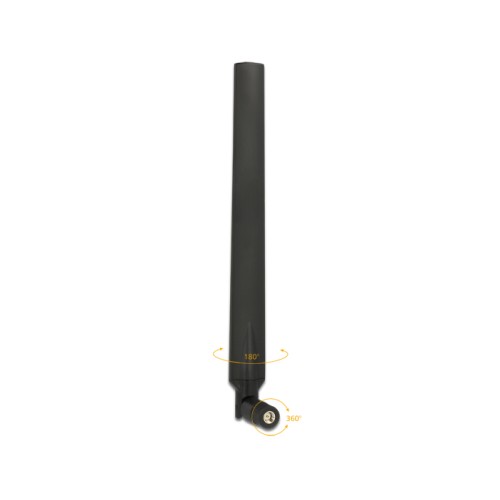

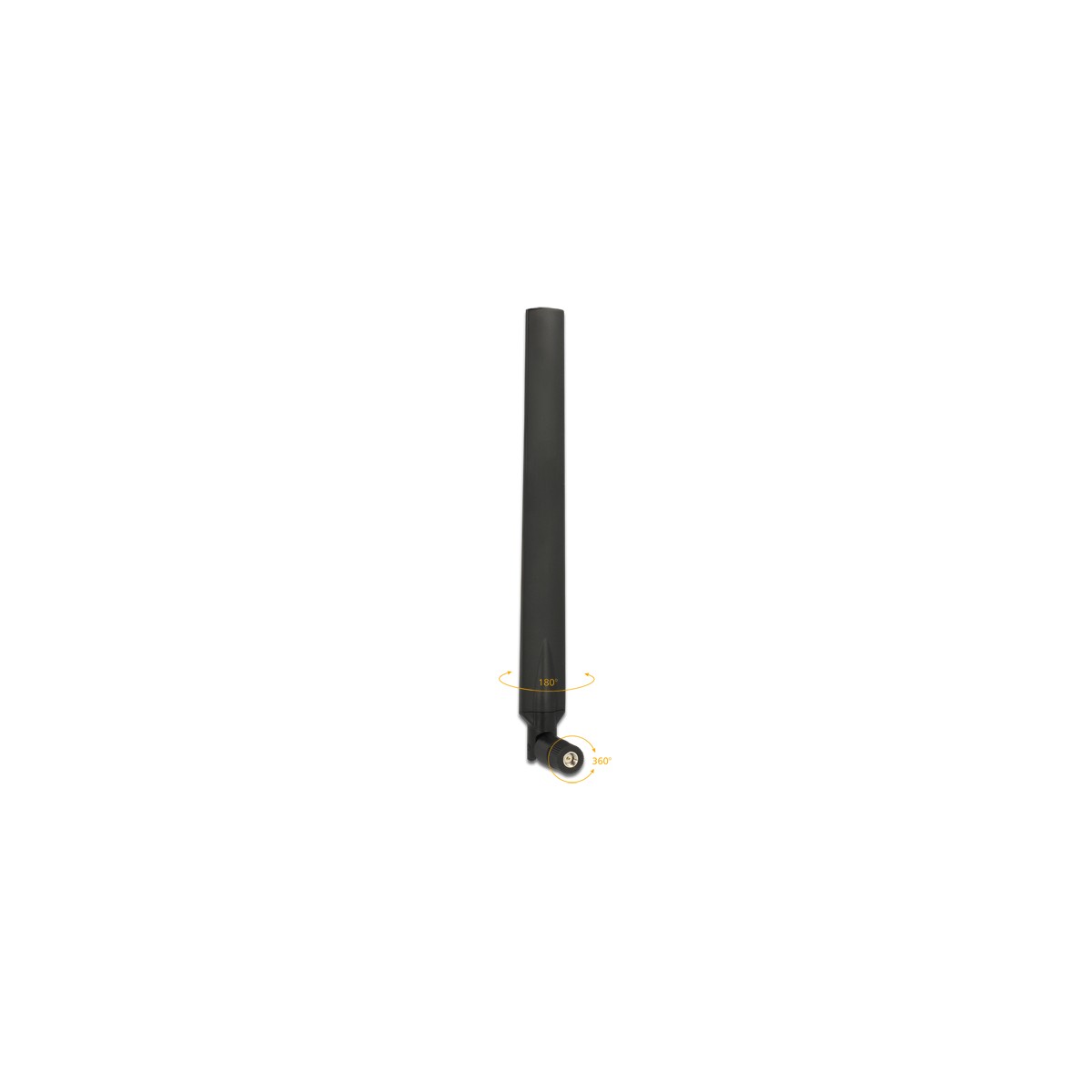

This LTE antenna by Delock can be installed indoors and takes advantage of all LTE bands. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Specification

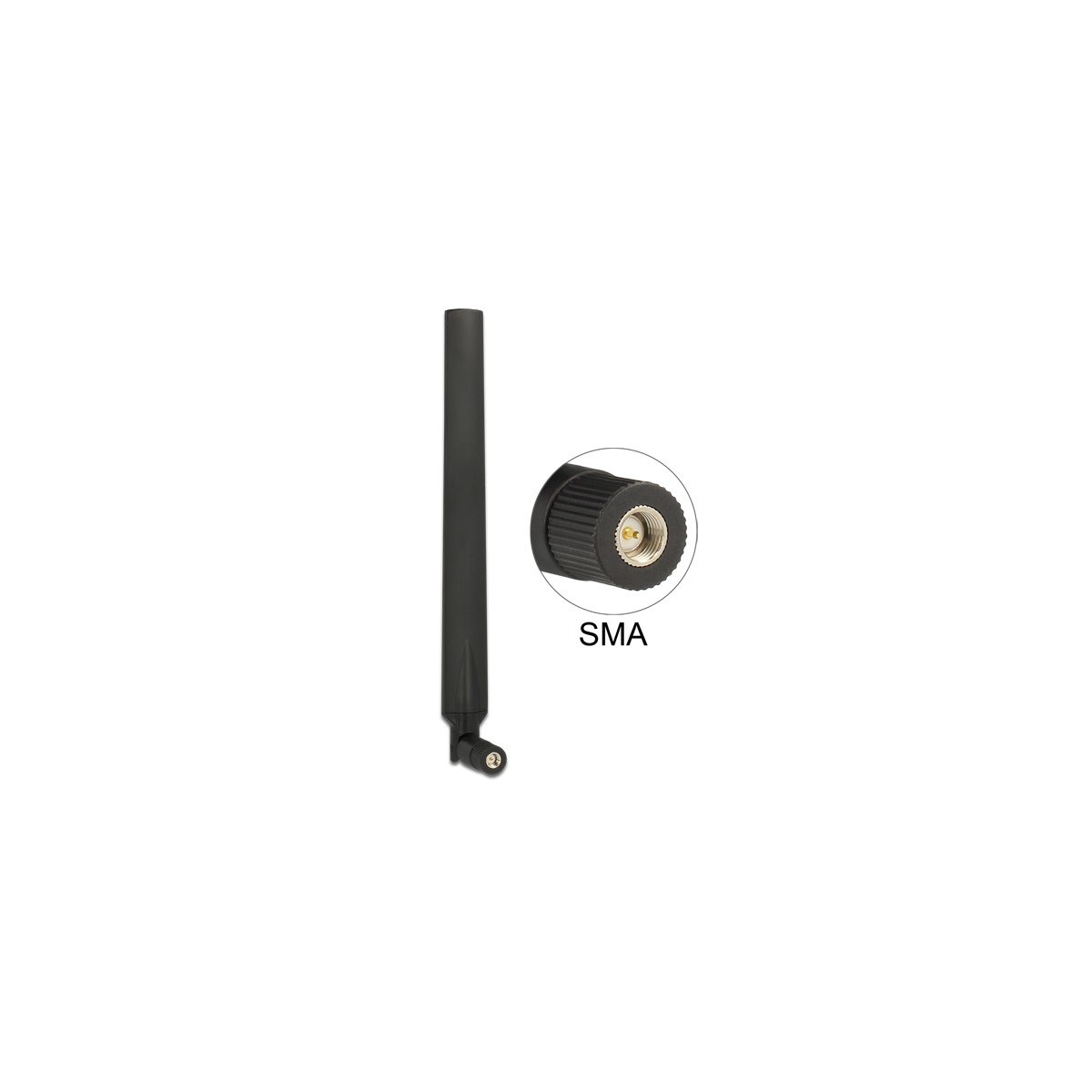

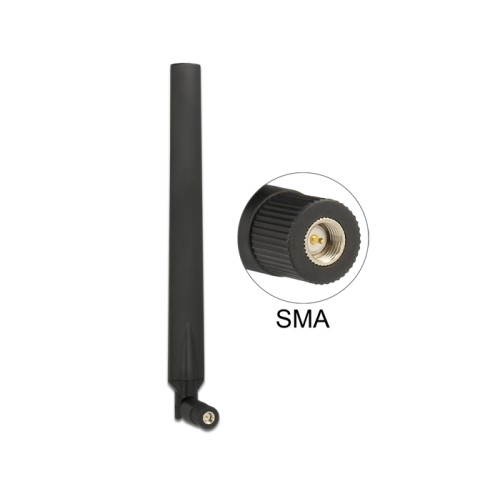

• Connector: SMA plug
• LTE band: 1-10; 12; 19; 25; 30; 33-41
• Frequency range:
698 - 791 MHz
824 - 960 MHz
1710 - 2170 MHz
2300 - 2400 MHz
2500 - 2700 MHz
• Compatible to GSM, UMTS, Bluetooth, WLAN 2,4 GHz, ZigBee, DECT, Z-Wave

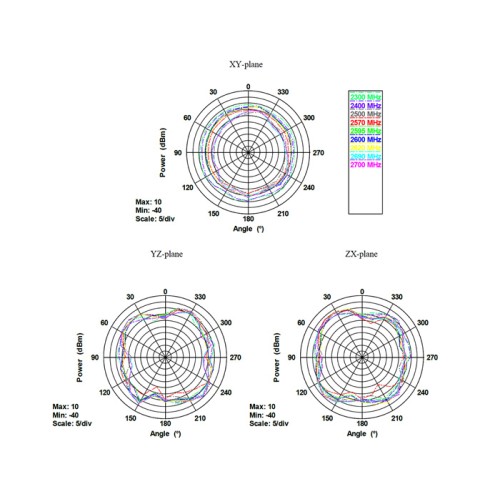

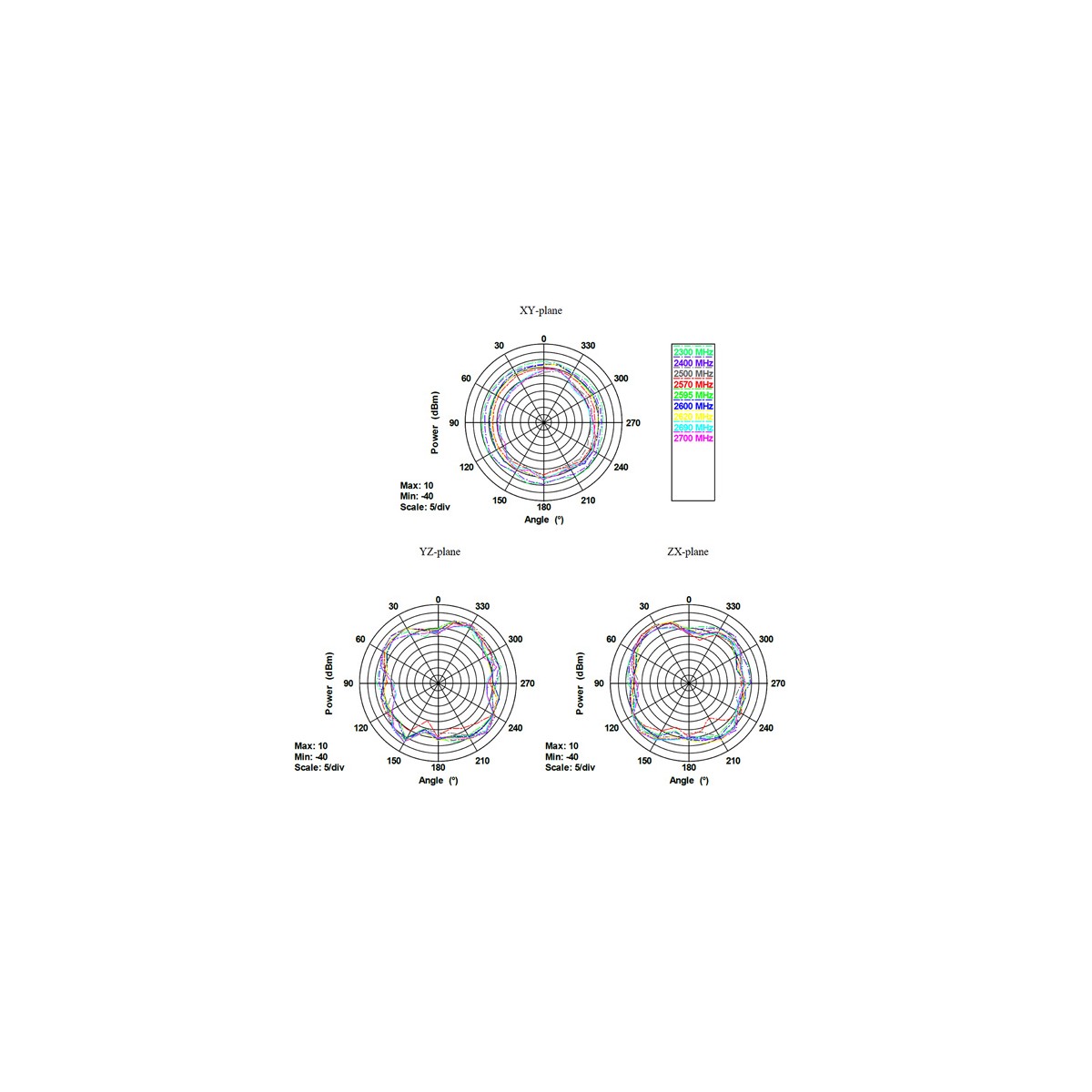

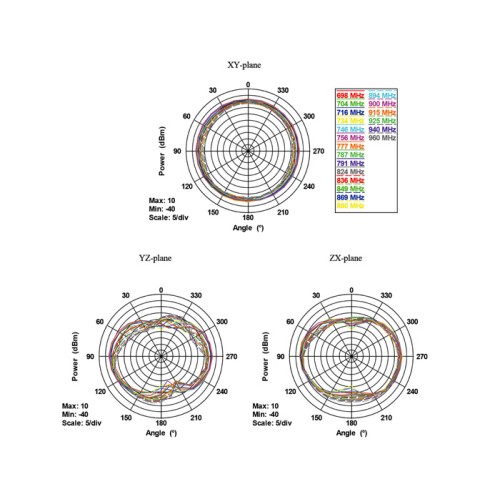

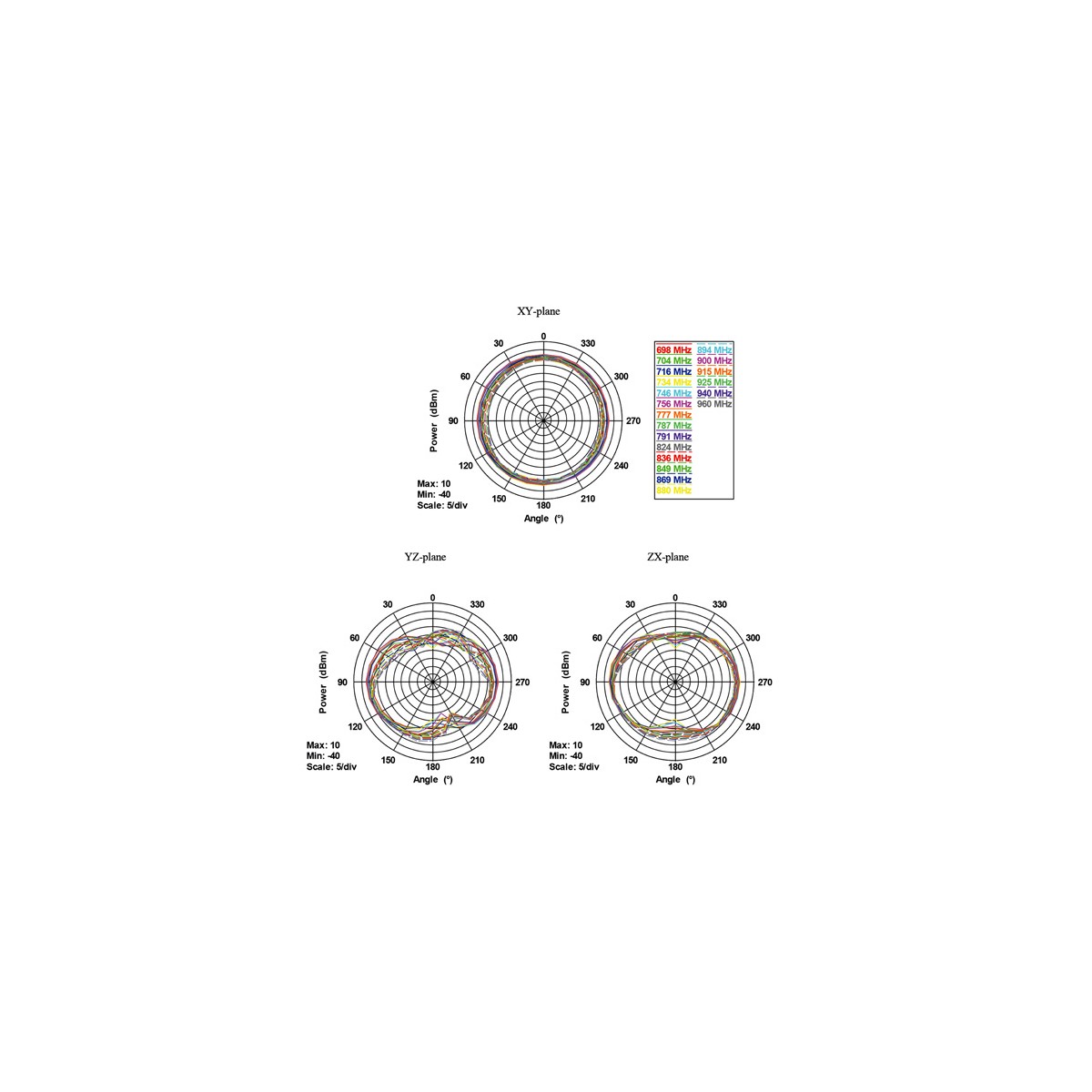

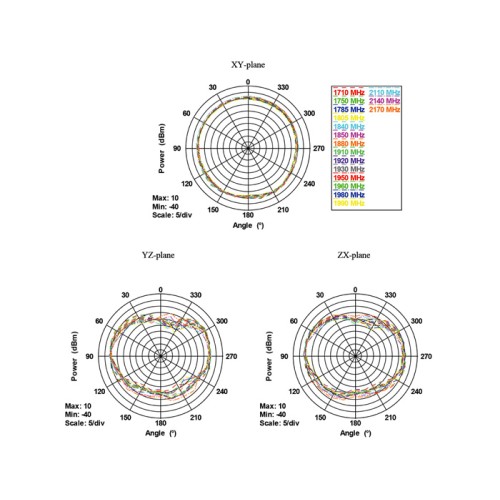

• Antenna gain:
1.5 dBi @ 698 - 791 MHz
0 dBi @ 824 - 960 MHz
1.5 dBi @ 1710 - 2170 MHz
4 dBi @ 2300 - 2400 MHz
4 dBi @ 2500 - 2700 MHz
• Impedance: 50 Ohm
• Polarisation: linear, vertical

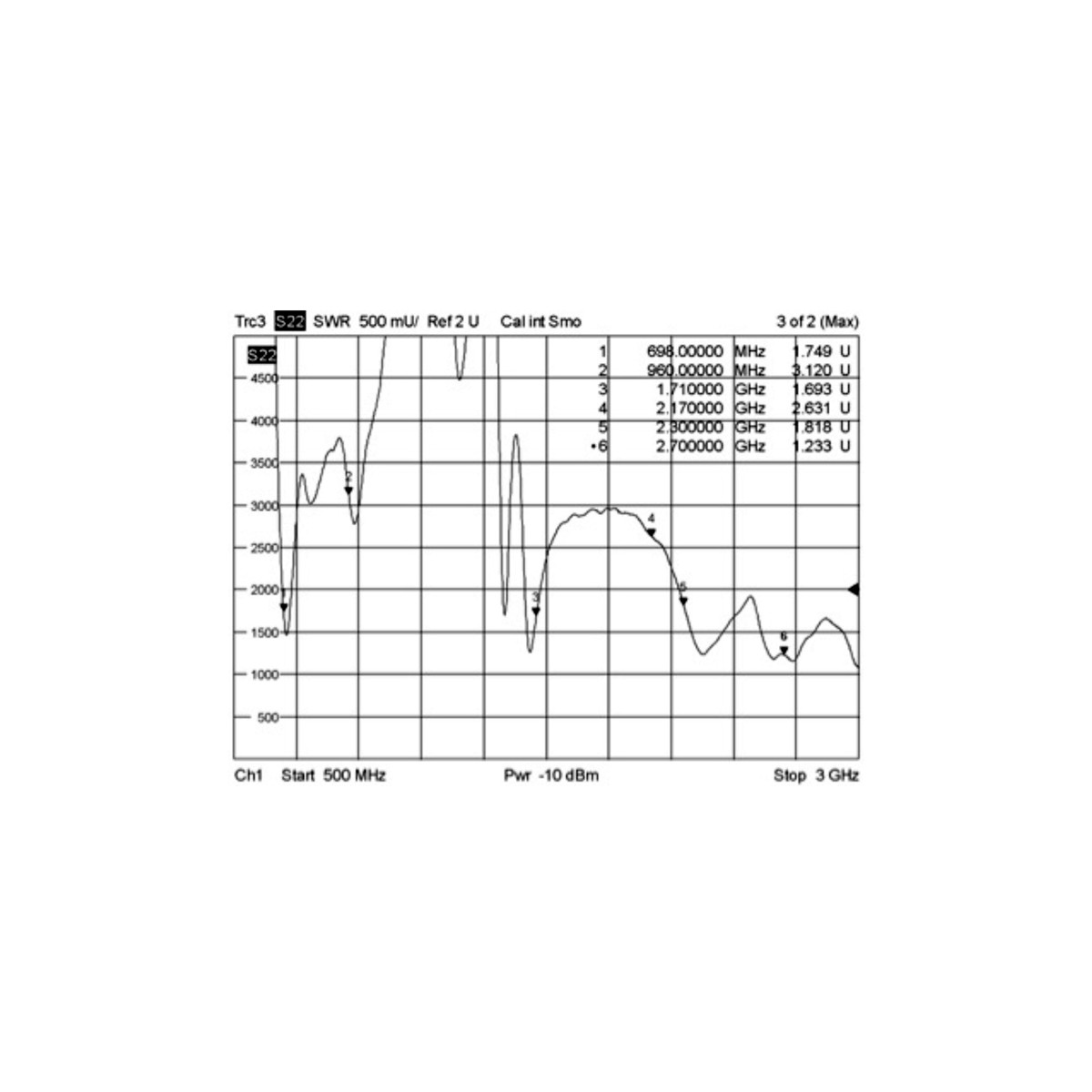

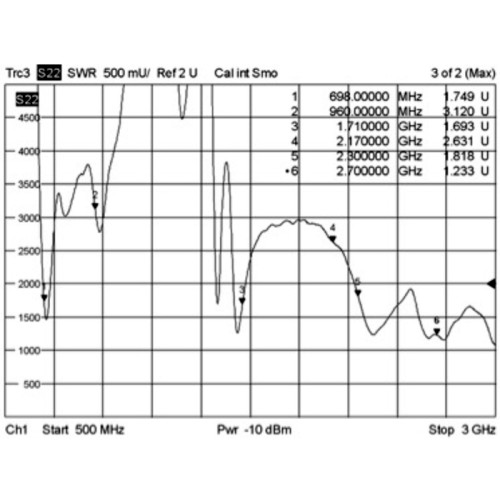

• VSWR: 4.0
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black

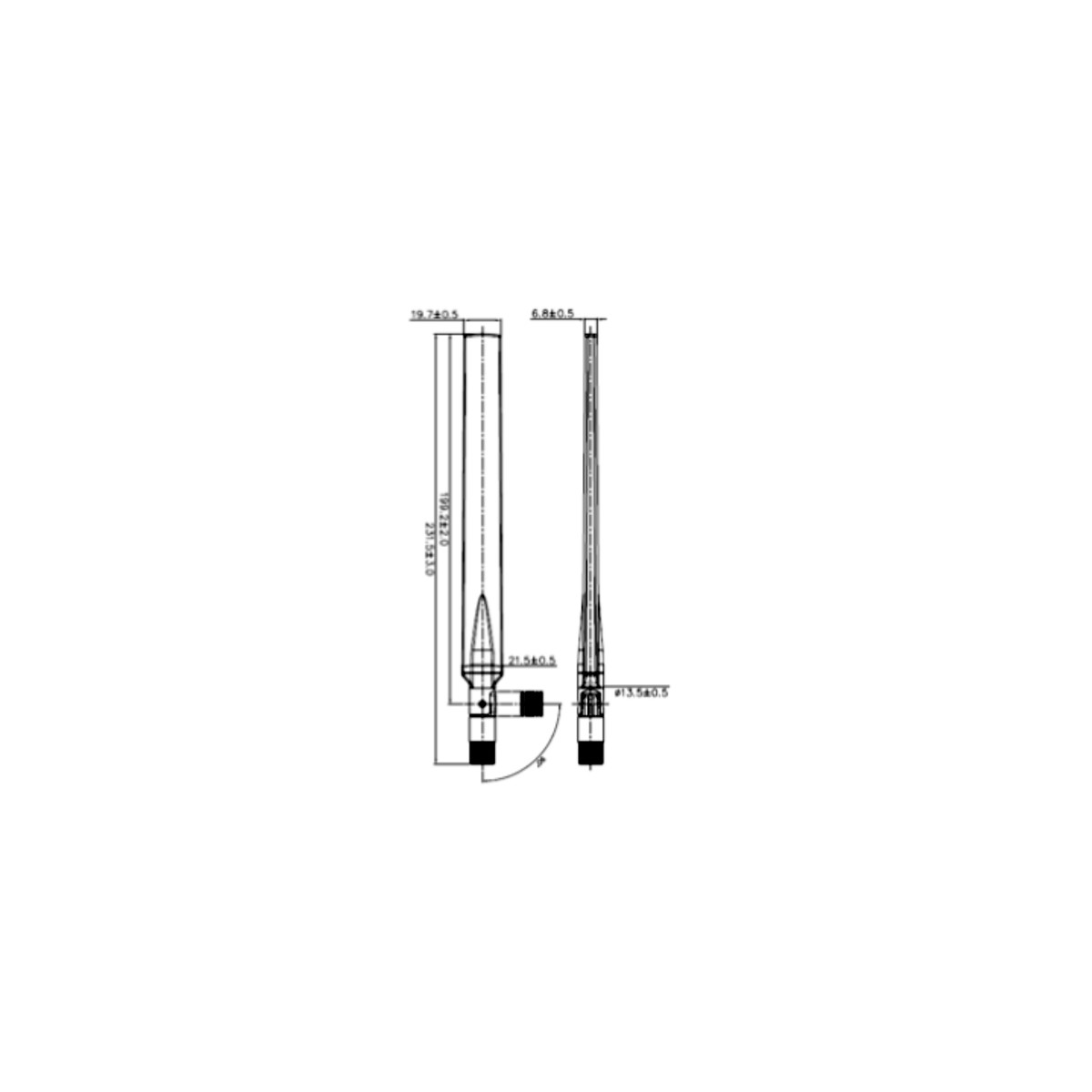

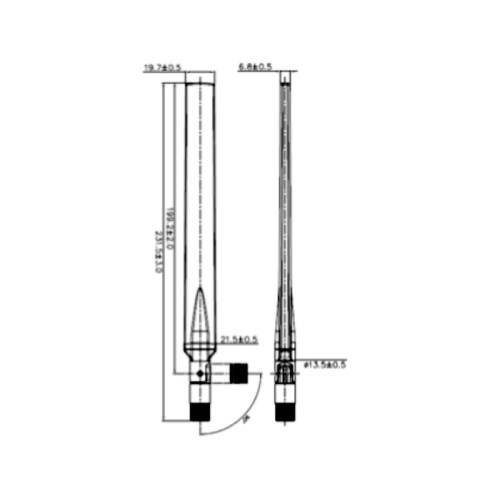

• Length:

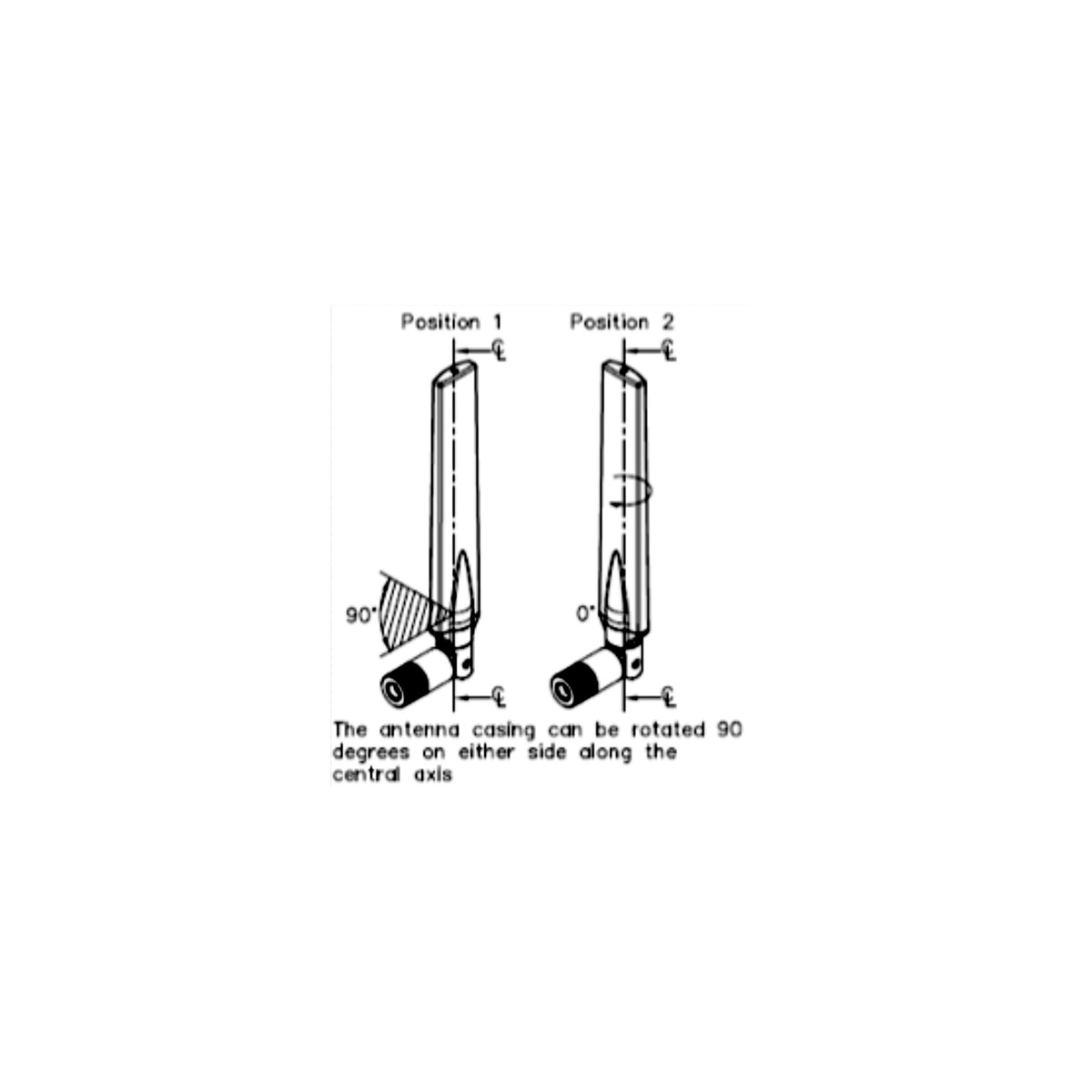

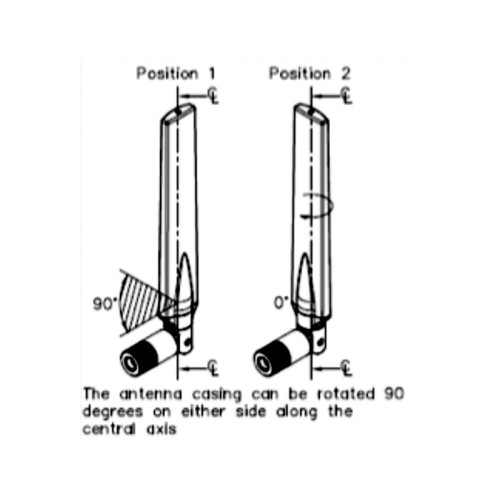

ca. 231.50 mm (with tilt joint)
ca. 199.20 mm (without tilt joint)
• Diameter:
ca. 19.70 mm (top)
ca. 21.50 mm (max.)
ca. 13.20 mm (SMA)
System requirements
• Device with a free SMA jack
Package content
• LTE antenna
Package
• Poly bag
New
4043619889761
