Description

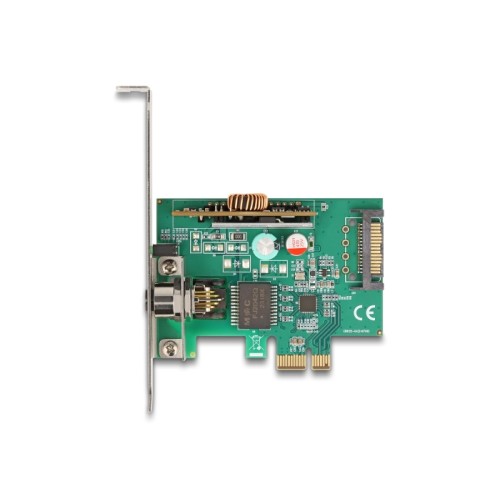

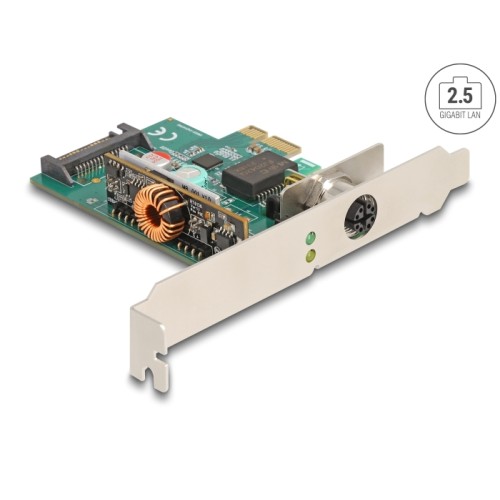

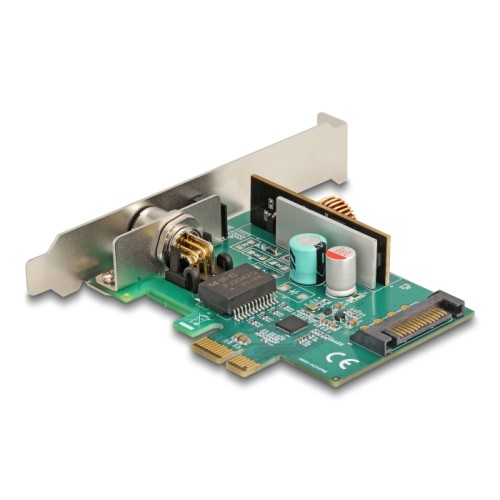

The PCI Express card by Delock offers one network port with a data transfer rate up to 2500 Mbps. This industrial Ethernet adapter by Delock can be used to connect various components with M12 connectors, e.g. for machine control or automation.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
The M12 port supports Power over Ethernet according to IEEE 802.3af / 802.3at, so power can be supplied to PoE-enabled devices, such as IP cameras or PoE splitters via the network cable.
Specification
• Connectors:
external:
1 x M12 female 8 pin X-coded
internal:
1 x PCI Express x1, V2.1
1 x SATA 15 pin power connector
• Chipset: Realtek RTL8125B
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
PCI Express x1 up to 4 Gbps
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 16k Jumbo Frames
• Supports PXE
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• Output power: max. 30 W total
• LED indicator for link and activity
System requirements
• Windows 10/10-64/11
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• User manual
