Delock LTE Antenna MHF® I plug 2 - 3 dBi 1.13 10 cm PCB internal self adhesive

Delock LTE Antenna MHF® I plug 2 - 3 dBi 1.13 10 cm PCB internal self adhesive

Name: Delock LTE Antenna MHF® I plug 2 - 3 dBi 1.13 10 cm PCB internal self adhesive
Brand: Delock
SKU: 88988
Price: 4.92 EUR
Availability: InStock

Reference 88988

Condition New

€4.92

tax excl.

Hai bisogno di informazioni o vuoi richiedere un preventivo personalizzato?
Clicca qui

Spedizione rapida Spedizioni rapide e sicure in tutta Italia

PC su misura Realizziamo nel nostro laboratorio dei computer specifici su misura

Pagamenti sicuri Metodi di pagamento semplici, facili e sicuri

Store certificato Store con certificazione ISO 9001, IQNET, ESG

Description
Product Details

Description
This LTE antenna you can integrate into your devices and can be used for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN 2.4 GHz and ZigBee compatible.

Specification
• Connector: miniature RF coaxial plug MHF (I-PEX), U.FL (Hirose) compatible
• LTE Band 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/17/18/19/20/24/25
• Frequenzy range: 690-960 / 1710-2700 Mhz
• Bluetooth/GSM/UMTS/WLAN 2.4GHz/ZigBee
• Gain: 3 dBi
• Impedance: 50 Ohm

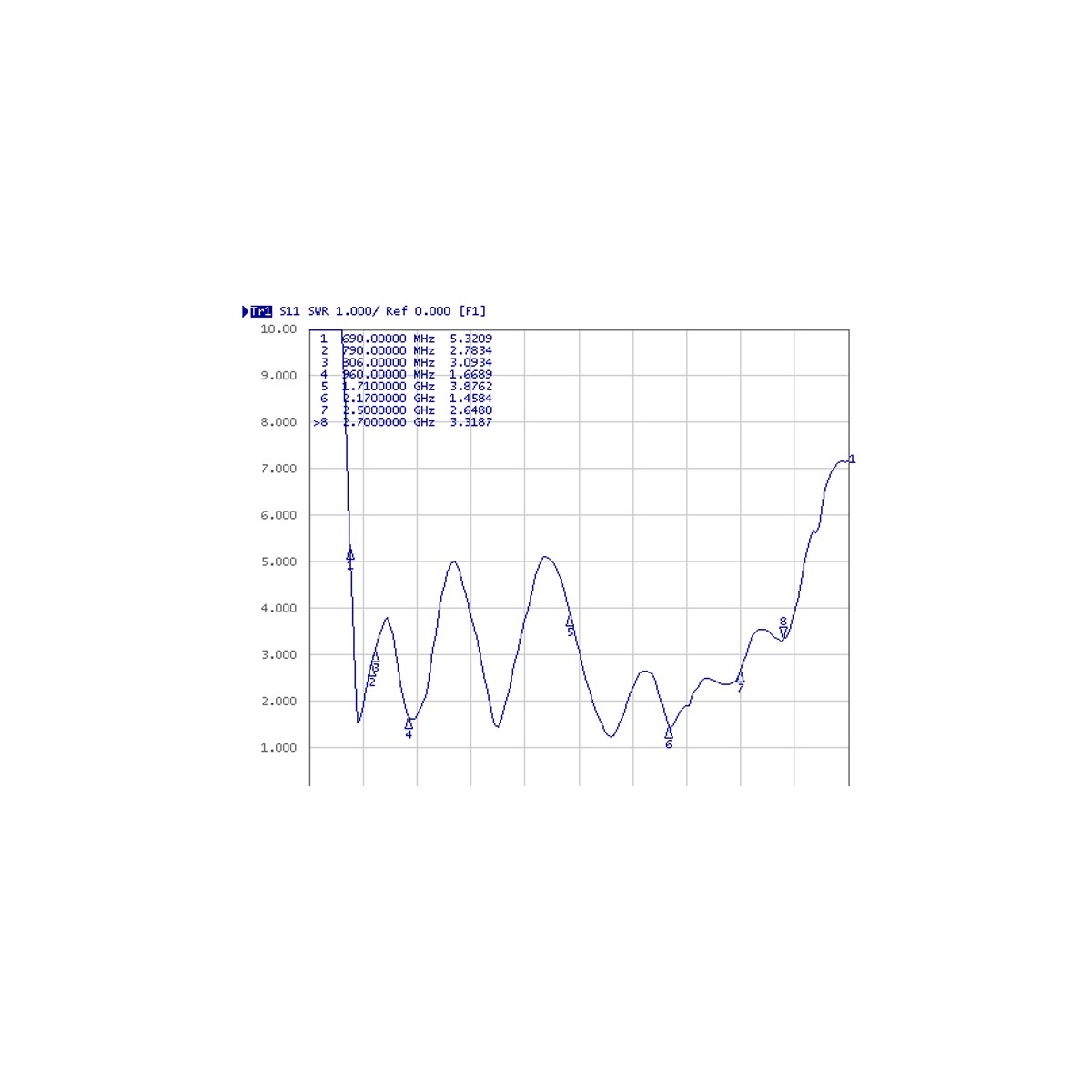

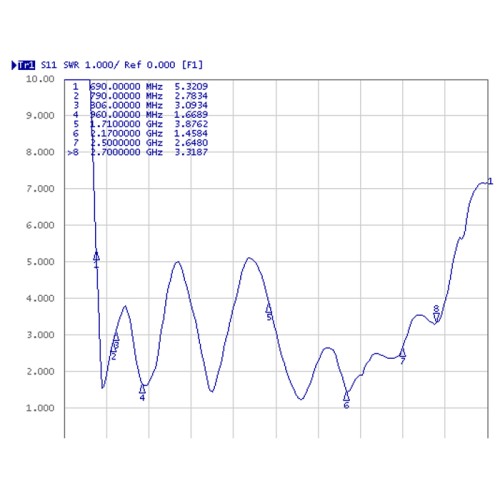

• VSWR: 2.0:1 max.
• Cable type: Coax 1.13 mm
• Cable colour: gray
• Cable length: ca. 100 mm
• Operating temperature: -10°C ~ 55°C
• Dimensions (LxWxH): ca. 96 x 14 x 0.9 mm

System requirements
• Device with free MHF/U.FL-LP-068 connector

Package content
• LTE antenna

Package
• Poly bag

Condition New

EAN13 4043619889884
