Description

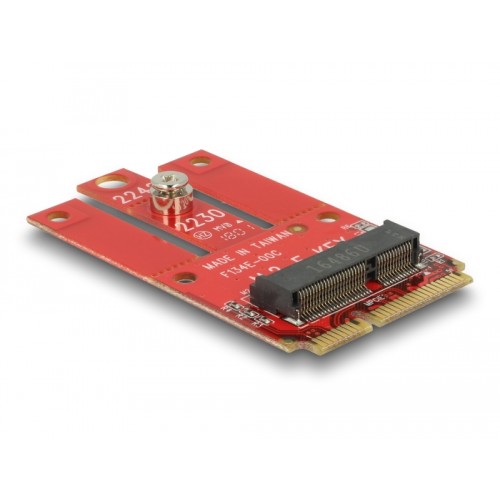

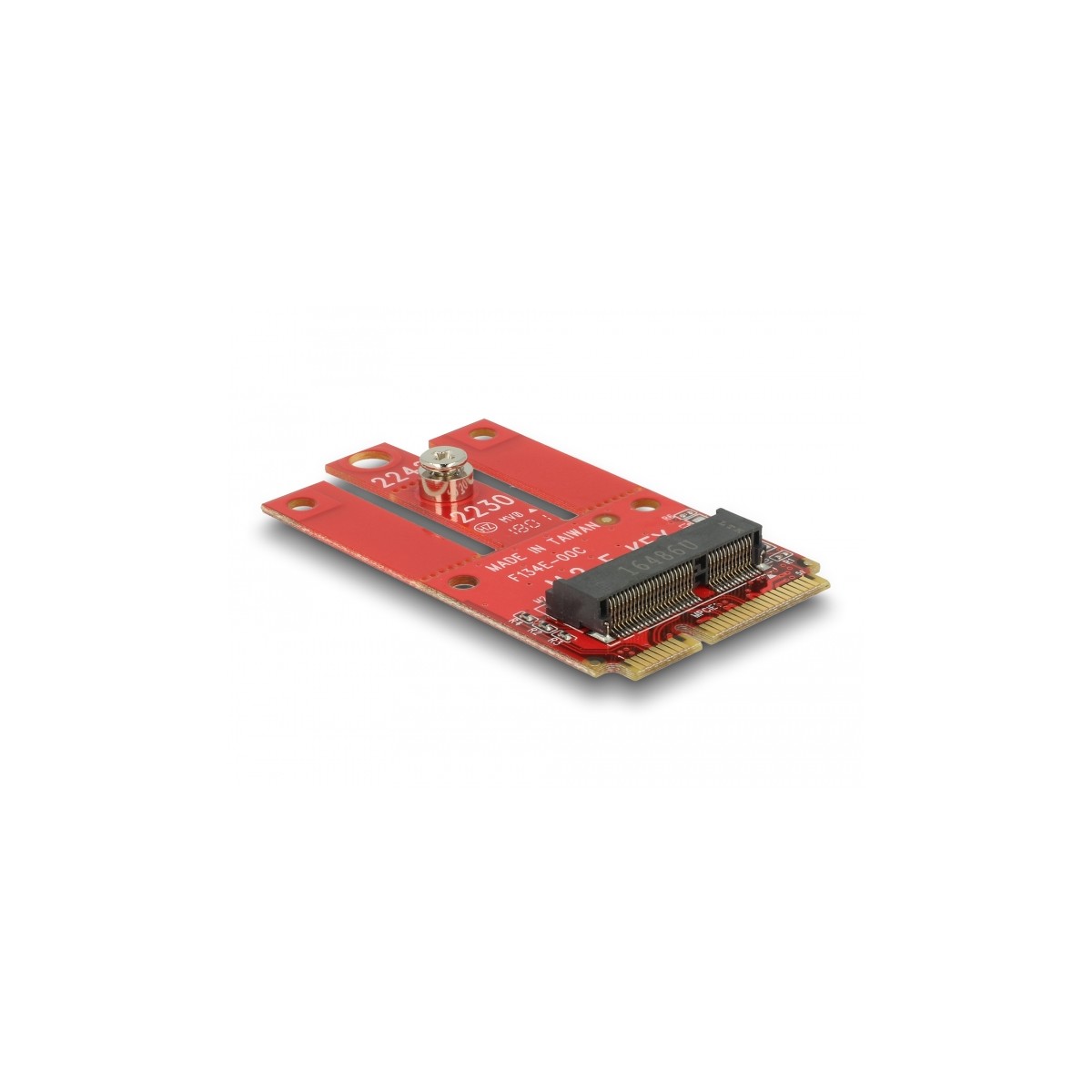

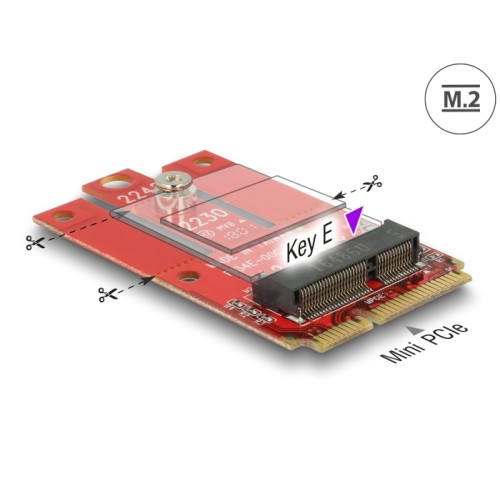

This Adapter by Delock enables the connection of an M.2 module in 2242, 2230, 3042 or 3030 format. The adapter can be installed into the system through a Mini PCIe interface. Through the predetermined breaking point, the length can be shortened from full size to half size.
Specification

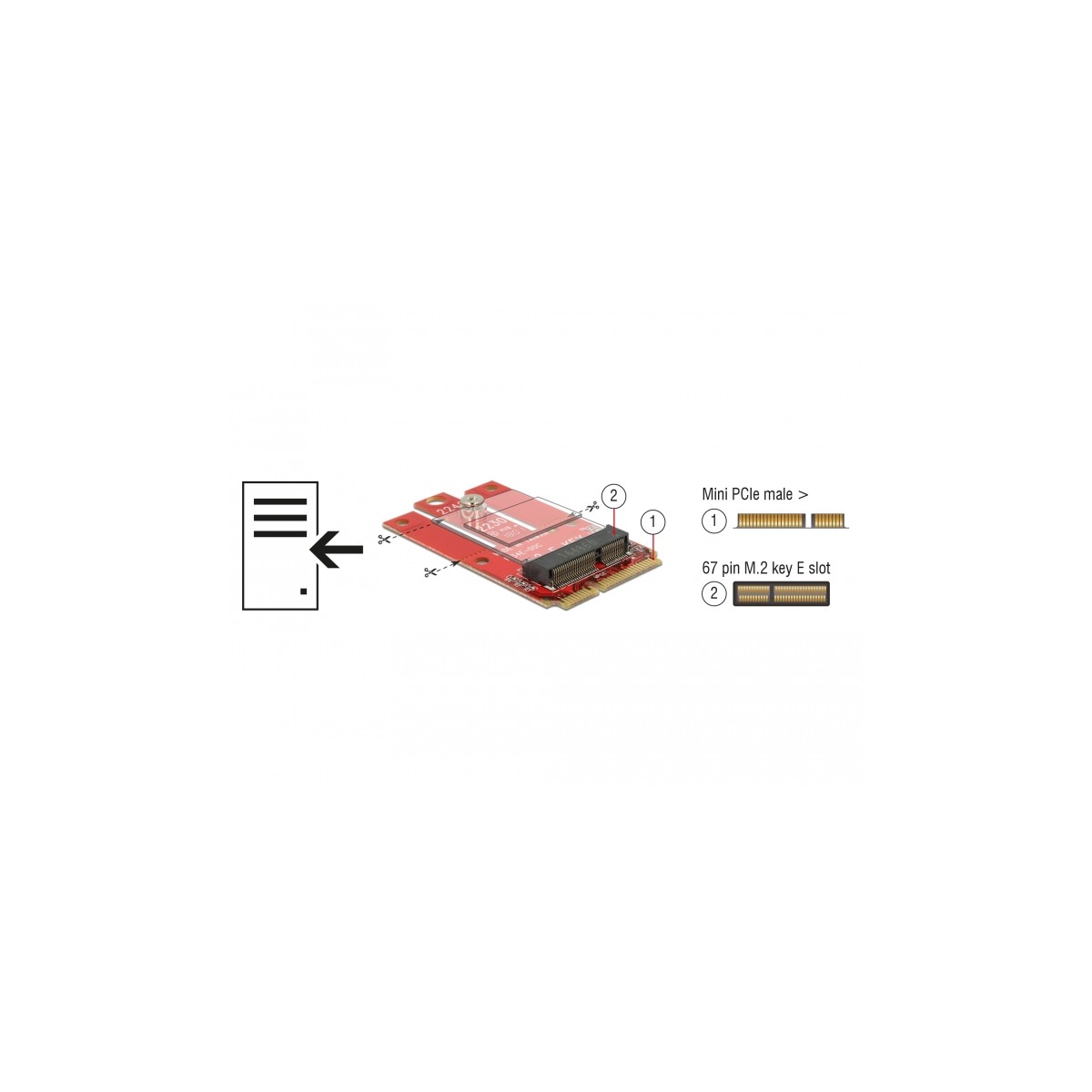

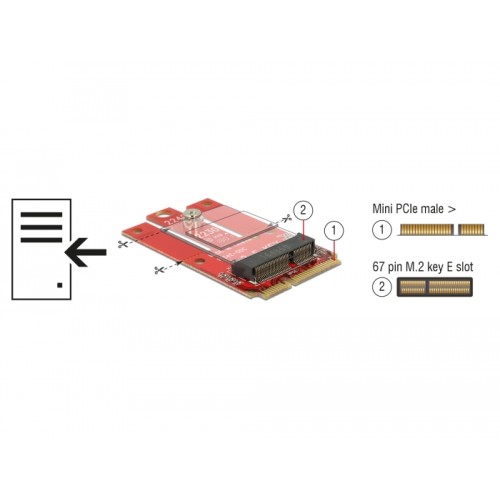

• Connectors:
1 x Mini PCIe male >
1 x 67 pin M.2 key E slot
• Interface: USB 2.0 / PCIe
• Form factor: Mini PCIe full size / half size
• Supports M.2 modules in format 2242, 2230, 3042 and 3030
with key E or key A+E based on USB / PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Dimensions (LxW): ca. 54 x 30 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.2 / Kernel 4.x.x
• Motherboard with a free Mini PCIe slot with a USB / PCIe interface
Package content
• Adapter

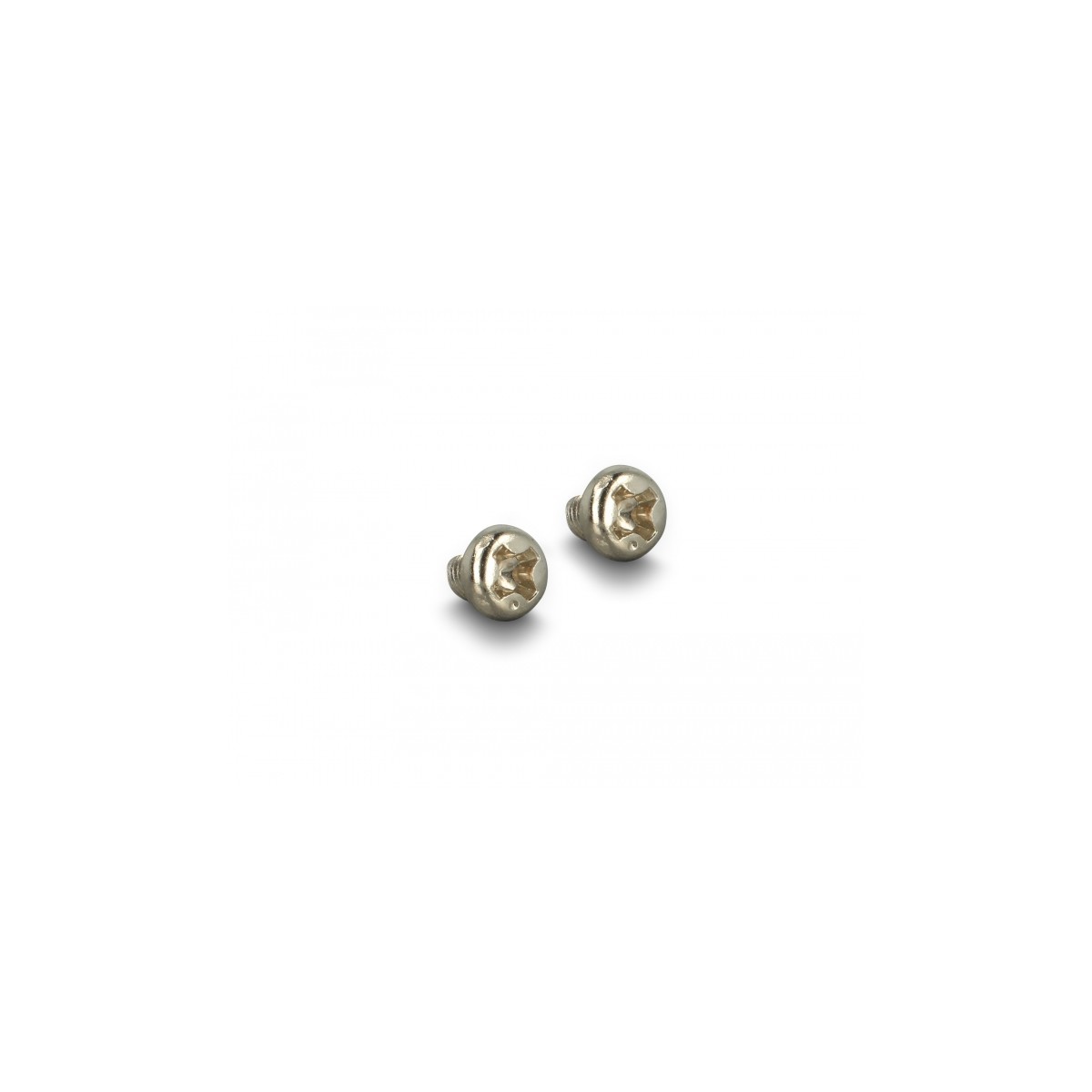

• Screws
• User manual
Package
• Retail Box
New
4043619639090
