Description
This Ethernet LAN to RS-232 converter by Delock provides a convenient solution to integrate RS-232 devices into a LAN infrastructure via plug and play. It supports connections to RS-232 devices such as scanners, machines, instruments, routers, IOT devices, etc. A Windows application enables a central control of Ethernet LAN converters. This includes the selection of the desired network interfaces, the configuration of the COM port settings as well as the functions for manual or automatic connections, password protection, device name and MAC hardware addresses.
In the Local Area Network or Wireless Local Area Network the converter interacts with the MAC hardware address (device address) without using the TCP/IP protocol. This reduces the response time between the computers and the RS-232 devices with very low latencies. Using the Ethernet protocol avoids furthermore the required configuration of IP addresses. The Ethernet LAN converter is compatible with current Ethernet and RS-232 standards and achieves a maximum data rate of up to 100 Mbps.
In the Local Area Network or Wireless Local Area Network the converter interacts with the MAC hardware address (device address) without using the TCP/IP protocol. This reduces the response time between the computers and the RS-232 devices with very low latencies. Using the Ethernet protocol avoids furthermore the required configuration of IP addresses. The Ethernet LAN converter is compatible with current Ethernet and RS-232 standards and achieves a maximum data rate of up to 100 Mbps.
Specification
• Connectors:
1 x Fast Ethernet RJ45 jack

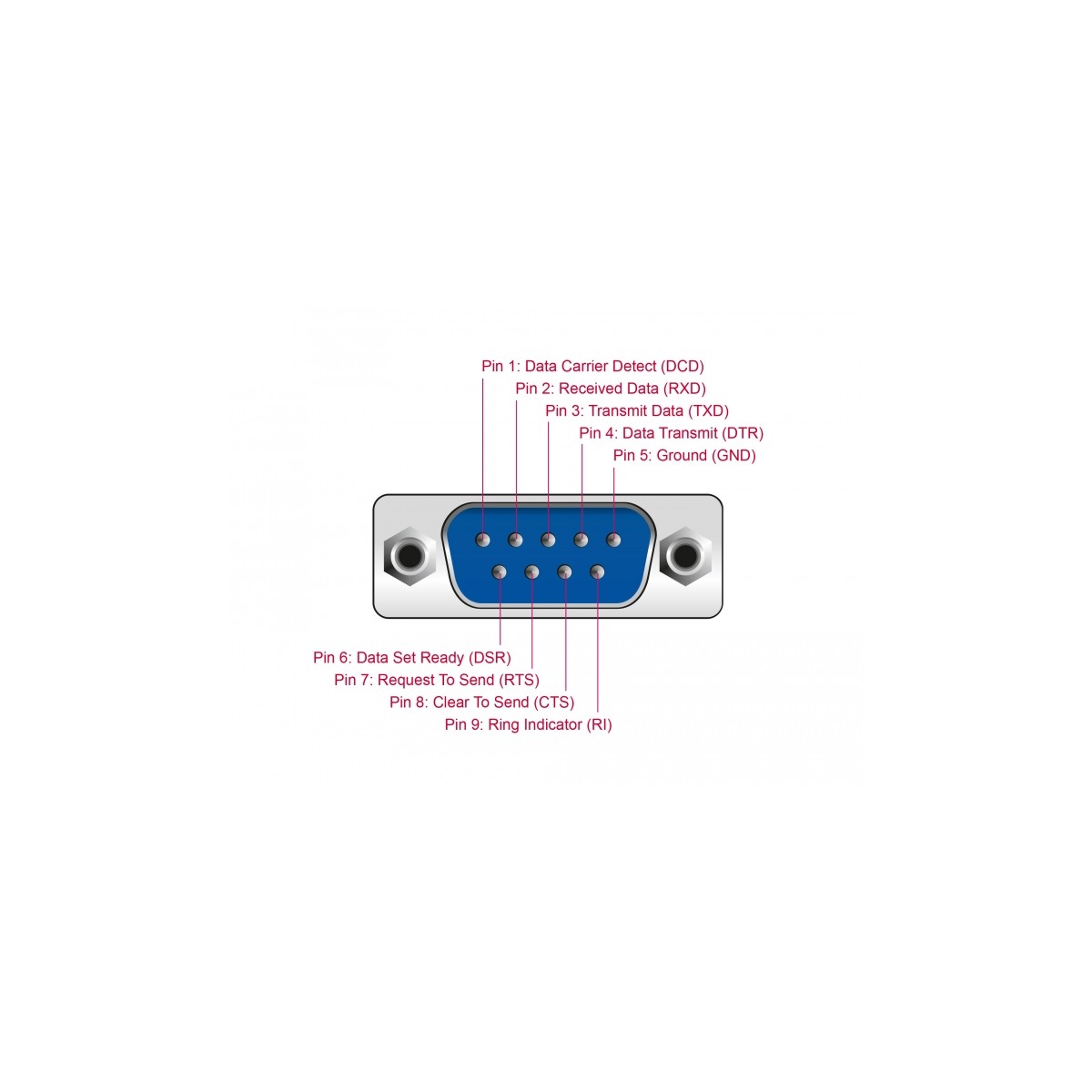

1 x Serial RS-232 DB9 male with nuts
1 x DC power female 3.5 x 1.35 mm
• RS-232 serial:
Data transfer rate: 50 bps - 115 Kbps
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parität: even, odd, none, mark, space
Buffer: FIFO 1 KByte

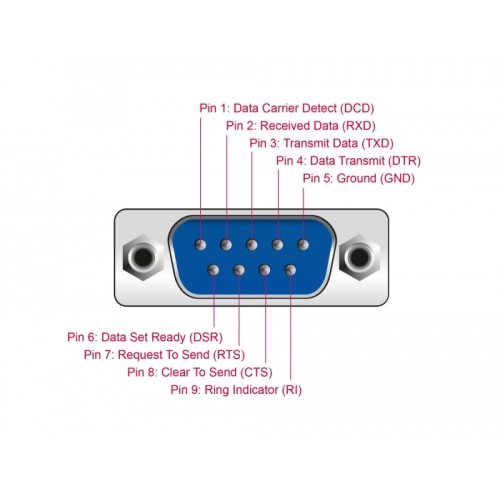

Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Ethernet standards:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
Media Access Control adressing (no IP configuration)
Auto connection and mapping with MAC address bound (Hot Swap)
Auto MDI/MDIX
• Transmission protocol: proprietary
• Password protection (optionally available)
• Plug & Play
• Data transfer latency: < 15 ms
• Keeps physical COM port in system also under offline mode (auto connect)
• Protection: ESD (electrostatic discharge):
±15 KV ESD Human Body Model (HBM)
±15 KV ESD IEC61000-4-2 Air Discharge
±8 KV ESD IEC61000-4-2 Contact Discharge
±4 KV ESD IEC61000-4-2 Line-to-Line
• Status LEDs:
Power
Ethernet connection
RS-232 connection and data

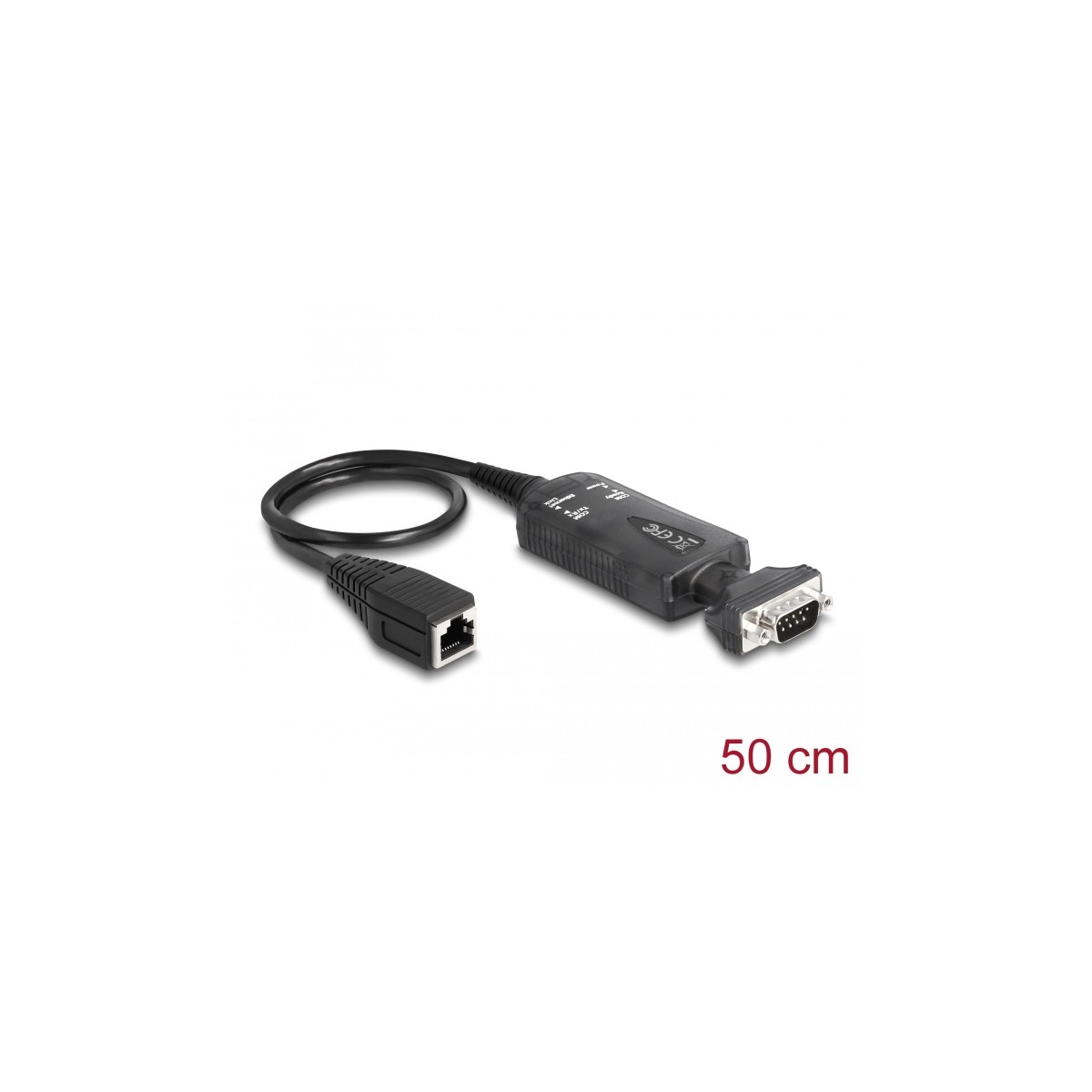

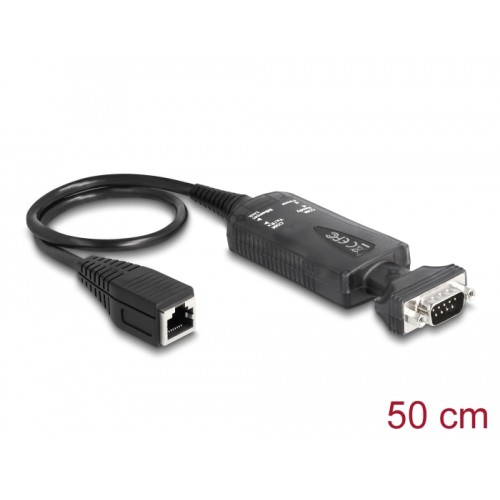

• Cable length incl. connectors: 50 cm
• Operating voltage: 5 V
• Power consumption: max. 2.5 W
• Housing: Polycarbonat
• Operating temperature: 0 °C ~ 60 °C
• Humidity: 5 ~ 95 %
• Weight: 67 g
• Dimensions (LxWxH): ca. 48 x 34 x 18 mm

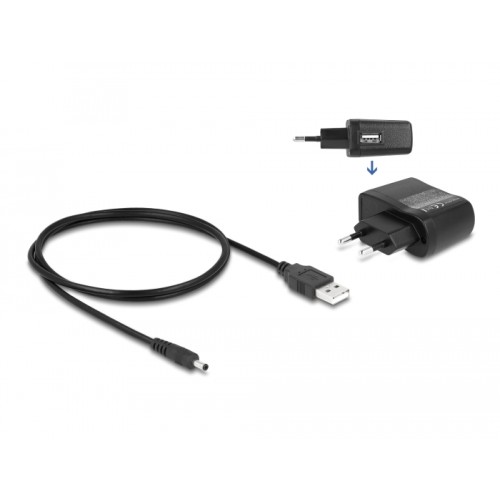

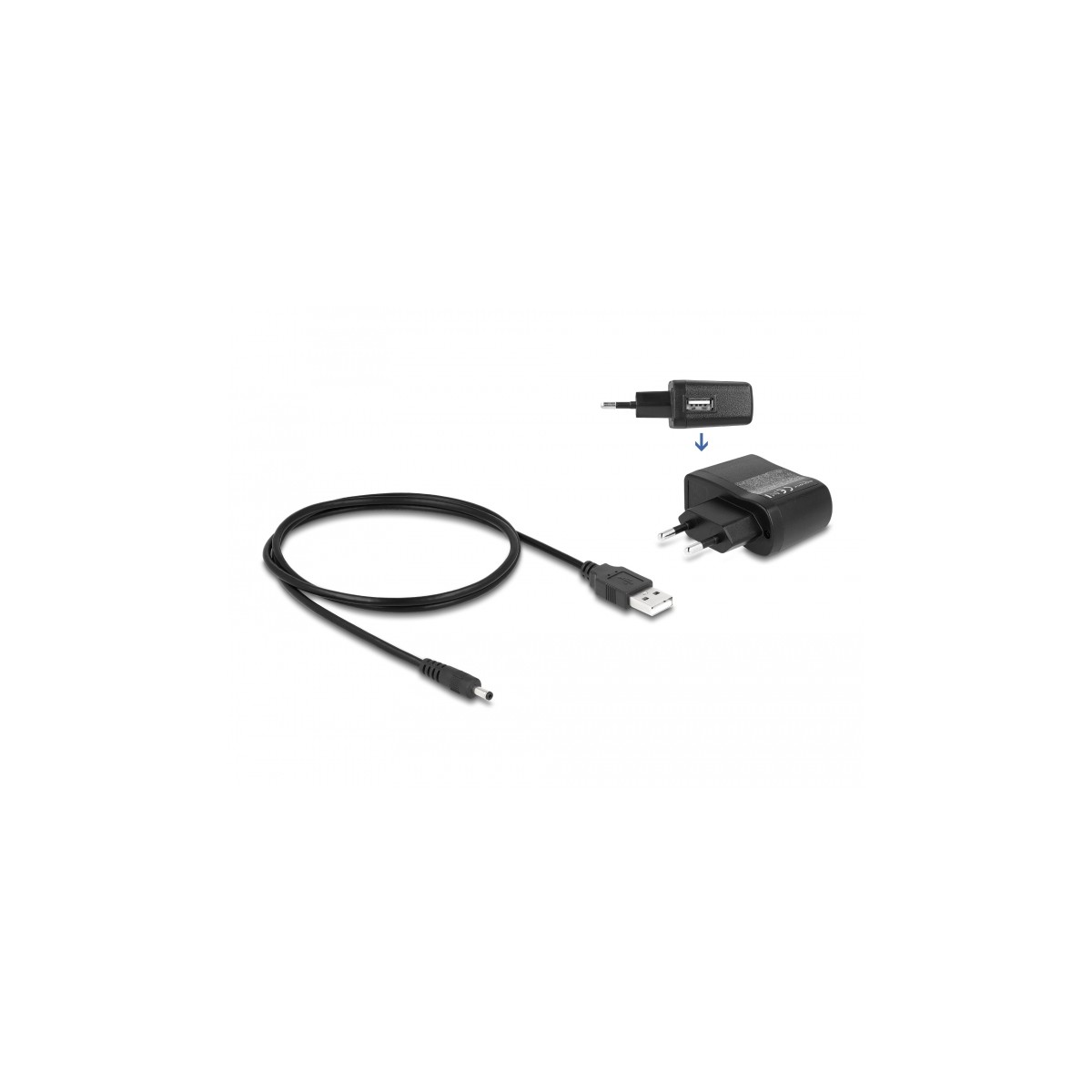

Power supply specification
• Input: 100 ~ 240 V 50/60 Hz 0.2 A
• Output: 5 V / 1 A
• Cable length incl. connectors: ca. 120 cm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64/Server 2012R/2016
• Ethernet LAN 10/100/1000 Mbps
Package content
• Ethernet LAN converter to serial RS-232
• Software CD
• Power supply
• Manual
Package
• Box
New
4043619629763
