Description

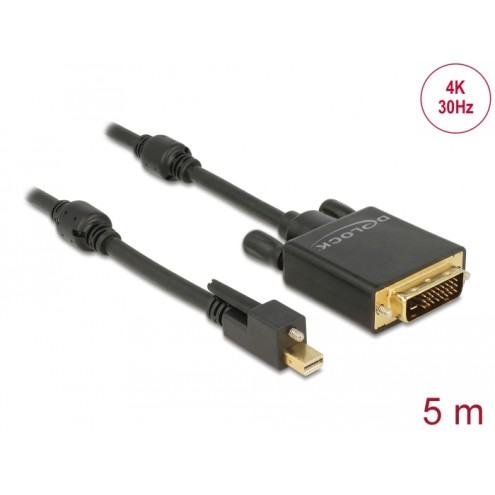

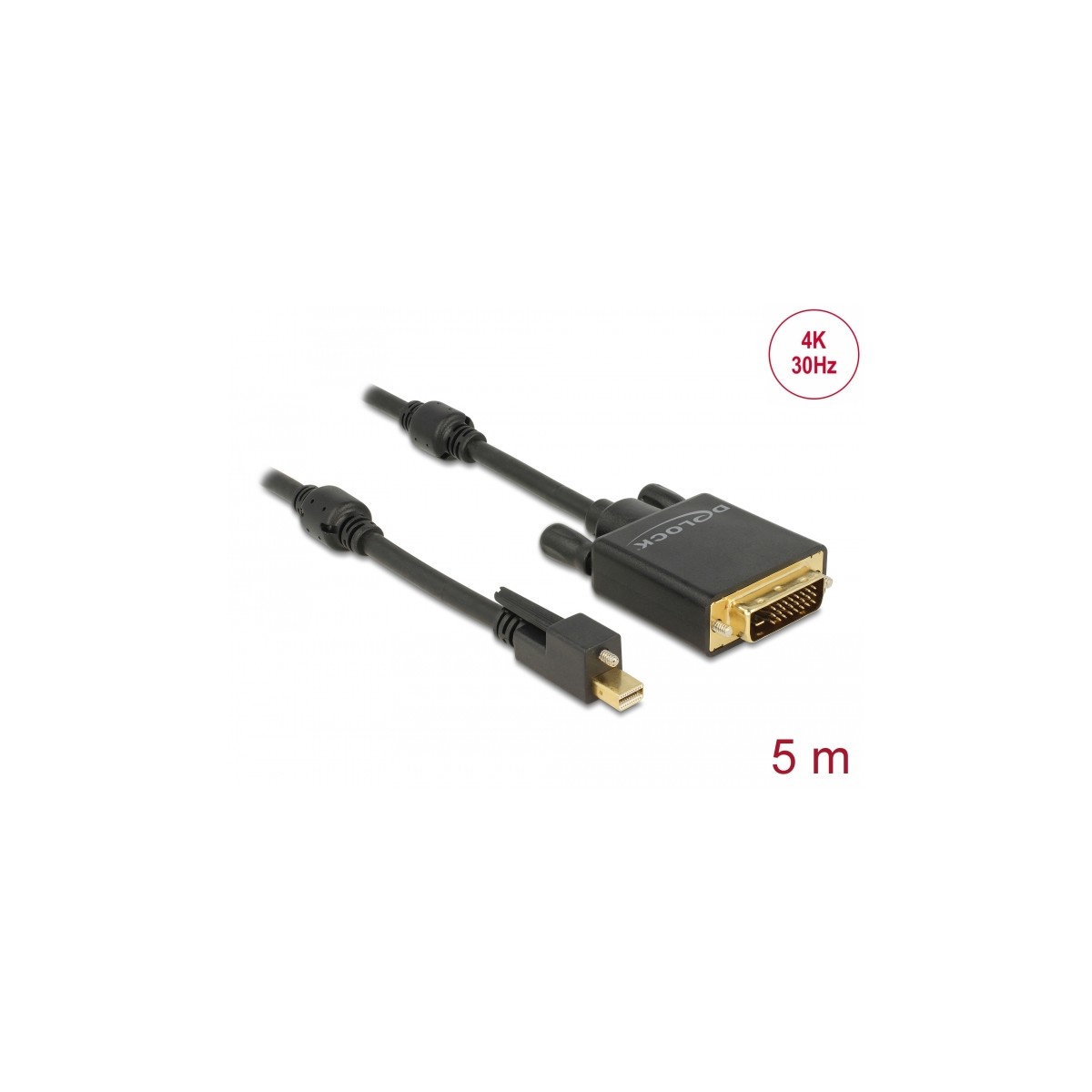

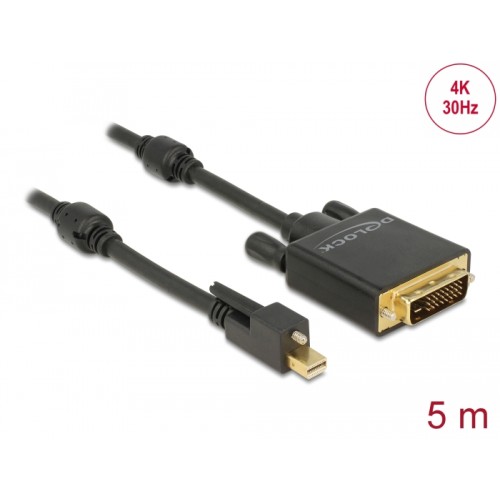

This cable by Delock allows the connection of a DVI display via a mini Displayport interface. It supports a resolution of up to Ultra HD (4K) and is backwards compatible to Full-HD 1080p. The screw of the mini Displayport connector secures the connection and prevents accidental unplugging of the cable.
Specification
• Connectors:
1 x mini Displayport 20 pin male with screw >
1 x DVI 24+1 male with screws
• DVI-D (Single Link), VGA not wired
• Input = mini Displayport; Output = DVI
• Screw type: #4-40, thread type UNC, thread class 3A, American Standard Screw
• Chipset: Parade PS176
• Displayport 1.2 specification
• Cable gauge: 32 AWG
• Cable diameter: ca. 5.5 mm
• Gold-plated connectors
• Active cable, for graphics cards with DP and DP++ output
• Resolution up to 2560 x 1600 @ 60 Hz / 3840 x 2160 @ 30 Hz / 4096 x 2160
@ 24 Hz (depending on the system and the connected hardware)
• Supports HDCP 1.3
• Supports Eyefinity
• 2 x ferrite core

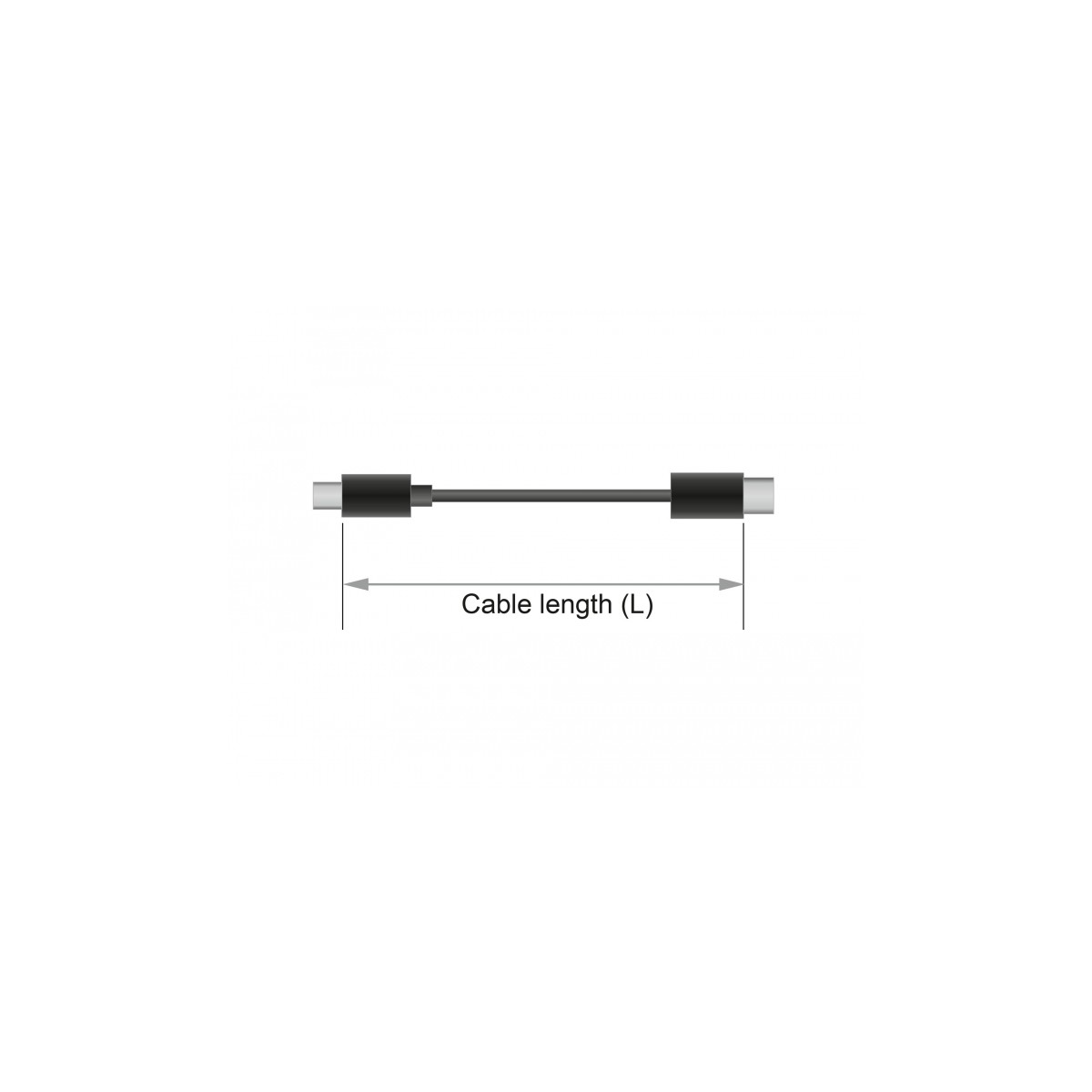

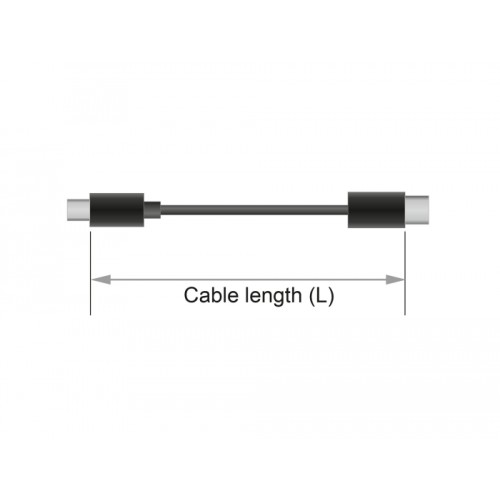

• Length incl. connectors (L): ca. 5 m
• Colour: black
• OS independent, no driver installation necessary
System requirements
• One free mini Displayport female
Package content
• Cable mini Displayport to DVI
Package
• Poly bag
