Description

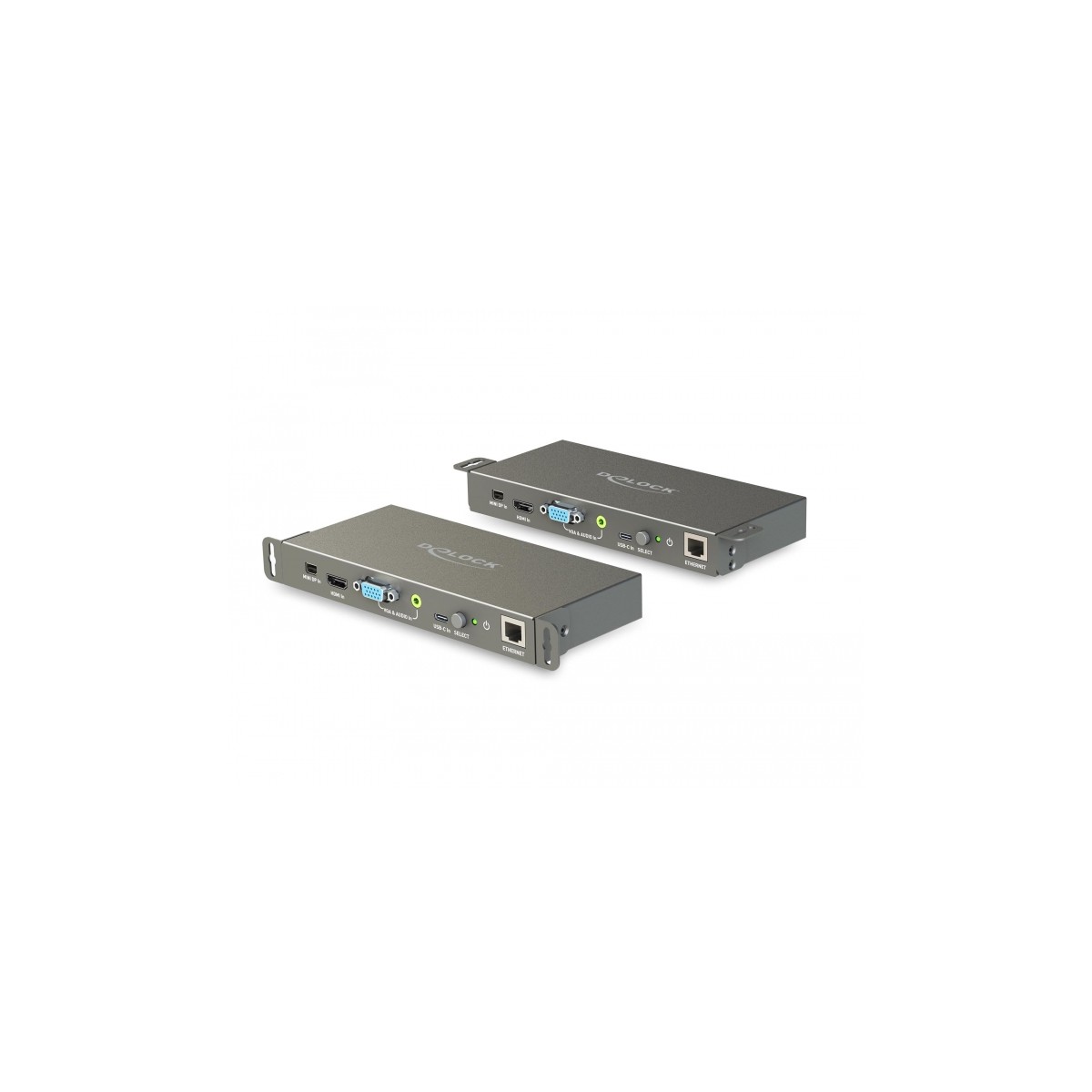

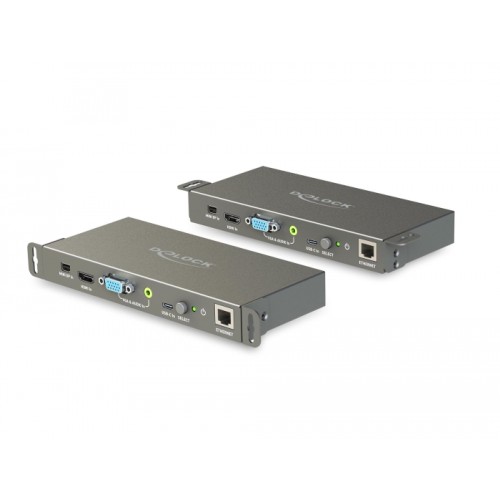

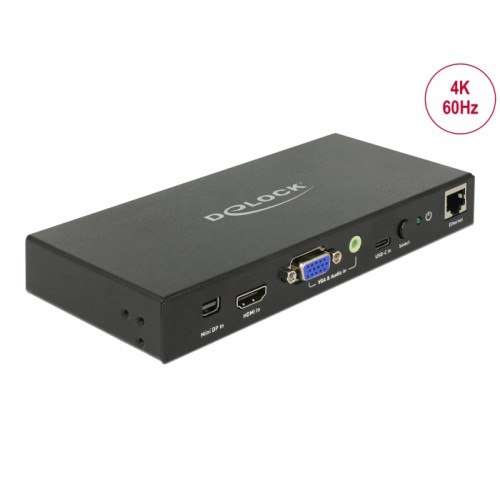

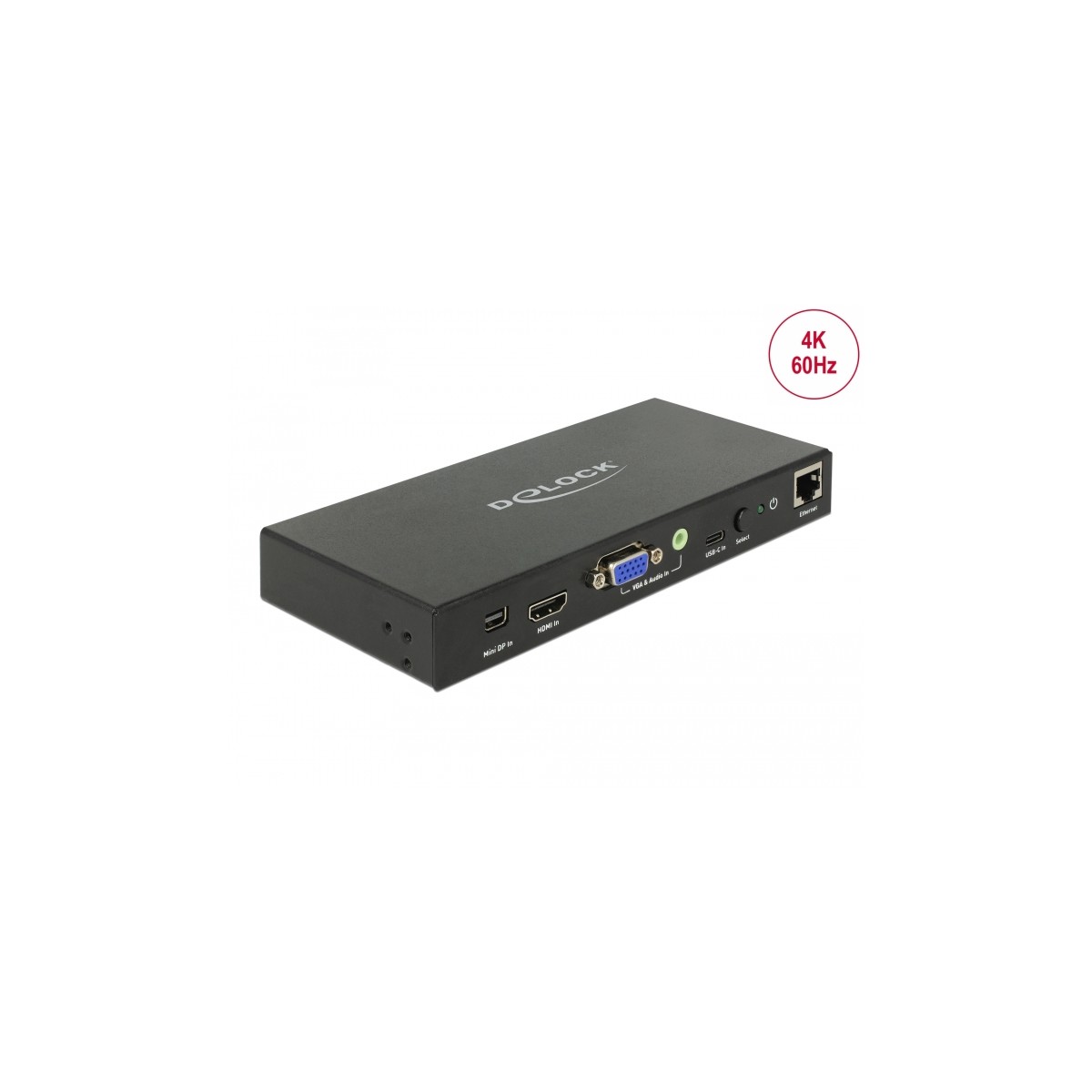

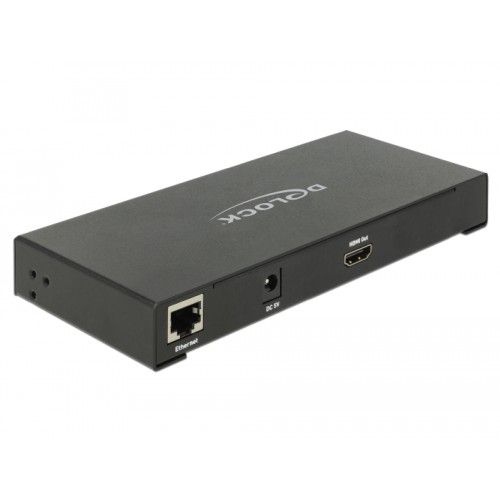

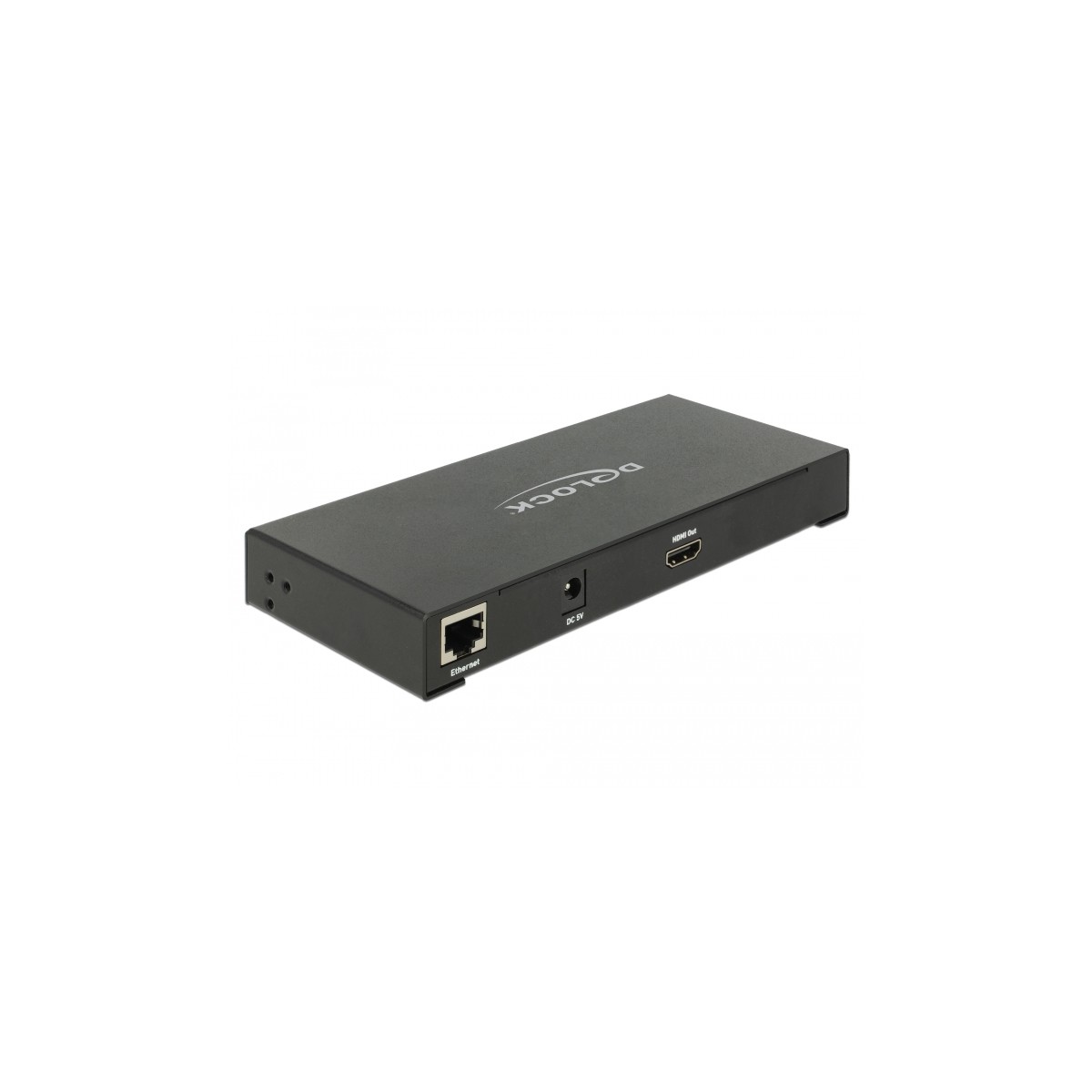

This multi-functional converter by Delock makes it possible to convert different sources into one HDMI signal. The signal inputs are USB-C™ (DP Alt Mode), VGA with 3.5 mm audio, Mini DisplayPort and HDMI. The converter box is a practical solution for connecting various audio / video devices to a projector or TV with HDMI input.
Specification
• Connectors:
Input:
1 x mini DisplayPort 20 pin female
1 x HDMI-A 19 pin female
1 x USB Type-C™ (DP Alt Mode) female
1 x VGA 15 pin female with nuts
1 x 3.5 mm 3 pin stereo jack female
1 x DC 5 V power connector
Output:
1 x HDMI-A 19 pin female
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Resolution (VGA input) up to 1920 x 1080 @ 60 Hz
• Transmission of audio and video signals
• Switching automatic or via button
• Robust metal housing
• Dimensions (LxWxH): ca. 179 x 80 x 25 mm

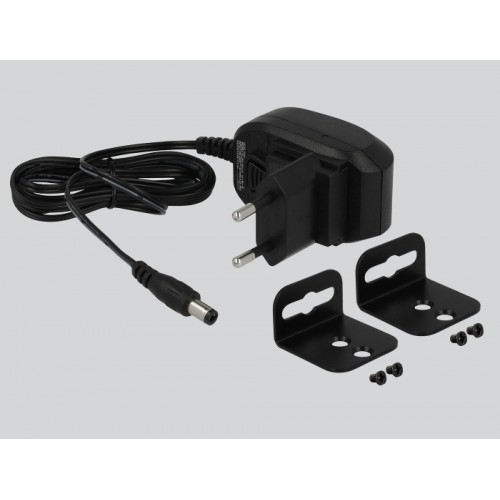

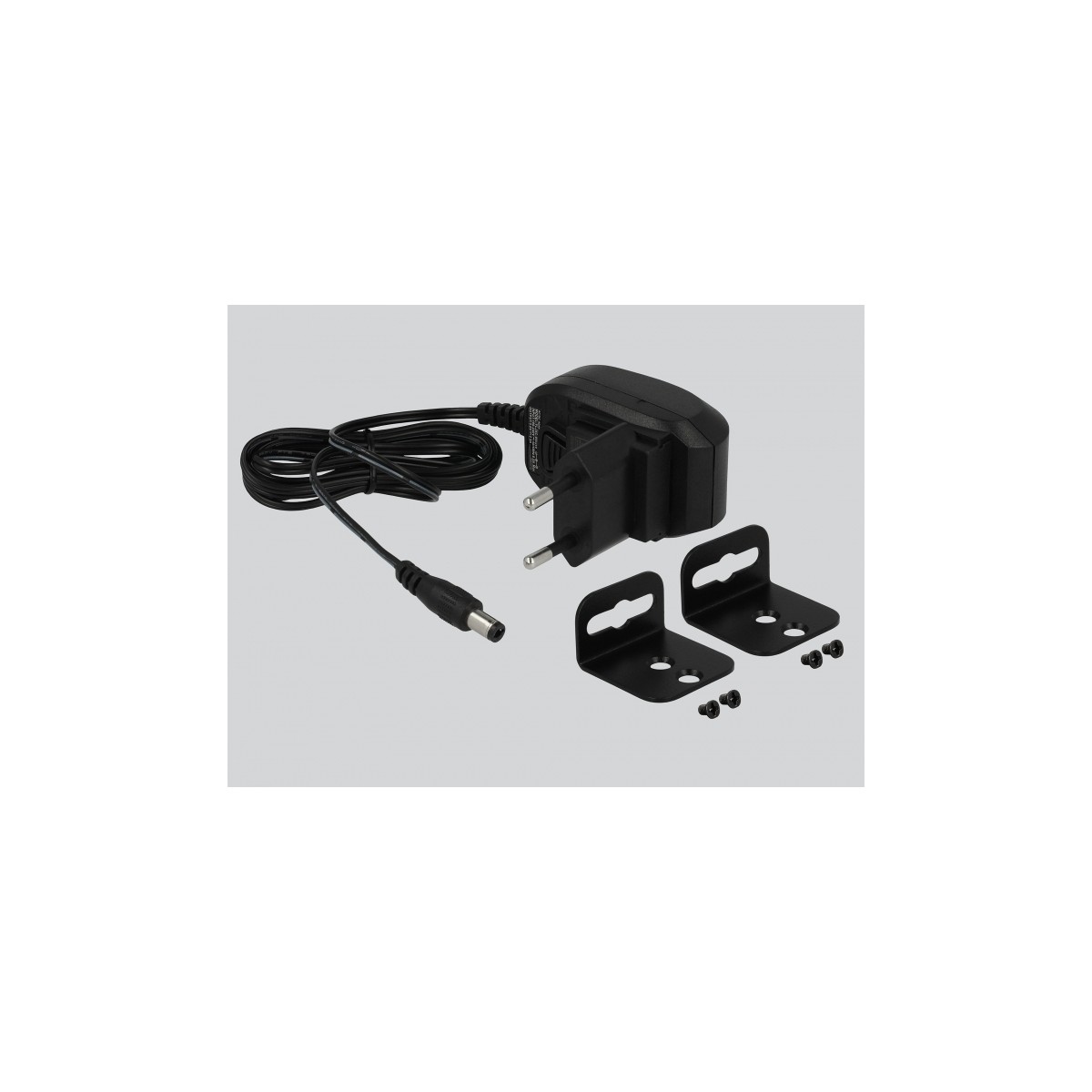

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 2.5 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
Package content
• Converter
• Mounting bracket
• Power supply
• User manual
Package
• Retail Box
