Description

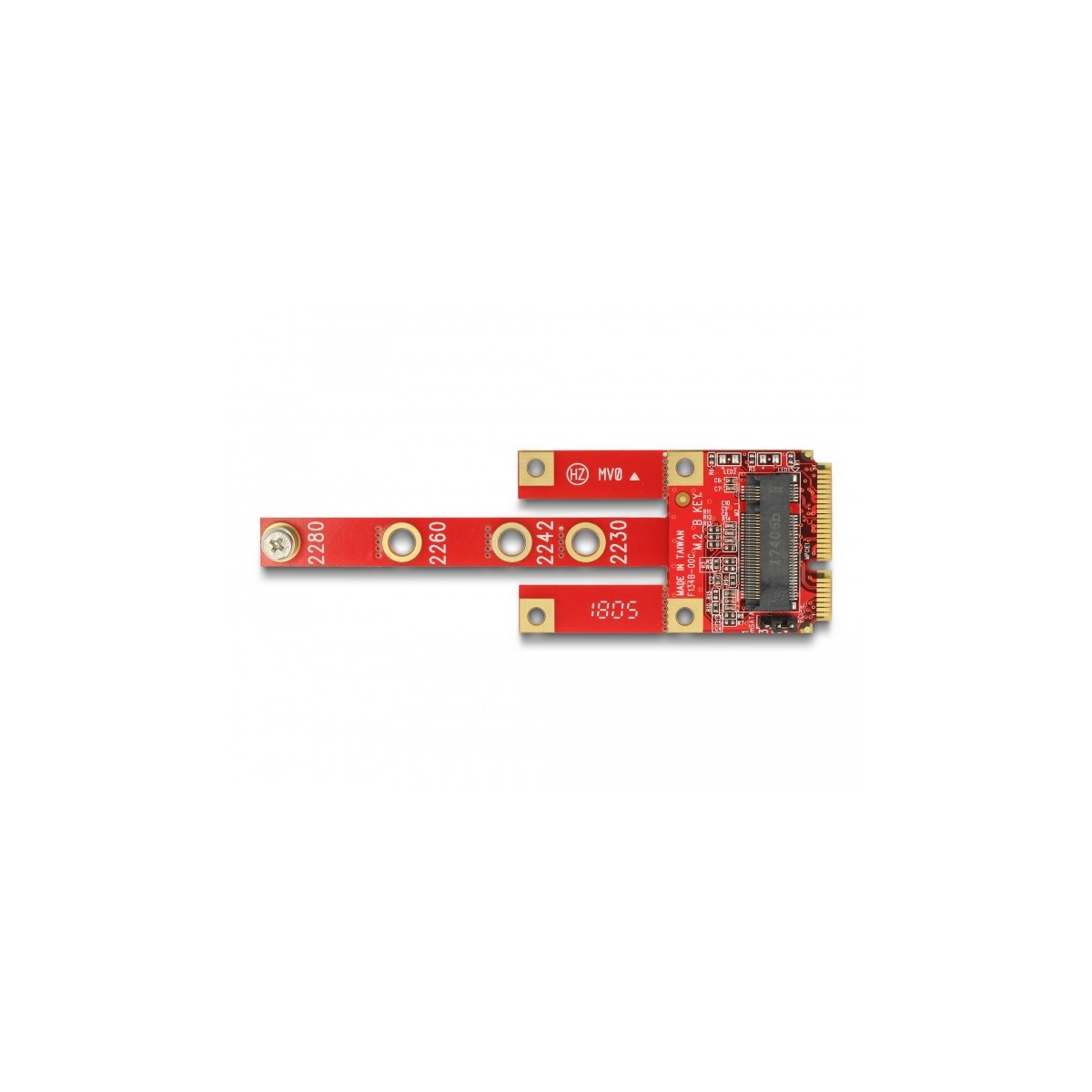

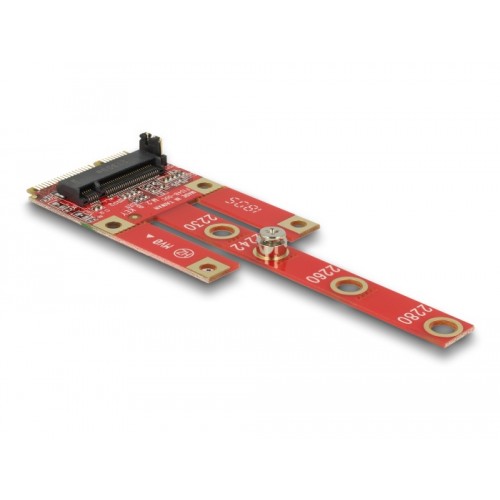

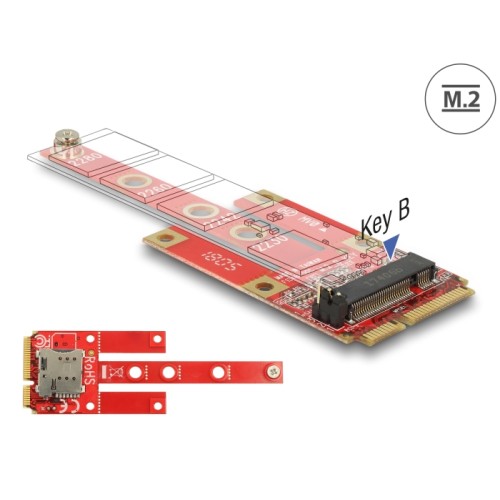

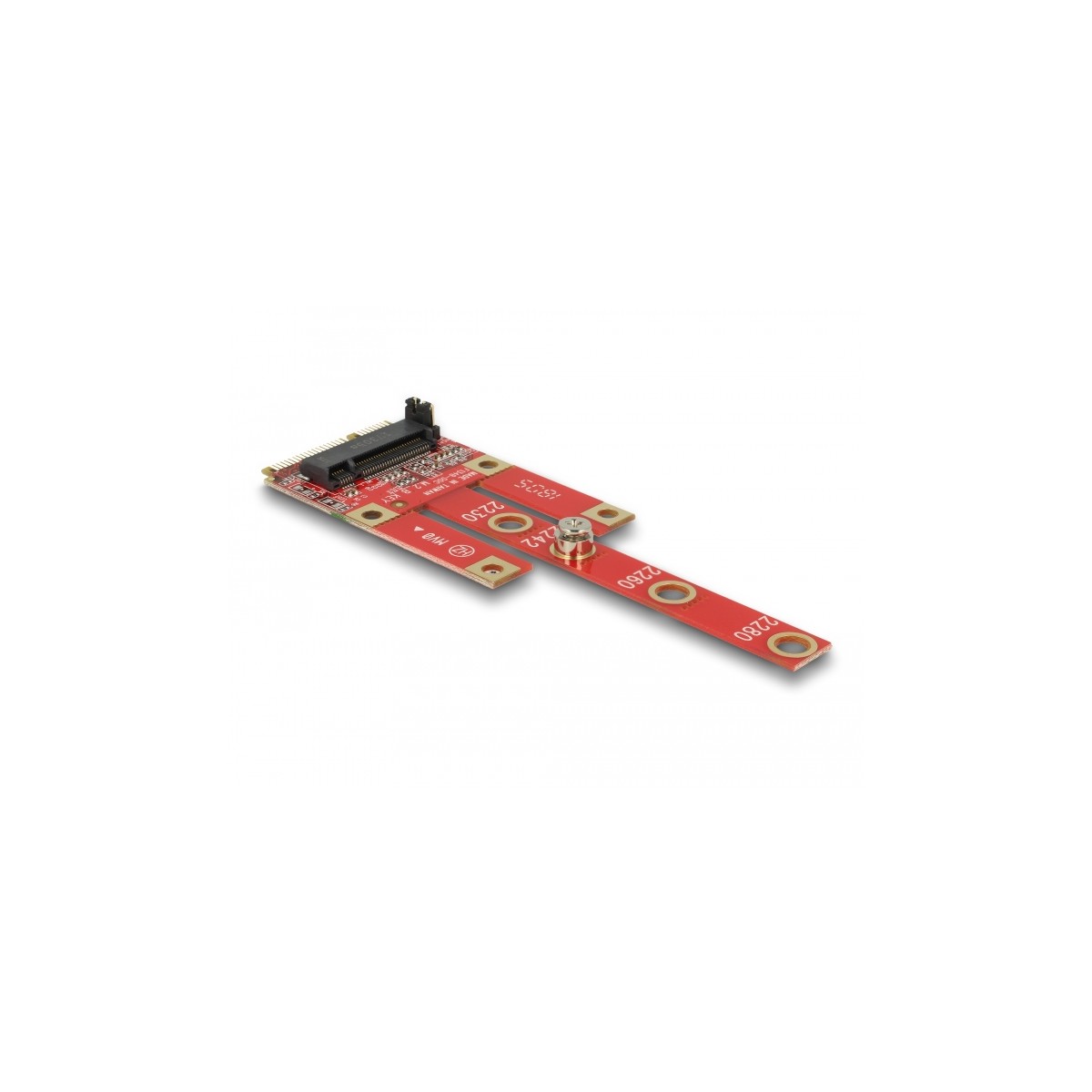

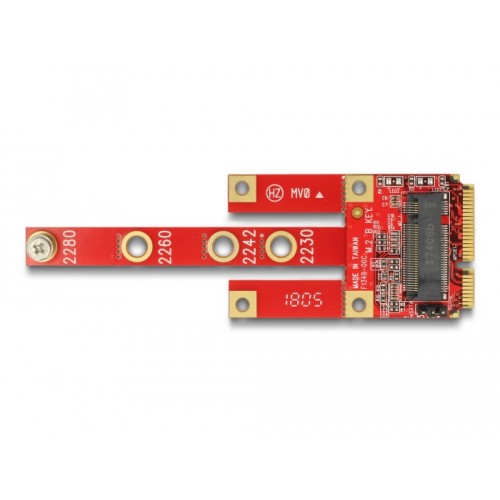

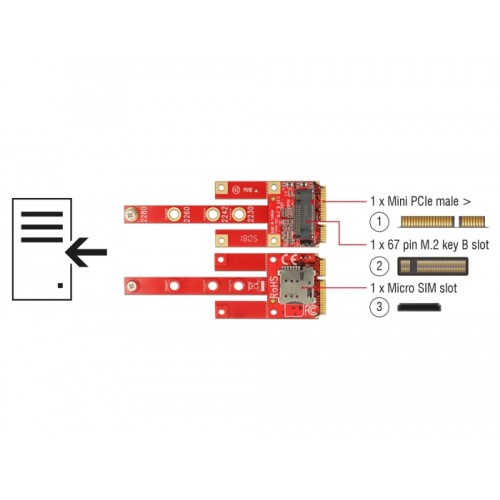

This converter by Delock enables the connection of an M.2 module in 2280, 2260, 2242, 2230, 3042 or 3030 format. The converter can be installed into the system through a Mini PCIe interface. At the predetermined breaking points, the length can be shortened. The converter supports modules with SATA, USB or PCIe (x1) signal transfer. Further there is the possibility to insert a Micro SIM card in the slot and use with an appropriate M.2 module.
Specification
• Connectors:
1 x Mini PCIe male >
1 x 67 pin M.2 key B slot

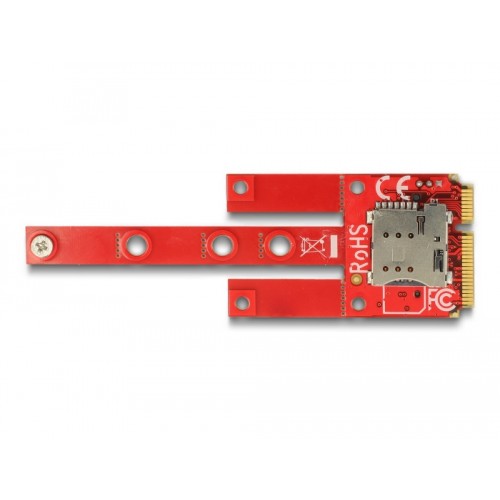

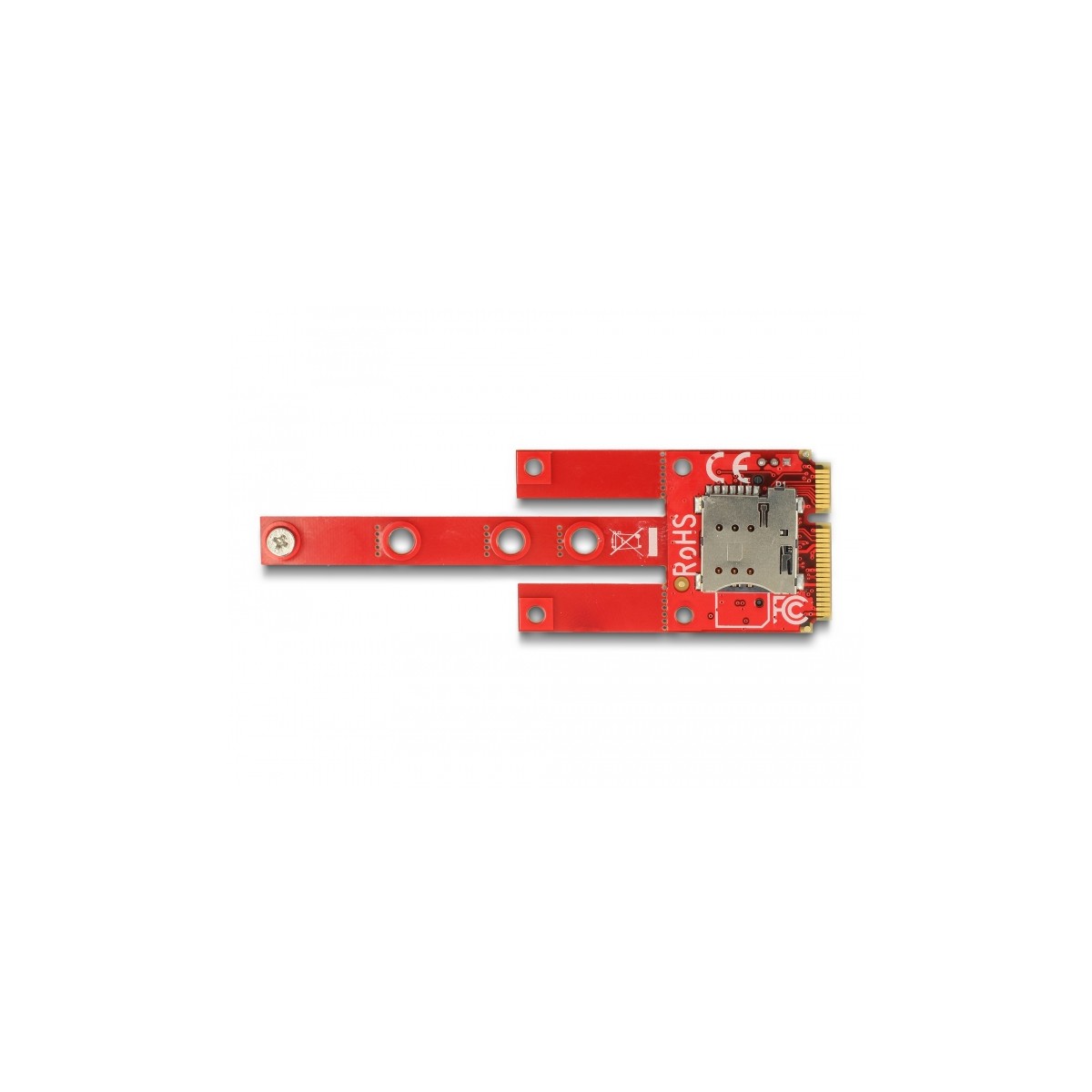

1 x Micro SIM slot
• Interface: USB 2.0 / PCIe / SATA
• Form factor: Mini PCIe full size / half size
• Supports M.2 modules in format 2280, 2260, 2242, 2230, 3042 and 3030
with key B or key B+M based on USB / PCIe / SATA
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Jumper for PCIe / USB or SATA module setting
• Dimensions (LxW): ca. 93 x 30 mm
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 2.6.38
• Motherboard with a free Mini PCIe slot with a USB / PCIe / SATA interface
Package content
• Converter

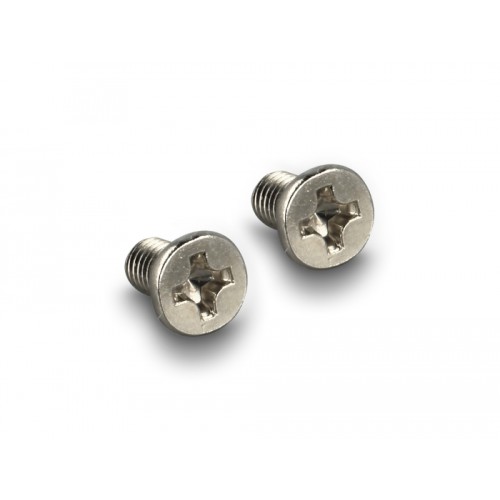

• Screws
• User manual
Package
• Retail Box
New
4043619633845
